Multi function Pleating Machine

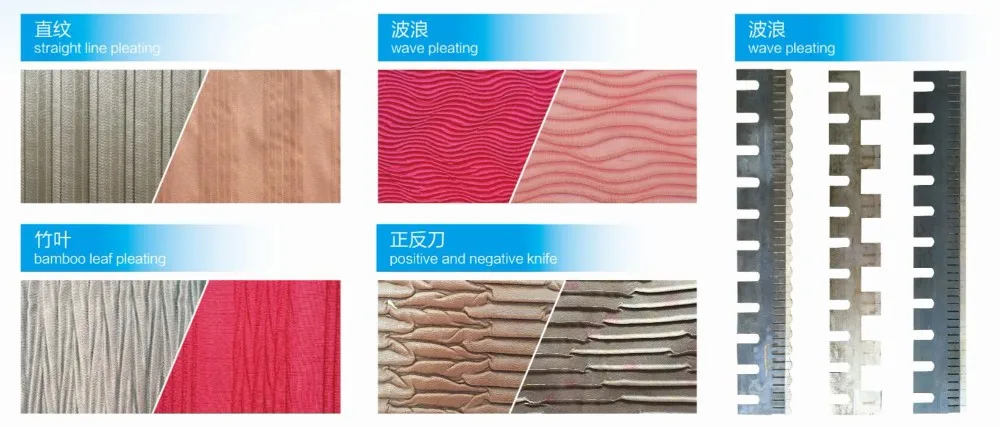

This pleating machine can be used for processing all kinds of chemical fiber and blended fabrics, PVC, PU, cow leather, and pigskin. This machine has special design, good stereoscopic effect and excellent pattern，and It has lots of patterns for choice, such as bamboo leaf pleating, straight line pleating, wave pleating etc. and such pleating designs’ combination. The bottom of the pleat is from 0.2cm to 2cm, and the surface of the pleat is from 0.3cm to 3.5cm. The distance of transverse motion is 2.5cm.The fabrics after pleating can be made various types of clothing and ornaments, such as pajamas, shirts, children’s garment, and lampshade.

Model	ZJ-210	ZJ-217	ZJ-230
Maximum Pleating Width	1000mm	1700mm	3000mm
Maximum Pleating Speed	80pleats/minute	80pleats/minute	60pleats/minute
Motor Power	1.1KW	1.1KW	1.1KW
Heater Power	9KW	11KW	15KW
Boundary Dimension	2500*1650*1750mm	3200*1650*1750mm	3500*1650*1750mm
Weight	1000kgs	1200kgs	1500kgs

Packing & Delivery

Packaging
Size	3300 (L) * 1750 (W) * 1850(H)
Weight	1200kgs
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
