Truck Ute Crane Pick-Up Crane With Winch Swivel Base
- Category: Other Cranes >>>
- Supplier: Henan,Mapoton,Industrial,Co.,Ltd.
Share on:
Product Overview
Description

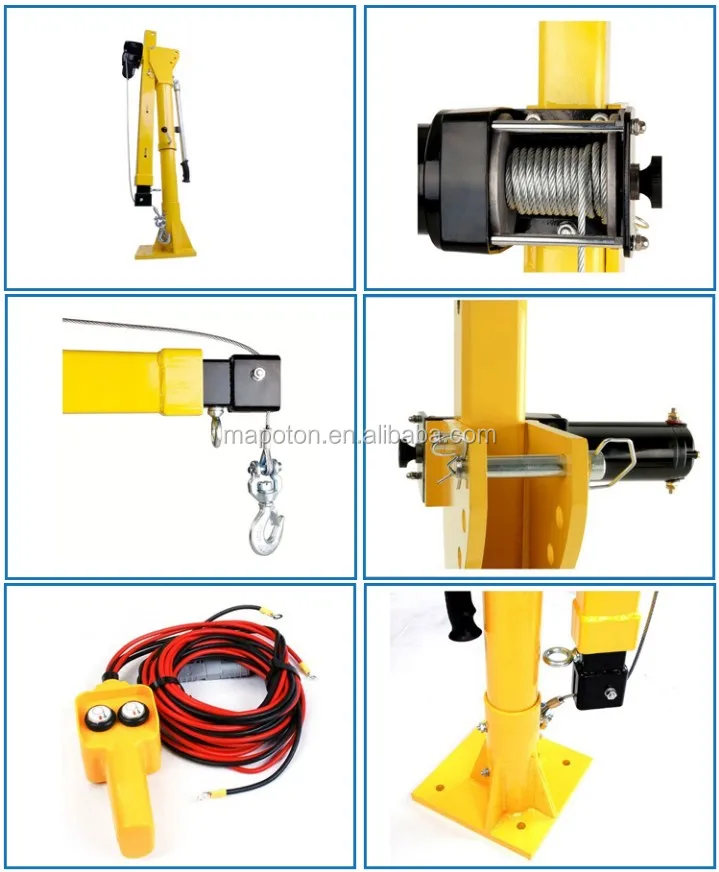

Truck Ute Crane Pick-Up Crane With Winch Swivel Base
12V & 24V Electric Winch Matched With Venhicular Crane Frame
1200 Pound Hand Winch Matched With Venhicular Crane Frame
Product Description
Note:
This type of Car Or Truck Mounted Mini Crane is powered with 12v and 24v or operated with 1200 pound hand winch, which is especially fit for the outdoor places without electricity. It can be used on the light truck, van truck and car, loading bay and platform. The excellent advantage of the equipment is that it has a compact structure, small cover space and lightest weight which is the ideal choice to lift the small quantity goods. The characteristics of the vehicular crane are as below,
A.The biggest lifting weight is 500kg
B.The highest size of the lifting arm gets to 1950mm
C.The longest size of the lifting arm gets to 1500mm
D.The lifting arm can be rotated for 360 degrees, the diameter of the steel wire rope is 5.0mm, the length of it is 4.5m-15m
E.The rotation arm can be folded
F. Adjustable arm angle against the pillar
G. Easy assemble and deassemble manually

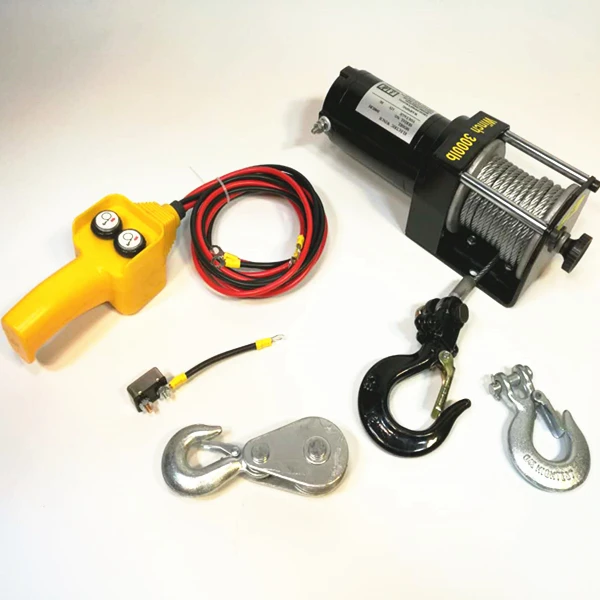

12V&24V 3000LB Electric Engine
1200 Pound Automatic Self-Lock Hand Winch
| The Detailed Data of Vehicular Mini Crane | |
| Operation Kind | 12V &24V 3000LB for electric engine
1200 pound automatic self-lock for hand winch |
| Power Source | Battery Direct Current |
| Loading Weight | Single Rope: 250KG Double Rope: 500KG |
Line speed with No Load | 3m-4m/min |
Length of Steel Wire Rope | 4.5m-15m |
Highest Size of the Lifting Arm | 1950mm |
Longest Size of the Lifting Arm | 1500mm |
Diameter of Steel Wire Rope | 5.0mm |
Mounting Base | 250x250x18mms |
| Mounting Bolt Hole Pattern | 170x170mms |
| Packing Size | 138x37x37cm |
| Weight | N.W.58kgs |
Advantages | 360° Manual rotation arm Euipped with automatic positioning device Can be Folded, fit for any field |
Welding Treatment | Firm and durable for welding, no trachoma welds |
Cover Material | Apply with the electrostatic spray kind with long lifespan. Fine workmanship |
Specification | Light shelf, easy installation, can be artificially regulated the up-looking degree and the length of the rotation arm |

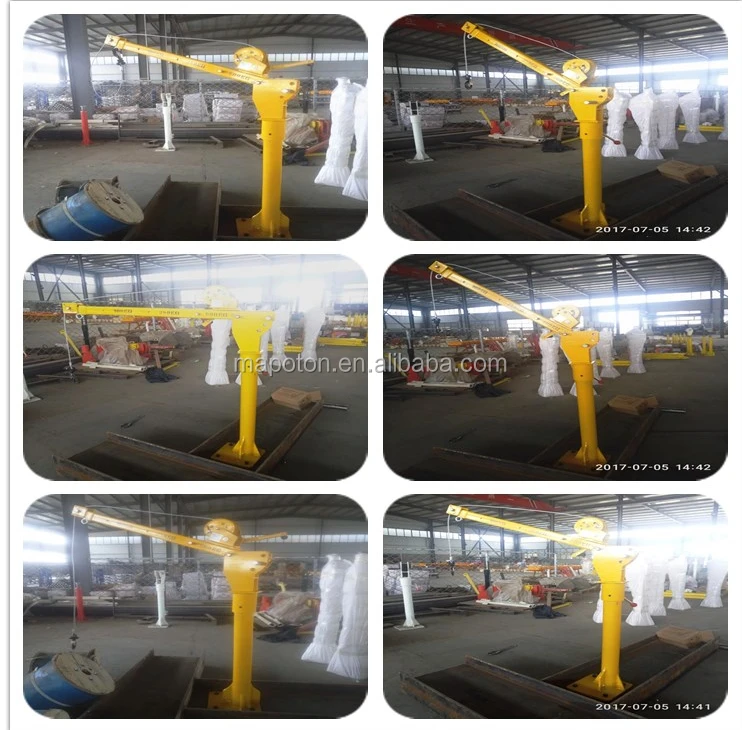

Product Test
12V & 24V Electric Winch Matched With Venhicular Crane Frame
1200 Pound Hand Winch Matched With Venhicular Crane Frame

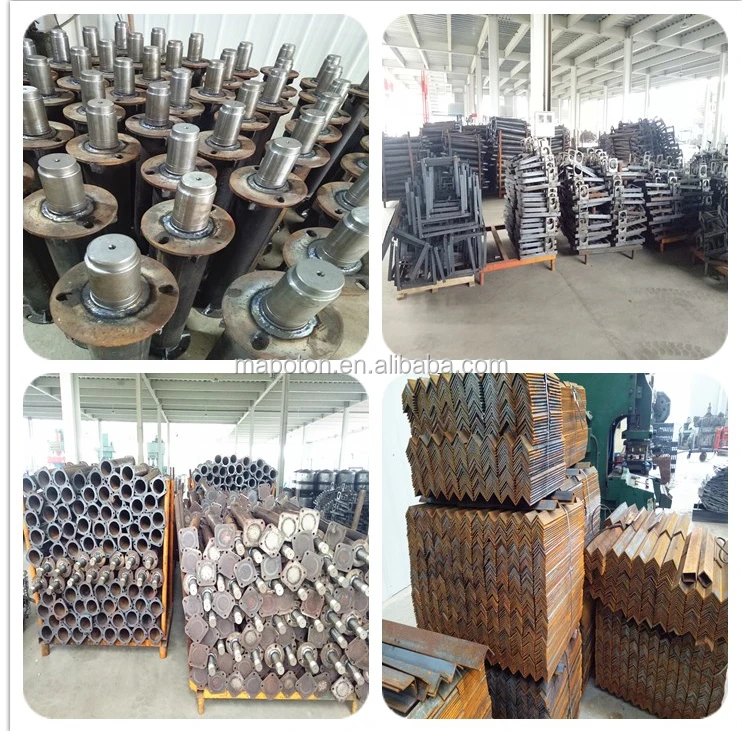

Production Flow
Packaging & Shipping
Exhibition & Fair
CE & ISO Certificate
FAQ
1.Q: Are you the direct factory?
A: Yes, we are the direct factory for 24 years even though we registered as a foreign trading company.
The address of our factory is : NO. 18 South Road, NO. 2 West Ring, Donglv Industry Zone, Qingyuan District, Baoding City, Hebei Province, China. Sincerely welcome to come and visit!
2.Q: MOQ?
A: One set is ok.
3.Q: Can you accept payment terms?
A: Alibaba Trade Assurance, T/T, Western Union, Credit Card, etc.
4.Q: Delivery time?
A: If in stock,1~3 days;If not in stock,normal 5~15 days; Or according to the order.
5.Q: Warranty?
A: One year for the electric engine. We can also provide permanent accessories repair and replacement services.
6.Q: Do your products can be customized?
A: Yes,our all kinds of electric winch can be customized design according to each client's demands. And we can provide label and company name customized services. We provide OEM services!
7.Q: What kinds of certificates about your products?
A: Normally,we have CE,ISO, PVOC,SGS, SONCAP certificates, of course our products make some other certificates according to our clients' specific requirements.
8.Q: How to guarantee the quality and operation when the products leave factory?
A: We test each parts of all products before products leave factory and guarantee the successful operation. No-test or failure-test products are prohibited leaving factory.
9.Q: We have a container in other factory or supplier, can you send cargos there?
A: Yes, we will as long as you send us the detailed address of the place you want to send. Or it is also ok when you want to send other cargos to our factory.
10.Q: How can I get a accurate quotation?
A: Tell and send us the product photo you want, electricity voltage, lifting height(length of the steel wire rope), lifting weight, quantities, FOB/CFR/CIF price or other detailed requirements.
11.Q: What is your HS code?
A: 8428909090 for mini crane and aluminum electric winch; 8425110000 for mini electric hoist
12.Q: How about the installation?
A: First, easy installation. Then, along with the cargos packages, we enclose the detailed installation and operation instructions; we can also send you the detailed installation videos.
