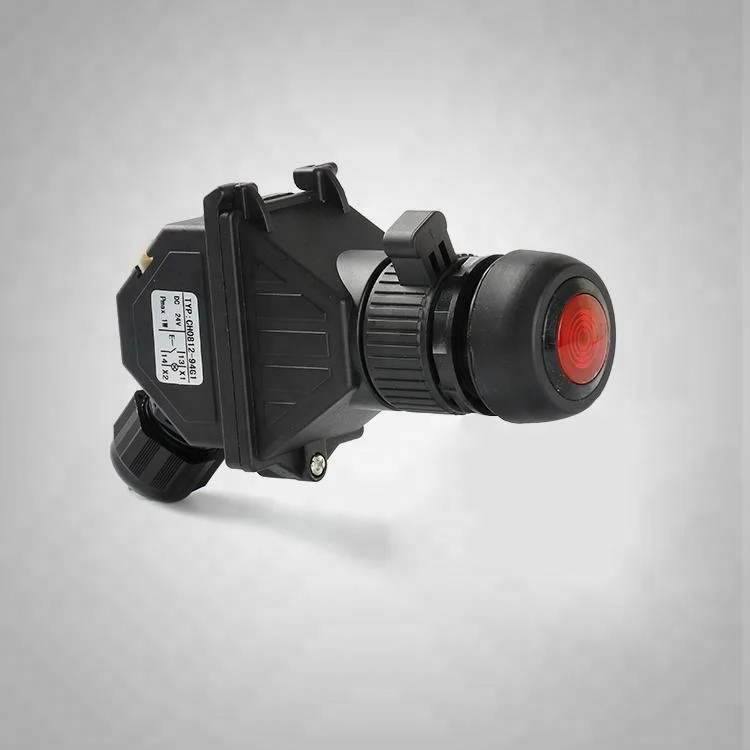

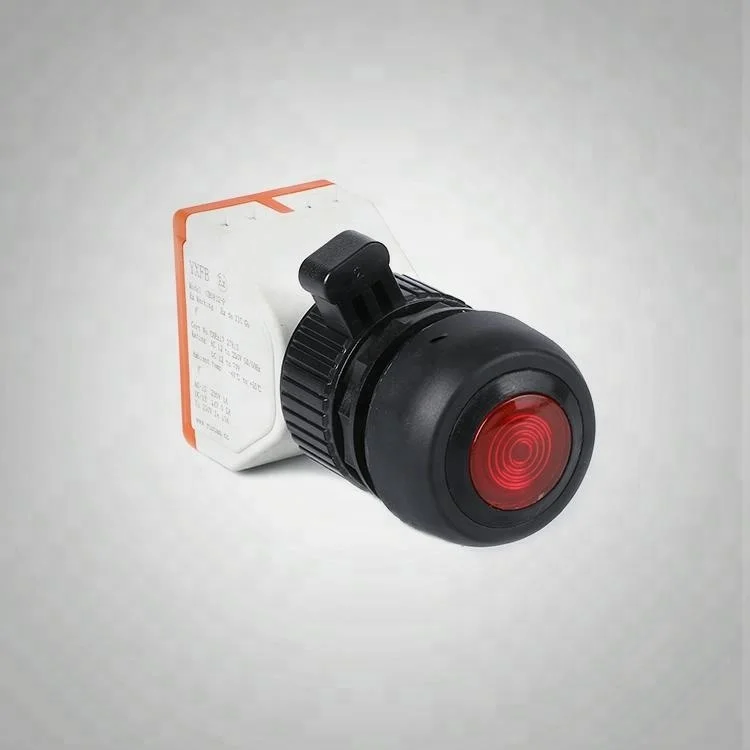

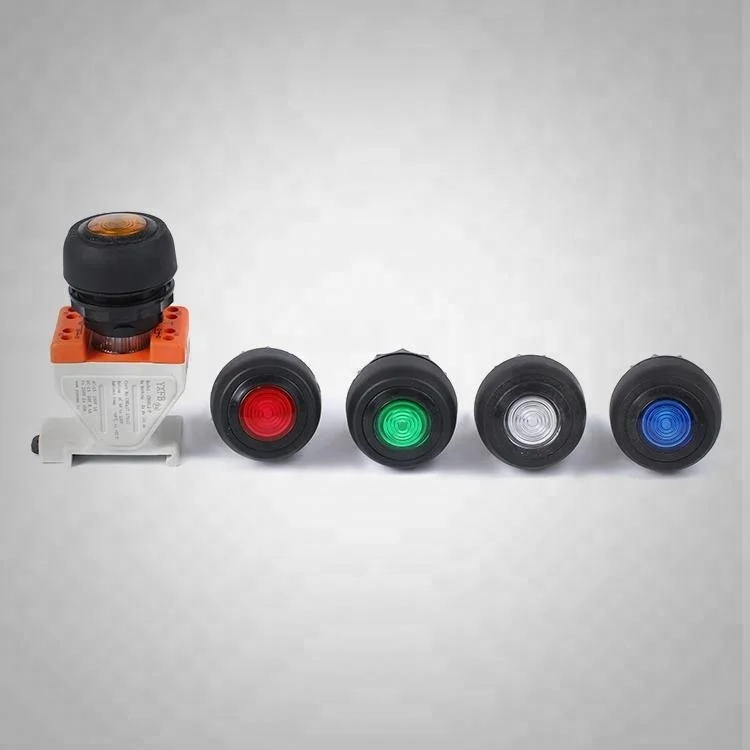

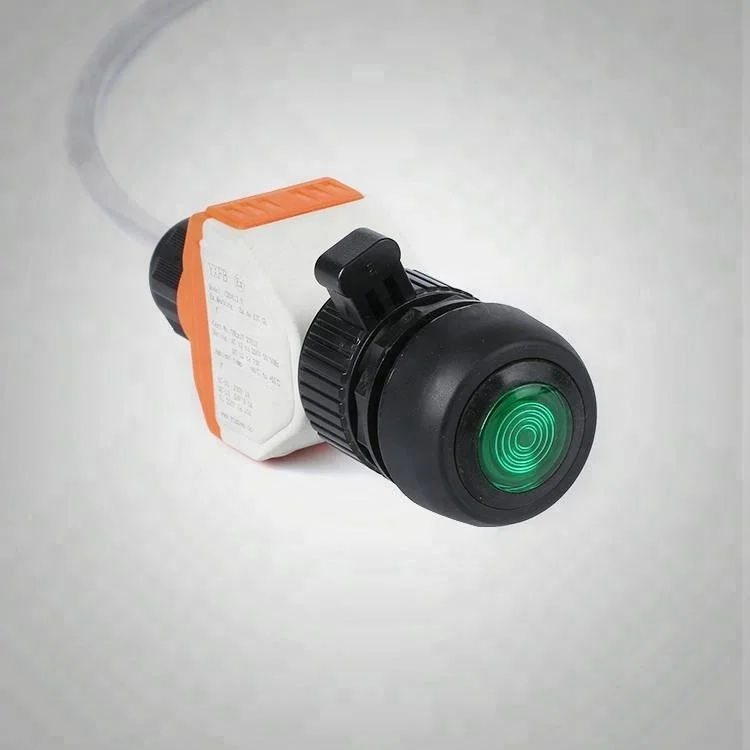

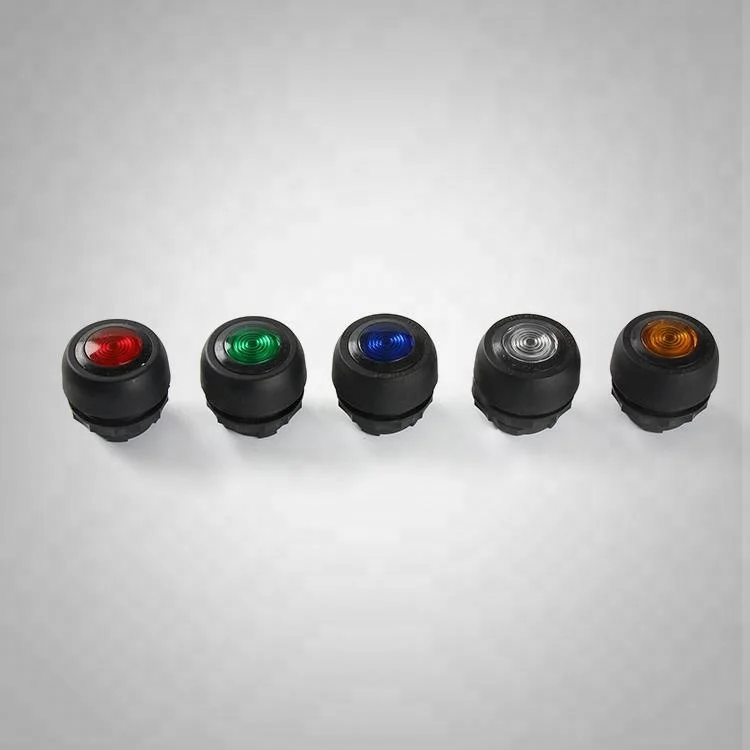

Explosion proof plastic push button switch with LED lamp

 Ex mark:Ex de IIC
Intended use:Can be used in zone 1 and zone 2
Ambient temperature use:-55≤Ta≤60
Degree of protection:IP20
Button:     Conventional closed heating current10A
Rated voltage:    250V/24V
Regimentation use:    AC15 DC13
Rated current:    6A/1A
Mechanical life:    300,000 times
Signal lamp:Light source:      LED
Board back type mounting:     On 1-6mm panel
Power consumption:    Pmax≤1W
Rated voltage:     AC24-240V/DC24-36V
Electric life:     One hundred thousand hours
Board front type mounting:     May be held on mounting rails TS35×7.5 or with screws
Specification of board back cable type cable:     Flexible cable 4×1.5mm2
Length of board back cable type cable:     3mm (diameter: Φ9mm )

Q1.Are you factory?
Vivian:YES,Welcome to visit our company and factory.

Q2:  Could I put my own logo on it?
Vivian: Sure,customers' logo can be printed or put on the items.

Q3: How about the guarantee of the items?

Vivian: According to the actual situation.

Q4: How about the quality?
Vivian: Over 1 year. Each product will be different warranty,please contact us.

Q5: How about the certificates?
Vivian:Ex NEPSI & CNEX

Q6: Could I buy 1pc sample first and small order?
Vivian:Of course,support sample order and small order, especially for new customers under certain condition.

Q7: How long to make a sample?
Vivian: Samples will be prepared around three to five days.

Q8: What payment is acceptable?
Vivian: Normally we accept TT & LC at sight.

Q9.What is the shipping way?
Vivian:DHL,UPS,TNT,EMS,FedEx and so on,we can according customer’s request to ship the goods.

Q10.Can we design packing?
Vivian:YES.We can do customer's own packing.

Q11.Can we customize product?
Vivian:YES.We are OEM.
