RLK131 TLK131 Transmission Parts Keyless Power Lock Device 45*75
US $8.20-$11.00
Z1 Power transmission component ringfeder clamping
- Category: Other Power Transmission Parts >>>
- Supplier: Xianyang Chaoyue Clutch Co. Ltd.
Share on (60747766150):
Product Overview
Description

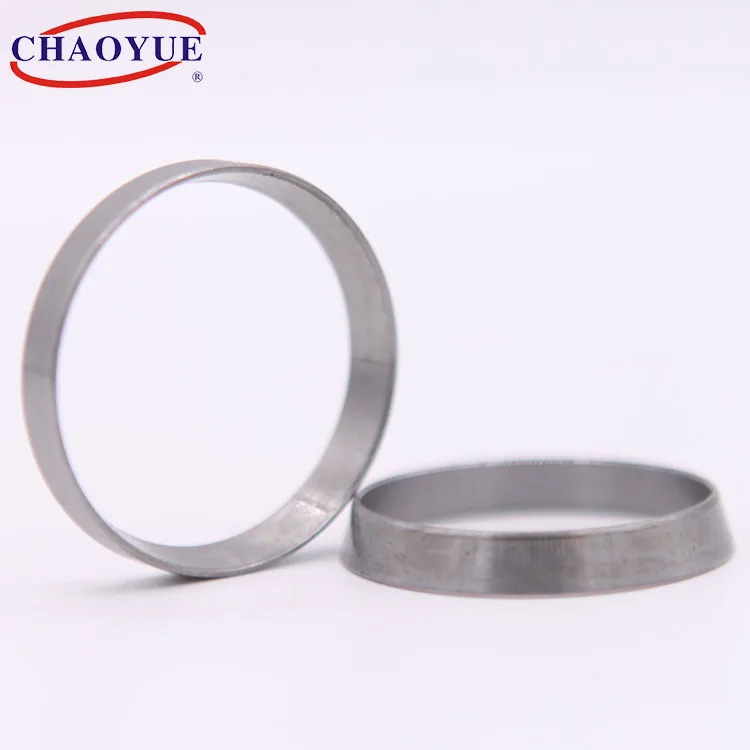

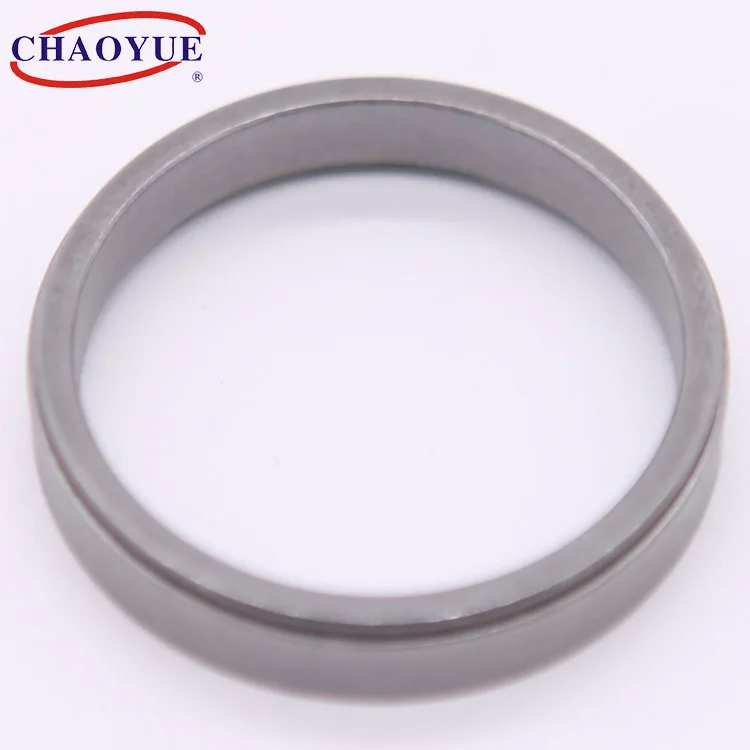

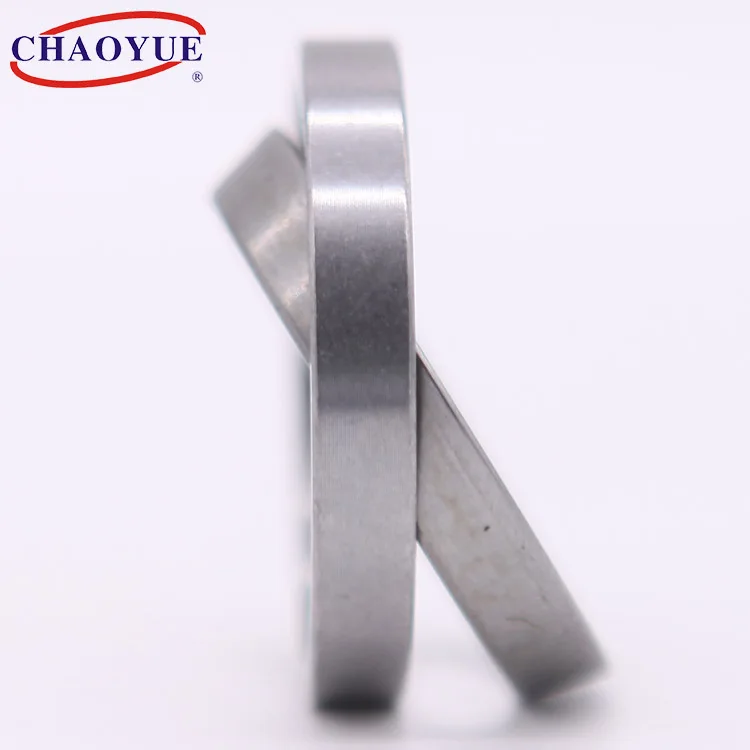

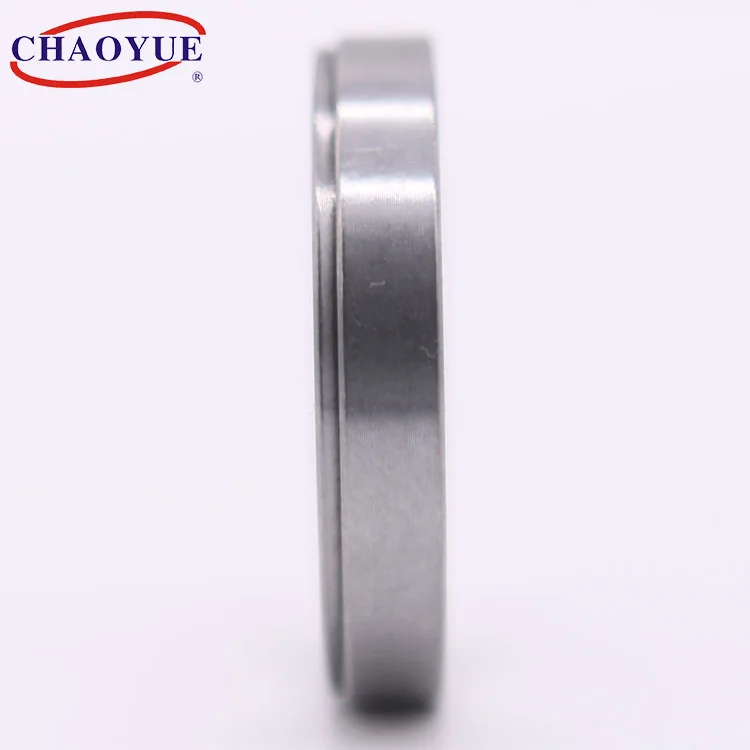

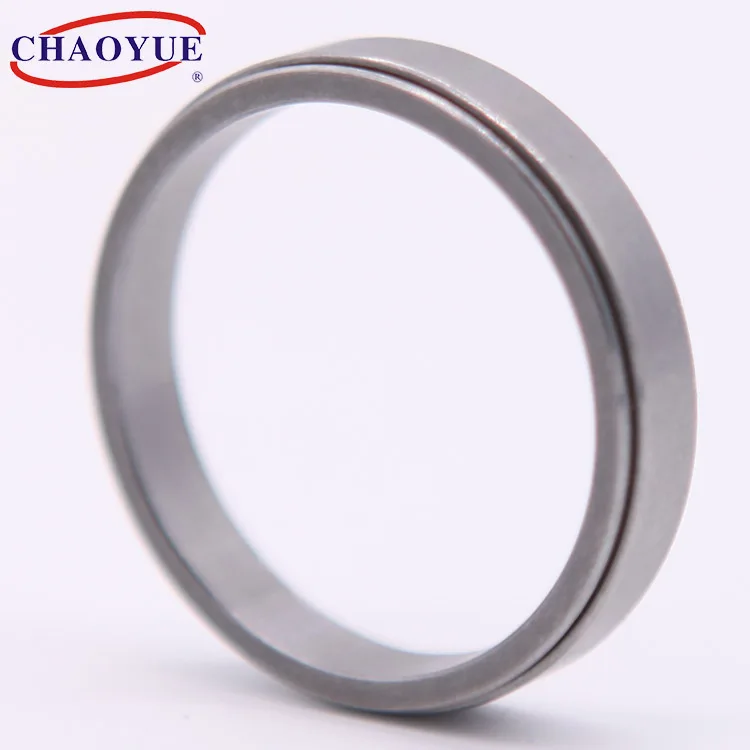

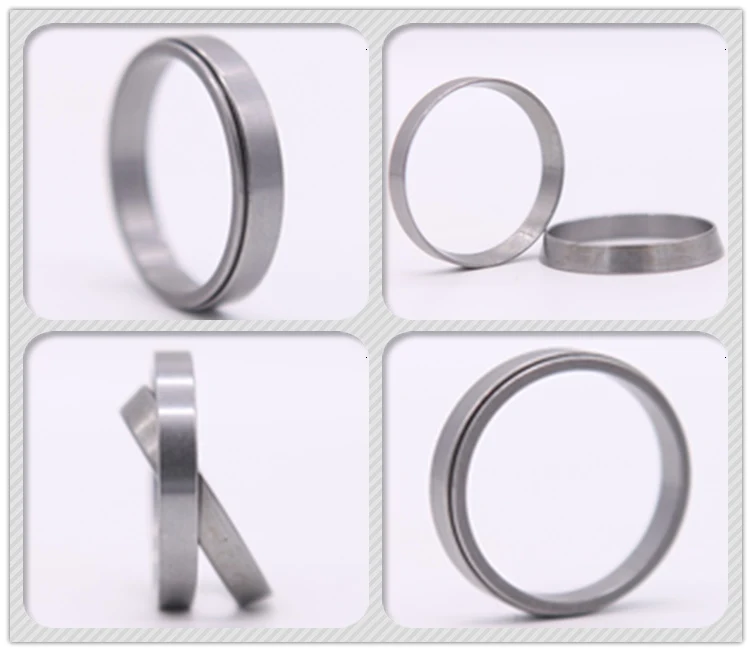

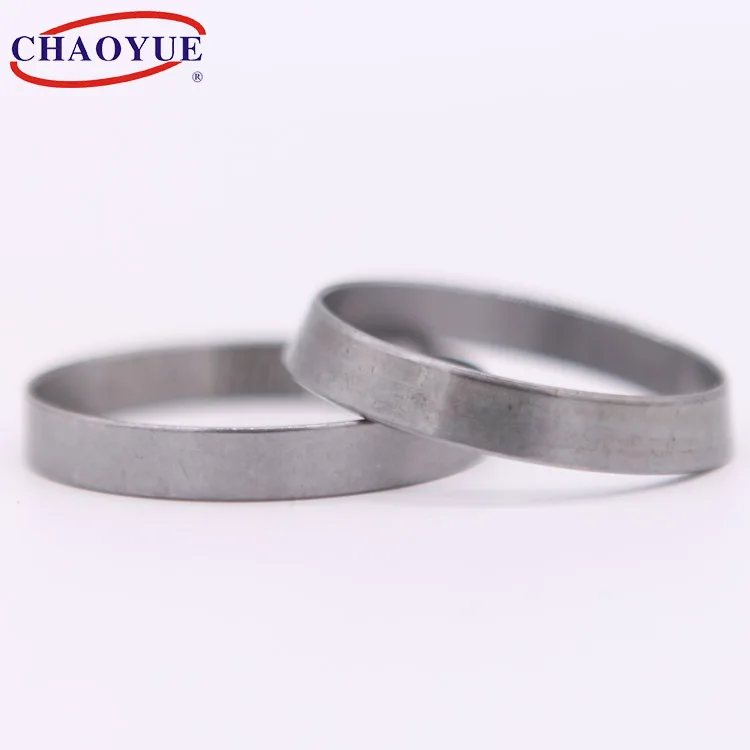

Z1 Power transmission component ringfeder clamping
Product Description
Description:
It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .

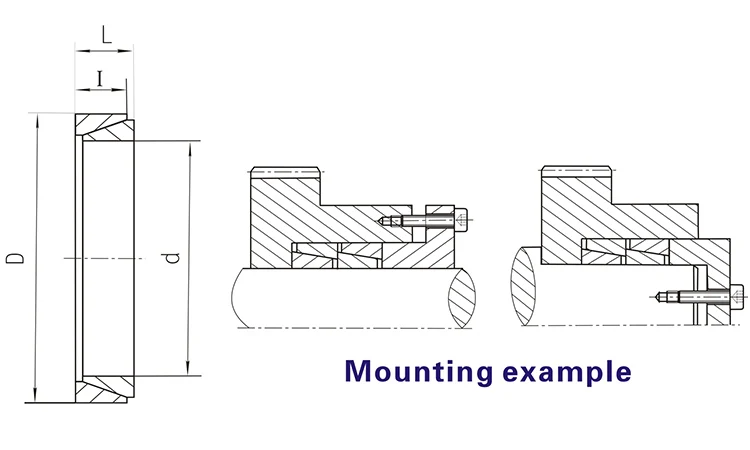

Parameter of Z1 Power transmission component ringfeder clamping
| DIMENSION | Rated load | Weight [Kg] | ||||
d | D | L | I | Axial Force Ft [kN] | Torque Mt [kN·m] | |
10 12 13 14 15 | 13 15 16 18 19 | 3.7 3.7 3.7 5.3 5.3 | 1.4 1.6 1.8 2.8 3.0 | 1.4 1.6 1.8 2.8 3 | 0.007 0.0098 0.011 0.019 0.022 | 0.01 0.01 0.01 0.01 0.01 |
16 17 18 19 20 | 20 21 22 24 25 | 6.3 6.3 6.3 6.3 6.3 | 5.3 5.3 5.3 5.3 5.3 | 3.2 3.4 3.6 3.8 4.0 | 0.025 0.028 0.032 0.035 0.040 | 0.01 0.01 0.01 0.01 0.01 |
22 25 28 30 32 | 26 30 32 35 36 | 6.3 6.3 6.3 6.3 6.3 | 5.3 5.3 5.3 5.3 5.3 | 4.5 5.0 5.6 6.0 6.4 | 0.05 0.06 0.08 0.09 0.10 | 0.01 0.01 0.01 0.01 0.01 |
35 40 45 50 55 | 40 45 52 57 62 | 7 8 10 10 10 | 6.0 6.6 8.6 8.6 8.6 | 8.2 9.9 14.6 16.2 17.8 | 0.15 0.2 0.33 0.4 0.49 | 0.02 0.02 0.04 0.05 0.05 |
60 65 70 75 80 | 68 73 79 84 91 | 12 12 14 14 17 | 10.4 10.4 12.2 12.2 15.0 | 23.5 25.6 32.0 34.4 45.0 | 0.70 0.83 1.12 1.29 1.81 | 0.07 0.08 0.11 0.12 0.19 |
85 90 95 100 105 | 96 101 106 114 119 | 17 17 17 21 21 | 15 15 15 18.7 18.7 | 48 51 54 70 73.2 | 2.04 2.29 2.55 3.50 3.82 | 0.20 0.22 0.23 0.38 0.40 |
110 120 125 130 140 | 124 134 139 148 158 | 21 21 21 28 28 | 18.7 18.7 18.7 25.3 25.3 | 77 84 92 124 134 | 4.25 5.05 5.75 8.05 9.35 | 0.41 0.45 0.62 0.85 0.91 |
150 160 170 180 190 | 168 178 191 201 211 | 28 28 33 33 33 | 25.3 25.3 30 30 30 | 143 152 192 204 214 | 10.7 12.2 16.3 18.3 20.4 | 0.97 1.02 1.50 1.58 1.68 |
200 210 220 240 250 | 224 234 244 267 280 | 38 38 38 42 48 | 34.8 34.8 34.8 39.5 44.0 | 262 275 288 358 415 | 26.2 28.9 37.3 43.0 52.0 | 2.32 2.45 2.49 3.52 4.68 |
260 280 300 320 340 | 290 313 333 360 380 | 48 53 53 65 65 | 44 49 49 59 59 | 435 520 555 710 755 | 56.5 72.5 83.0 114 128.5 | 4.82 6.27 6.47 10.9 11.5 |
360 380 400 420 450 | 400 420 440 460 490 | 65 65 65 65 65 | 59 59 59 59 59 | 800 845 890 935 998 | 144 160.5 178 196 224.5 | 12.2 12.8 13.5 14.1 15.2 |
480 500 | 520 540 | 65 65 | 59 59 | 1070 1110 | 256 278 | 16 16.5 |
