Reinforced concrete spun pipe making pile poles steel mould

Product Overview

Description

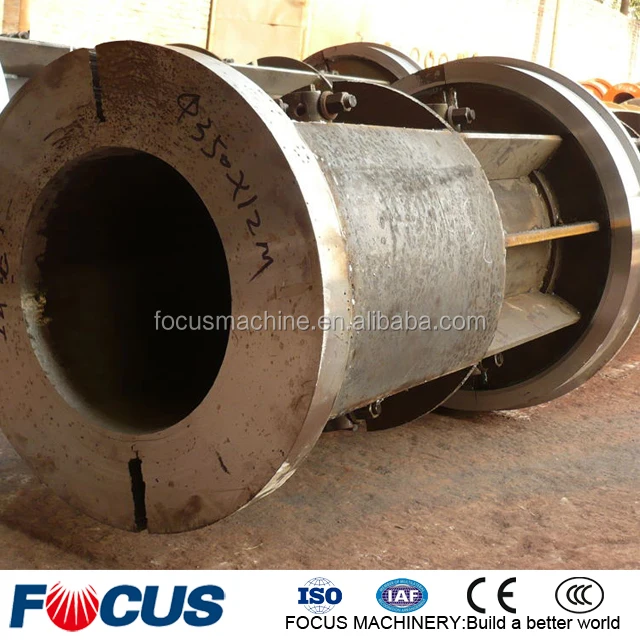

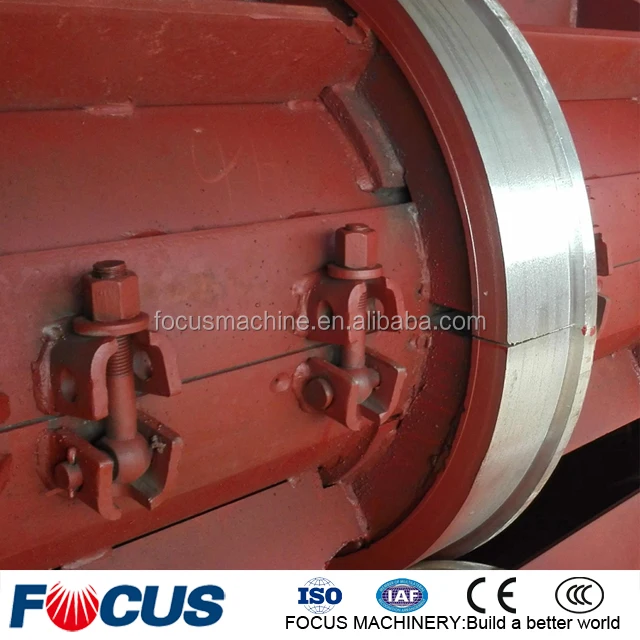

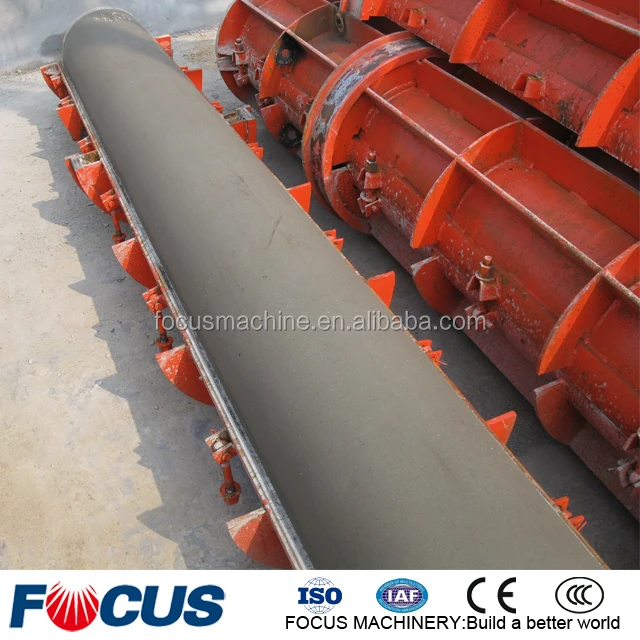

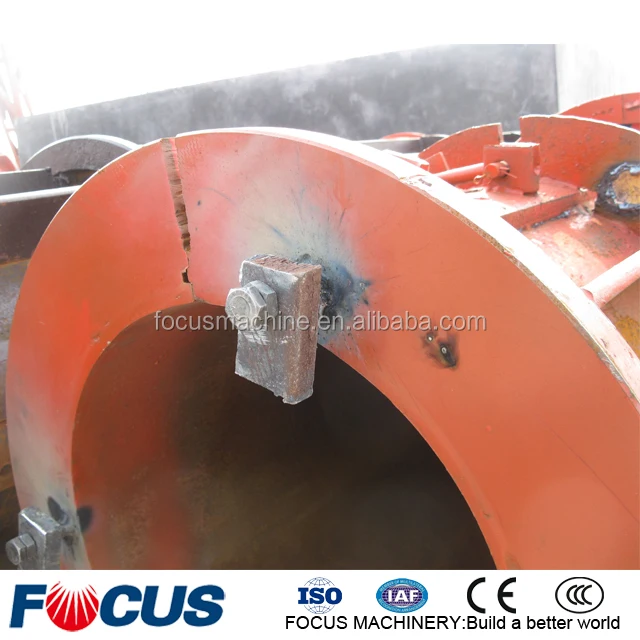

Reinforced concrete spun pipe making pile poles steel mould





Why would our clients choose FOCUS Steel Mould?

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.

Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.

Working Principle

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.

2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.

3. The speed of separation is slow when the viscosity of slurry is high.

4. It is good for centrifugal sedimentation when the slurry density is different in each component.

FOCUS Belt Conveyor Series Steel Mould Technical Parameters:

Inside Ddameter of small end (mm)	Wheelbase(mm)	Wheel Diameter(mm)	Length(mm)
300	2000	510	7-11
350	2000	610	7-11
400	2000	610	7-12
450	2000	710	7-12
500	2000	710	7-12
550	2000	810	7-12
600	2000	810	7-15
800	2000	1010	7-15
1000	2000	1210	7-15

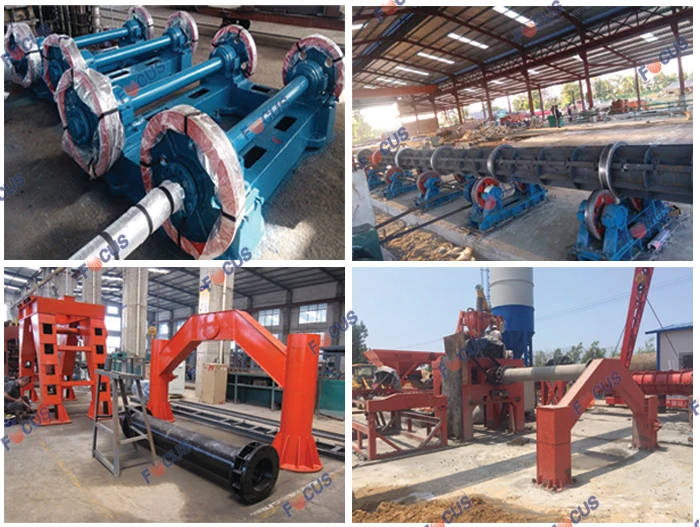

Our Steel Mould have been installed and operated all over the world:

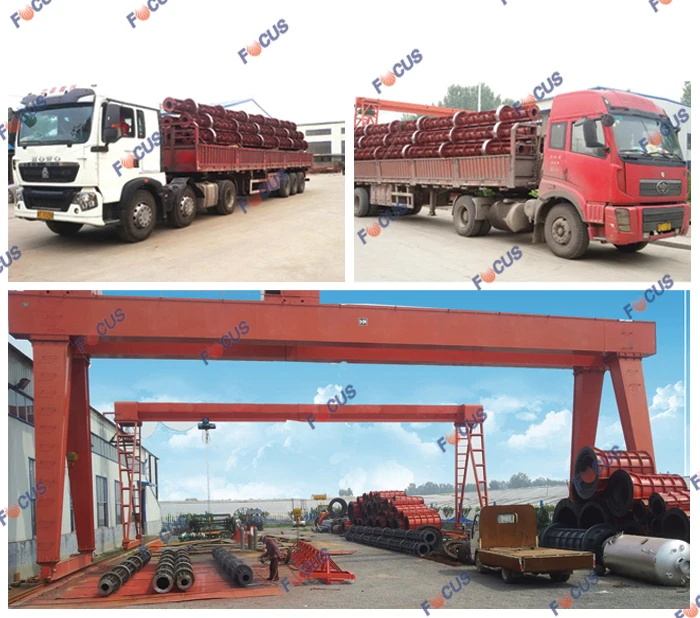

Our Steel Mould have been delivered /distributed to the world and received high reputation-it’ll be such a great honor if you can join us:

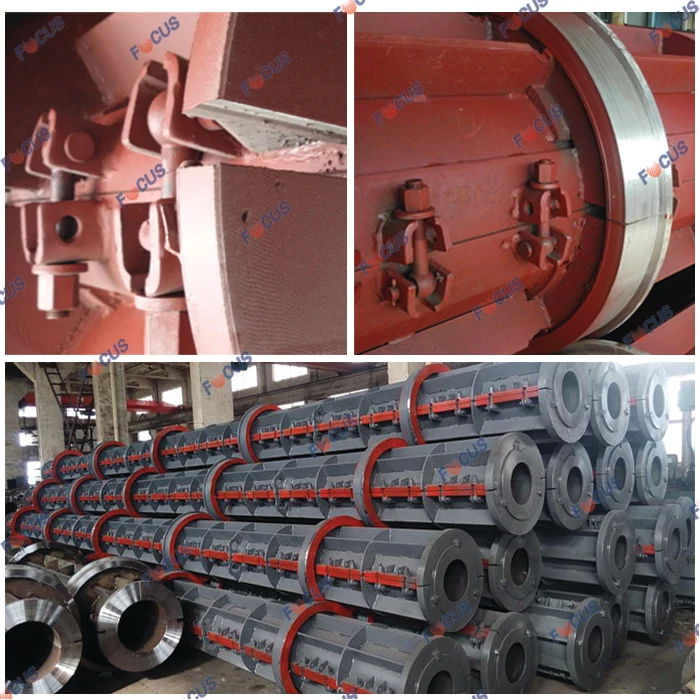

Steel Mould

1.High quality and good price

2.Great after-sale service

3.ISO CE and CE certified,12 months warranty
