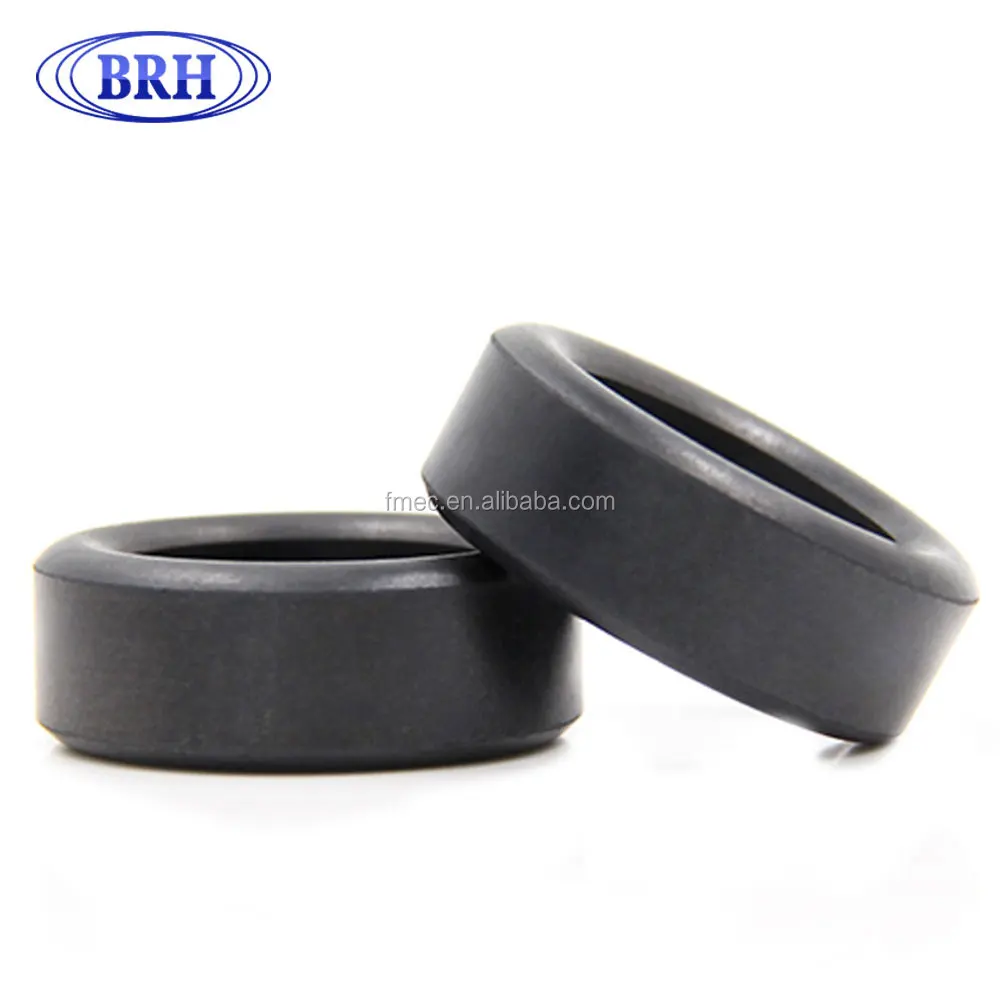

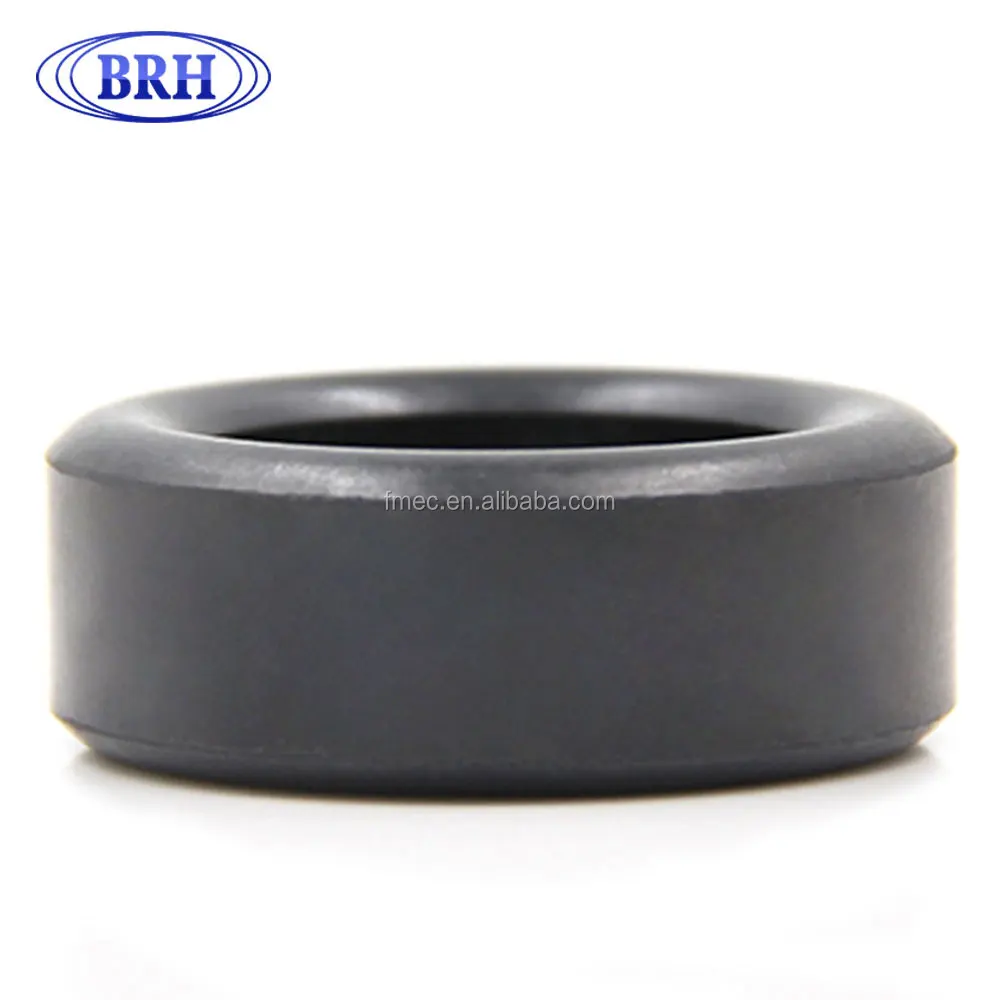

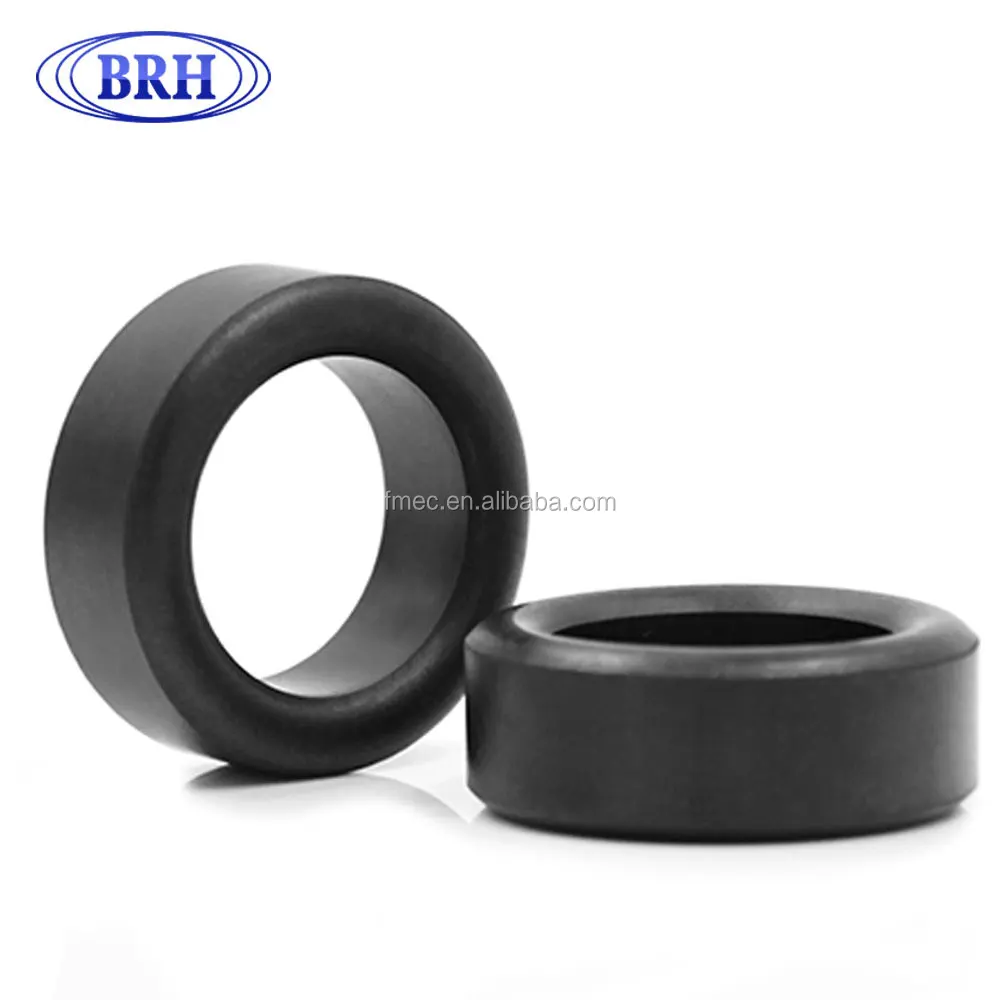

Product Overview

Description


Description
\t

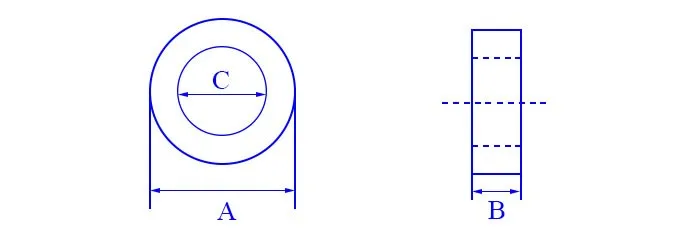

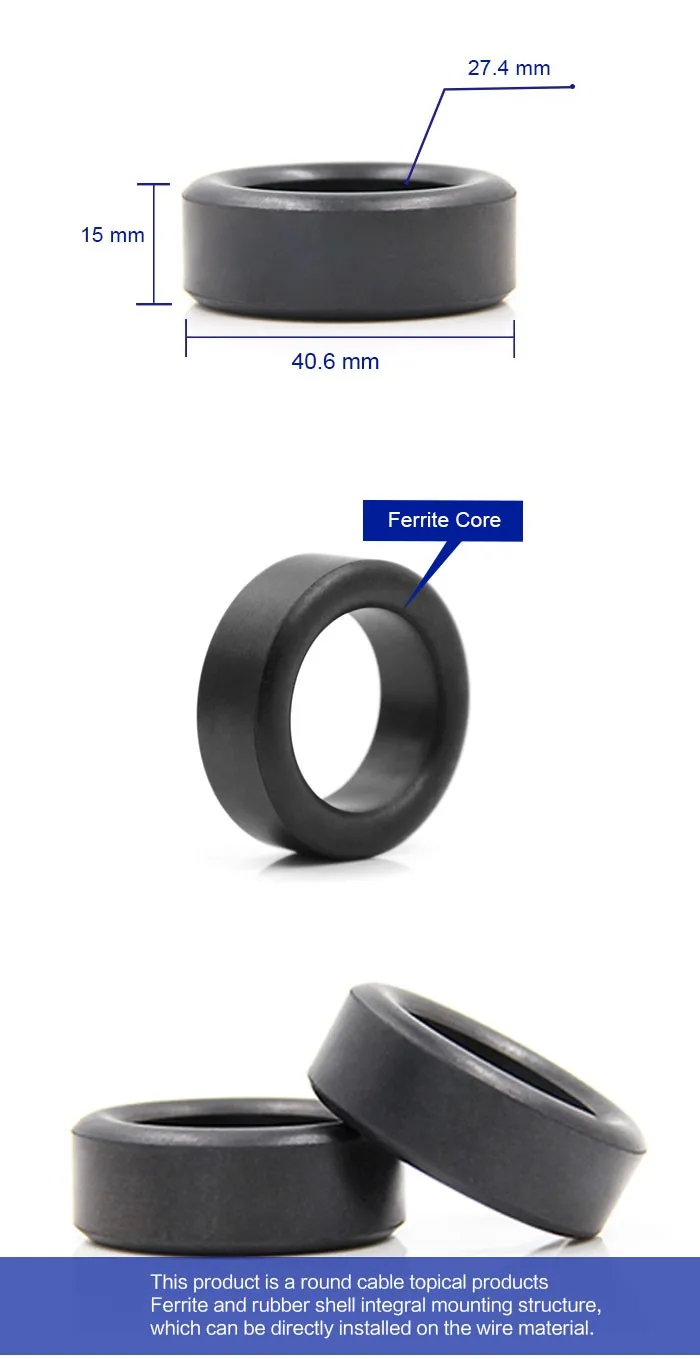

SIZE CODE （mm)
\t
A
\t
B
\t
C
\t
A2 T 40.6*15*27.4
\t
40.6±1.20
\t
27.4±0.90
\t
15.0±0.70

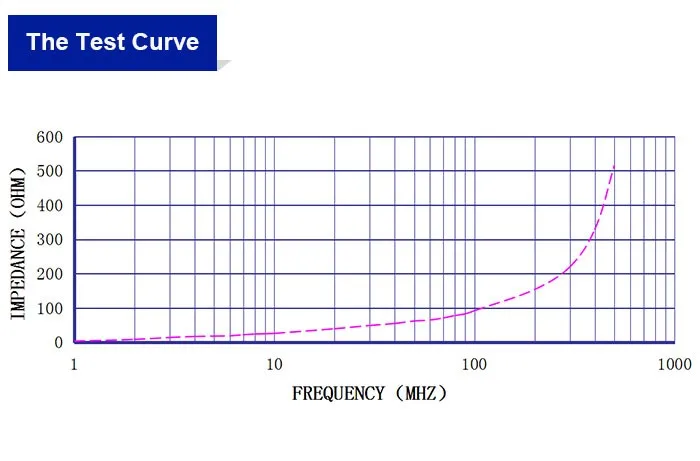

Parameter
\t
Electrical Requirements
\t
SIZE CODE （mm)
\t
A2 T 40.6*15*27.4
\t
25 MHz
\t
37Ω MIN
\t
100 MHz
\t
79Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
Suggest
\t
37Ω MIN
\t
79Ω MIN
\t
40.6±1.20
\t
27.4±0.90
\t
15.0±0.70
\t
1
\t
45.01
\t
90.35
\t
40.59
\t
27.62
\t
14.89
\t
2
\t
46.02
\t
92.04
\t
40.57
\t
27.63
\t
14.82
\t
3
\t
45.04
\t
93.01
\t
40.52
\t
27.68
\t
14.92
\t
4
\t
44.98
\t
92.01
\t
40.53
\t
27.70
\t
14.93
\t
5
\t
44.16
\t
93.01
\t
40.60
\t
27.63
\t
14.87
\t
6
\t
45.30
\t
93.01
\t
40.53
\t
27.60
\t
14.89
\t
7
\t
44.25
\t
90.04
\t
40.61
\t
27.64
\t
14.85
\t
8
\t
44.15
\t
91.05
\t
40.59
\t
27.50
\t
14.82
\t
9
\t
47.01
\t
92.45
\t
40.58
\t
27.59
\t
14.85
\t
10
\t
46.15
\t
91.05
\t
40.53
\t
27.58
\t
14.85
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
45.21
\t
91.80
\t
40.57
\t
27.62
\t
14.87
\t
R
\t
2.86
\t
2.97
\t
0.09
\t
0.20
\t
0.11
\t
The above test data for reference，Actual results may differ due to different production batches
