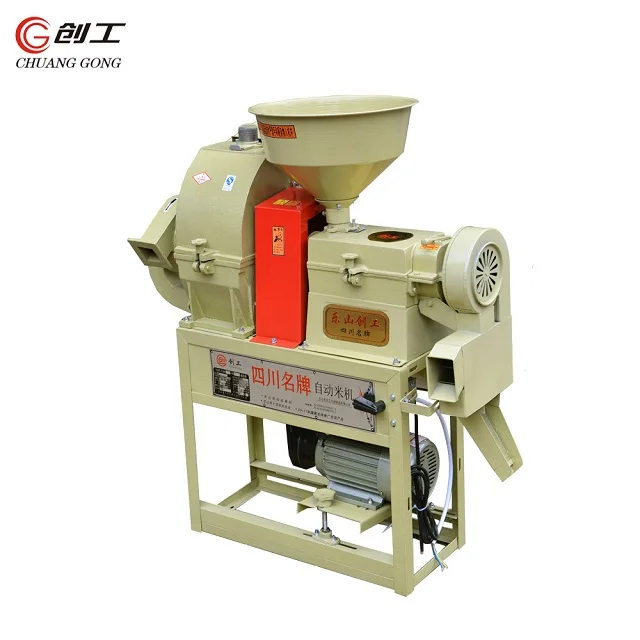

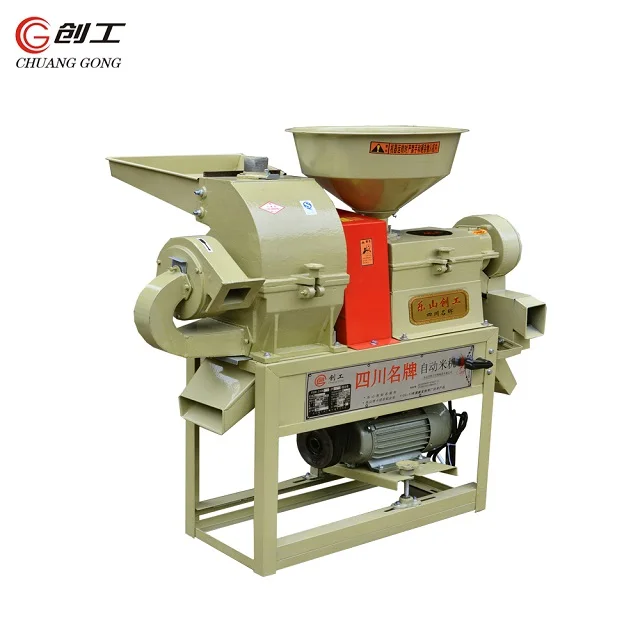

Mini rice mill combined with poultry feed making machine 6N75-9FQ20
Main Technical Parameters
Rice Miller
Grinding Machine
Model No.
6N75
Model No.
9FQ20
Rate Power(kw)
1.5-2.2
Rate Power(kw)
1.5-2.2
Rate Voltage(v)
220
Rate Voltage(v)
220
Capacity(kg/h)
≥150
Capacity(kg/h)
≥150
Power Consumption(kw.h/t)
≤15.0
Power Consumption(kw.h/t)
≤9.0
Head Rice Rate(%)
≥75.0
Temperature Rise
≤20.0
Rice Roller Diameter(mm)
φ75
Sieve Circle Diameter(mm)
φ2
Roller Speed(r/min)
1400-1910
Spindle Diameter(mm)
φ200
Motor Speed(r/min)
2800
Spindle Speed(r/min)
4850
Sieve Circle Diameter(mm)
φ85
Motor Diameter(mm)
φ170
Dimension(mm)
1110*560*1260
Packing Size(mm)
690*570*320
Gross Weight(kg)
91
Feature
1.Mini rice milling machine 6N75-9FQ20 is combined with rice mill and grain crusher. 2.Has two functions:make paddy into brown rice and separate brown rice, broken rice,bran automatically, grind grain to powder like rice bran, cassava, corn, sorghum, bean and straw. 4.Adopts the patent collection bran products, the fine bran and fine powder without refined rice. 5.The Screen mesh can be customized. Different size of screen mesh control the size of power. 6.Hammer type is more efficient and suitable for both granular grain and feed making like corn cob, straw. 7.Convenient to maintain and clean the cover. Easy to operate and exchange the broken parts. 8.Electric motor or diesel engine can be selected. 9.Optional with or without fan can be selected. 10.The color can be customized and it’s ok for your non-standard machine.
