Высококачественный композитный цилиндр pcp 300 бар/резервуар для подводного плавания с клапаном
- Category: Swim & Diving Clothing & Accessories >>>
- Supplier: Liaoning Alsafe Technology Co. Ltd.
Share on (60747860165):
Product Overview
Description
Product Description

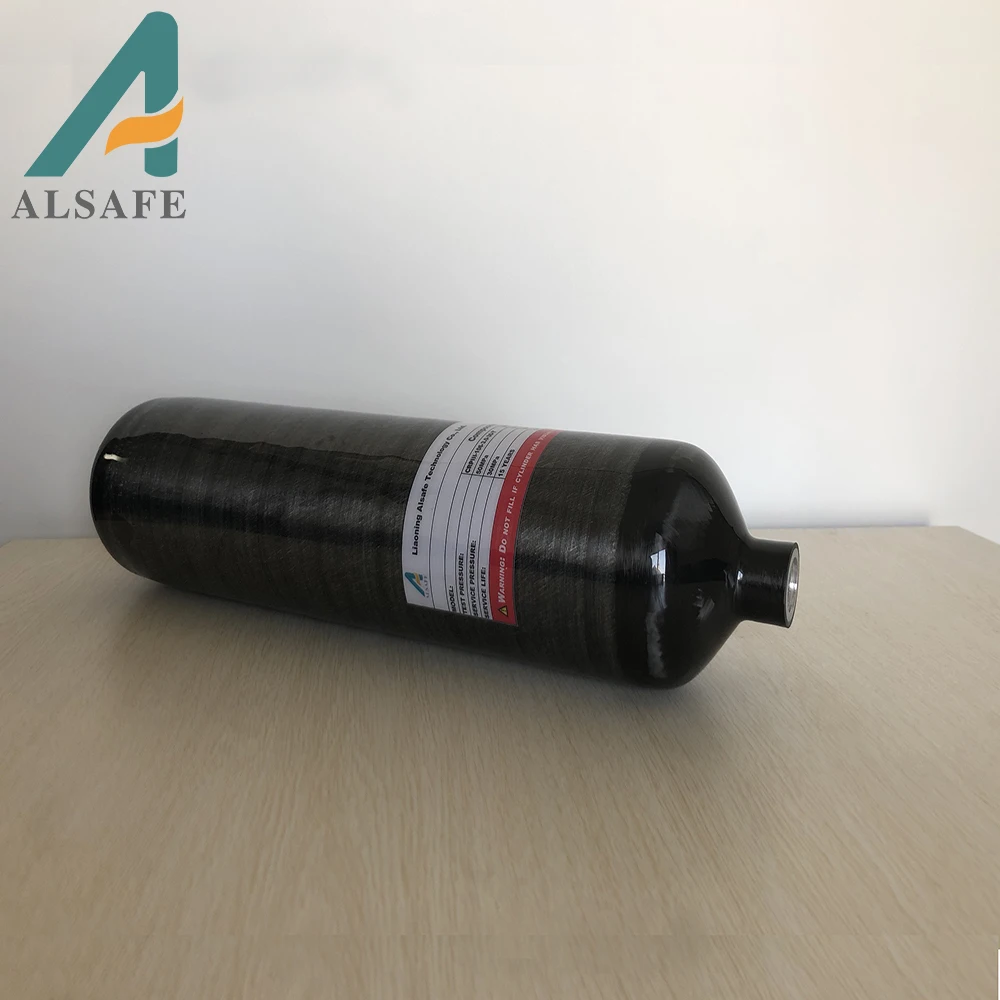

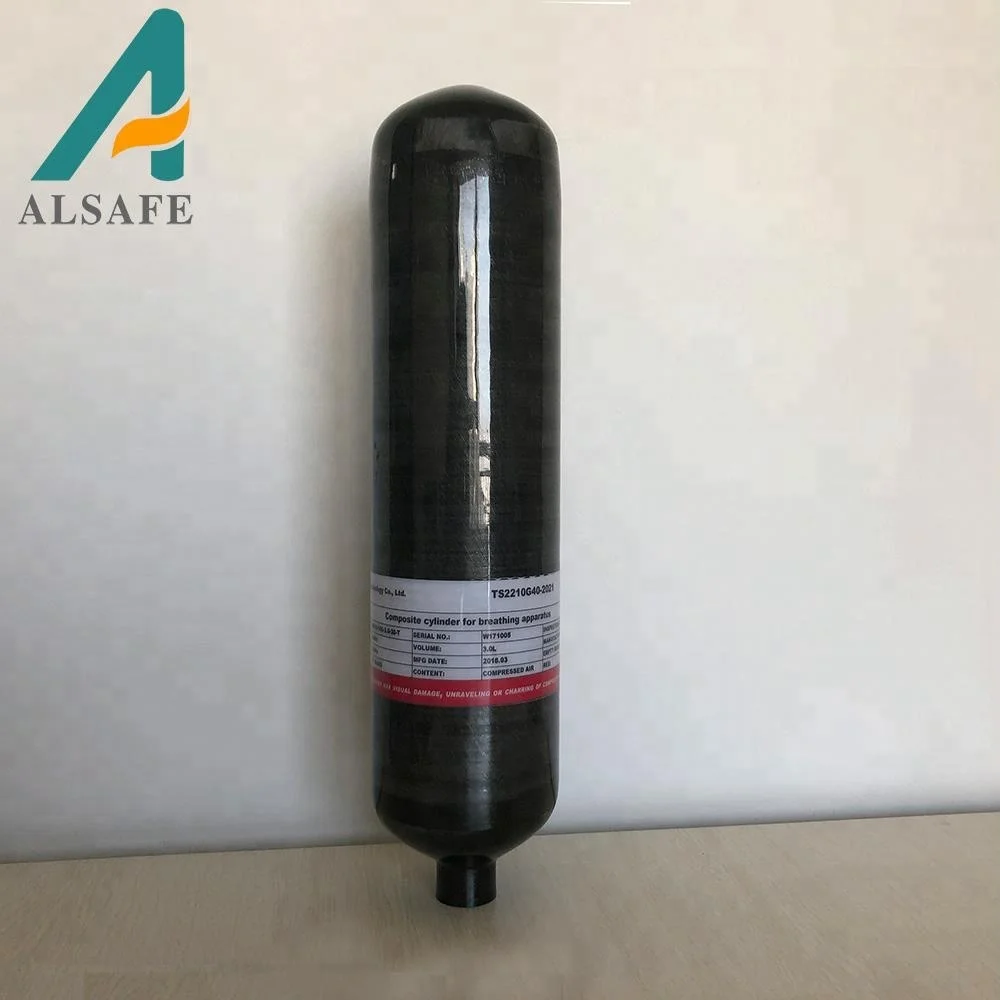

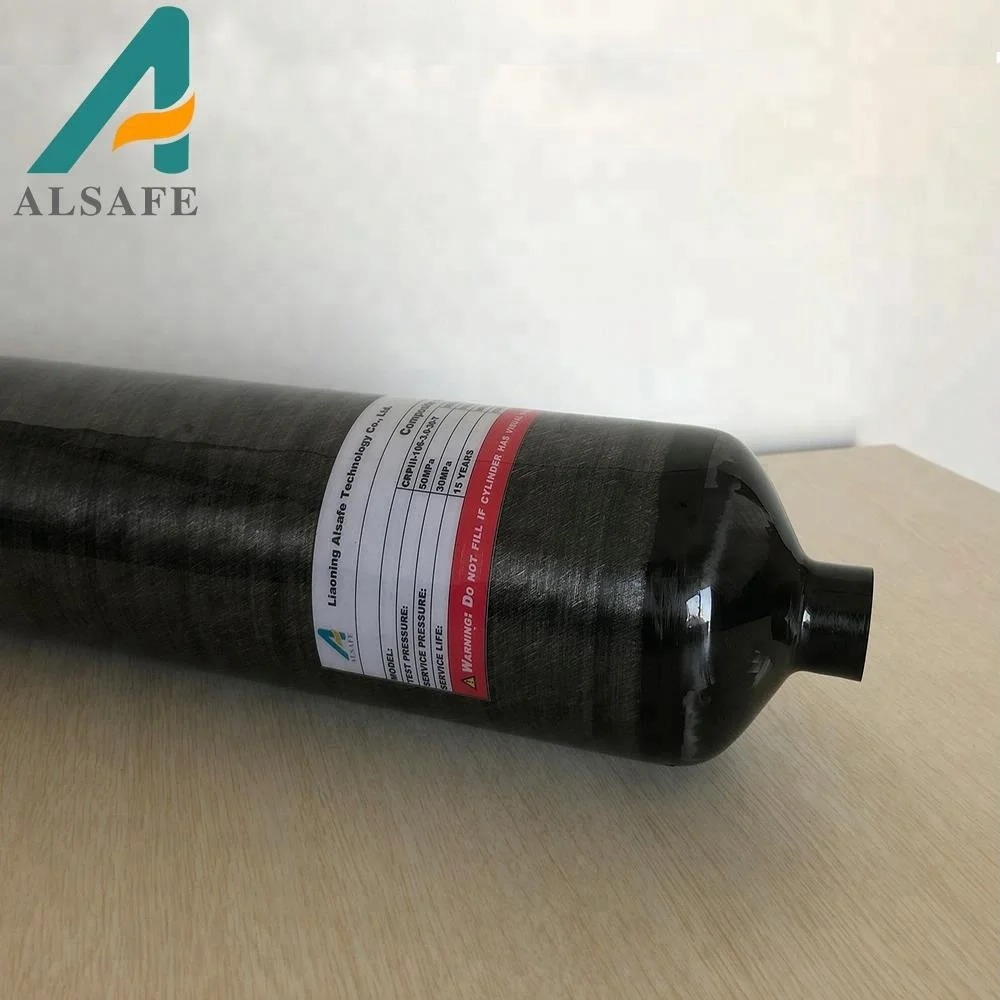

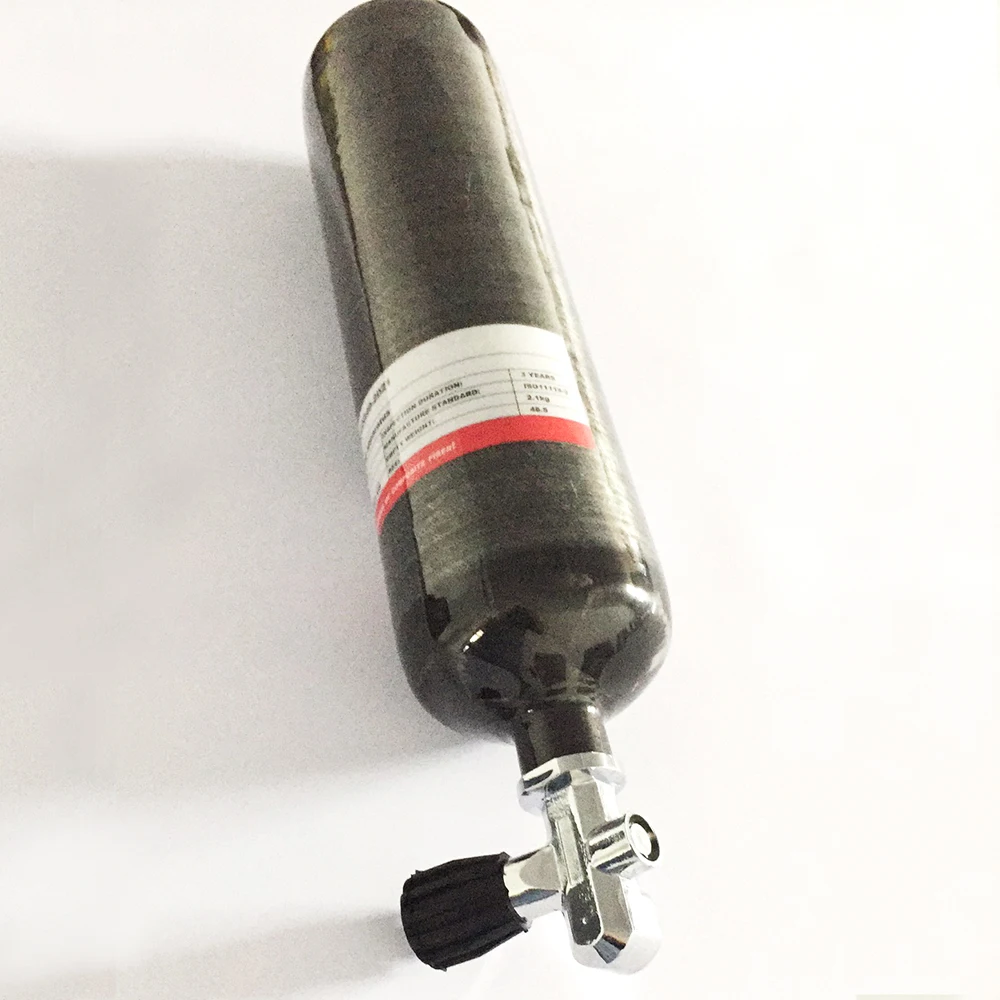

Top quality scuba diving/pcp tank
Product Detail
| Product name | carbon fiber cylinder 4500psi |
| Specification | CRPIII-106-3.0-30-T |
| Certificate | CE,TS |
| Standard | ISO11119, DOT CFFC, EN12245 or GB28053 |
| Outside Diameter | 114mm |
| Water Volume | 3.0L |
| Cylinder Length | 458mm |
| Weight | 2.2kg |
| Working Pressure | 300bar |
| Working life | 15 years |
| Product Keywords | scuba diving tank with valve for pcp rifle,scuba diving equipment pcp bottle with valve and filling station |
· Seamless aluminum ally 6061 liner wound with high strength Japan-imported carbon fiber and glass fiber reinforced plastic full composite layers and subjected to an autofrettage pressure. The high strength and safety-assured construction provides up to 300bar service pressure, which enlarges gas storage capacity to 1.5~2 times than that of aluminum or steel cylinders;
· Extremely Light weight, up to 60%-70% lighter than steel cylinders and 30-40% lighter than aluminum cylinders;
· No magnetism;
· High corrosion resist and special inner surface treatment, ensure storage gas clean and smelless;
· Stable performance;
| Specification | Diameter | Volume | Length | Weight | WP |
| CRPIII-120-2.4-20-T | 128mm | 2.4L | 300mm | 1.58KG | 20Mpa |
| CRPIII-120-2.5-30-T | 128mm | 2.5L | 307mm | 1.62KG | 30Mpa |
| CRPIII-124-2.7-20-T | 132mm | 2.7L | 310mm | 1.9KG | 20Mpa |
| CRPIII-106-3.0-30-T | 114mm | 3.0L | 458mm | 2.2KG | 30Mpa |
| CRPIII-145-6.8-30-T | 157mm | 6.8L | 528mm | 4.1KG | 30Mpa |
| CRPIII-161-9.0-30-T | 174mm | 9.0L | 560mm | 5.2KG | 30Mpa |
| CRPIII-192-12.0-20-T | 208mm | 12L | 575mm | 6.8KG | 30Mpa |
