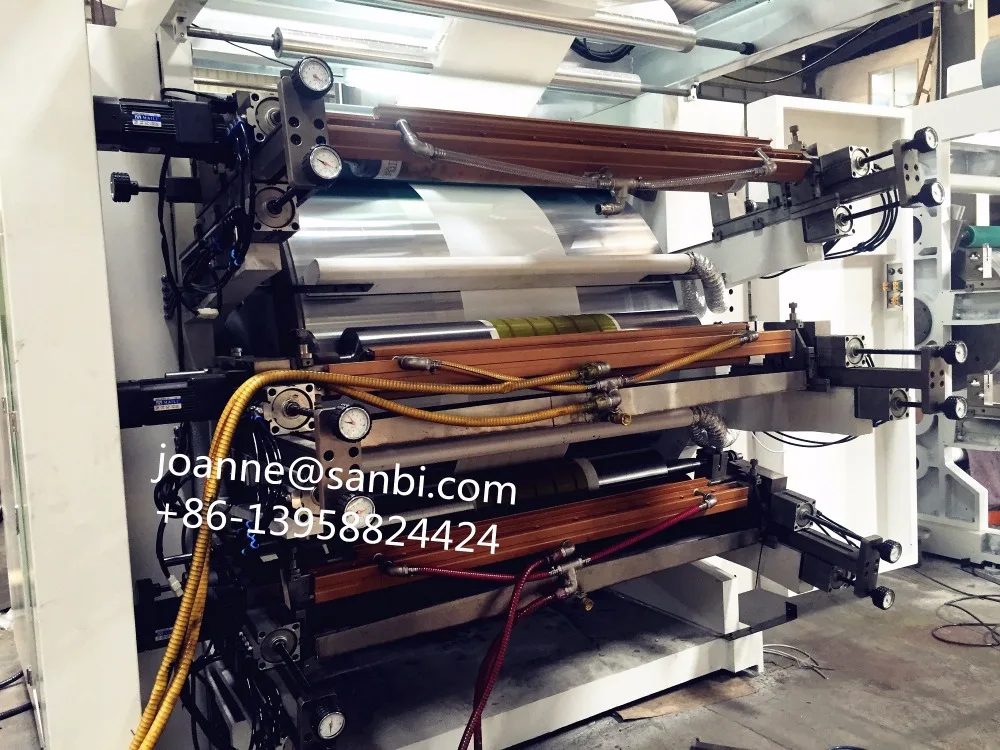

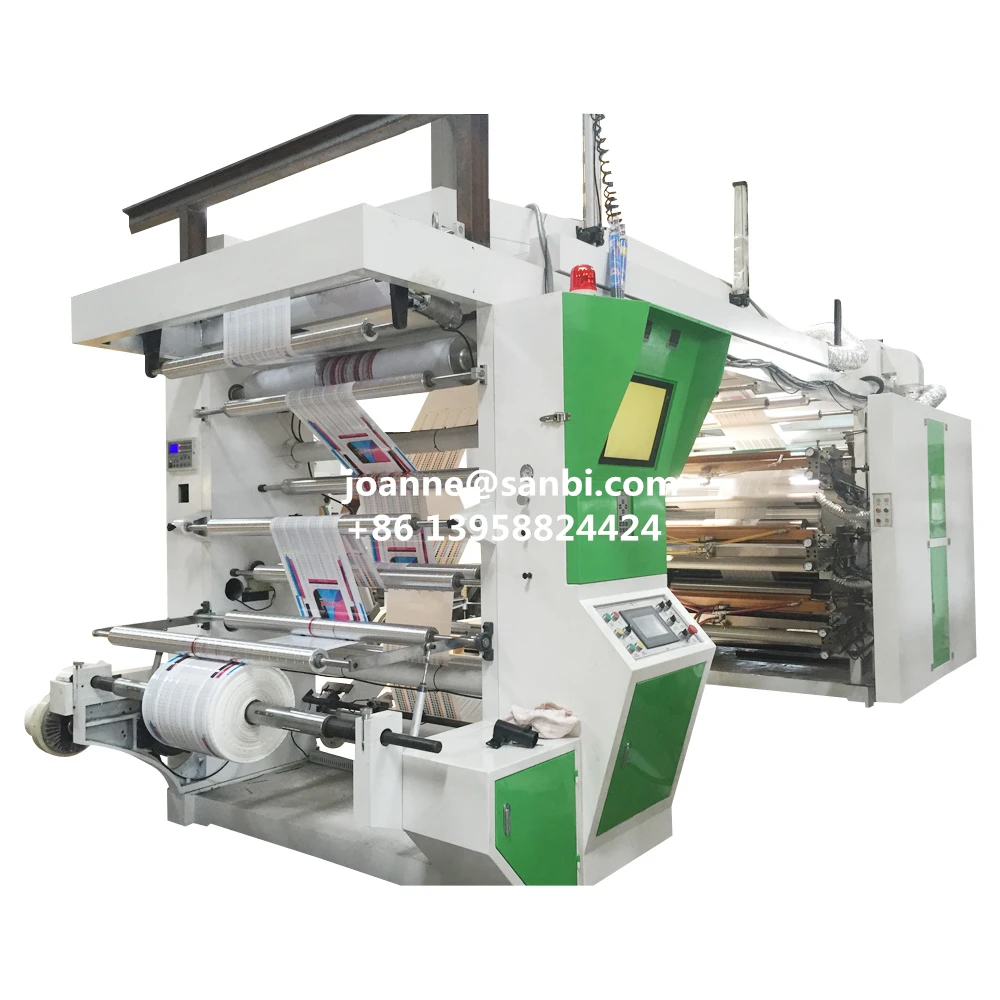

High speed CI flexo printing machine

1.The machine introduction & absorption of European technology / process manufacturing, supporting / full functional, has the following features:
2.After mounting the plate and registration, no longer need registration, improve yield;
3.Replacing 1 set of Plate Roller (unloaded 6pcs old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing;
4.The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5.Maximum production machine speed up 200m/min, registration accuracy ±0.15mm, 6、The overlay accuracy does not change during lifting running speed up or down.
7.When machine stop, Tension can be maintained, the substrate is not deviation shift;
8.The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield;
9.With structural precision, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

 Plastic film: Shrink film, BOPP/PET /PE/NY, ect. 5-150um
Paper: adhesive paper/ thin paper, ect (30-160 g/㎡)
Suit to roll paper with good performance, it print continuously with beauty quality.
Material width: MAX 1450mm
Diameter: MAXф600mm, Unwind and Rewind: 3″( by Air shaft)
Above material adopts: oil-based ink, alcohol solvent environment protection ink, and photopolymer plate.
