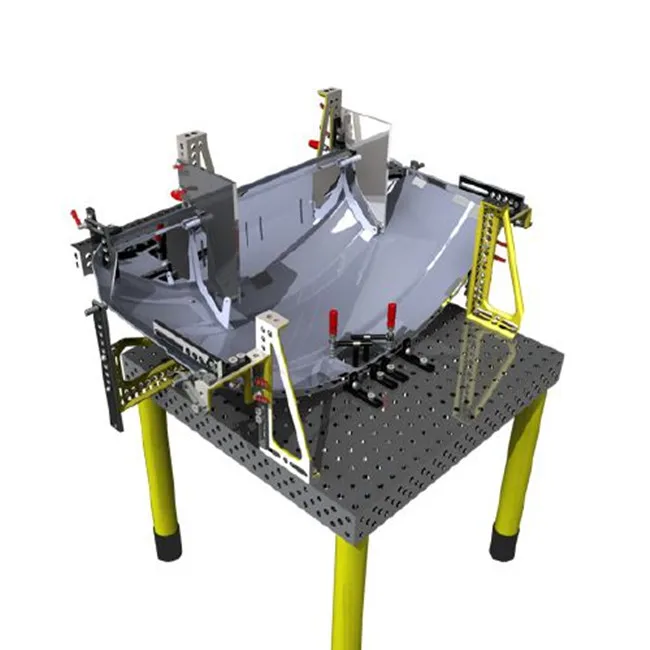

The cast iron platform is used as the basic platform for the equipment installation in the industrial production. It can also be used for the scribing of general parts and precision parts, the machining and metrology or grinding process.The three - dimensional composite welding platform adopts perforated plate, holes have Φ28mm and Φ16 mm series.On the high precision surface, circular hole of Φ28 is evenly distributed every 100mm, or the round hole of Φ16 evenly distributed every 50mm.These holes can be used to assemble the positioning module and fixture of various functions.There are locating block, right Angle block, vertical column, arbitrary Angle adjustment, V block, pin, all kinds of quick jig, clearance adjustment and various auxiliary modules, all these can perform various combinations and repeated applications.The pin that is used to tighten the connection between modules,three concentric steel balls are used internally.When the pin is released, the ball is pulled back into the pin, then the pin can be conveniently inserted into the hole of the module.When the hand is tightened gradually, the three steel balls gradually pop up, and automatically clamp the module.After wrenchpressed, the clamping force of the module can reach 5 tons and the shear force can reach 25 tons.
The Specification
Material
High-strength cast iron, HT200-450
Type
2400*1200mm, 1000*1000mm, 1000*1500mm,
1500*3000mm, 2000*4000mm or customize
The Surface
Holes have Φ28mm and Φ16 mm series.On the high precision surface, circular hole of Φ28 is evenly distributed every 100mm, or the round hole of Φ16 evenly distributed every 50mm.
Surface Treatment
Hand-scraped, finish-milling or ground finish
Foundry Technology
Sand casting or centrifugal casting
Molded Type
Resin sand molding
warranty
1 years
certificates
ISO
Working temperature
(20±5)℃
Package
Wooden box
Advantages
1)modularization:All components are classified, standardized and serialized, can matcheach other.Choose the least module, can realize various quick positioning and clamping functions.
2)Flexibility:There are various ways to assemble.Users can achieve almost any special fixture with the same positioning and clamping function.Assembly fast, easy to assemble and dismantle;The working table can be assembled according to the shape and size of the workpiece.Design of scale and module size on the platform, operators can quickly build up the required tooling according to the size of the workpiece without measuring tools.
3)High precision:On work surfaces and various functional modules,there are many round holes of Φ16mm or Φ28 mm every 50 or 100mm.The tolerance of hole spacing in any hole is less than 0.02mm.This precision will be reflected in the products processed by the user.Therefore, there are users to use this workbench as a benchmark platform for testing.
4)Patent design:Many of the functional modules are patented products, such as pin plugs which used in intermodule connections.
5)Three-dimensional design:The vertical column in the module can be used to assemble the three-dimensional space to make all kinds of three-dimensional components.
Functions
Can be used in the automobile manufacturing industry, engineering machinery, steel structure production industry, plastic processing industry, bicycle (motorcycle) manufacturing industry, or special welding machine complete with welding robot and so on.
