1 10KW Low Frequency Pure Sine Wave Solar Inverter with 60A MPPT

Product Overview

Description

1-10KW Low Frequency Pure Sine Wave Solar Inverter with 60A MPPT





Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature, Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the household appliances.



 Applications:

Supply the reliable long back up time power for the household appliances office appliances and solar power systems etc.



 Key Features:

1.Built-in MPPT solar controller

2.Pure sine wave output

3.Low frequency design

4.DIP switch to set AC input voltage range and low battery trip-voltage

5.Output power factor is 0.9-1 and output socket can choose

6.Well accept generator’s output and auto generator start terminal

7.Full automatical and silent operation

8.Automatically transfer between battery and line modes

9.Microprocessor control guarantees high reliability

10.Remote control,BTS function(optional)

11.Four-steps intelligent charging control to recharging time

12.Bypass function with AVR function (optional)

13.The charging current is big up to 85 Amp, can adjust through front panel

14.AC/solar output priority optional

15.Charging mode priorities optional

16.Battery type can choose through front panel



MODEL	SPS3115C 1-10KW
	1kW	1.5kW	2kW	3kW	4kW	5kW	6kW	8kW	10kW
Input wave form	Sine wave (utility or generator)
Normal voltage	120VAC(option)    230VAC
Low voltage re trip	90V±4% & 184V/154V±4%
Low voltage re engage	100V±4% & 194V/164V±4%
High voltage re trip	140V±4% & 253V±4%
High voltage re engage	135V±4% & 243V±4%
Normal input frequency	50Hz/ 60Hz (auto detection)
Frequency range	47Hz~65Hz
Output Wave form	(Bypass mode)same as input
Over-Load Protection	Circuit breaker
Short circuit Protection	Circuit breaker
Efficiency on line transfer mode	undefined95%
Line transfer time	10ms Typical
Bypass without battery connected	Yes
Inverter output
Output wave form	Pure sine wave
Output continuos power watts	1000	1500	2000	3000	4000	5000	6000	8000	10000
Surge ratings	3000	4500	6000	9000	12000	15000	18000	24000	30000
Power factor	0.9-1.0
Nominal Output Voltage rms	120VAC(option) 230VAC
Output Voltage regulation	+/- 10%rms
Output frequency	50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Short circuit protection	Yes,fault after 1 secs
Inverter input
Nominal input voltage	24V/48V							48V
Minimum start voltage	20V/40V							40V
Low battery alarm	21V/42V							42V
Low battery trip	20V/40V							40V
High voltage alarm	32V/64V							64V
Charger
Output voltage	Dependent on battery type
Charge current	10-85A MAX							70A	85A
Battery initial voltage for start up	0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection	15.7v for 12v(*2 for 24v;*4 for 48v)
Solar Charger
MPPT Range@Operating Voltage	30-115VDC/60-115VDC
Maximum PV Array Open Circuit Voltage	145VDC
Maximum Charging Current	60A
Maximum Effciency	>96%

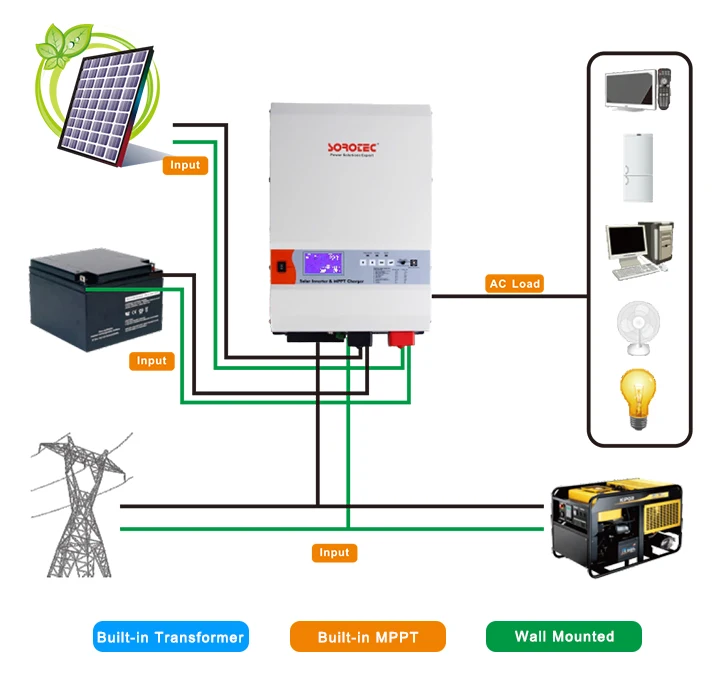

APPLICATION OF OUR PRODUCT
