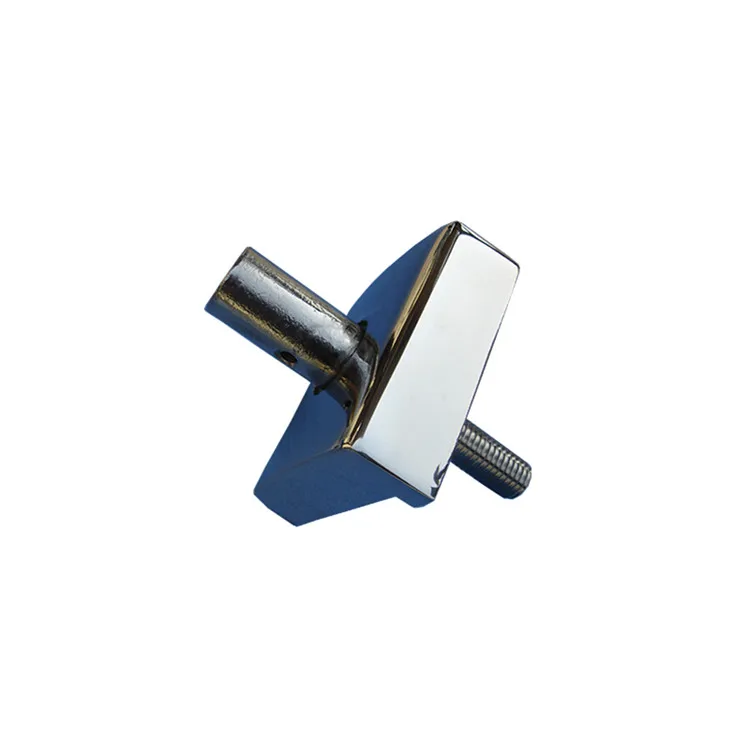

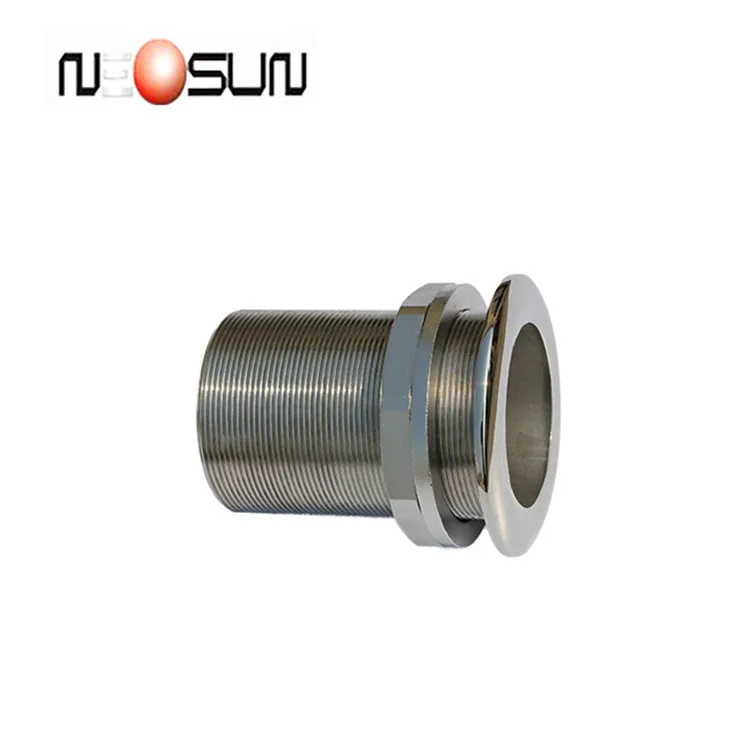

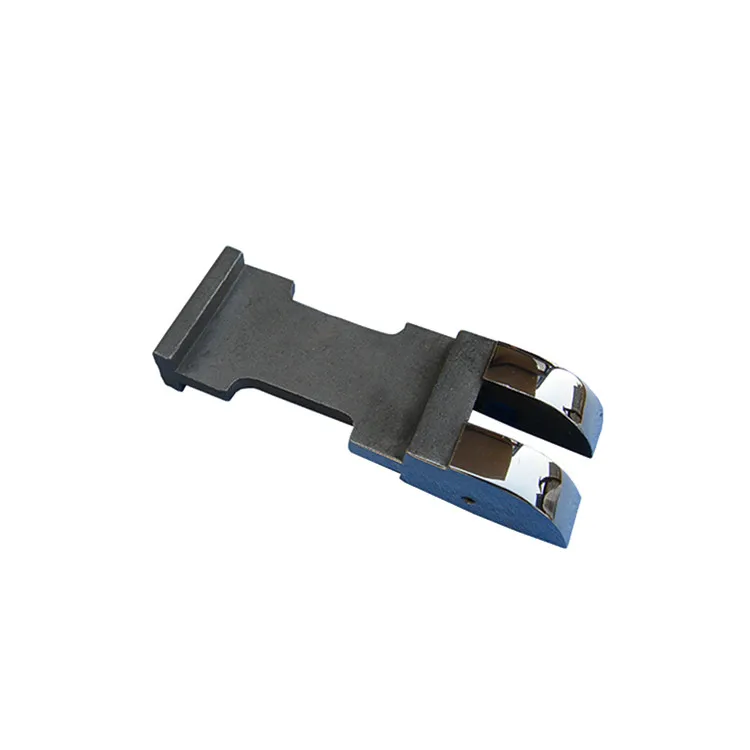

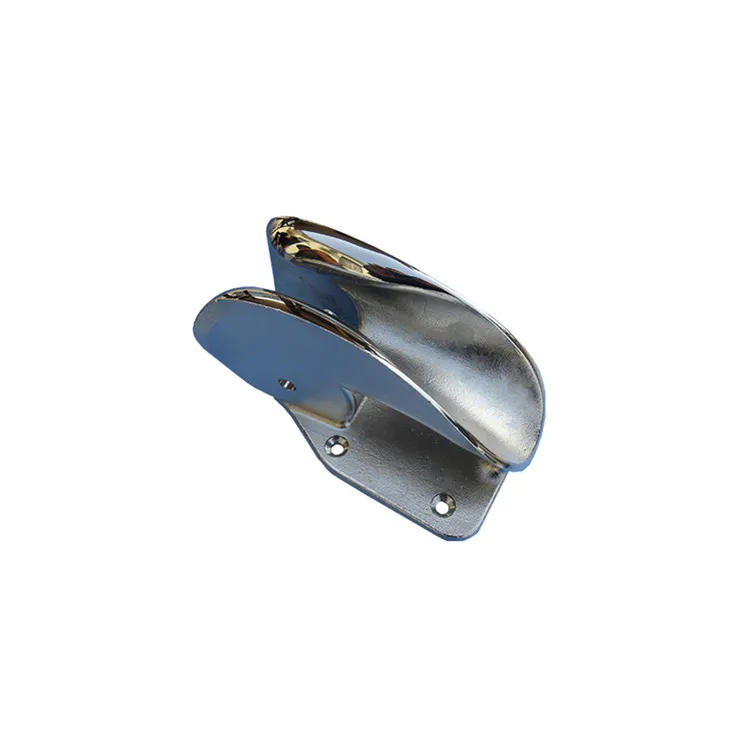

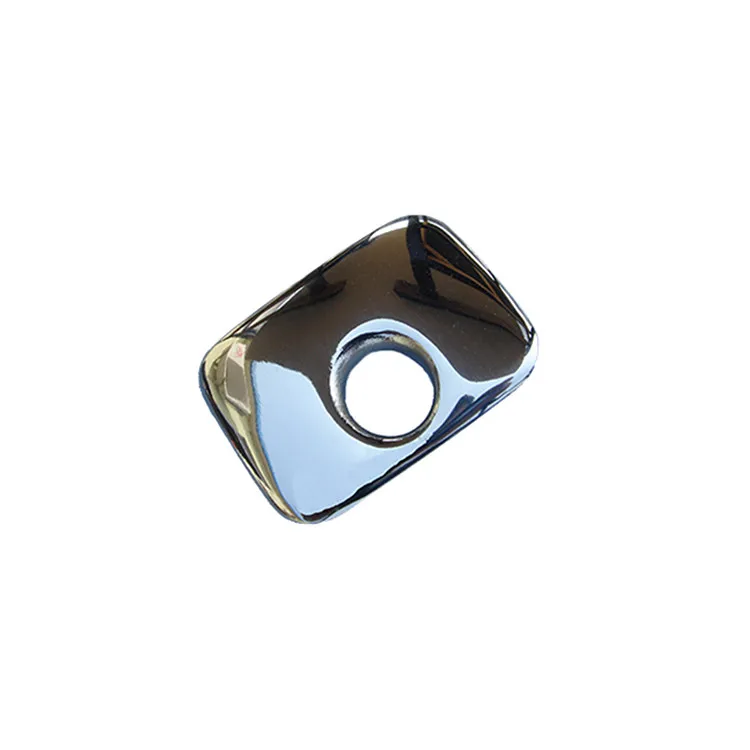

Custom precision lost wax casting for machinery investment casting lost wax

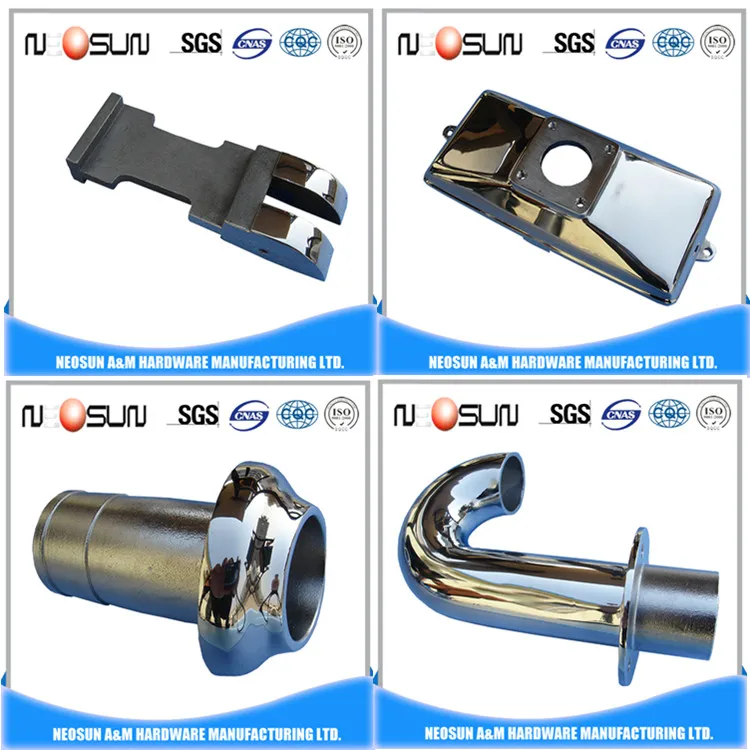

The products shown here is only to present the scope of our business activities. We can manufacture non-standard parts according to your drawing or sample.

Drawing: we make 2D drawing as per your simple diagram 3D file or samples.

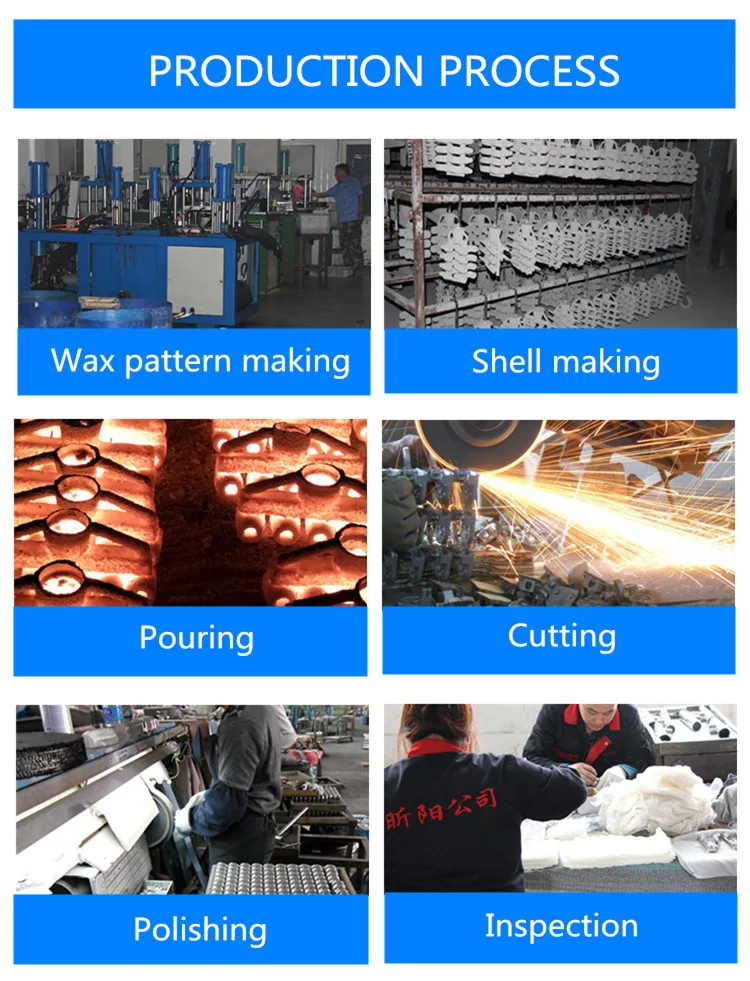

Casting process: wax pattern making, wax triming, shell making, dewaxing, shell roasting, spectrum analysis, pouring, cutting, shot blasting, pickling, raw casting inspection.

Machining facility: CNC, NC lathe, ordinary machine tools,  NC milling machine, polishing machine.

PROCESS

Wax Injection: Wax replicas of the desired castings are produced by injecting tooling with wax. These replicas are called wax patterns.

Assembly: The wax patterns are attached to a central wax runner bar, to form an investment tree.

Shell Building: The shell is built by immersing the tree in a liquid ceramic slurry and then coating in a refractory product. Up to 5 layers may be applied in this manner. This stage is the creation of the “Investment mould”.

De-Wax: Once the ceramic shell is dry, the wax is melted out, using an autoclave creating a negative impression of the assembly within the shell.

Casting: The investment mould trees are fired in an oven and pulled out while hot. The shell is then filled with molten metal by gravity pouring. After the mould has been filled, the molten metal is allowed to cool and solidify into the shape of the final casting. Cooling time depends on the thickness of the part, thickness of the mould, and the material used.

Knock off: When the metal has cooled and solidified, the ceramic shell is broken off.

Cut off: The parts are then cut away from the central runner bar using a high speed cut-off saw or band saw.

Finishing: Finishing operations such as grinding or sandblasting are used to smooth the part at the gates. Heat treatment to the final part.

Inspection: All parts are inspected for quality and shipped to the customer.

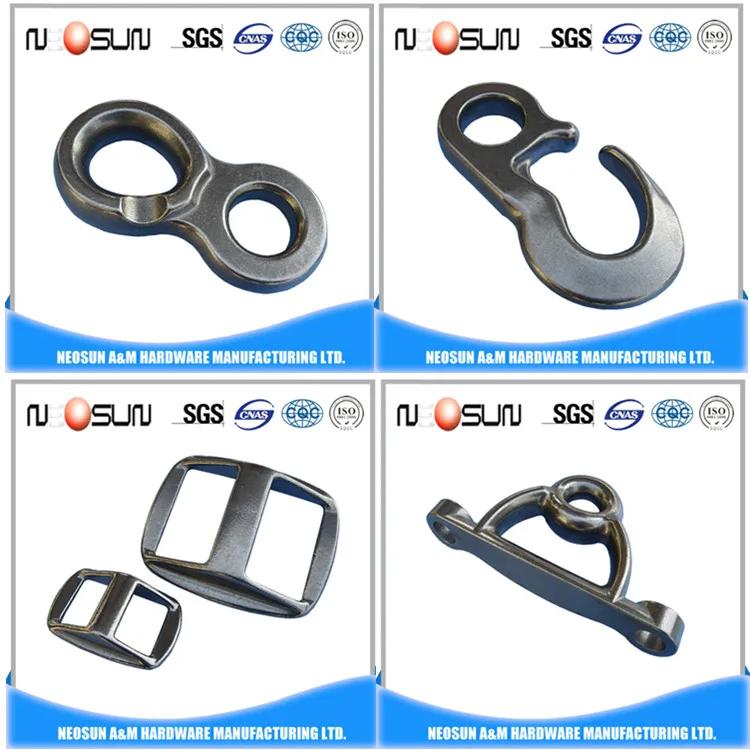

Neosun A&M Hardware Manufacturing Ltd. is located in Dongying City, Shandong Province, which is a professional steel casting manufacturer, has his own foundry, CNC Machining department and Polishing factory. As a major manufacturer of investment castings, we adopt the lost-wax process to serve a huge variety of markets that require metal parts in stainless steel, carbon steel, alloy steel, aluminum, copper, etc. Including industrial machinery parts, architecture hardware, marine hardware, pump facility parts, fluid equipment parts, food machinery parts, electric machine & hardware fittings, etc.

1.


   How to contact with your company?




   Please send email to  neosunhardware2(@)castchina.cn,




   or whatsapp to 0086-18654689218




   or skype for  jose-neosun to send me the drawings and details.





2.


   What does your company need for a quotation?




   Drawing or sample, together with relevant information, such as material quantity, weight.





3.


   Which kind of format of the drawing?




   PDF, IGS, DWG, STEP, etc





4.


   What if we do not have a drawing?




   We can duplicate your sample and make drawing for your confirmation.





5.


   How soon can I get a sample?




   4 weeks for mold and sample, 5 days for express.





6.


   Can I visit your company?




   Yes, sure, welcome your visit anytime. We will book hotel and pick you up from airport.

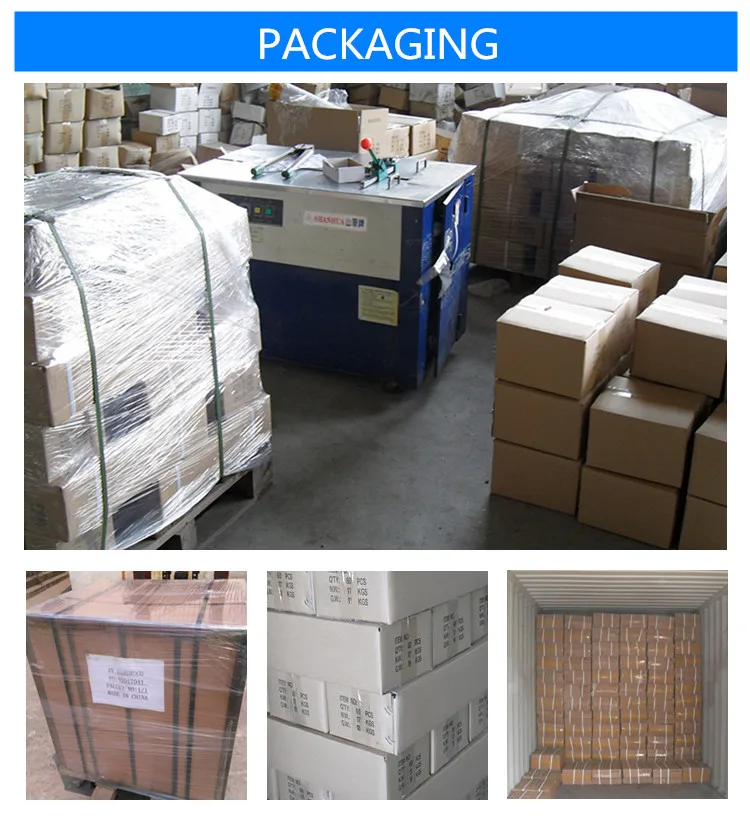

* Soft bubble bag to protect the casting products.

* Strong carton box, or depend on products.

* Iron pallet to suit for ocean shipping.

We would like to receive if available

* 2D-drawing

* 3D-model

* Estimated Quantity

* Choice of material
