Hastelloy AISI316 Frame Plate Heat Exchanger for Food and Beverages
Product Description

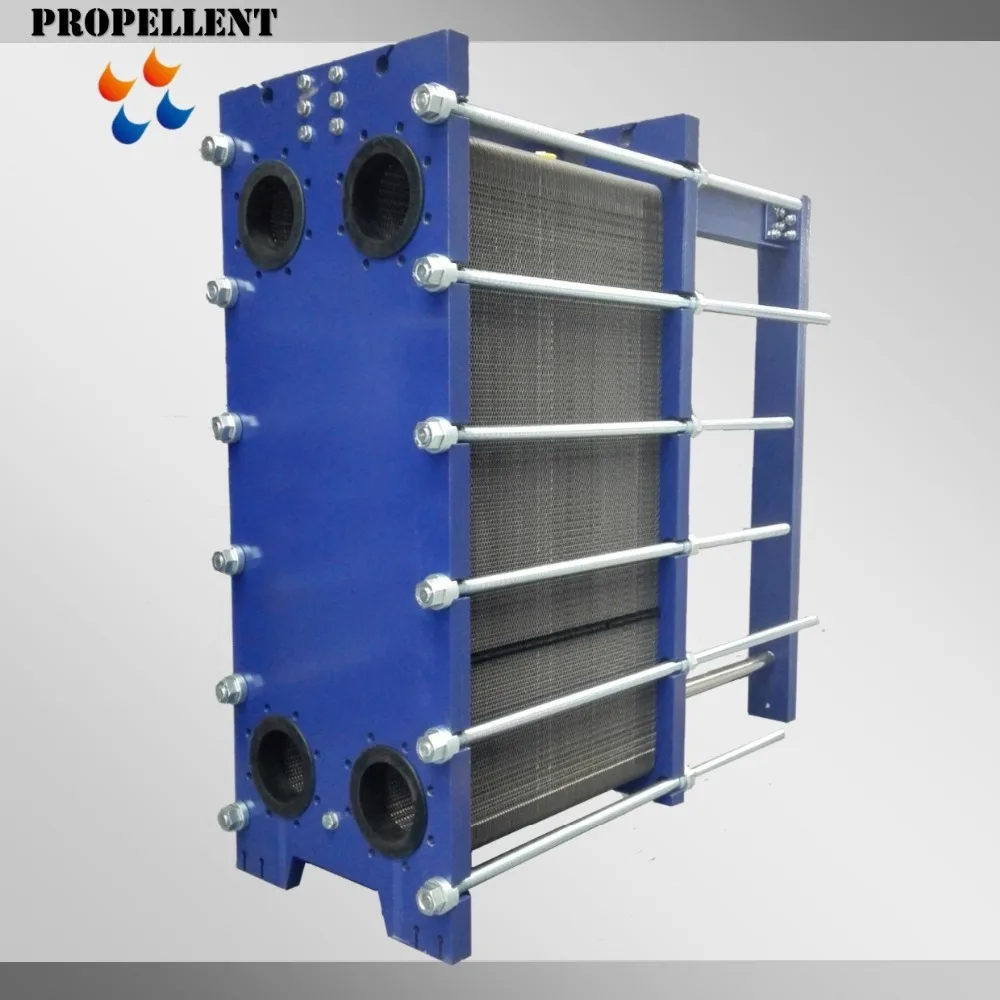

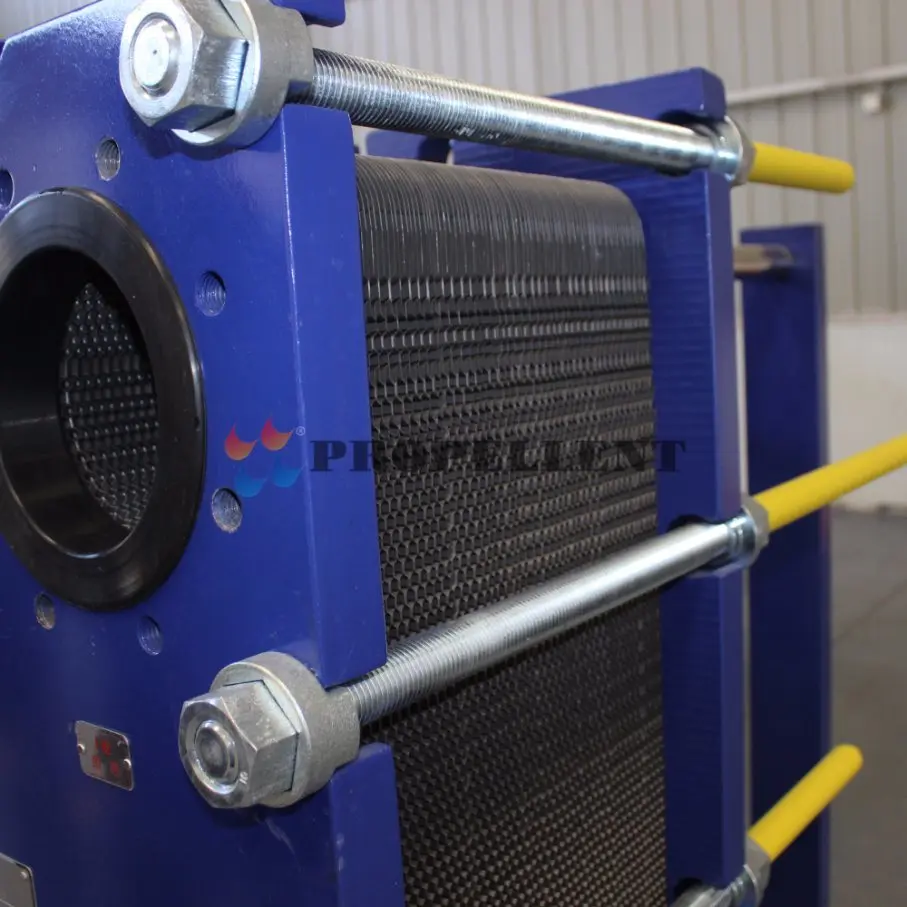

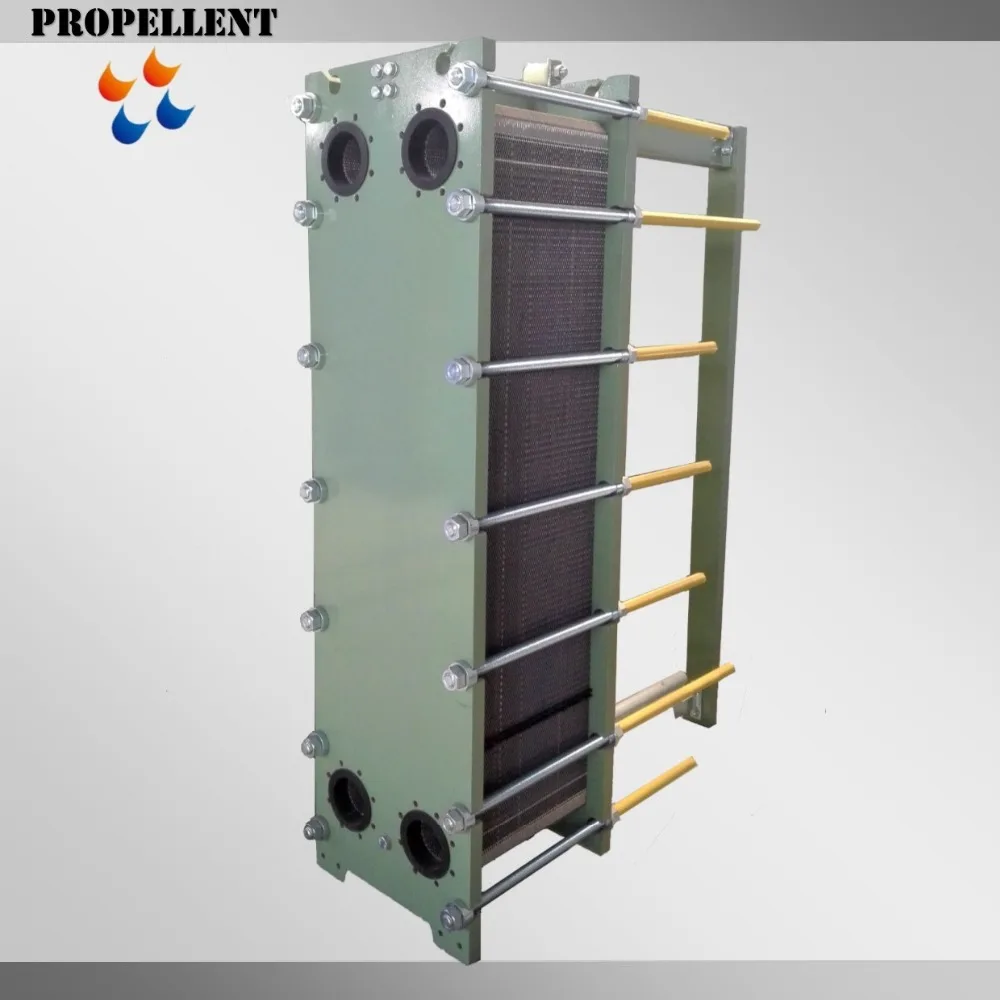

Propellent plate heat exchanger consists of a pack of corrugated metal plates, gaskets and a fix frame, the plate pack is assembled and fixed on the frame by tightening bolts. The heat is transferred through the plate between the channels which are sealed by gaskets. Large number of corrugations of the metal plate are formed by different molds to applicable various industries. The plate corrugations promote turbulent flow of fluid and support the plates against different pressure Gasketed plate and frame structure, based on the optimized design to achieve the target of saving investment costs.
Product Overviews
Features:
• High energy efficiency-low operating cost • Anti-clog structure • Stable plate package • Highest heat transfer rates • Easy to install-compact design • clip-on gasket • easy cleaning by CIP
Applications:
• Biotech and Pharmaceutical
• Chemicals
• Energy and Utilities
• Food and Beverages
• Home and Personal care
• HVAC and Refrigeration
• Machinery and Manufacturing
• Marine and Transportation
• Mining, Minerals and Pigments
• Pulp and Paper
• Semiconductor and Electronics
Technical specific
Plate heat exchanger PL-JKE7

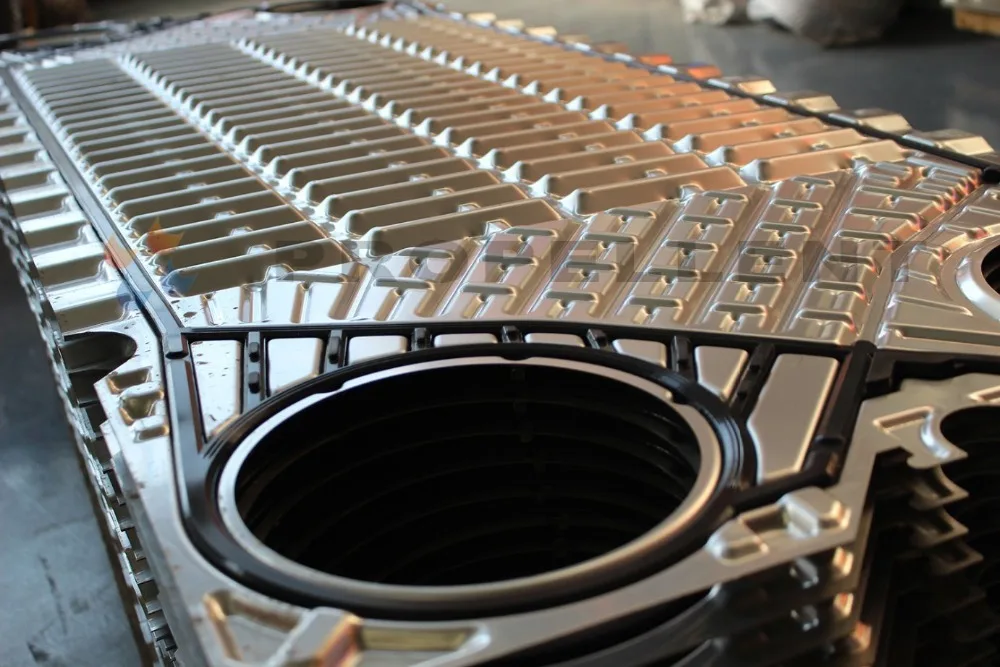

Plates
Type
Single plate
Free channel
3.5 mm-12.0 mm
Plate thickness
0.5 mm-1.0 mm
Materials
Heat transfer plates
Stainless steel – 304/304L, 316/316L, 254
Titanium
Hastelloy C-276
Gaskets
NBR
HNBR
EPDM
Flange connections
Carbon steel
Metal lined: stainless steel Alloy 316
Frame and pressure plate
Carbon steel
Epoxy painted
Dimensions
Height
780 mm
Width
212 mm
Length
Up to 1025mm
Connection diameter
DN50
Technical specifications
Pressure
10/16 bar
Temperature
180 ℃
Area
0.15 m2
