CNC Automatic single head cutting saw aluminum window machine

Share on (60748068351):


Price:

Quantity:


Product Overview

Description


single head cutting saw aluminum window machine







Product Description


 .jpg

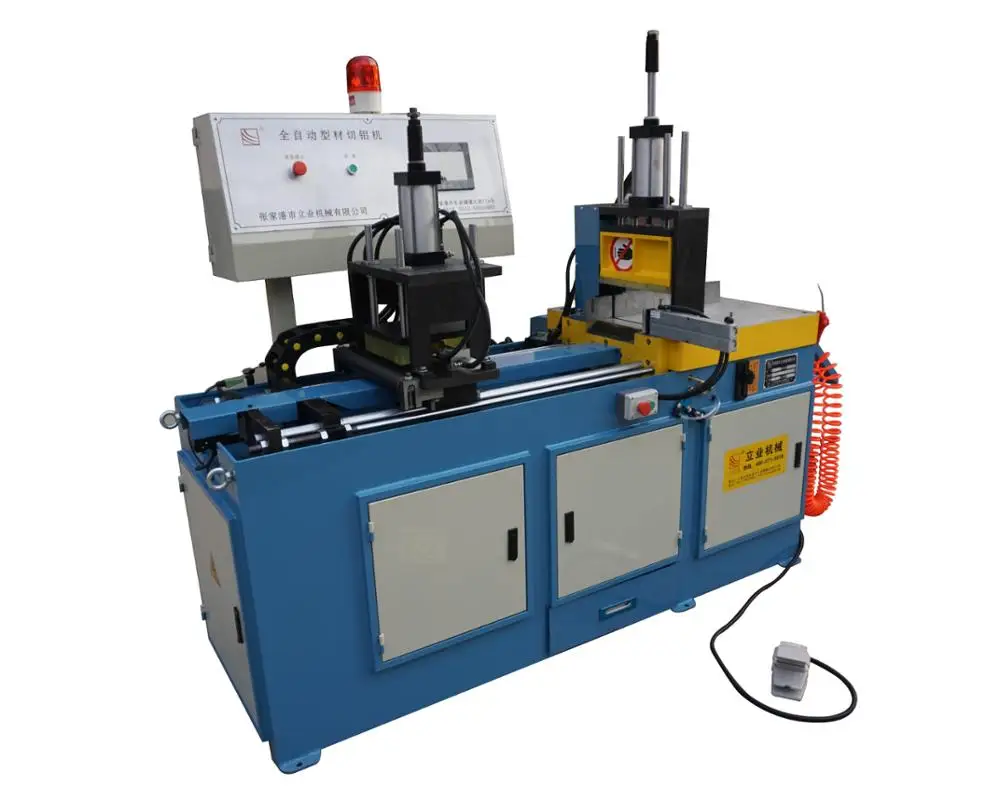

CNC Automatic single head cutting saw aluminum window machine





L455CNCsy

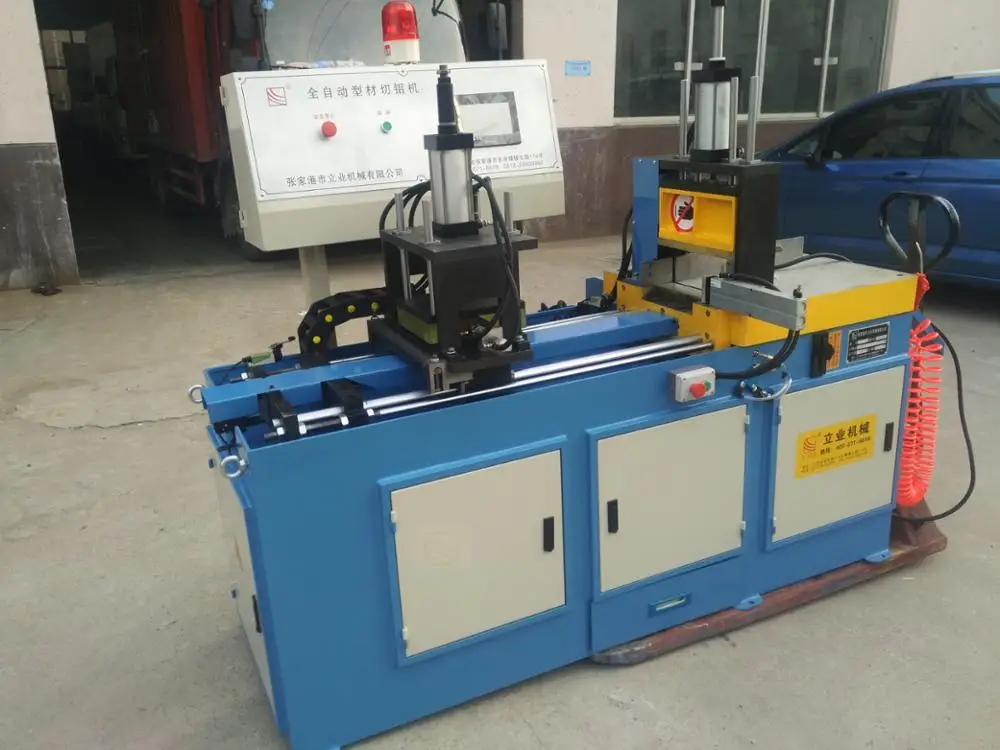

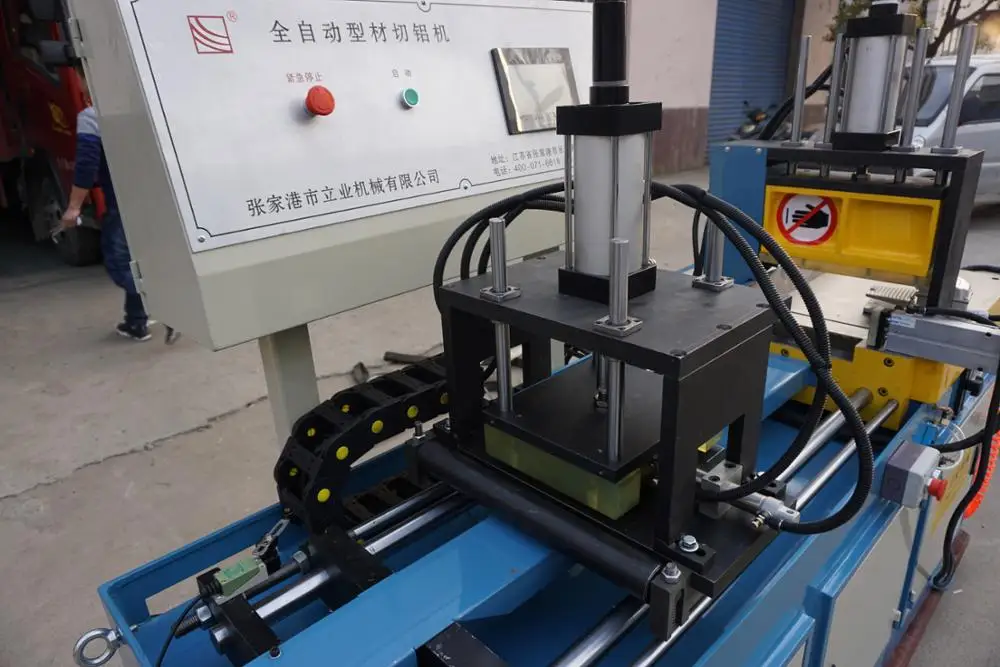

Detail:





L455CNC 4

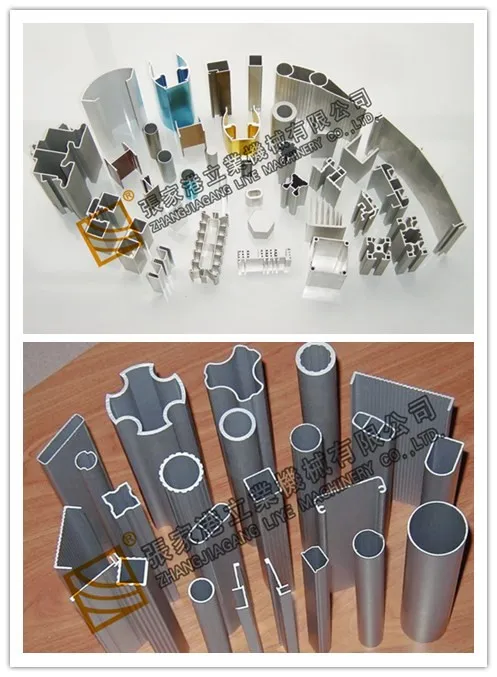

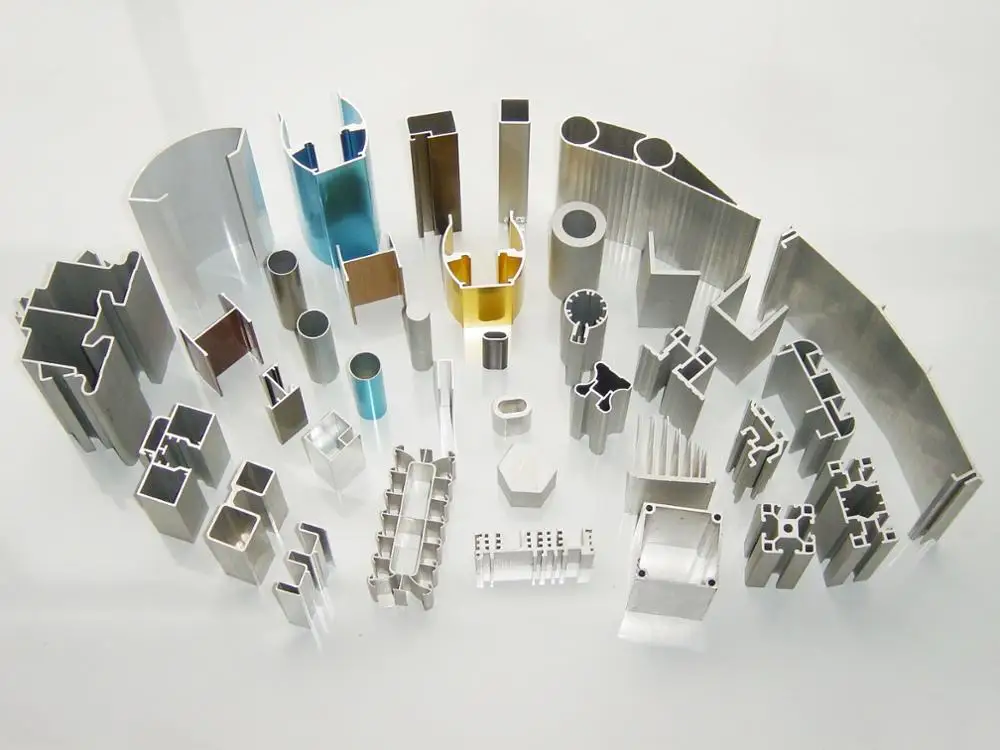

Sample:





.jpg





Specification:













































































Model L455CNC
Solid square tube mm 100
Solid circular tube mm 110
Hollow circular tube mm 125
Hollow square tube mm 110*110
Profile mm 110*110
Hollow rectangular tube mm 150*60
Motor power motor 50HZ or 7-1/2HP (Change pole) 50/60HZ 5KW
Saw blade rotation speed 50HZ 3600RPM  60HZ 3600 RPM
Servo motor power 0.75KW
Saw blade size  Outside diameter

TIP Φ305-Φ455

Standard Φ405

Feeding length (L*W*H) One storke 5-610
Double storke 5-1220
Third stroke 5-1830
Measurement size of machine (L*W*H) 1950*1300*2000mm
Gross weight of machine 800KG

Remark: industrial vacuum cleaner can be selected.





Feature:
1.The machine is full automatic hydraulic pipe cutting equipment.
2.The hidden blade can be safely on the job.
3.Automatic feeding long.
4.The outer protective cover can effectively prevent the scraps splash (external dust collecting effect is better).
5.Automatic injectiong section blade smooth ,durable.
6.Can be single or multiple cut,improve production effciency , reduce labor intensity of workers.
7.No feeding induction device can automatically stop in after the completion of workpiece processing.

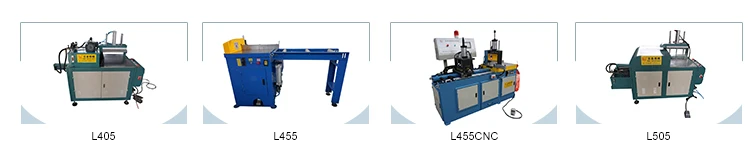

Similar Product





.jpg







Company Information


.jpg


Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.


Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
