Product Overview

Description



Product Description


 Rotary Lobe Pump is a positive displacement pump, which has two rotors in the pump head. The two rotors fixed on two shafts and rotate syn-chronically in counter direction. The rotation creates vacuum volume on the inlet side. The liquid is sucked into the pump head and travels around in the chamber between the rotor and the pump head casing, and is forced out on the outlet side.73.pngCommon Rotors for Transfer Rotary Lobe Pumps:




One Lobe Rotor

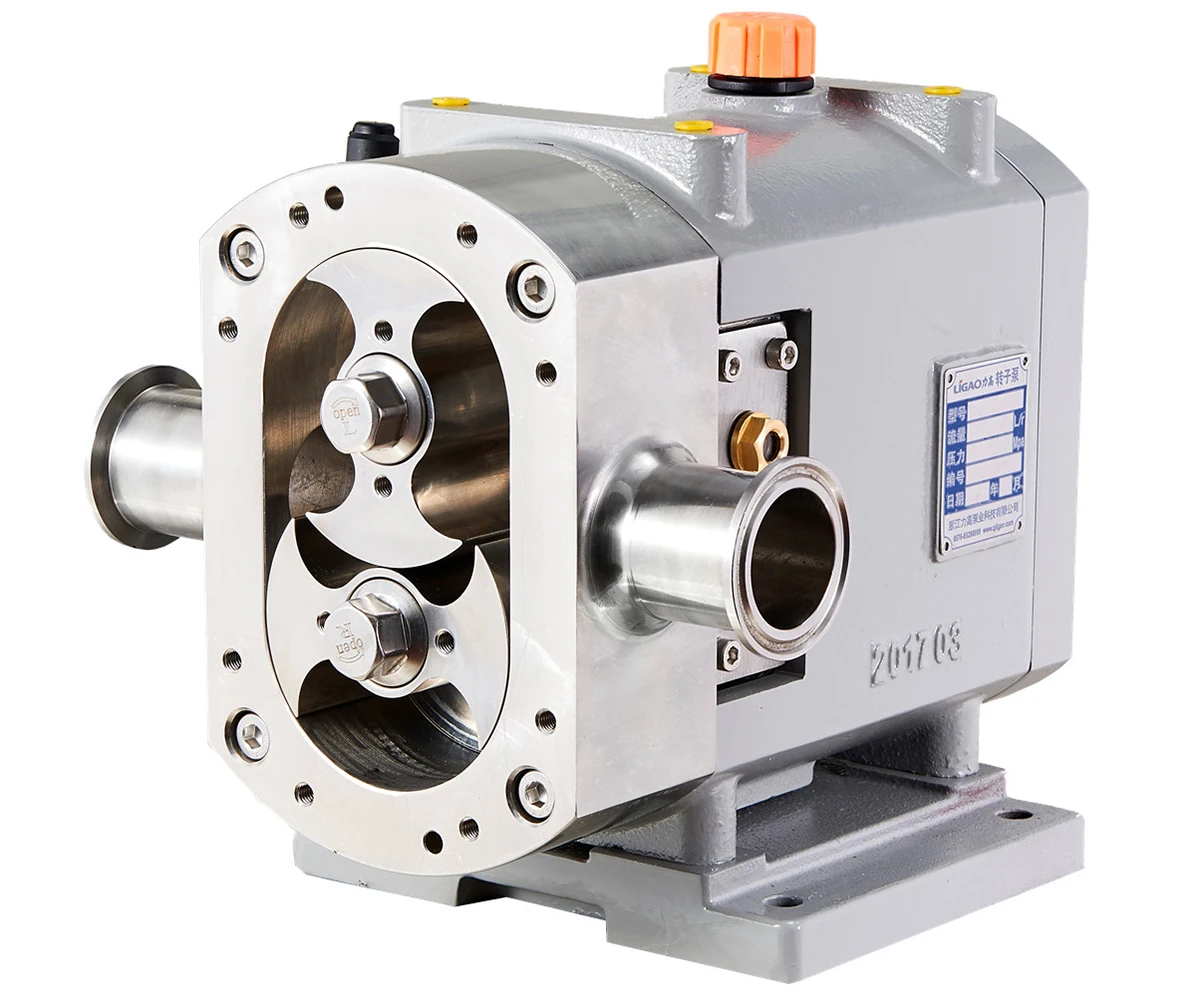

This type of rotor is for liquid with large particles. But the speed should not be high and will cause pulses.72.jpg


Two-lobe Rotor/Butterfly Rotor


This type of rotor is superior to other rotors when transferring material with high viscosity and large powder, especially stiff particles. Output liquid cause less pulses and components will not be destroyed.74.jpg


Three-lobe Rotor


    This type of rotor has good transferring capacity and low pulses. It is especially suitable for medium that is easy foaming. It also has good flow control benefits.








Application





Rotary lobe pumps are widely used in the following industries for transferring functions:


Food industry: milk, yoghourt, butter, ice-cream, chocolate, jelly, jam, syrup, beer, soft drinks, fruit juice, pudding, tomato sauce, sesame, peanut butter, condiment, edible oil, cheese blocks, whey, yeast, etc.


Daily chemicals: face cream, shampoo, detergent, hand sanitizer, skin gel, detergent, cosmetics, skin cream, toothpaste, hair dye, soap, shoe polish, glycerol, fatty alcohol, hair gel, etc.


Chemical industry: gasoline, diesel, kerosene, crude oil, sludge, asphalt, paint, pigment, dyes, coating material, leather, fat, solvents, resins, silicone oil, adhesives, latex, colloidal material, and etc.


Pharmacy industry: health care products, pharmaceutical, vaccine, biological products, syrup, slurry, protein, royal jelly, extracts, emulsions, pills slurry, fish meal, pollen, etc.





Parameter Table















































































































Model



Capacity


(L /R)



Flow(M3/h)


(<10000cp)



Speed


(RPM)



Max Pressure (Mpa)



Viscosity


(Cp)



Power


(Kw)



Connection



Clamp



Flange



RT006



0.06



1



20~1000



0.8



1~500000



0.25~1.5



1"



DN25



RT015



0.15



2



20~700



1.5



1~1000000



0.55~2.2



1.5"



DN32



RT032



0.32



5



20~500



1.5



1~1000000



0.75~4.0



2"



DN50



RT070



0.70



10



20~500



1.5



1~1000000



1.5~7.5



2.5"



DN65



RT170



1.7



20



20~500



1.5



1~1000000



2.2~15



3.5"



DN80



RT320



3.2



35



20~400



1.5



1~1000000



3.0~30



4"



DN100



RT500



5.0



50



20~400



1.2



1~1000000



5.5~45



5"



DN125



RT700



7.0



80



20~400



1.2



1~1000000



7.5~55



6"



DN150



Customized Design for Different Applications:

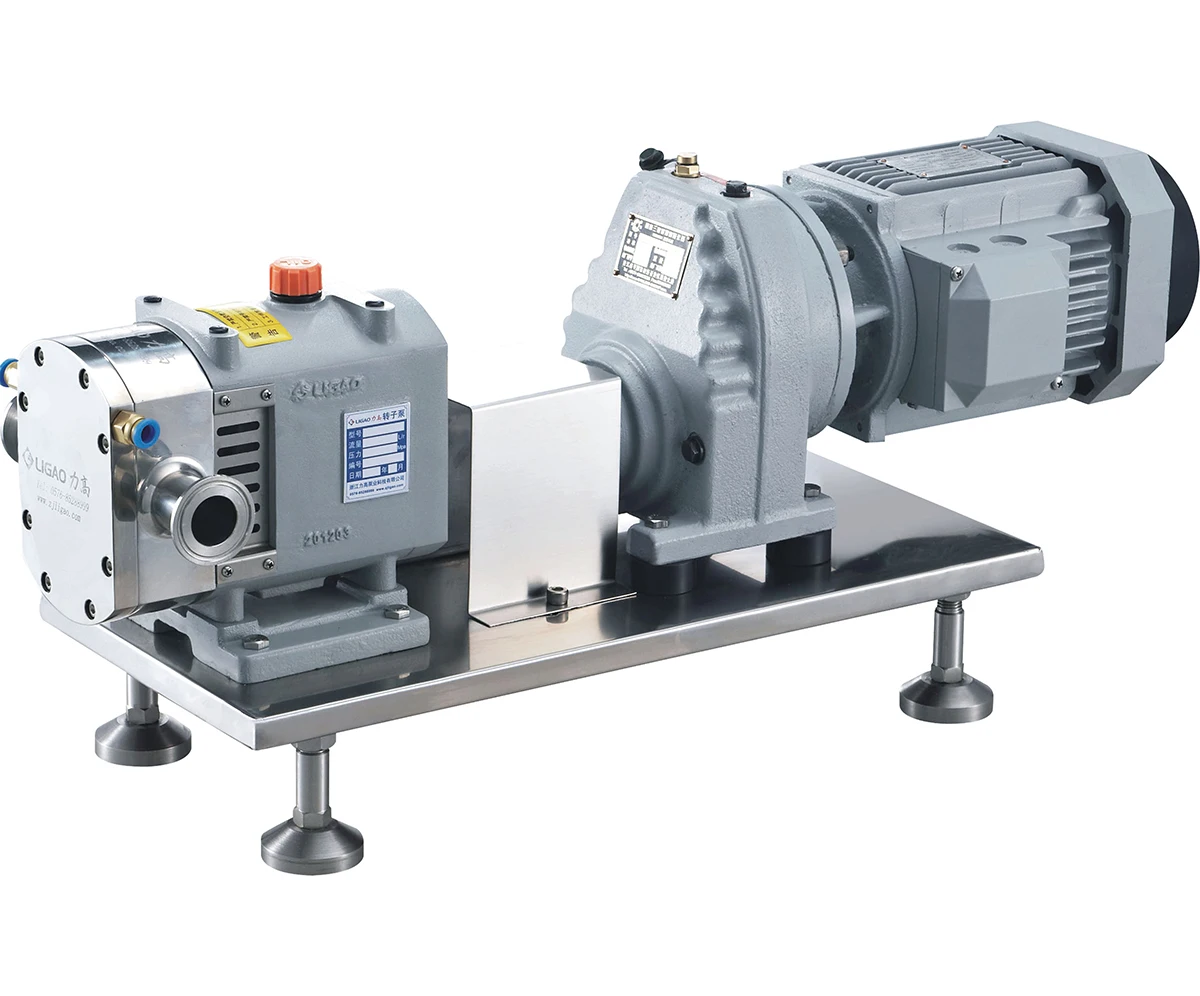

V Shape Inlet for high viscosity feeding75.jpgHeat Jackets( hot water/ steam heat jacket, electrode heat )76.jpgMobile Rotary Lobe Pumps with Covers77.jpg








Packaging


Packing way: polywood case


1 unit per case





PLUNGER PUMP PACKING.jpg
