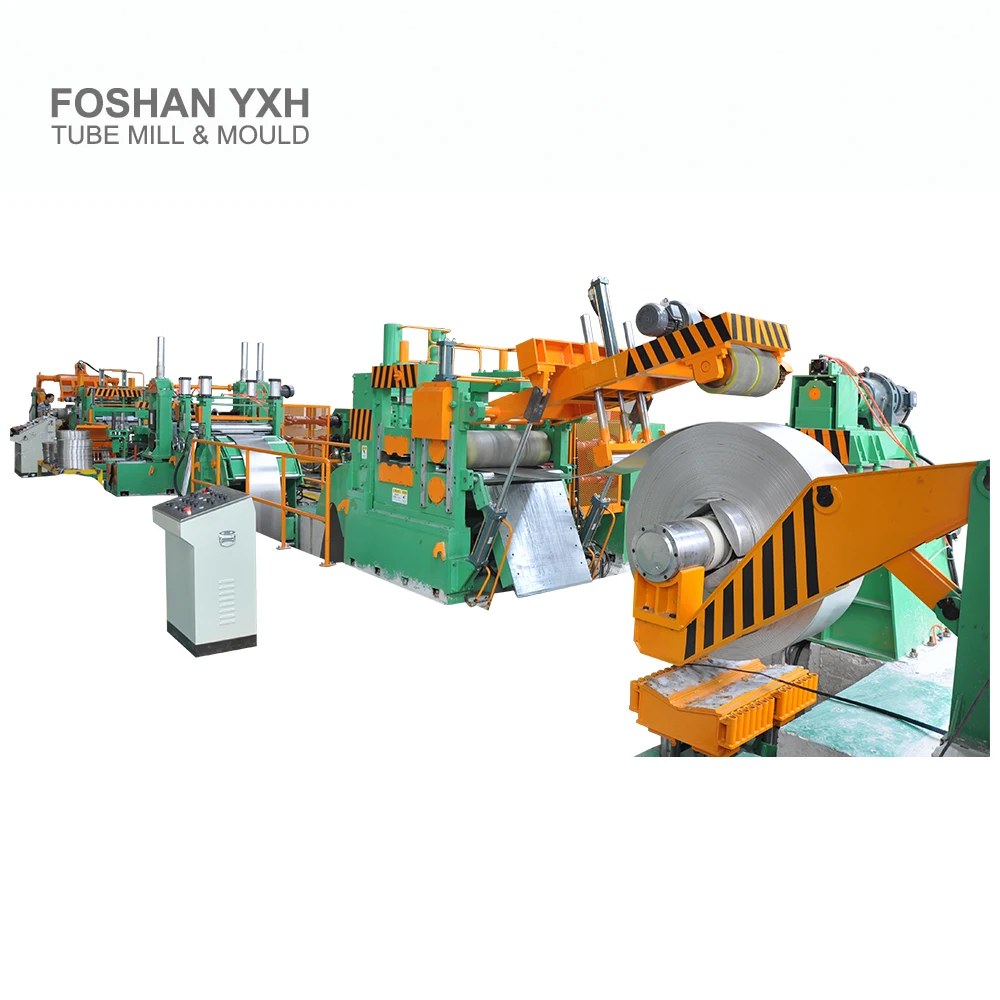

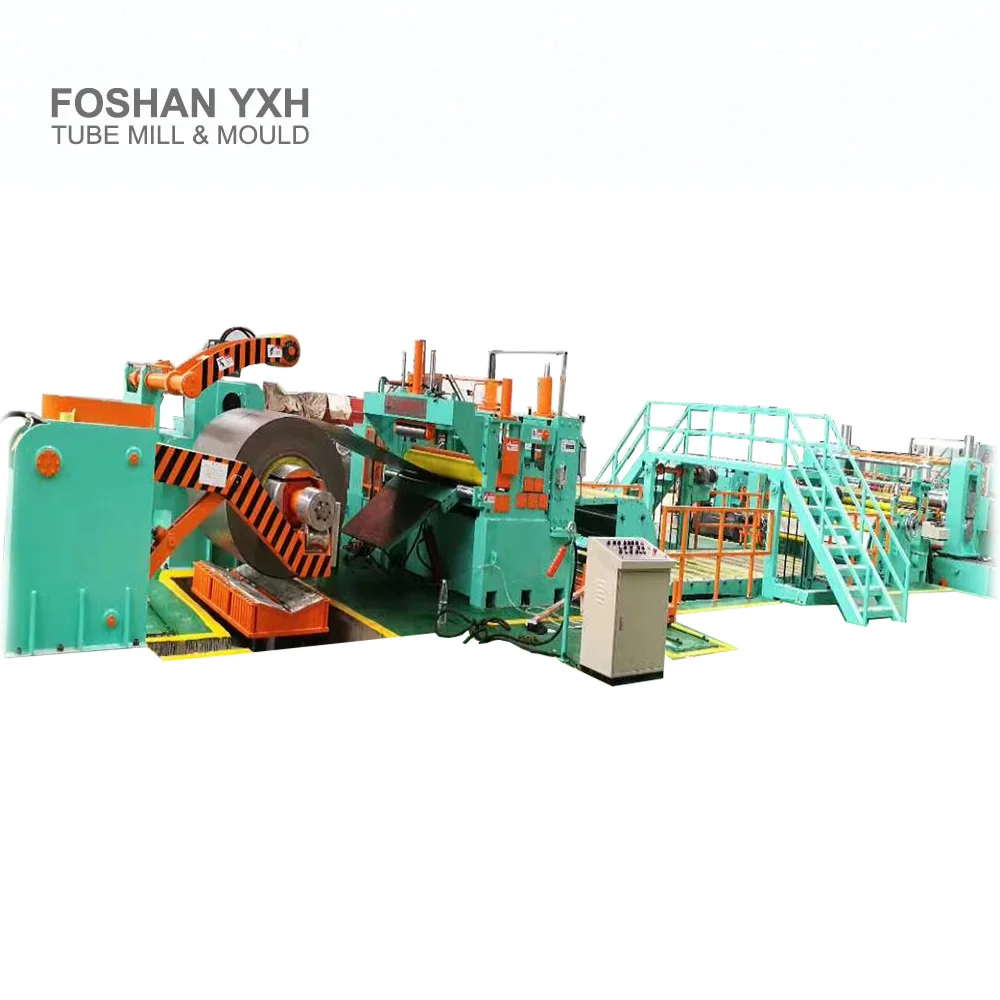

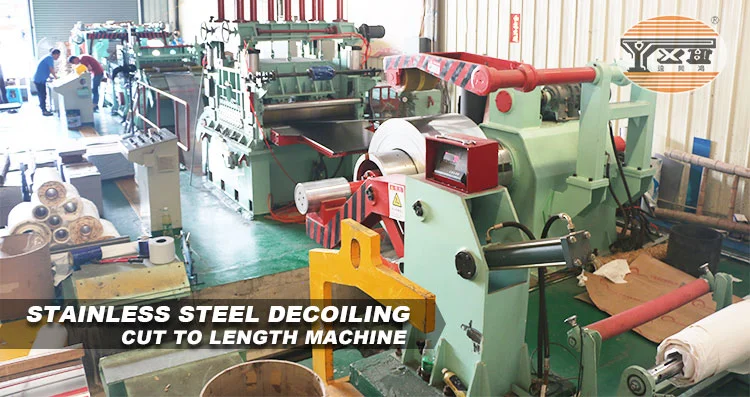

Automatic sheet steel coil cutting to length machine
Passed the IS09001:2000 international standard certification
Application
High precise flying shear cut to length line used for decoiling coil, leveling sheet then cutting sheet to required dimensions as per PLC order, then stacking sheets in pallet. it is widely used in steel plate, it is widely used in sheet, punching, auto parts, coil processing, fittings, etc industries. it contains the mechnical parts, hydraulic part, electric part, pneumatic part and lubraicate part.
Product Description
high precise flying shear cut to length lineintroduction
1, Raw material specification
1, Coil width: 150-600mm
2, raw material: SS, GAL, COPPER
3, Coil weight: 8-15T
4, Coil ID: 508/610/760MM
5, Line speed: 0-150m/min
6, Control system: Siemens/ABB
7, Drive: AC or DC
8, Machine color: orange
9, monthly production ability: 1800-3000 T

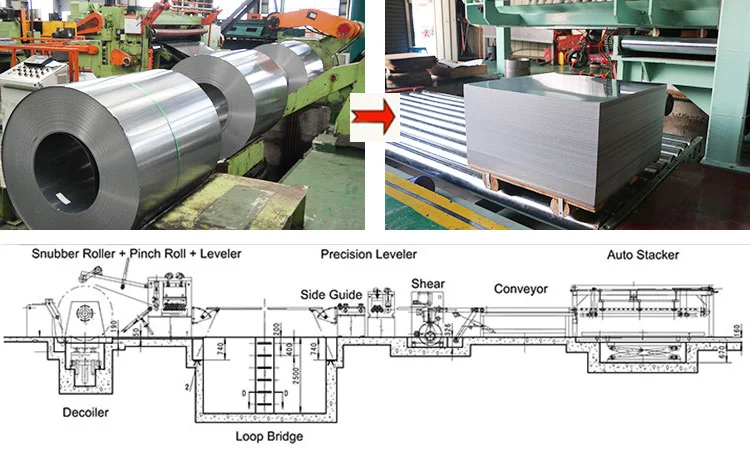

2, Machine composition
1, Coil loading car
2, hydro decoiler
3, Pinch roller, leveler
4, loop bridge#1
5, Guider
6, NC length measure
7, hydraulic shear
8, belt conveyor
9, auto lift stacker
10, Lubricate, pneumatic
11, hydraulic system
12, electric system

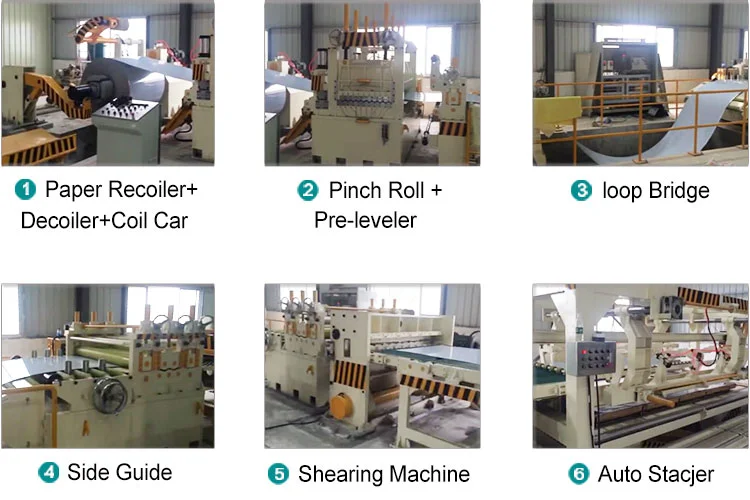

3, Details picture and description for each unit
(1) Coil loading car with saddle
Used to loading coil to decoiler mandrel, leveling working in rails, vertical lift power from cylinder, v type saddle

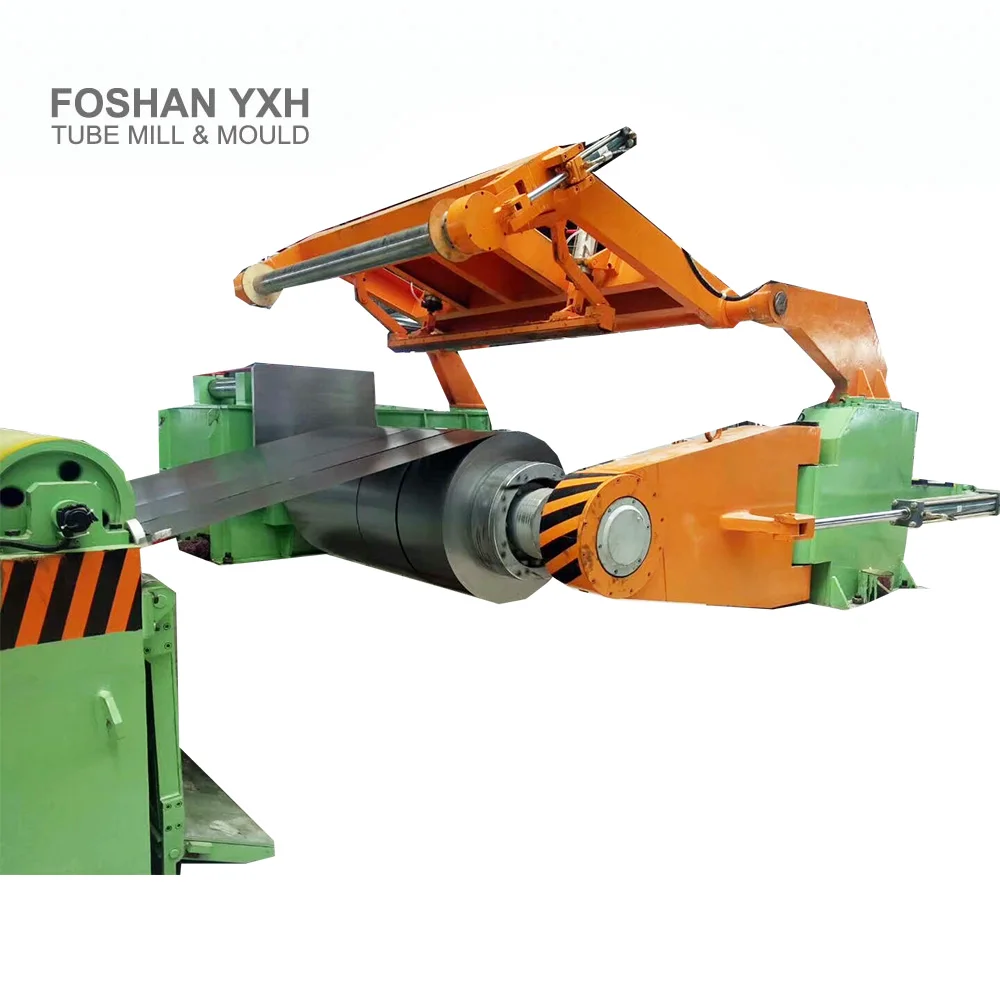

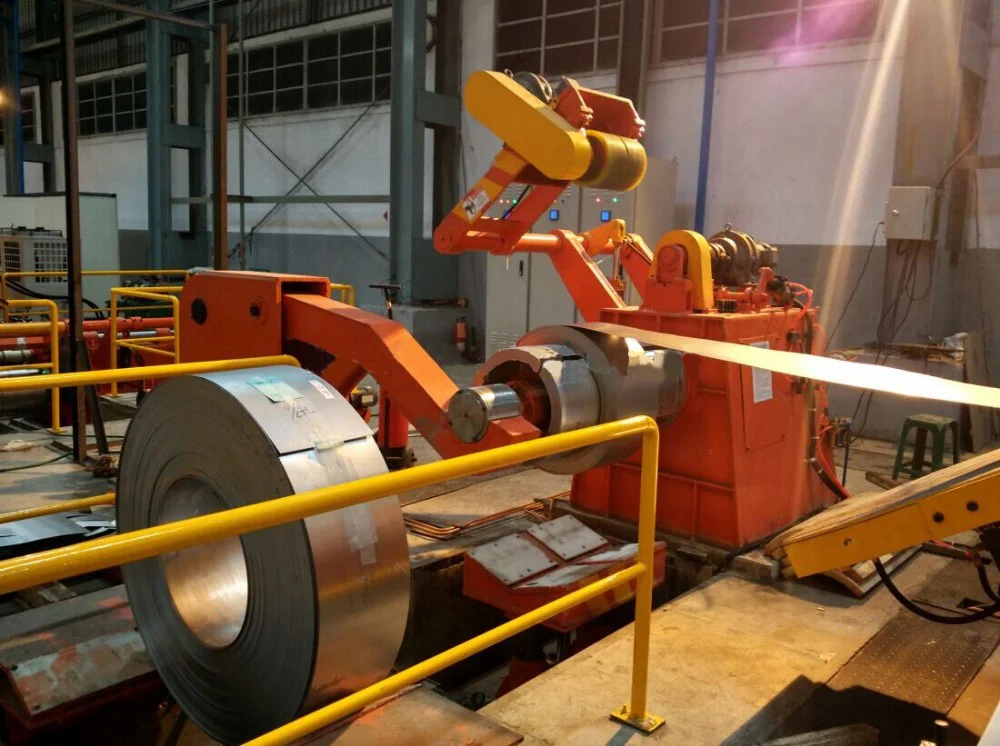

(2) hydraulic decoiler
Used to hold the coil, then open coil, feeding coil to next step, expansion and contractive by hydrualic power through wedge

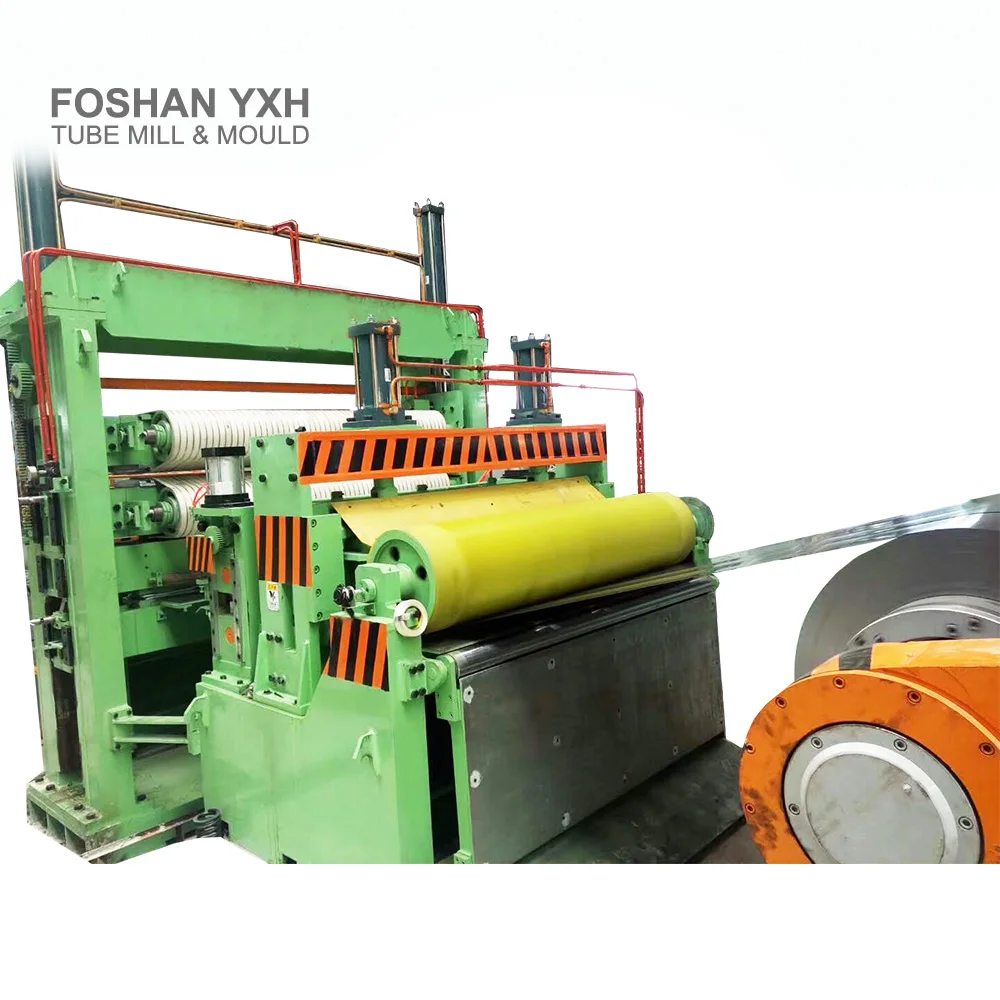

(3) Pinch roller, leveler
Pinch roller used to pinch sheet to loop bridge, drive from motor power

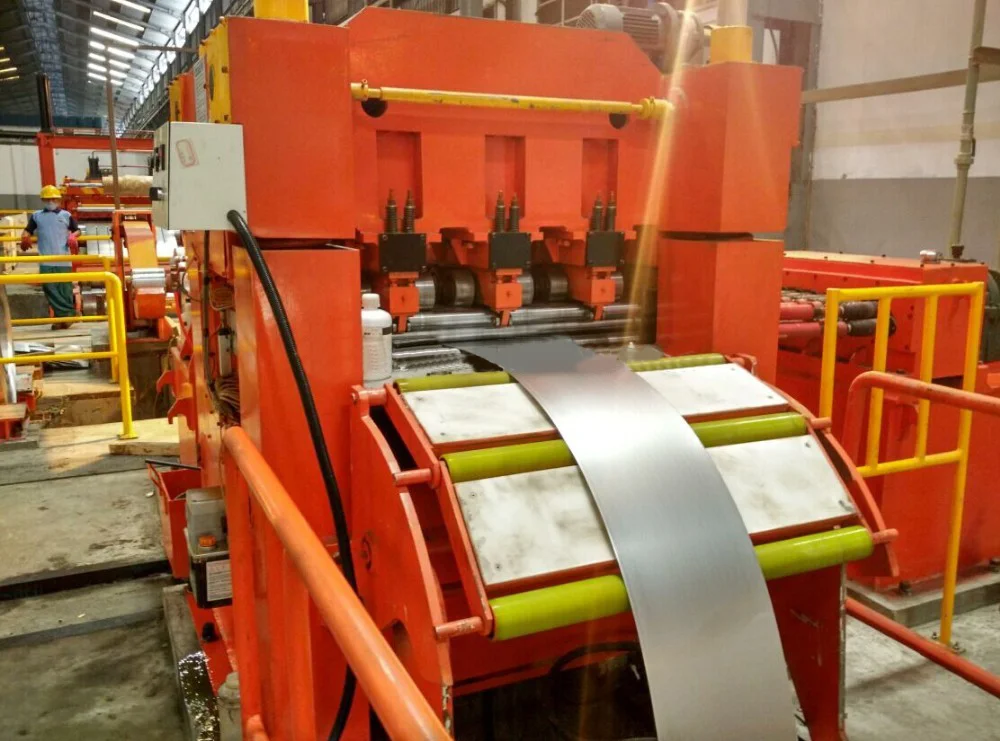

(4) Fine leveler with 6 hi
this adopts best quality in 19 rollers 6 HI leveler, to keep sheet in top flatness
(5) Loop bridge#1
Used to storage the enough coil to keep line working in best condition, also help to coodinate with each parts speed micro different, have sensor inside the pit to adjust each parts working speed in same

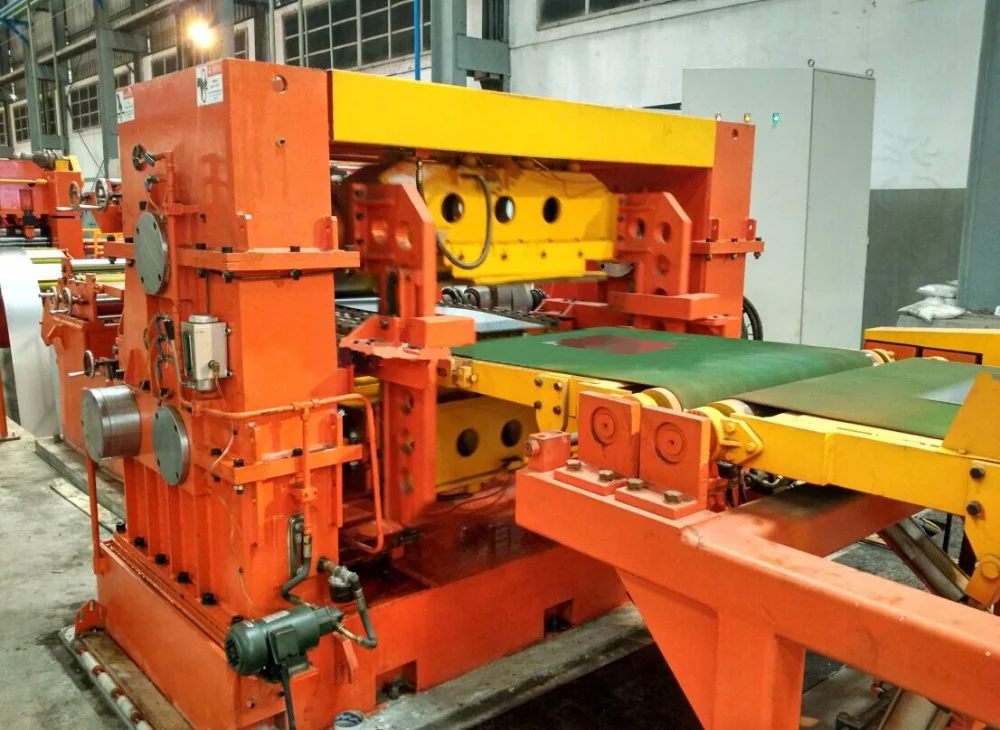

(6) fly shear
Used toshear the sheet according to PLC set data, it has two mode, from upper to down, and down to upper cutting, driven by motor or cylinder, speed can reach 80m/min

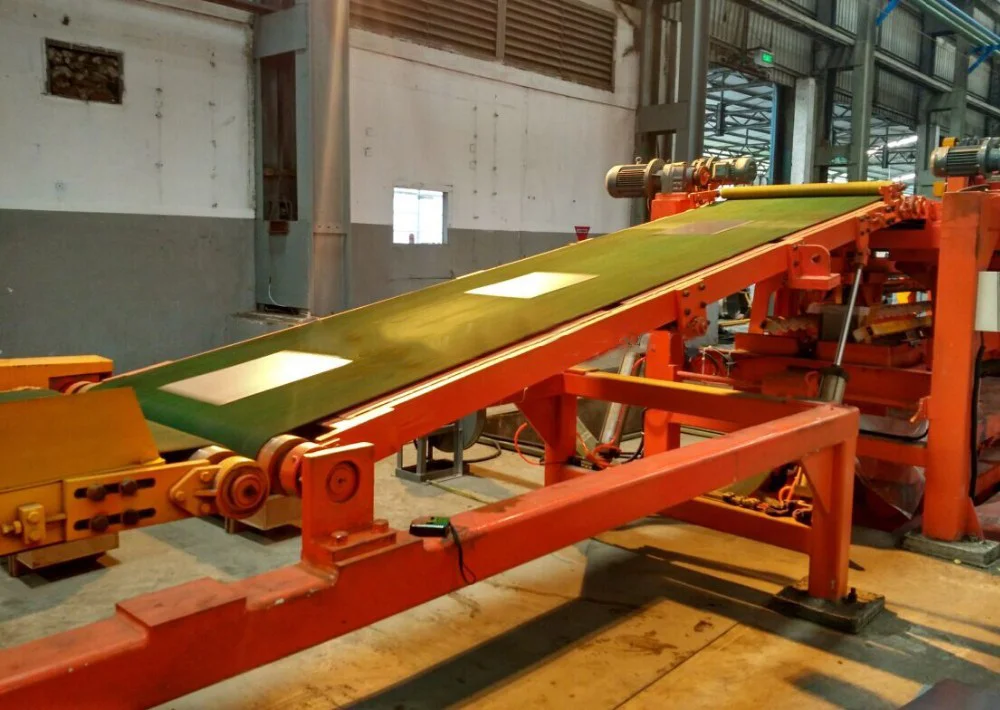

(7) Belt conveyor (two sets)
used to conveying sheets to stacker, the belt is durable

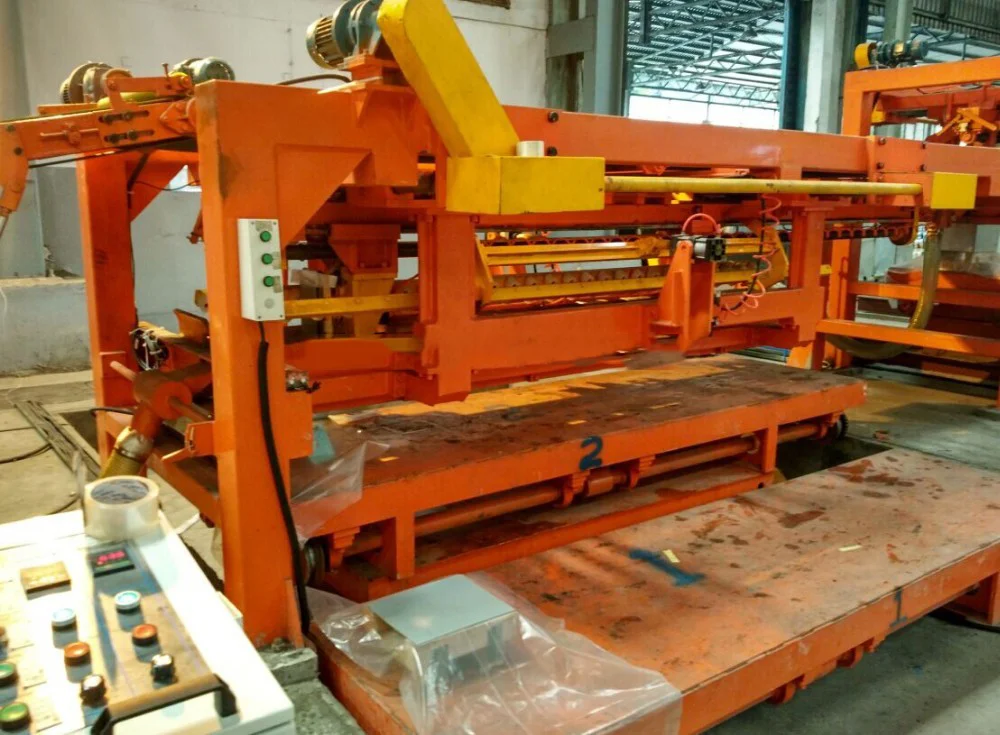

(8) auto lift stacker (two sets)
Used to stack the sheets to pallets, the power from motor and pneumatic system
under the stacker has move out roller table system, mostly have 2 sets, it has left& right out system, also has rear side out sistem. as per customer factory requirements
(11) hydraulic system
Used to offer hydraulic power for all hydraulic unit
(12) Pneumatic system
Used to offer pneumatic power for decoiler, recoiler etc other unit
(13) Lubricate system
Used to lubricate all required area, to make it working smoothly, some parts should be greasing manually
(14) Electric system
Used to control full line working condition, it has screen display, PLC, and button control together
Packaging & Shipping
Packaging
For pipe slitting machine, we use fumigation boxes to support the machine;
Use plastic film to wrap the whole machine to protect the machine from damp.
Shipping
For the big order, we choose the container transport;
For the small order, we choose the bulk cargo transportation.
