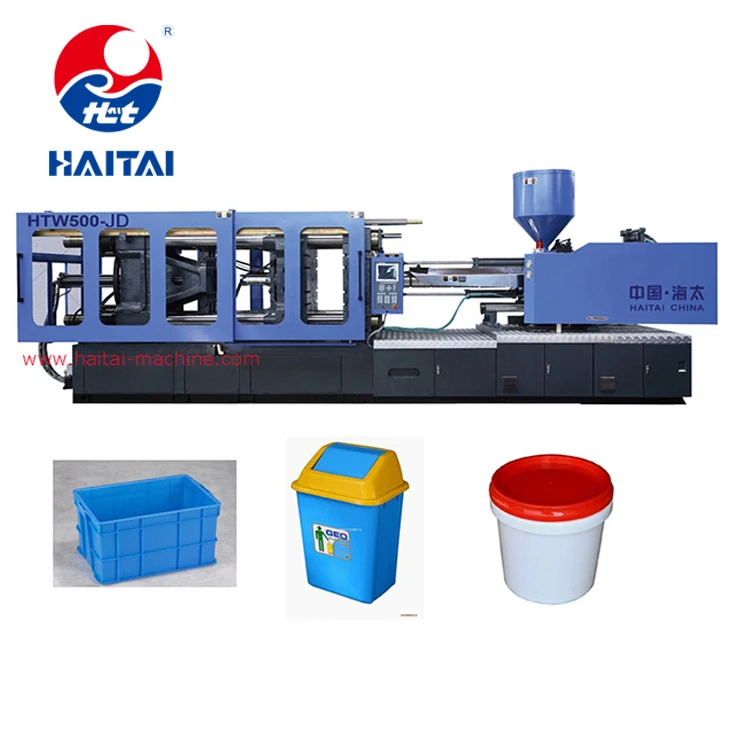

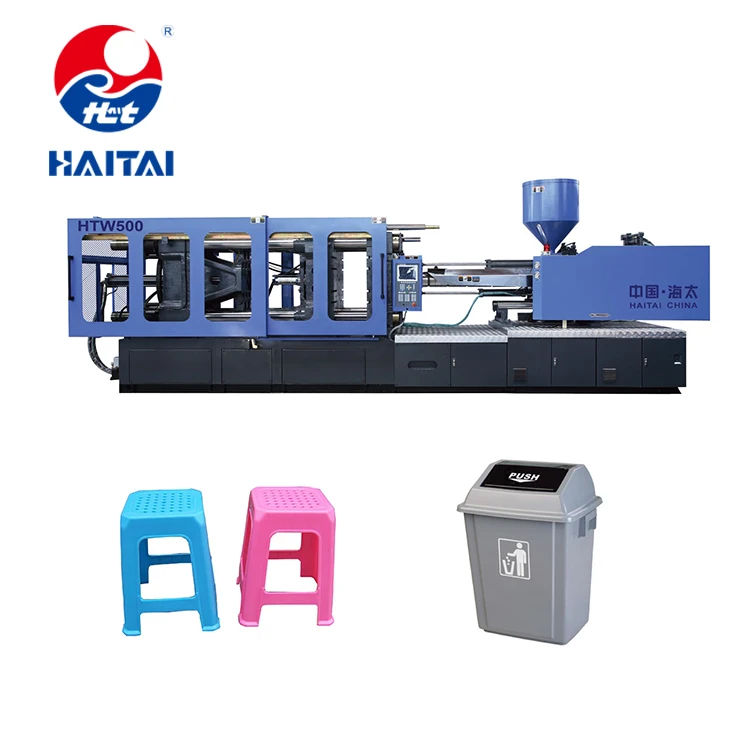

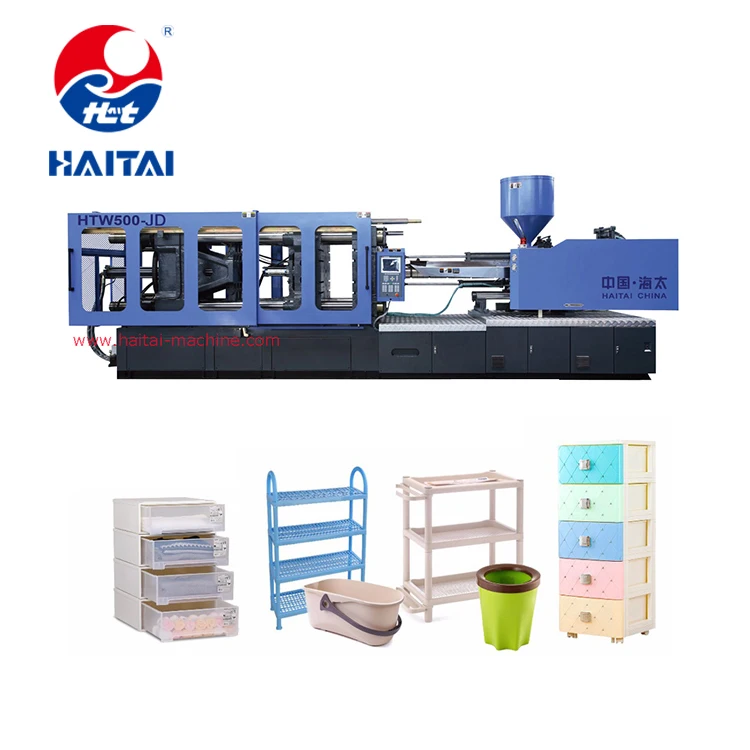

HTW500/JD Excellent quality low price plastic bucket injection moulding machine blow molding equipment machine for sale

1. SPECIFICATIONS

1. Designed by 3D software,structural strength are verified.

2. CNC machine tools for processing, products are of high precision.

3. T slot, threaded holes for mold installation.

4.Hydraulic system with a self sealing oil suction filter and adopted the bypass filter device.

5. Servo system adopted, energy-saving effect of up to 85%.

6.Servo system is made of high quality components. The system robustness is strong, running stability.

7. Timely and effective after-sales service.

2. TECHNICAL PARAMETERS

SPECIFICATION		HTW500/JD
		A	B	C
INJECTION UNIT
Screw diameter	mm	75	80	85
Screw L/D ratio	L/D	22.7	21	20
Shot volume(theoretical)	cm3	1900	2161	2440
Injiection weight(ps)	g	1729	1967	2220
Injection rate	g/s	386	442	499
Injection pressure	Mpa	191	168	148
Screw pressure	rpm	130
CLAMPING UNIT
Clamping force	kN	5000
Open stroke	mm	770
Space between tie bars(W×H)	mm	820×800
Max.Mold height	mm	810
Min.Mold height	mm	330
Ejector stroke	mm	240
Ejector force	kN	150
OTHERS
Max.Pump pressure	MPa	16
Pump motor power	kW	55
Heating power	kW	31.4
Machine dimension(L×W×H)	m	8.4×1.92×2.76
Oiltank cubage	L	900
Machine weight	t	18.5

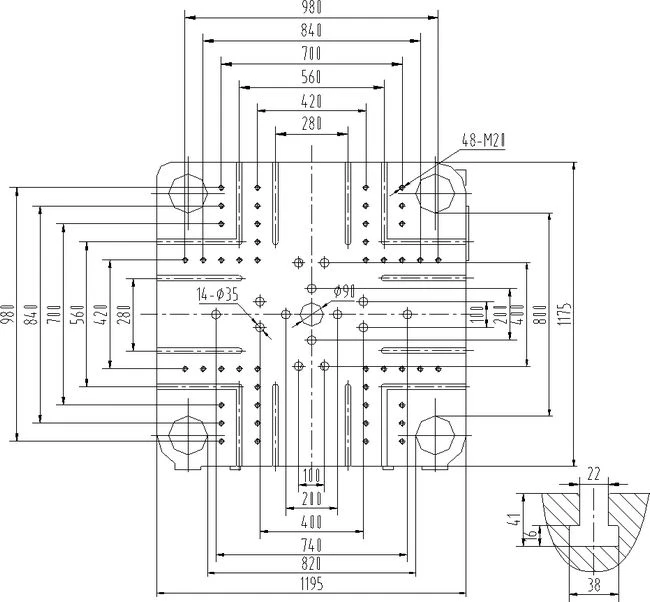

PLATEN DIMENSIONS

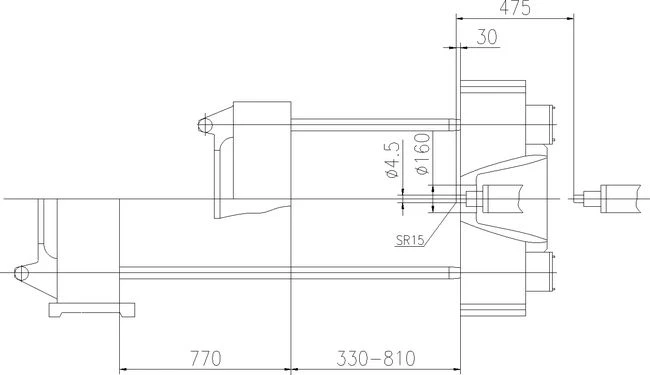

MOULD SPACE DIMENSOINS
