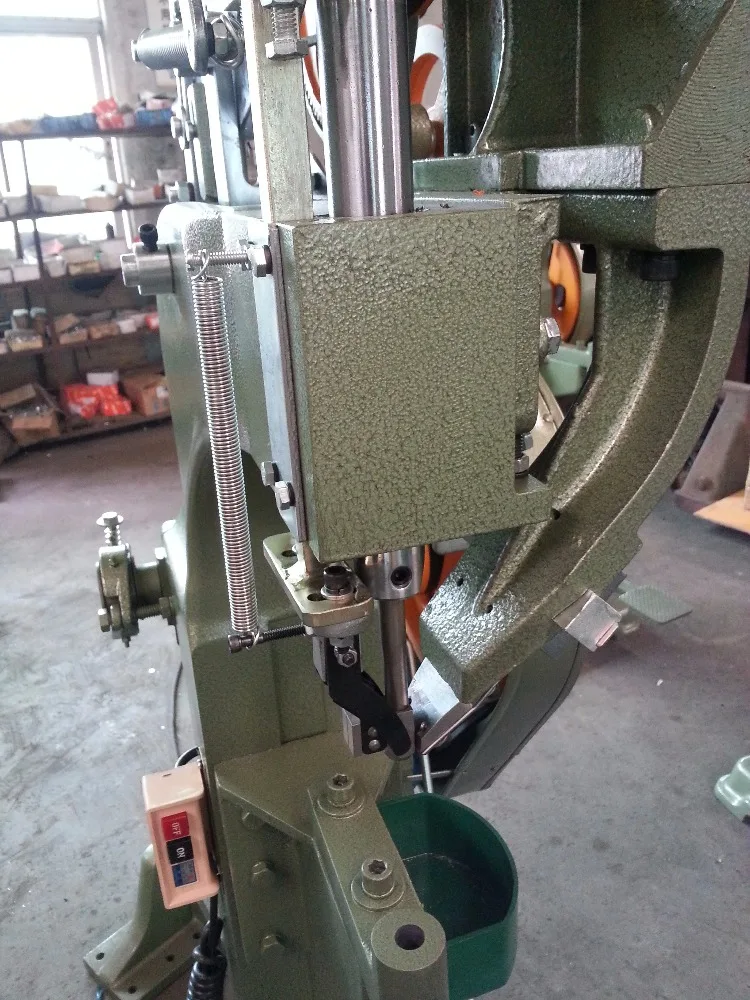

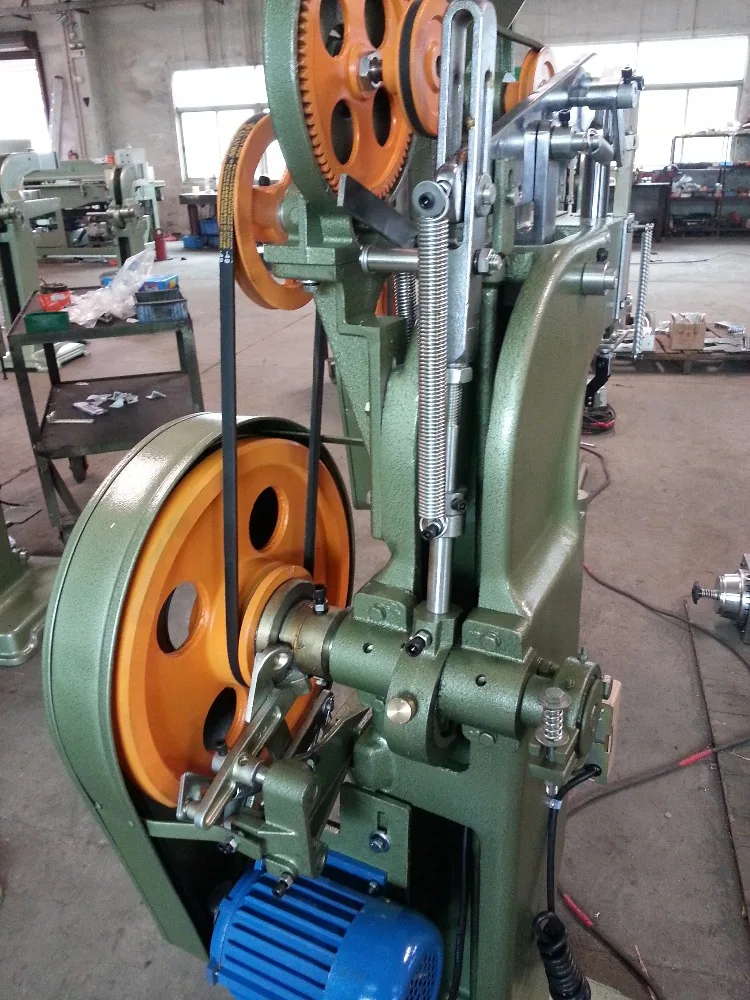

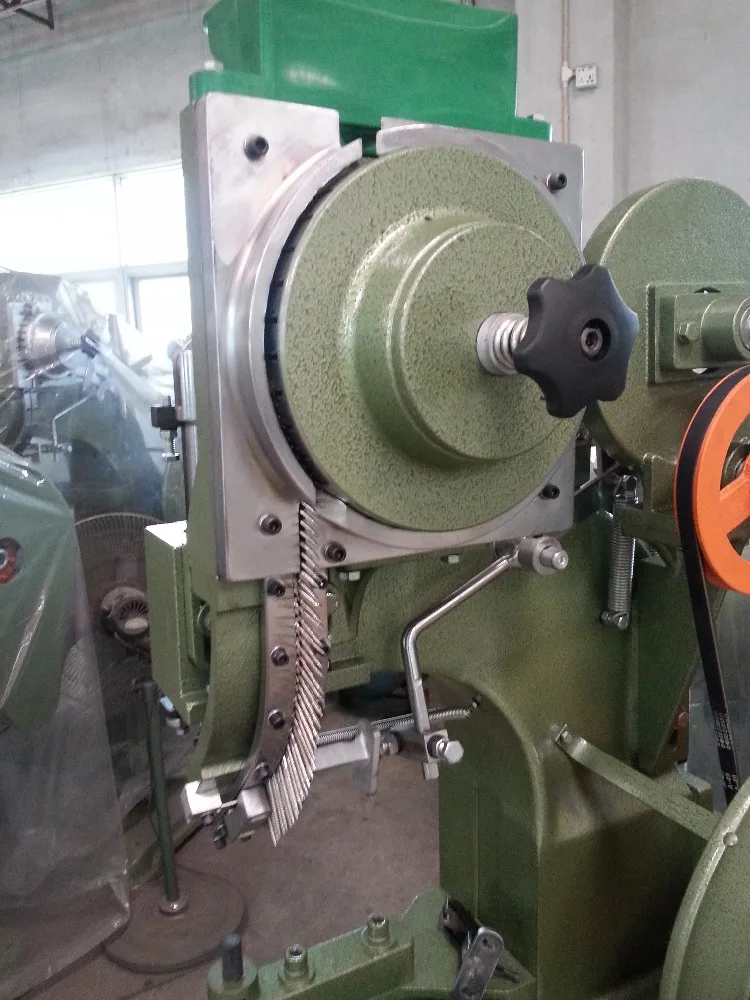

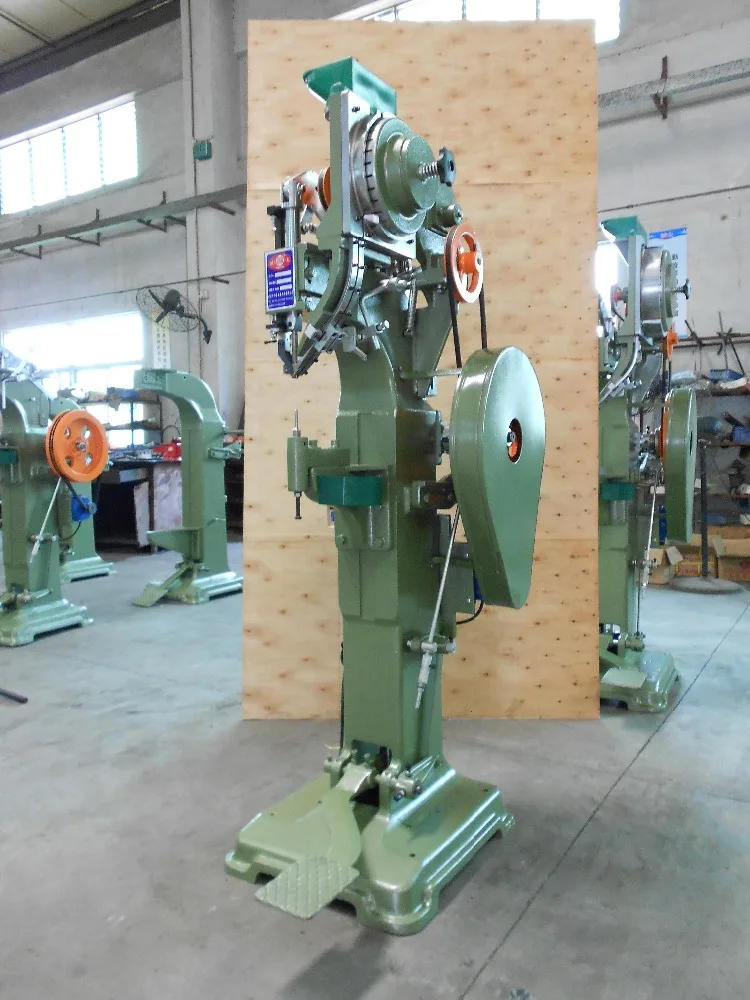

CD automatic feed rivet machine for baby carrage

CD-J12A2    RIVETING MACHINE(LARGE TYPE)

Riveting machineused for baby carriages,folding chairs and other hardware riveting.

Fully hollow rivets Semi-hollow rivets.

Single rivet riveting.

Automatic feeding of rivet.Washer loading is hand operating.

Rivet diameter  ---------------------------------------------------------φ3~6mm

Rivet lenght  -------------------------------------------------------------25~40mm

Throat depth  ------------------------------------------------------------250mm

Motor   ---------------------------------------------------------------------1/2HP

Height from floor to bottom mold  --------------------------------950mm

Machine dimensions (L*W*H) -------------------------------------960*600*1650mm

Net weigth ----------------------------------------------------------------290kgs

Gross weight  -----------------------------------------------------------350kgs

We can design the machine as ur special demand.
