ZNZ Ball Bearing Lead Screw Rod

Product Overview

Description

ZNZ Ball Bearing Lead Screw Rod



Ball Screw

ball screw nut, ball screw(ballscrew): we supply a full range of high performance, cost effective, precision for all application

ball screw nut, ball screw(ballscrew): we supply Ball Screws at a full range of high performance, cost effective, and precision for all applications. Ballscrews are critical components in machine tools and production machinery.

Ball Screw Features Include: Long operating life, High lead accuracy to C7 standards,

Fast delivery on many models.

specification list (SFI and DFI):
1204-3,1605-4,1610-3,2005-4,205T-4,2505-4,3205-4,3210-4,4005-4,4010-4,5010-4,6310-4,8010-4

specification list (SFU and DFU)
1204-3,1605-4,1610-3,2005-4,2505-4,2510-4,3205-4,3210-4,4005-4,4010-4,5010-4,6310-4,8010-4, 2505-5,2510-2.5,3205-5,3206-5,3208-5,3210-5,3220-2.5,4005-5,4010-5,4020-2.5,5010-5,5020-2.5,6310-5,6320-2.5,8010-5,8020-5,8020-7.5

specification list SFE
1616-3,1616-6,1632-3,1632-6,2020-3,2020-6,2040-3,2040-6,2525-3,2525-6,2550-3,2550-6,3232-3,3232-6,3264-3,3264-6,4040-3,4040-6,5050-3,5050-6



ZNZ High Precison Grinding Ball Screw



1. ZNZ brand ball screw, OEM ODM Service also welcomed
2. Rolled or grinding both have, Grade C3-C10.
3. Min diameter is 8mm, max diameter is 160mm. Max length is 12m
4. Competitve price with good qualtiy.
5. SGS, TUV, ISO/TS16949, ISO9001 qualified.

ZNZ is a leading manufacturer of ball screw in China and preferred supplier for the design, manufacture and repair of precision-ground ball screw assemblies, commercial grade ball screw assemblies, and specialty threading applications, either English or metric. We can custom design and manufacture ball screws to meet your specific needs according to your drawing or sample. Precision ground Ball Screw Assemblies are available for Metallurgy Industry, Iron & Steel Industry, Petroleum Industry, and Chemical Industry.
We also offer classes on corrosion prevention and other maintenance services for ball screws. Contact us to see

How we can help you
Keep your business up and running.

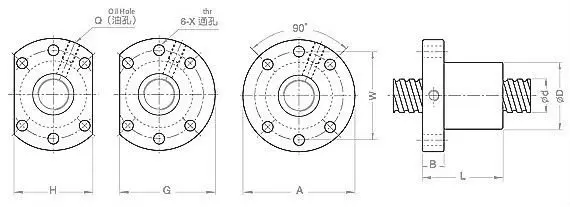

l: Lead Da: Ball Dia. n: Number of circuits K: Stiffness (kgf/μm) Ca: Basic Dynamix Rating Load (kgf) Coa: Basic Static Rating Load (kgf)
	Model No.	Dimensions
		d	l	Da	D	A	B	L	W	X	G	H	Q	n	Ca	Coa	K
	SF1605-4	16	5	3.175	28	48	10	50	38	5.5	44	40	M6	4	780	1790	20
	SF1610-3	16	10	3.175	28	48	10	57	38	5.5	44	40	M6	3	721	1249	15
	SF2005-4	20	5	3.175	36	58	10	51	47	6.6	51	44	M6	4	1130	2380	25
	SF2505-4	25	5	3.175	40	62	10	51	51	6.6	55	48	M6	4	1280	3110	35
	SF2510-4	25	10	4.762	40	62	15	85	51	6.6	55	48	M6	4	1944	3877	33
	SF3205-4	32	5	3.175	50	80	12	52	65	9	71	62	M6	4	1450	4150	40
	SF3210-4	32	10	6.350	50	80	12	90	65	9	71	62	M6	4	3390	7170	40
	SF4005-4	40	5	3.175	63	93	14	55	78	9	81.5	70	M8	4	1610	5330	49
	SF4010-4	40	10	6.350	63	93	14	93	78	9	81.5	70	M8	4	3910	9520	50
	SF5010-4	50	10	6.350	75	110	16	93	93	11	97.5	85	M8	4	4450	12500	65
	SF6310-4	63	10	6.350	90	125	18	98	108	11	110	95	M8	4	5070	16600	80
	SF8010-4	80	10	6.350	105	145	20	98	125	14	127.5	110	M8	4	5620	21300	90

1.Why choose us?

A. Large variety inventory: Meet your urgent requirement, 5-10days delivery.
B. Rich experience of export: good reputation and service to help you to solve problem.
C. Designs customized: Pattern,Company Logo or other special requirement we can make

as your request.

D. High quality: All products according to the International quality standard. Specialized quality inspection team to control each production process.

Goods quality has CE certificate and ISO9001 certificate.



2. Can you provide free samples?

Yes, some normal products we can provide the free samples, but usually our customers need to bear the express charge

ustomized products sample need to pay the sample charge, when you placed the order, sample charge will be returned.



3. Can you customize products, including material, size, style etc.?

Yes,we can customize your own products. We can make a sample for your confirmation according to your requirement before order confirmation.



4. What is MOQ?

For inventory items, no minimum order quantity

For other items, would you please check our specific details for each item to get the MOQ. Any special requirement, please tell us.



5. How about payment?

We can accept T/T, Western Union, Paypal etc.



6. Is there any after-sale service?

Customer services will watch for your order once your order placed to our company,  we will keep in touch and ensure the quality is no problem until the goods arrived at your end.
Once you get the goods, please check the goods, if find out any problems to our goods, notify us, we will immediately get out the solutions for these.
