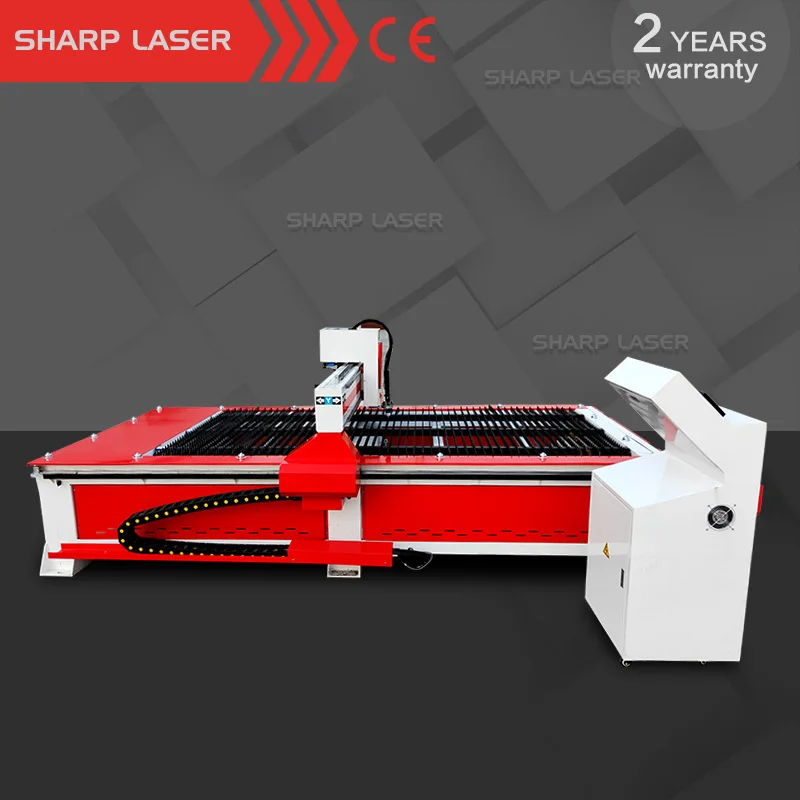

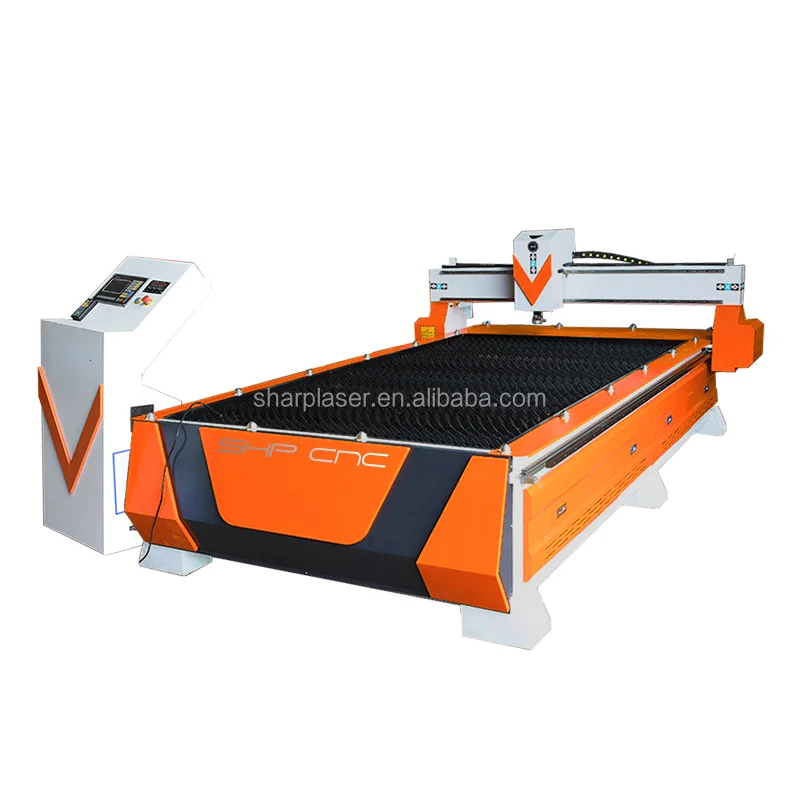

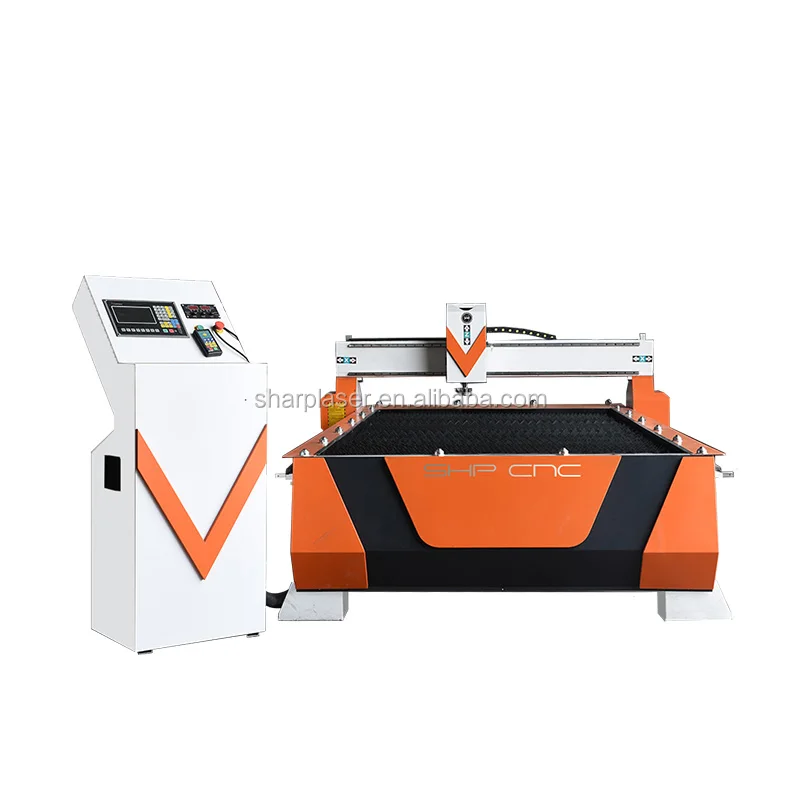

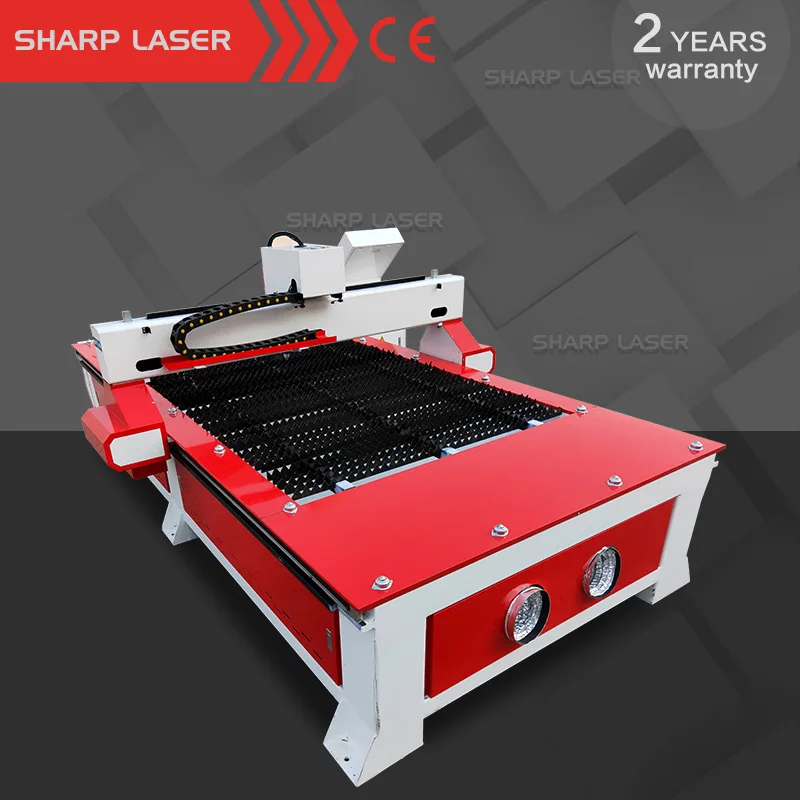

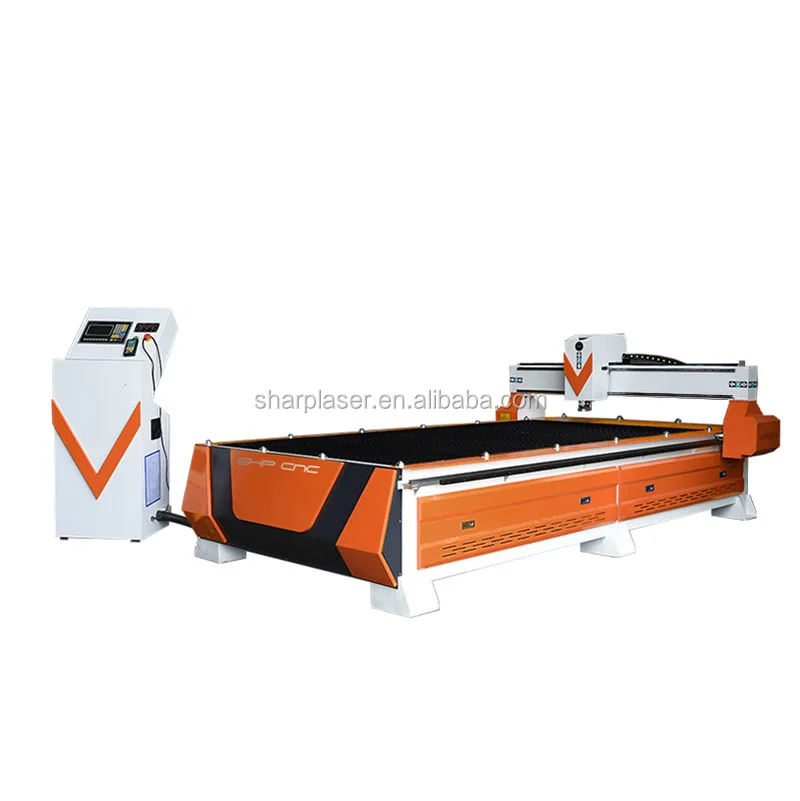

1325 stainless steel cnc metal plasma cutting machine
- Category: CNC Plasma Cutters >>>
- Supplier: Shandong Sharp Laser Machinery Co. Ltd.
Share on (60748318075):
Product Overview
Description

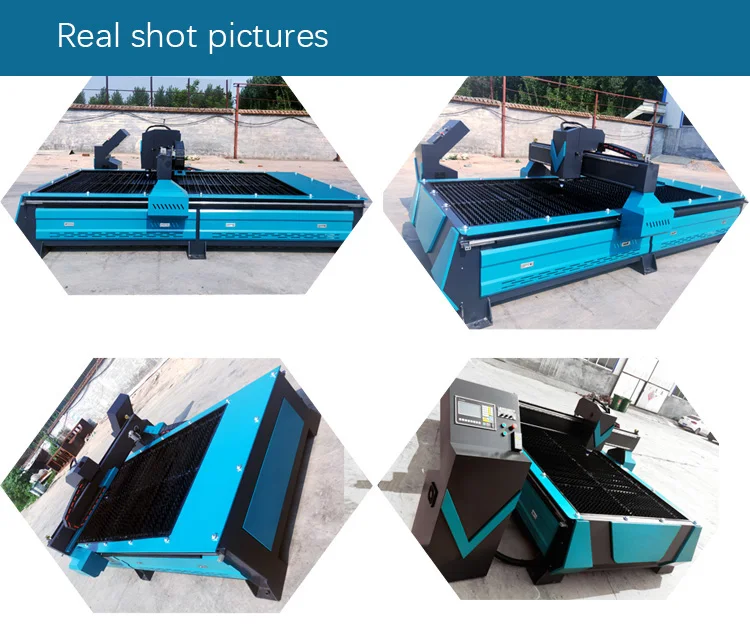

CP1530 Heavy duty cnc plasma cutting machine
ApplicationMaterials: Stainlesssteel,mildsteel,brass,copper,aluminumalloy,sheetmetal,sprin gsteel,gold,silver,etc ApplicationIndustry: Sheetmetal,kitchenware,components,decorationsindustry
| Technical parameters | |
| Type | Heavy duty Plasma cutting machine |
| Model | CP1530 heavy |
| cutting range | 1500x3000mm,10x5' |
| cutting speed | 0-8000mm/min |
| Cutting mode | Flame only,Plasma only,Plasma and flame |
| Plasma source | Huayuan/Hypertherm |
| Driving motors | Stepper motors/Servo motors |
| Transmission system | X,Y axis by Rack pinion, Z axis by ball screw |
| Cutting thickness | 0.5-60mm depending on plasma power |
| Moving precision | 0.01mm per step |
| Power consumption | 8.5kw |

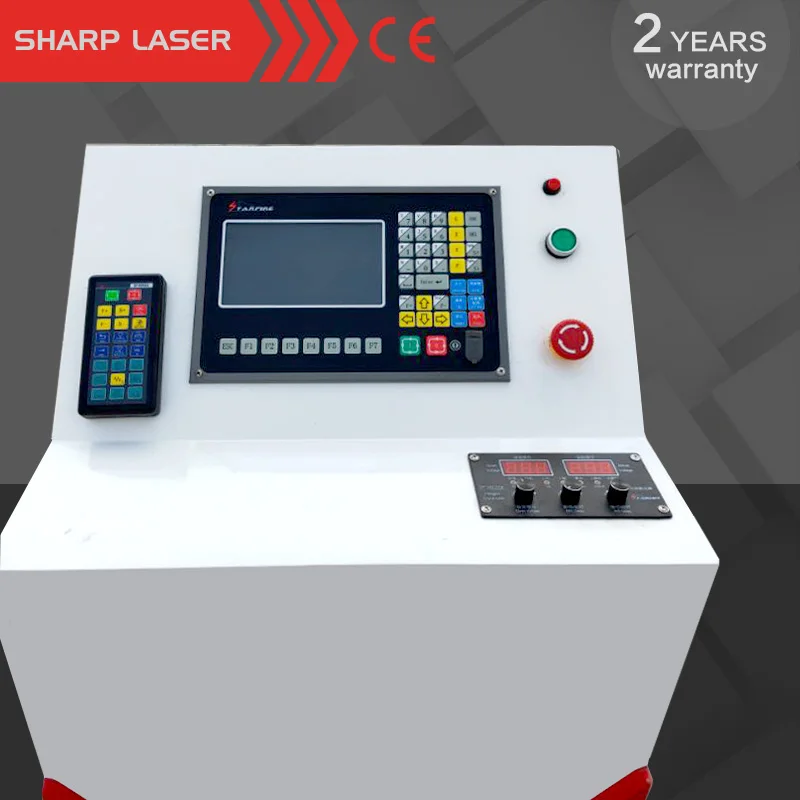

| Controlling system | Starfire control system |
| nesting software | Starcam |
|
Torch Height Control(THC) mode |
Automatic High sensitive THC |
| Gas Assistant |
compressed air,N2,O2 |
| Plasma current | 63A,100A,120A,200A |
| Files transfering mode | USB interface |
| Application | Iron plate,aluminum,galvanized iron,steel |
| Power supply | 220v/380v, 50hz/60hz |
| Dimension | 3.8*2.3*1.55m |
| Weight | 1000kg |
|
Cutting thickness by plasma |
||||||||
|
plasma generator
|
Suggested cutting range(cut with good quality)mm |
Maximum cutting thickness(mm) |
Air pressure(mpa) |
|||||
|
63A /65A |
0.5-8 |
12 |
0.6 |
|||||
|
100A/105A |
0.5-20 |
25 |
0.6 |
|||||
|
120A/125A |
0.5-22 |
25 |
0.6 |
|||||
|
160A |
0.5-25 |
30 |
0.8 |
|||||
|
200A |
0.5-30 |
40 |
0.85 |
|||||
