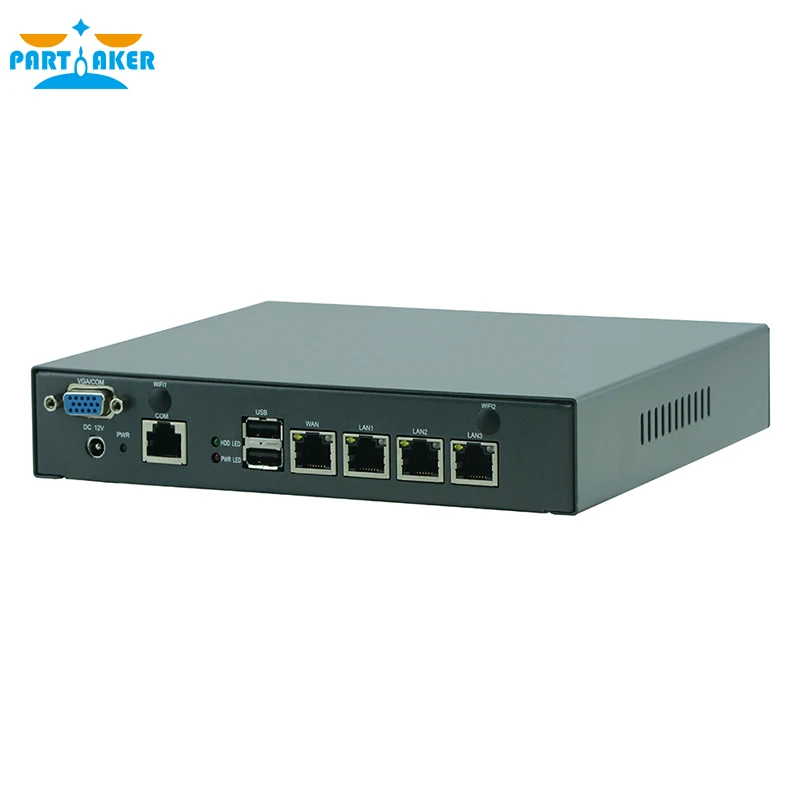

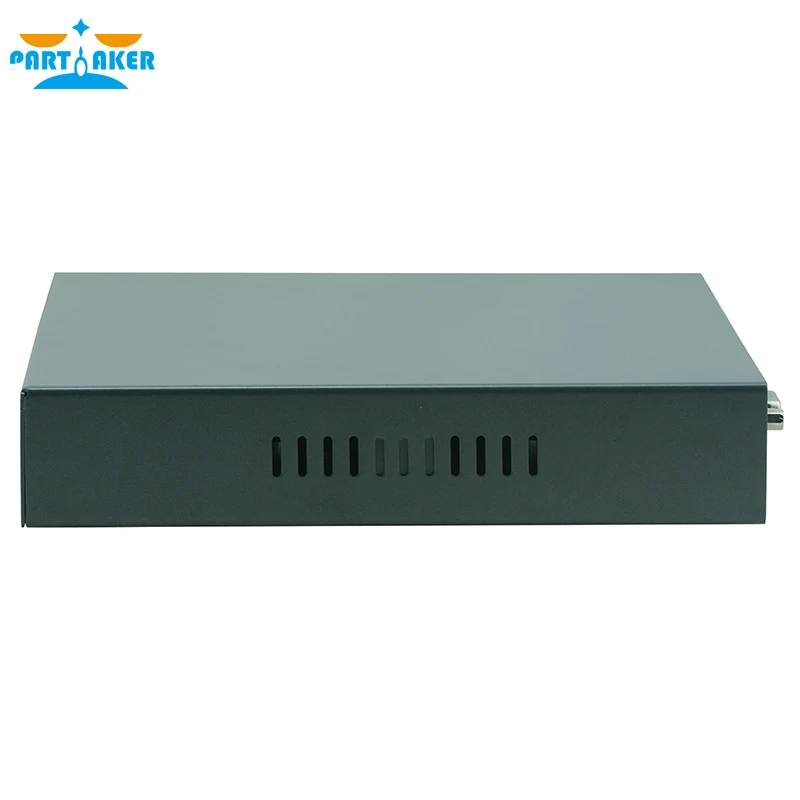

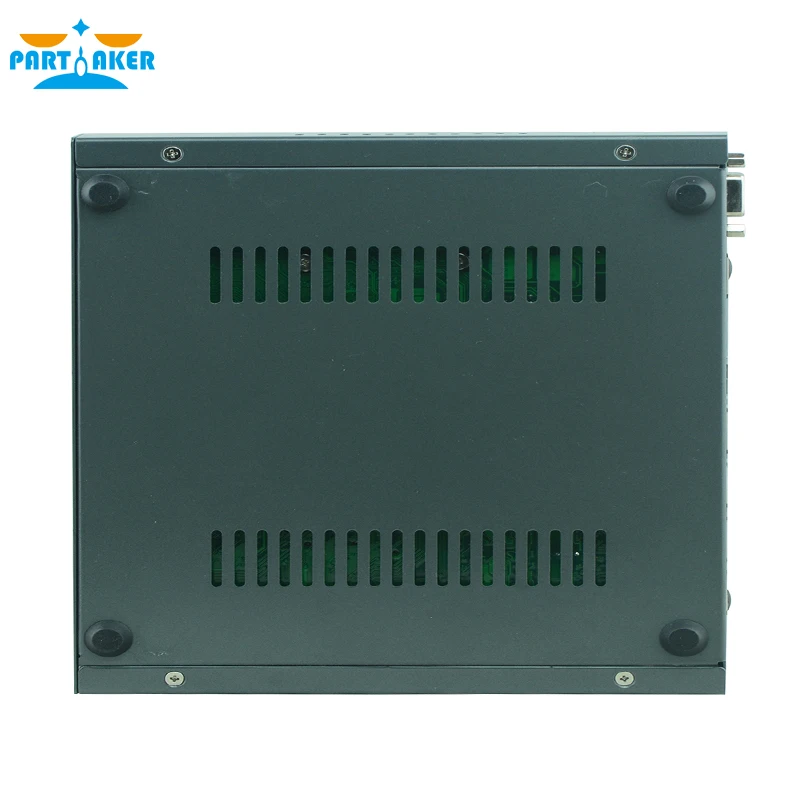

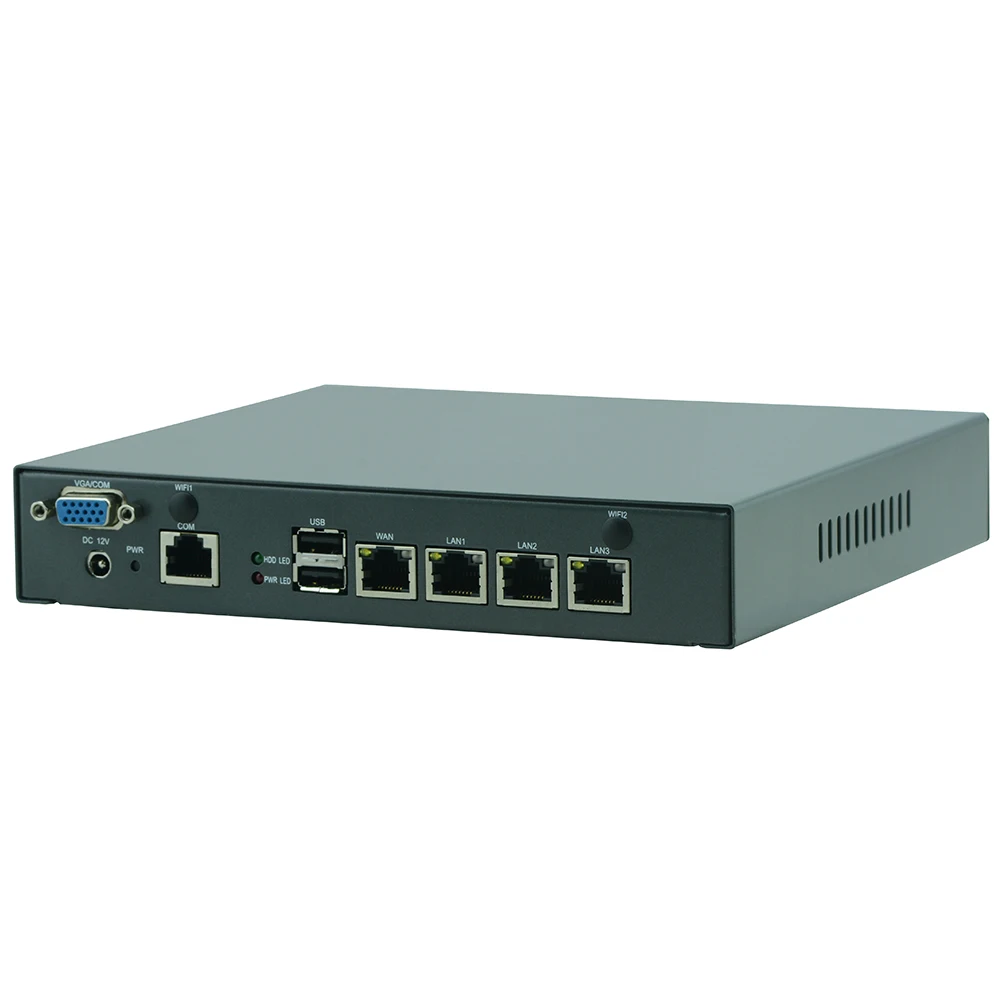

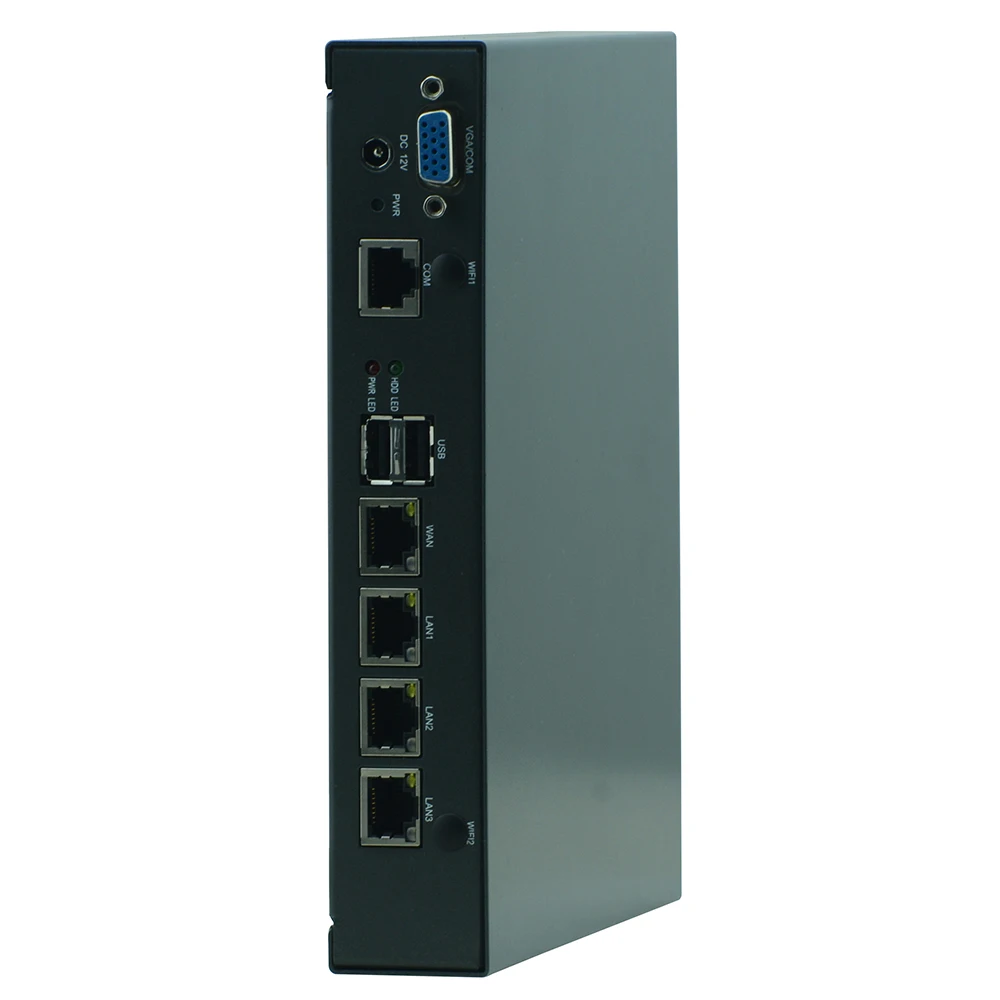

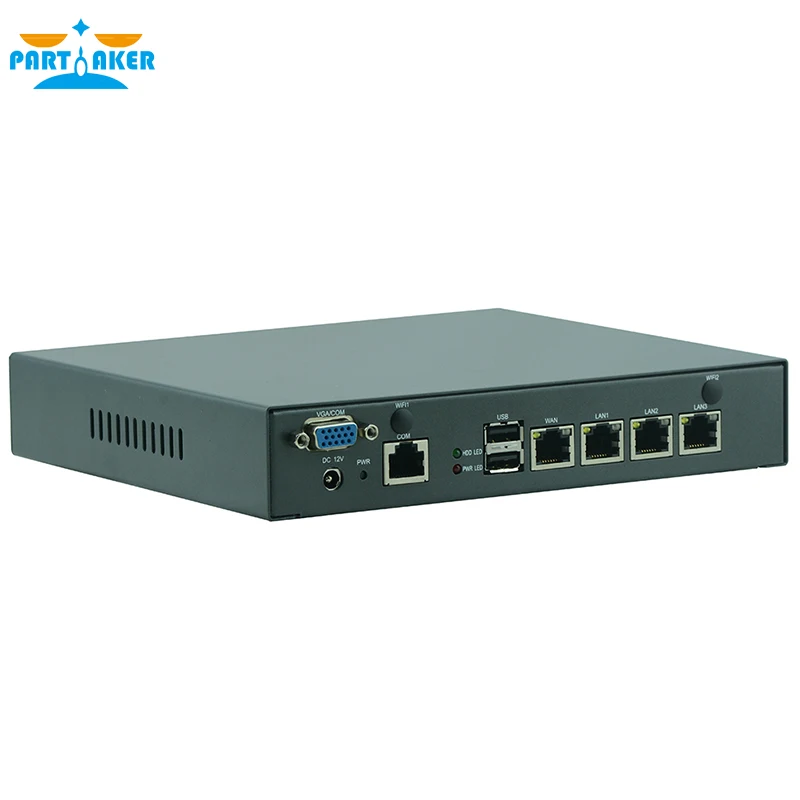

F1 Mini PC J1900 Quad Core Intel Atom D525 Network Security Control Desktop Firewall Router Mini Computer 4 LAN
- Category: >>>
- Supplier: Shenzhen Inctel Technology Co. Ltd.
Share on (60748373136):
Product Overview
Description

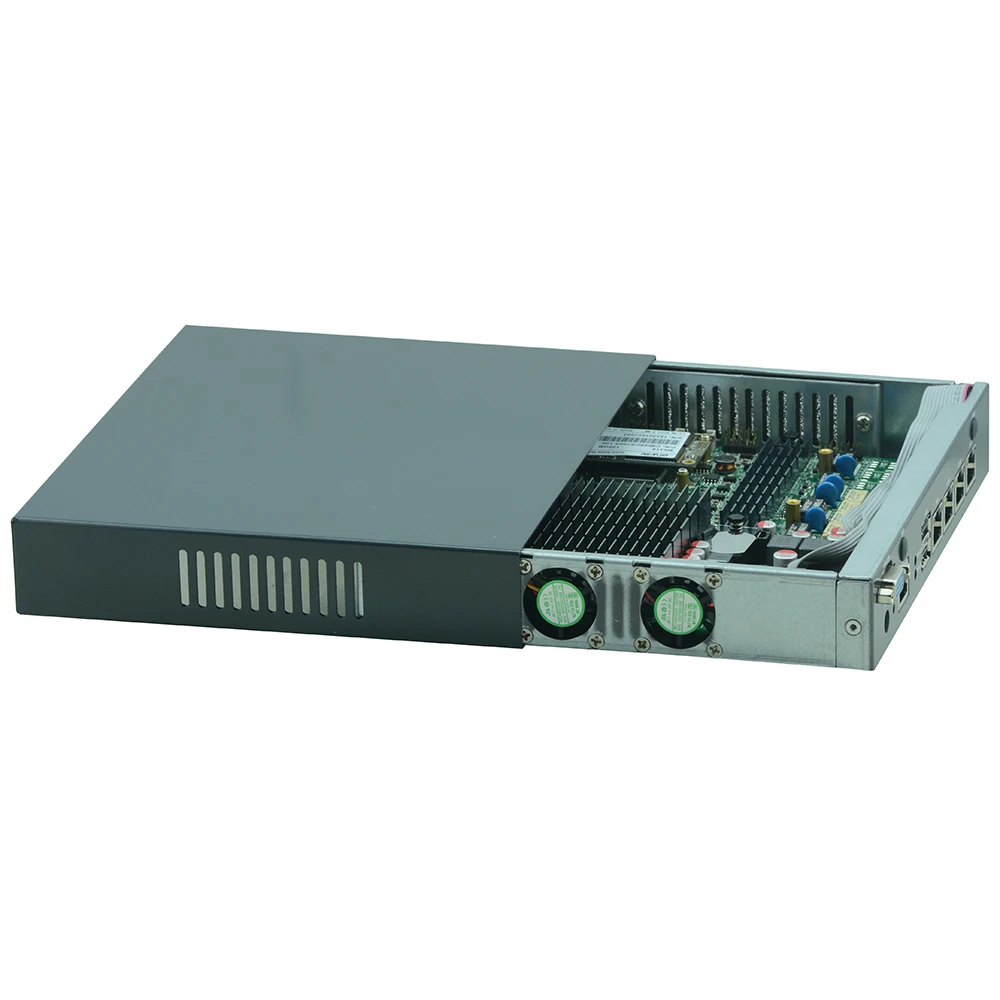

F1 Mini PC Celeron J1900 Quad Core Intel Atom D525 Network Security Control Desktop Firewall Router Mini Computer 4 LAN
This model motherboard can install processors:
1. CPU Intel Atom D525 2 Core 4 Threads 1MB Cache 1.8GHz TDP 13W with 4*82583V Lan (With Fan)
Features
- Fanless Cooling Structure
- High quality galvanized steel sheet, compact structure, flexible installation
- Adopt Bay Trail series processor
- 1xVGA ,2xUSB2.0,1xCOM
- Adopt Intel 82583V chipset, support 4* Gigabit LAN Port
- Size: 197mm*174mm*35mm
Attention:
There are two options for this item
1)WAN +LAN1+LAN2+LAN3 are activated.(Default Setting)
2)WAN +LAN1+LAN2 +WIFI are activated. (LAN3 NOT Work, If need WIFI, please contact us)
| Model No. | F1 | |
| Chassis | Color | Light silver black |
| Dimension | 197mm*174mm*35mm(L*W*H) | |
| Structure | Fanless cooling structure | |
| Material | High quality galvanized steel sheet | |
| Installation | Desktop type | |
| Motherboard | Model | M5V |
| Processor | Integrated Intel®D525 1.8GHz dual core processor | |
| Chipset | Intel® ICH8M Express chipset | |
| Graphics | Graphics | Integrated Intel® HD Graphics, support 1* VGA display output |
| Storage | Memory | 1* 1600/1333MHz DDR3L memory, max 8GB |
| HDD | Support 1*2.5 inch HDD expansion | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Sound Card | N/A |
| Network | Ethernet | 4* Intel 82583V, 1000/100/10bps |
| WiFi | N/A | |

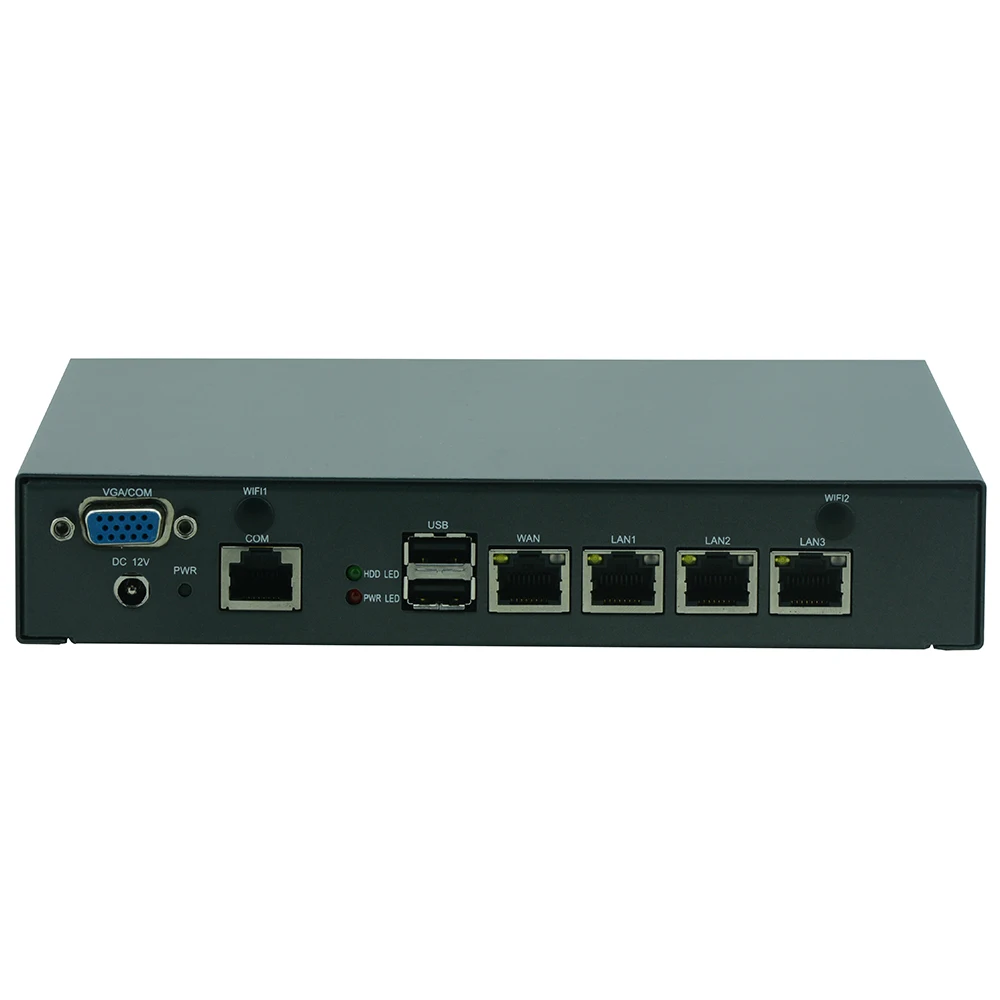

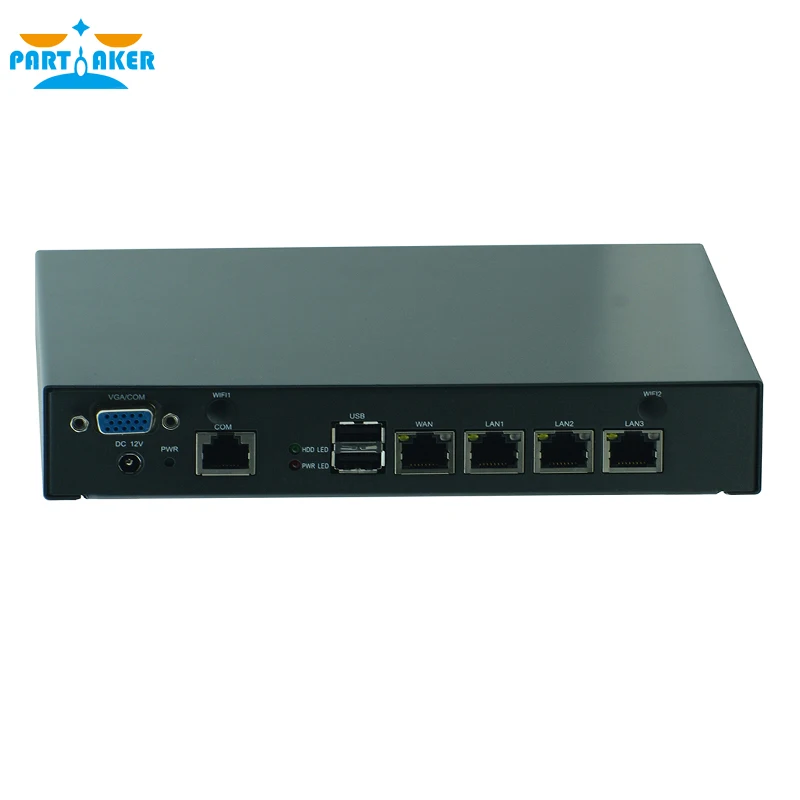

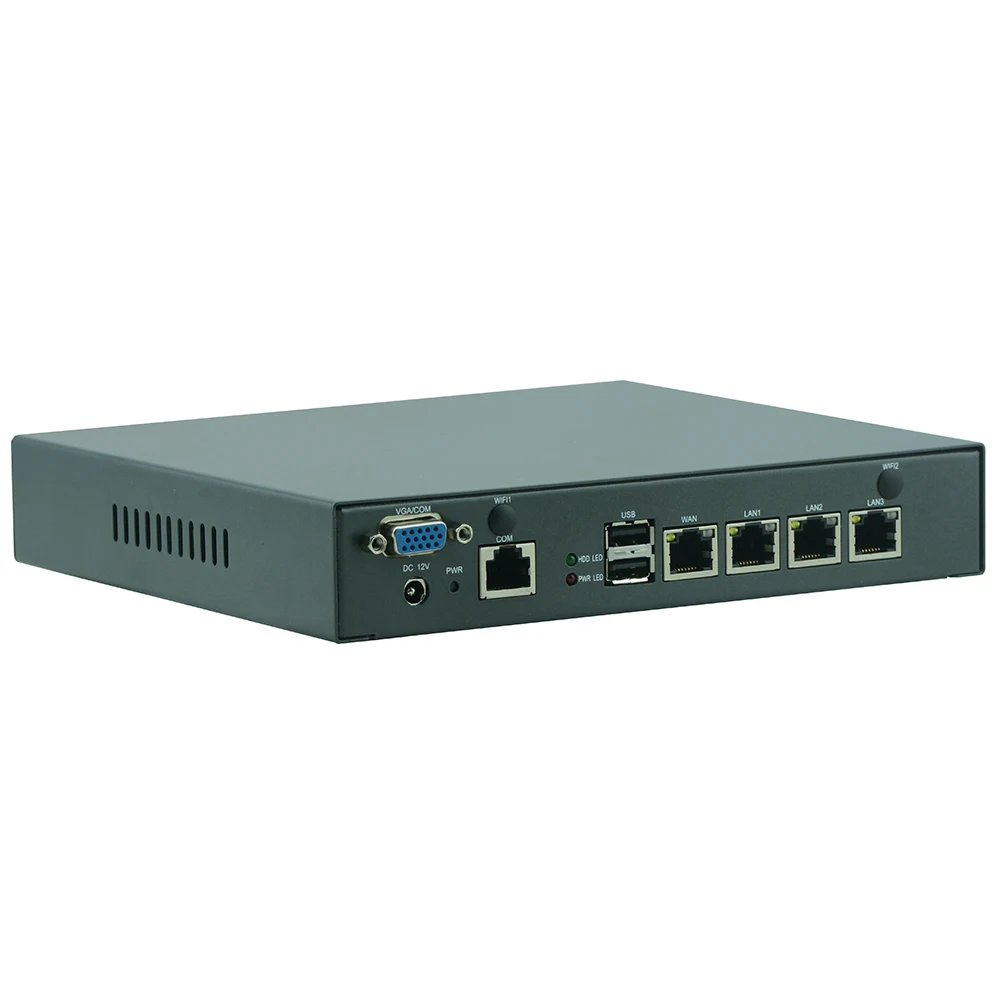

| Front I/O | Serial Port | 1* CISCO COM port |
| USB | 2* USB2.0 | |
| LAN | 4* RJ45 Gigabit LAN Port | |
| Display | 1* VGA (COM optional) | |
| LED | 1* HDD LED, 1* Power LED | |
| System Control | 1* Power Switch | |
| Power | 1* 12V DC IN Port | |
| WiFi | 2* WiFi / 3G SMA antanna (optional) | |
| Rear I/O | LED | 1* HDD LED, 1* Power LED, 4* Network LED |
| Power | Input | AC 110V ~220V |
| Output | DC 12V/3A | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows7, Windows8, Windows10, Linux OS | |
