China factory 2018 hot sale A4 copy paper wrapping machine

Product Overview

Description

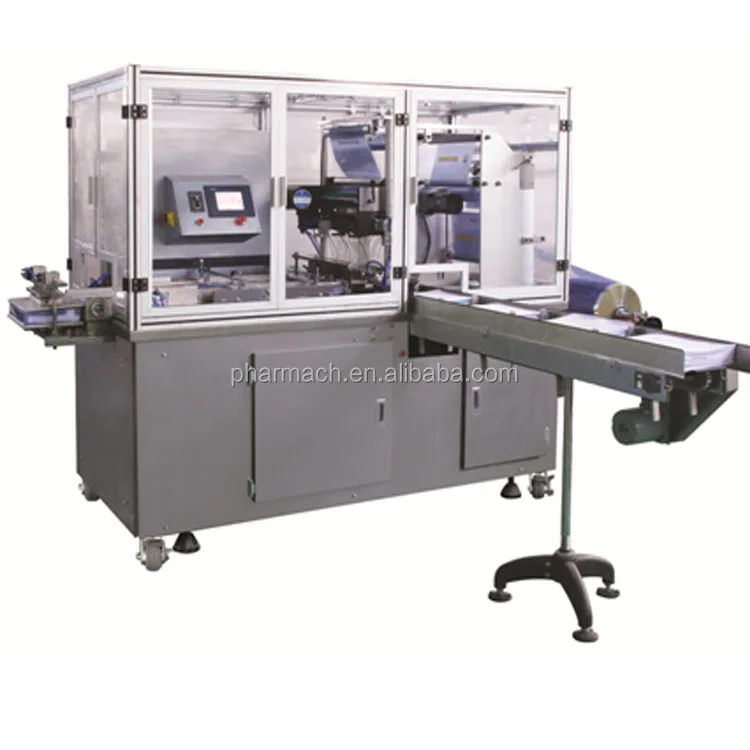

                                           A4 copy paper wrapping machine



Rolling packing material Staion:

Pack station 500pcs each sheet:

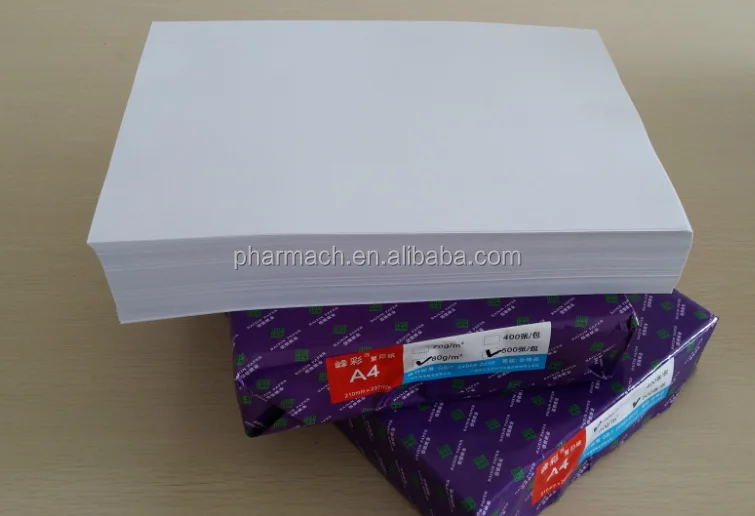

Final product after packed

Main technical parameters:

Production capacity:	12-15 (packs/min)
A4 copy paper size(standard):	297mmx210mm（500 sheets）
Temperature	110-140 degree
Voltage:	220v 50hz.one phase and we can do it as per your requirement.
Power:	4.5kw
Compressed air:	0.4Mpa
Roll diameter	Inner diameter of roll: diameter 76mm Max diameter: diameter< 800mm
Overall dimensions:	3200x1100x1900mm
Weight:	1200kg
Package material	Printed film.



 Performance and structure features:

1/Main structure is driven by a series of cams and connecting rods and working accessories to finish the packaging. High stability, low noise.

2/Applying frequency conversion with multi-function digital non-ploy speed, adopting siemens PLC program controlled.

3/Touch screen realizing human-machine interface.

4/ if package material is printed film photocell sensor will be provided so as to reduce the packing cost and also improve cutting accuracy of color film, wrapping effect and sealing performance.
