Main Application: Extruders were originally used in the polymer processing industry for mixing, compounding or reacting of the polymeric materials. They are also popular in food processing, for example, in the production of various products such as snacks, cereals and pet food. The popularity of twin screw extruders is attributed to its versatility and applicability to a remarkably wide range of materials. Besides this, extruders allow continuous processing and are capable of delivering high value, high quality products in large quantities. The growing number of industrial applications of extrusion technology in the last few decades has led to an increasing interest in understanding the extrusion process. However, the complexity of the extrusion process such as the shear, mixing, flow performance and the material interaction make the study very challenging and empirical approaches have made little contribution to the fundamental understanding of the process.

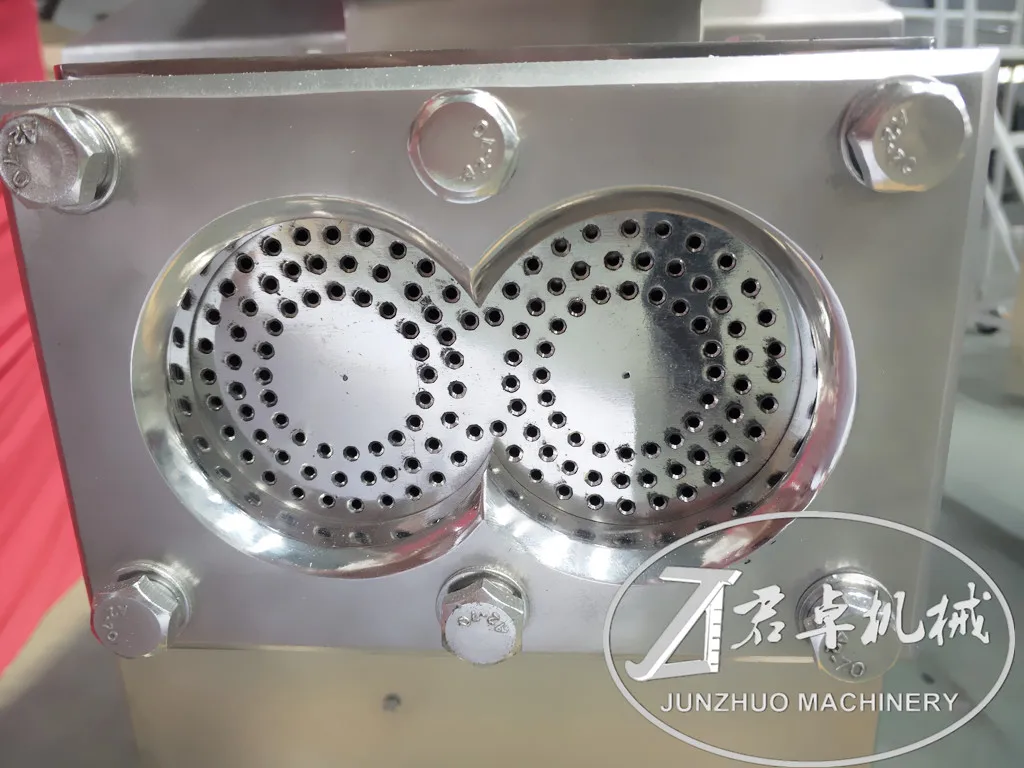

Working Principle: The screw extruder pelletizer composed of twin screws. Either front extrusion or side extrusion is available. The wet material compacted and transported to granulating part by special screws. Then it is forced through screen mesh to be columnar particles.

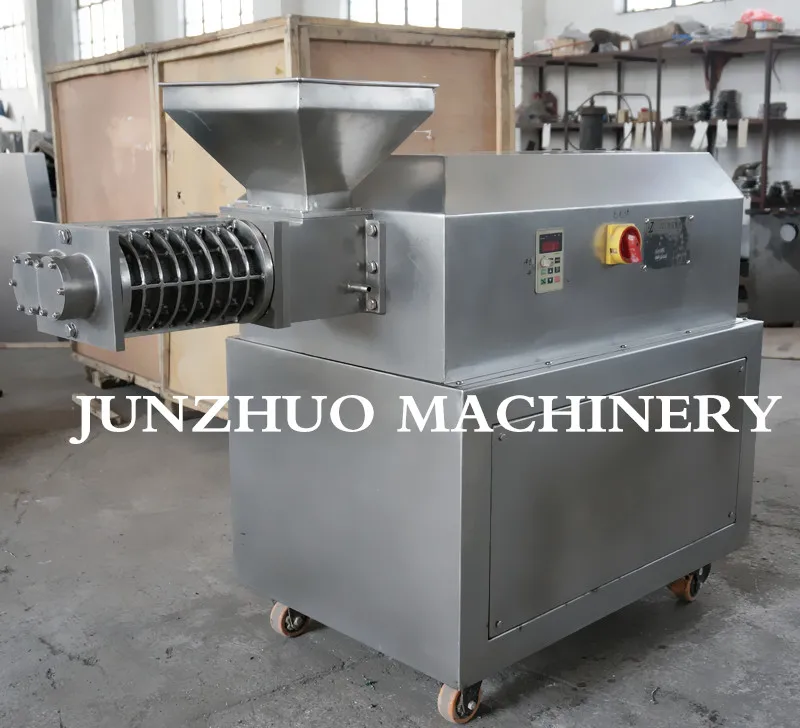

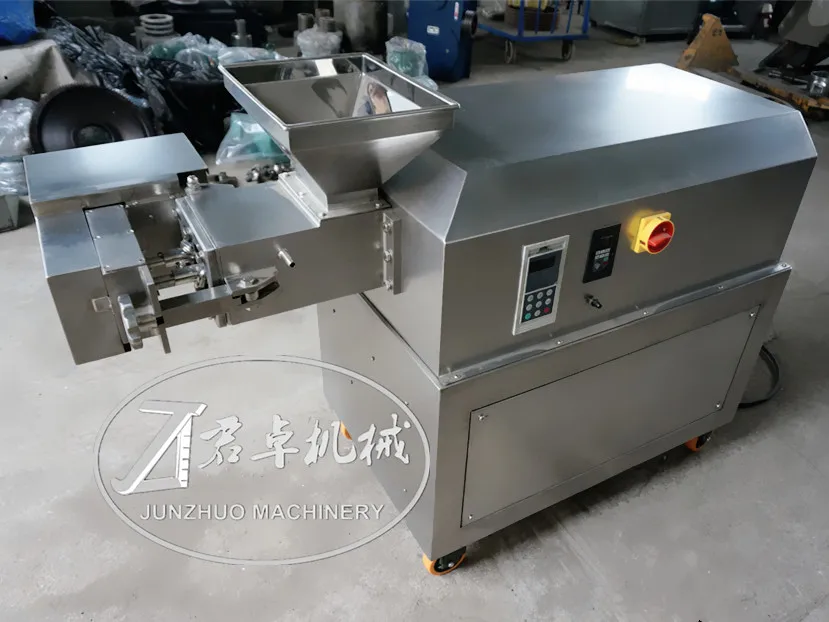

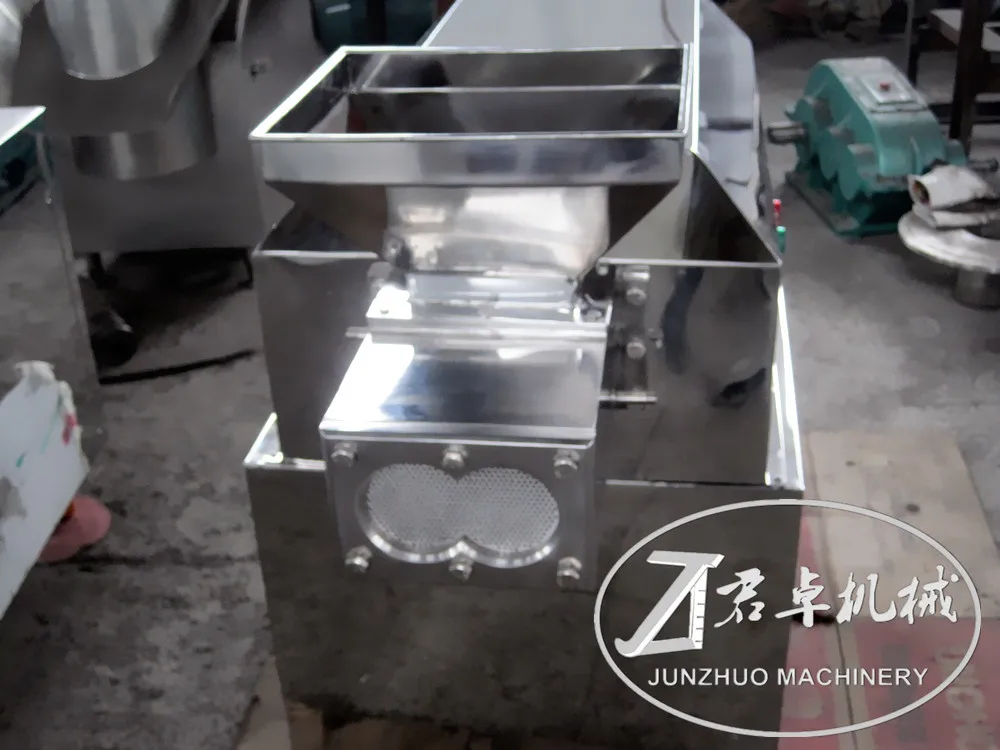

Front extrusion: Suitable for good mobility, no heat-sensitive materials granulation. Water cooling system and pelletizing system are available. Side extrusion: If the material is not suitable for the front extrusion, this model is better. The particle size is smaller and output is larger.
Technical Parameter
Model
JZL-50
JZL-80
JZL-100
JZL-120
JZL-140
JZL-180
JZL-200
Screw Diameter
Φ50*2
φ78*2
φ100*2
φ120*2
φ138*2
φ180*2
Φ200*2
Screen Diameter
φ1~8
φ1~8
φ1~8
φ1~8
φ2~8
φ2~20
φ2~20
Motor Power
2.2KW
4KW
5.5 KW
7.5 KW
11-15KW
22-30 KW
30 KW
Rotation Speed
80r/min
80r/min
80r/min
70r/min
60 r/min
60r/min
60r/min
Capacity
10-80kg/h
30~180 kg/h
30~300 kg/h
30~450 kg/h
150-500kg/h
500~1200 kg/h
200-2500kg/h
Overall Dimension
820*440*720
1200*600*1000
1400*650*1200
1500*650*1250
2000*750*1150
2440*1450*1200
2450*1650*1200
Approx Weight
170kg
450 kg
650 kg
780 kg
1100kg
2000kg
1750kg

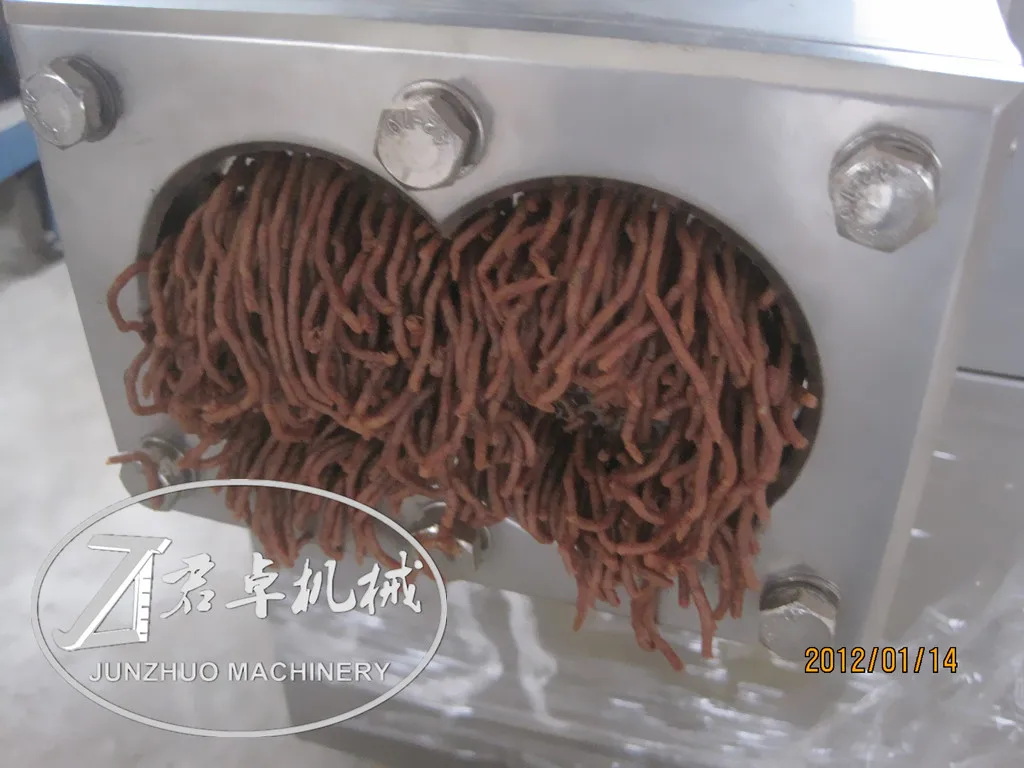

Testing Materials
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
