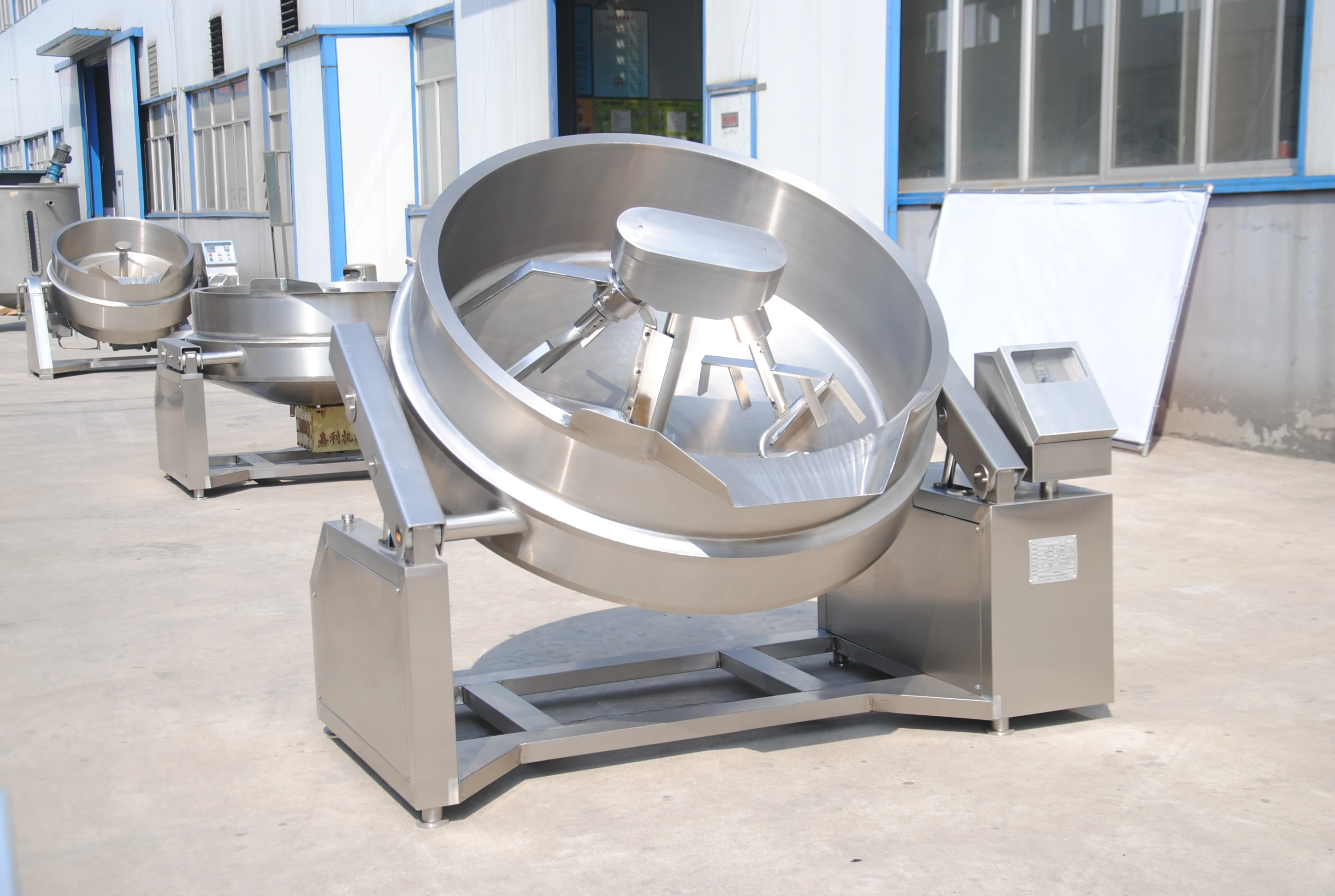

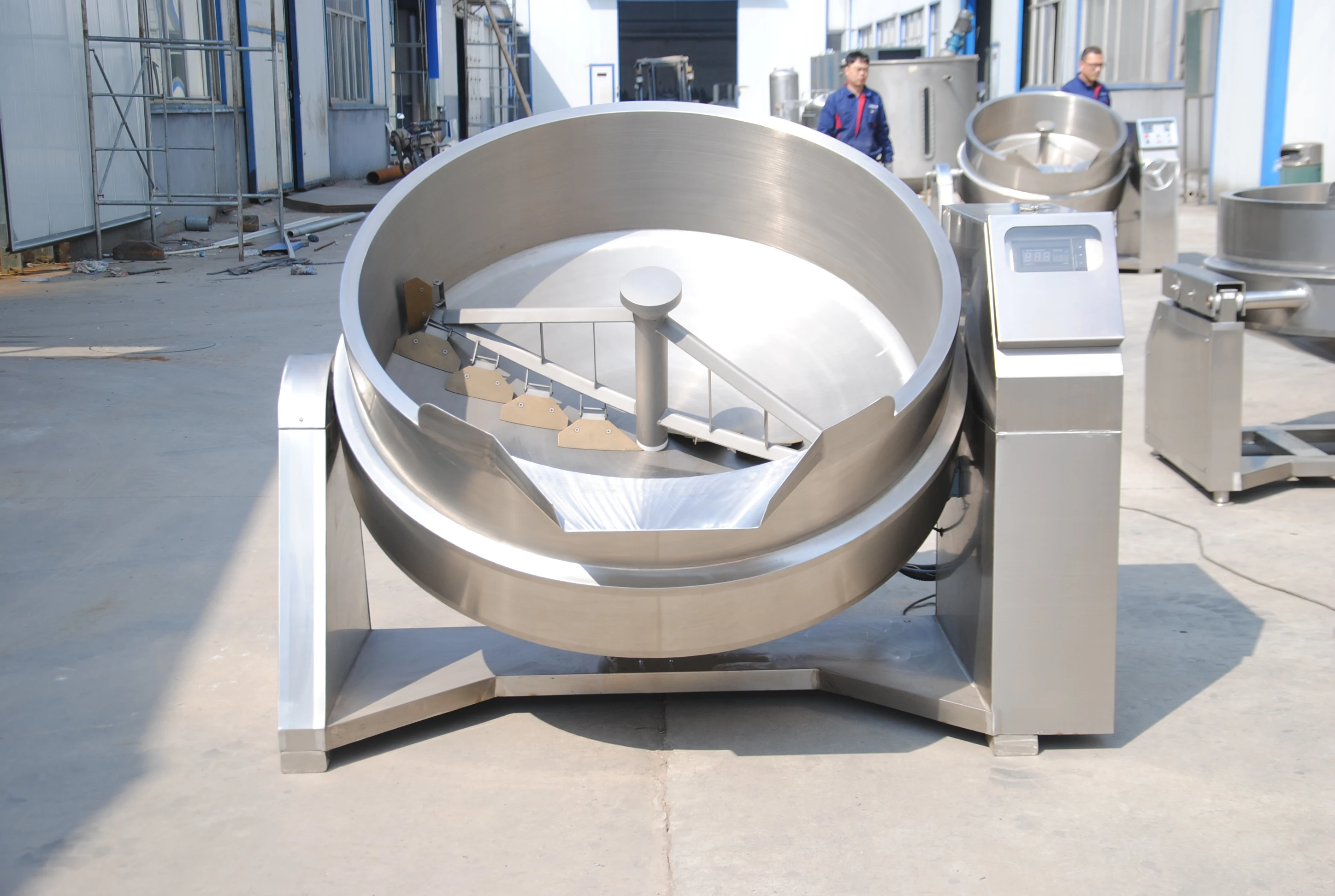

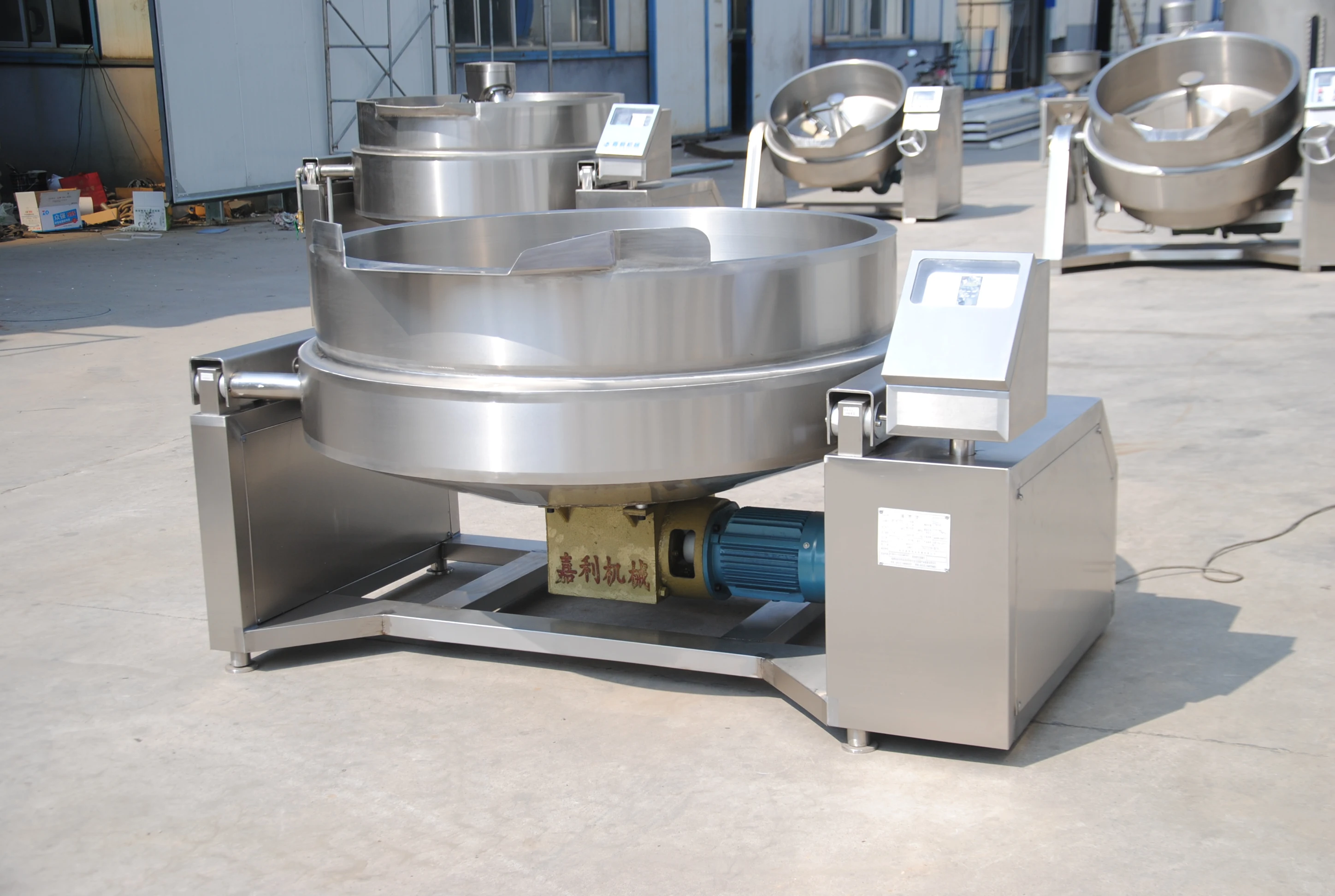

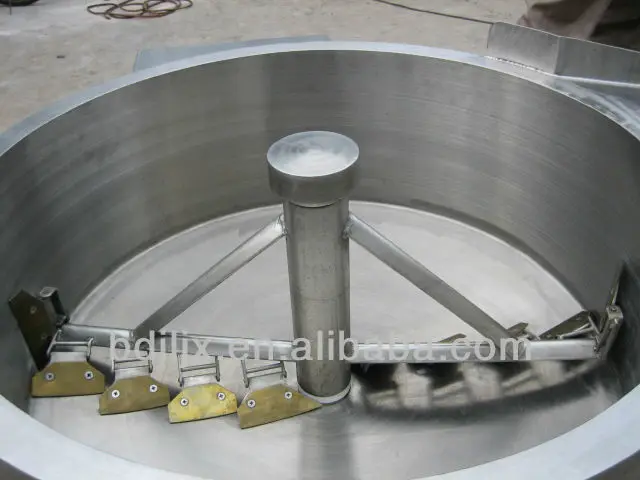

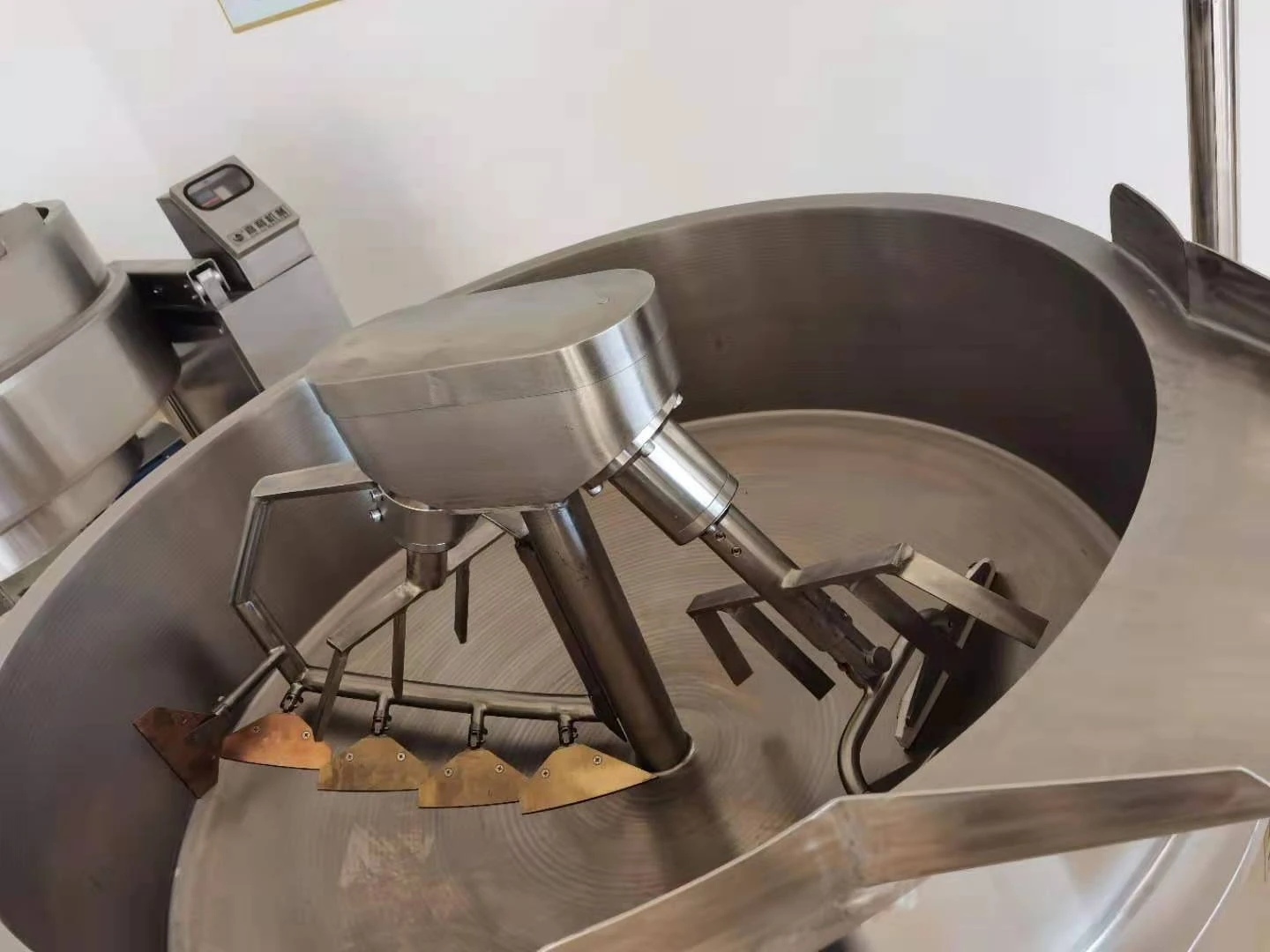

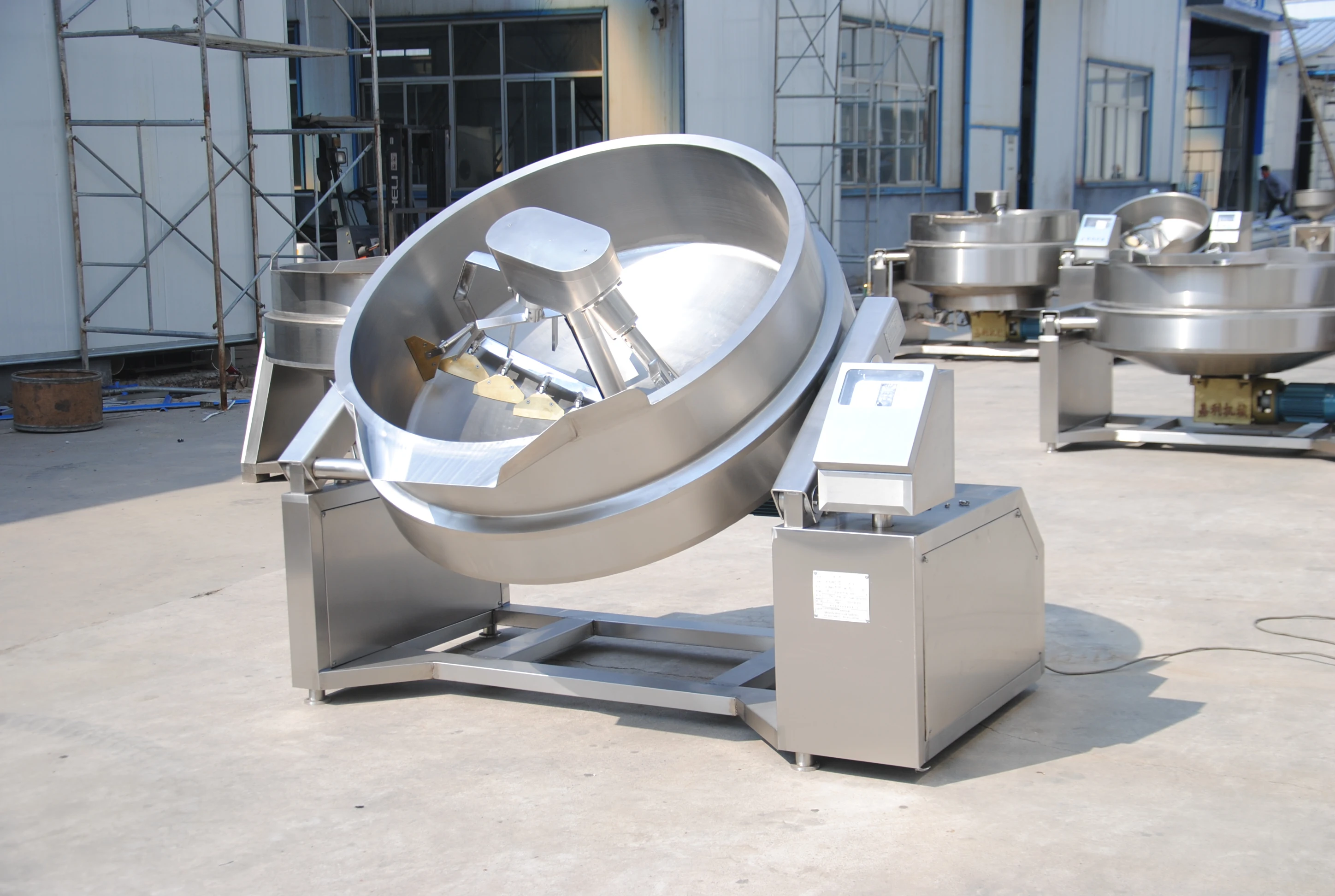

Коммерческий автоматический газовый жаккардовый чайник с смесителем и крышкой
- Category: Bean Product Processing Machinery >>>
- Supplier: Baoding Jiali Food Machine Co. Ltd.
Share on (60748404667):
Product Overview
Description
Uses:
Take Gas or steam(thermal oil) as heat source, used to boil date, bean, apple, hawthorn, etc.
Features:

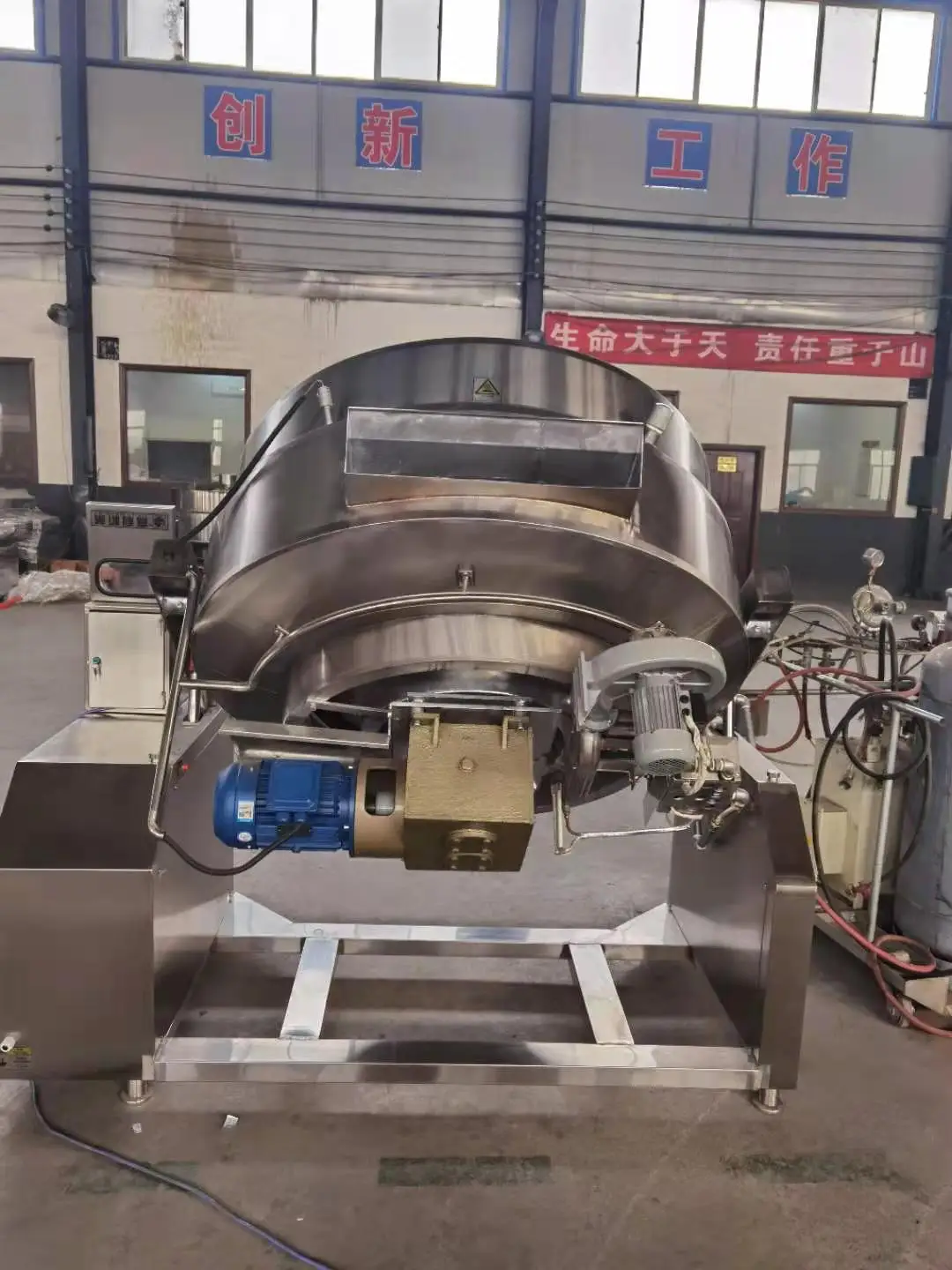

1. Auto tilting by circuit, no noisy, could tilt to arbitrary angle.

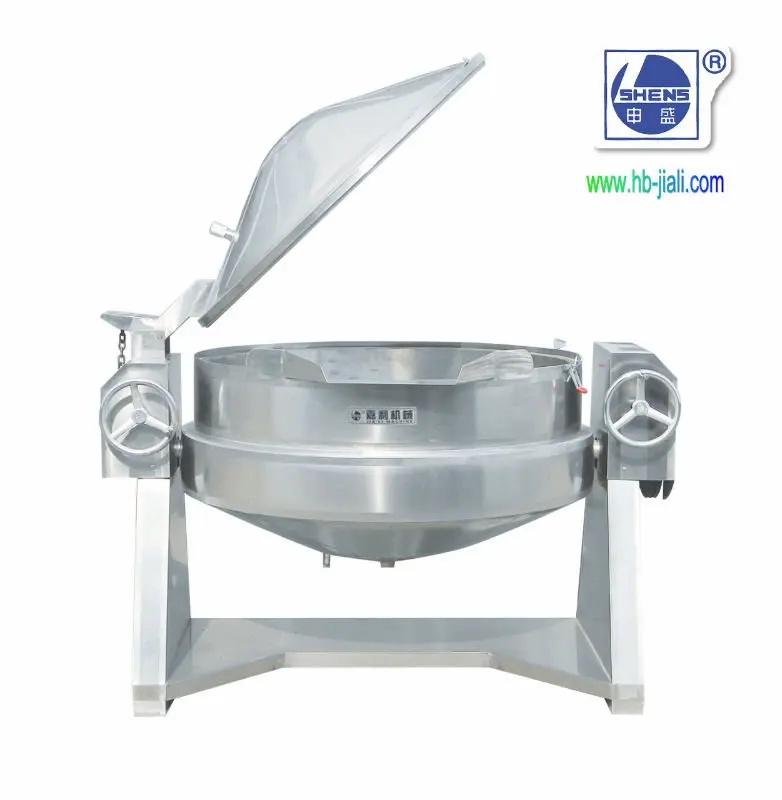

2.Kettle lid take automatic open system to reduce labor intensity, with safety structure and easy to maintain.
3. Unique outer insulation structure to match sealed lid to keep heat.
4. Reserving water outlet for pot bottom, can be easily removing excess water, meet different production process requirements.

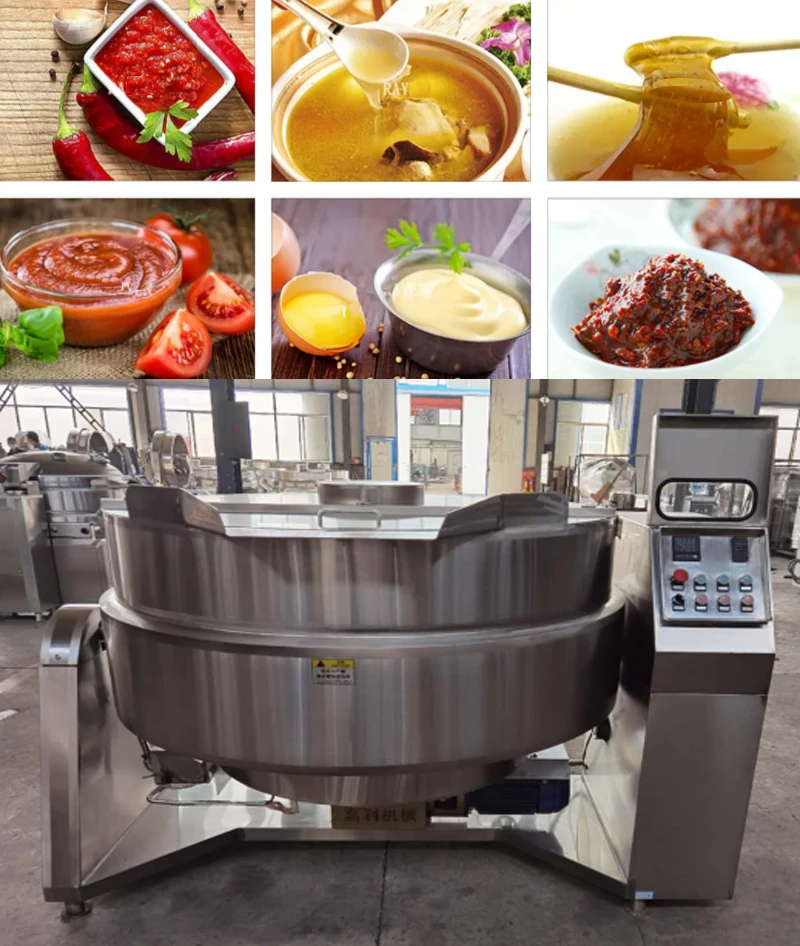

Model | JL-XKJG-Q | JL-XKJG-Q | JL-XKJG-Q |
Dimension | 1300*1030*1145mm | 1700*1400*1190mm | 2000*1670*1250mm |
Capacity | 200L | 400L | 600L |
Pot inner diameter | 800mm | 1100mm | 1300mm |
Power | 0.75+0.25kw/380v | 2.2+0.75kw/380v | 4+0.75kw/380v |
Gas consumption | 3.5M3/h | 4.5M3/h | 6.0M3/h |
Model | JL-DKGZ-Q | JL-DKGZ-Q | JL-DKGZ-Q |
Dimension | 1845*1345*1265mm | 1945*1445*1265mm | 1945*1445*1365mm |
Capacity | 400L | 500L | 600L |
Pot inner diameter | 1100mm | 1200mm | 1300mm |
Power | 0.75*2kw/380v | 0.75*2kw/380v | 0.75*2kw/380v |
Working pressure | 0.15Mpa | 0.15Mpa | 0.15Mpa |
Model | JL-DKGZ | JL-DKGZ | JL-DKGZ |
Dimension | 1845*1345*1265mm | 1945*1445*1265mm | 1945*1445*1365mm |
Capacity | 400L | 500L | 600L |
Pot inner diameter | 1100mm | 1200mm | 1300mm |
Power | 0.75*2kw/380v | 0.75*2kw/380v | 0.75*2kw/380v |
Design temperature | 260degree | 260degree | 260degree |
Packaging & Shipping
Our Services

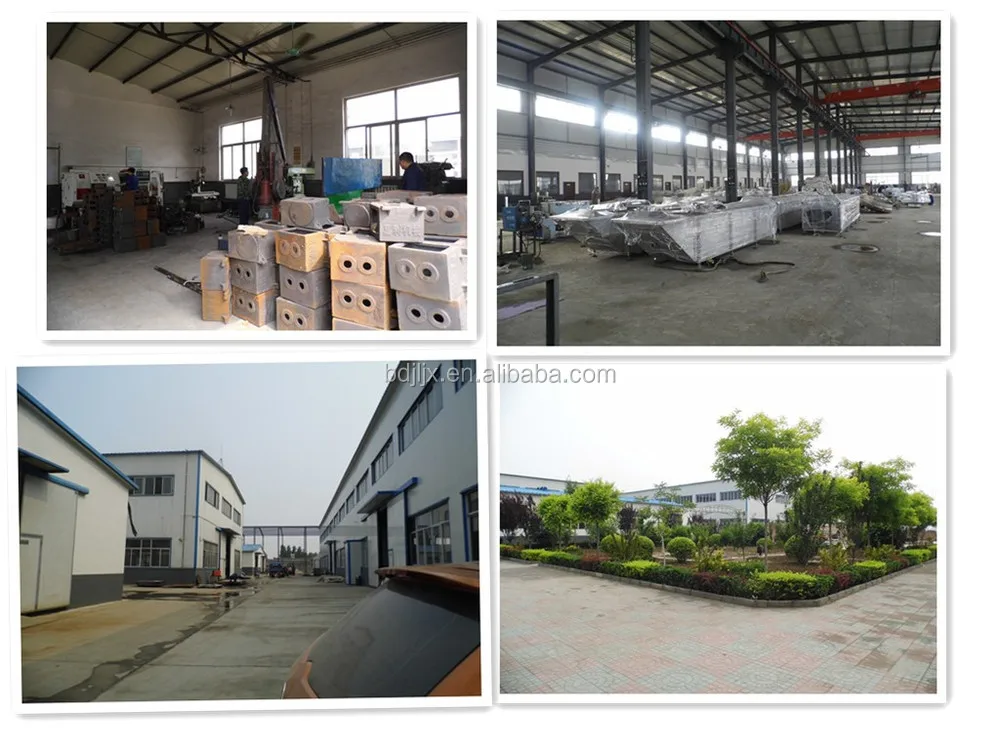

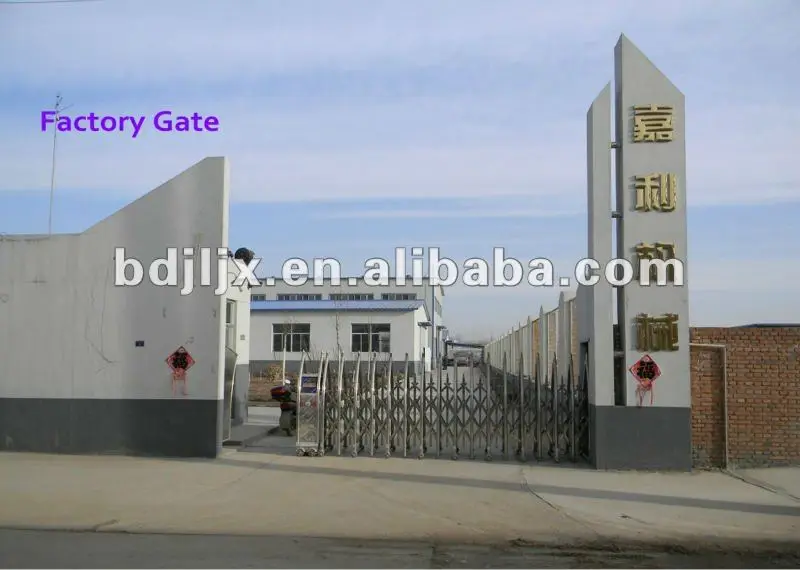

Company Information
