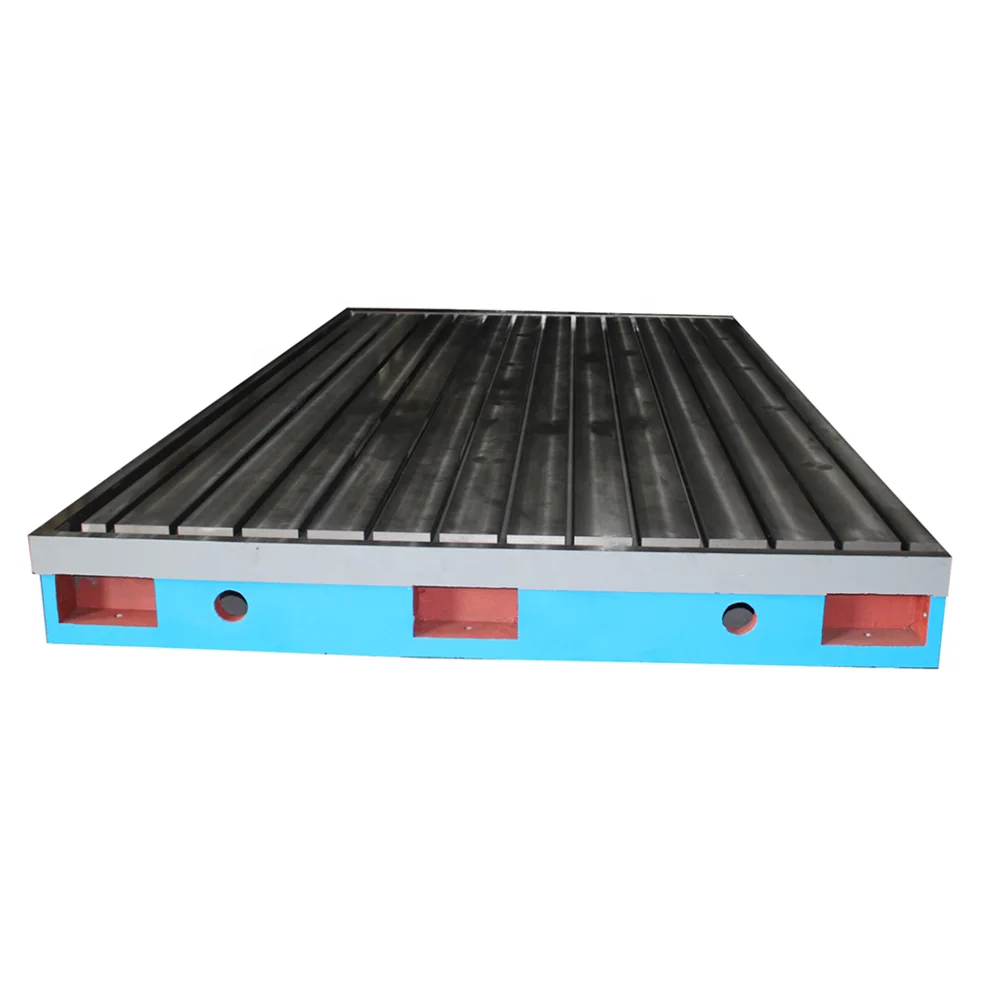

(1) The material of our surface plate/table is cast iron HT200-350
(2) Working surface hardness is HB170-240
(3) Low inaccuracy error and good in grinding resistance.
Precision: According to the national standards measurement examination regulations execution,
respectively is 0,1,2,3, fine polish.
specification(Lx W)mm
precision grade
0
1
2
3
flatness tolerance (um)
200X200
3.5
7
14
27
300X200
4
8
15
30
300X300
4
8
15
30
300X400
4
8
16
32
400X400
4.5
8.5
17
34
400X500
4.5
9
18
35
400X600
5
10
19
37
500X500
5
10
19
37
500X600
5
10
19
39
500X800
5.5
11
21
43
600X800
5.5
11
22
44
600X900
6
11.5
23
46
1000X750
6
12.5
25
50
1000X1000
7
13.5
27
54
1000X1200
7
14
29
58
1000X1500
8
16
32
63
1000X2000
9
18.5
37
74
1500X2000
10
20
40
80
1500X2500
11
22.5
45
90
1500X3000
13
25
50
100
2000X2000
11
22
44
88
2000X3000
13
27
53
106
2000X4000
16
32
64
127
2000X5000
19
37
75
150
2000X6000
43
86
172
2000X7000
49
97
194
2000X8000
54.5
109
218
2500X3000
28.5
57
114
2500X4000
33
67
133
2500X5000
39
77
154
2500X6000
44
88
176
2500X7000
50
99
198
2500X8000
55
110
221
3000X3000
30.5
61
122
3000X4000
35
70
140
3000X5000
40
80
160
3000X6000
45
90.5
181
3000X7000
51
101
203
3000X8000
56
112.5
225
4000X4000
39
78
156
4000X5000
43
87
174
4000X6000
48
96.5
193
4000X7000
53
107
213.5
4000X8000
59
117
235
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Nocie for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave. 2: Keep the plate clean, prevent be wroned by iron scrap, sand ... 3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately. 4: Do not do any hammer work on the surface plate . 5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
Our Services
1.Guarantee:
A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.
B: Space parts will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
2.Commissioning:
1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.
3.Payment terms
- 30% by TT in advance
- 70% is paid before the shipment by TT
4.Delivery time: 30 days after the down payment is received
our factory
Company Information
Our company supply granite surface plate, granite measuring table, granite flatness plate, granite measuring tools,cast iron surface plate, cast iron t slot plate,aluminum magnesium alloy measuring tools, cast iron measuring tools and so on
