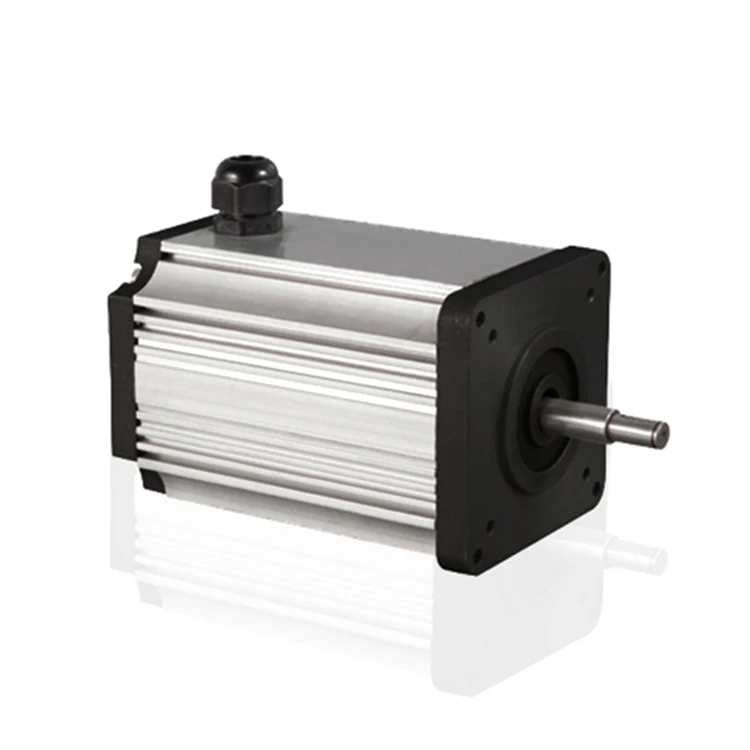

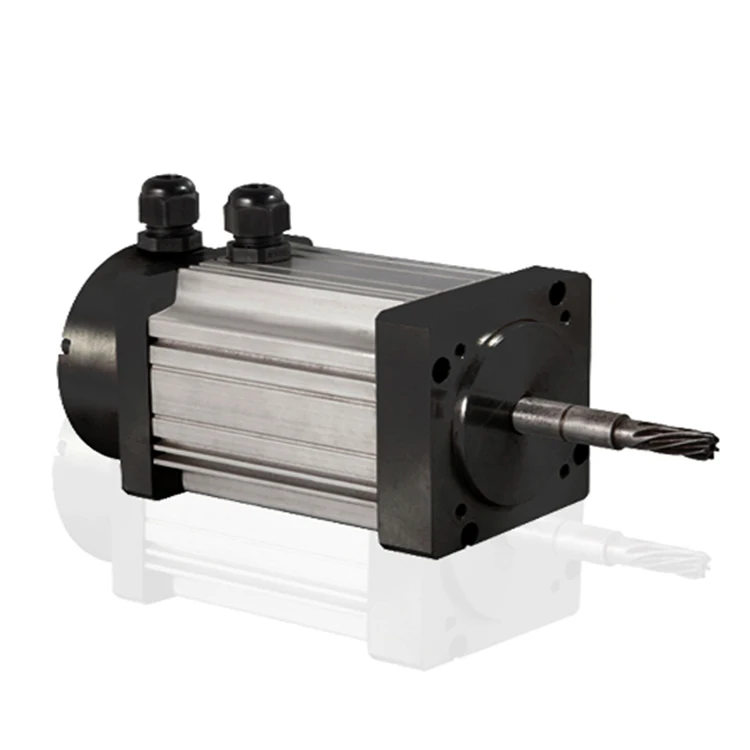

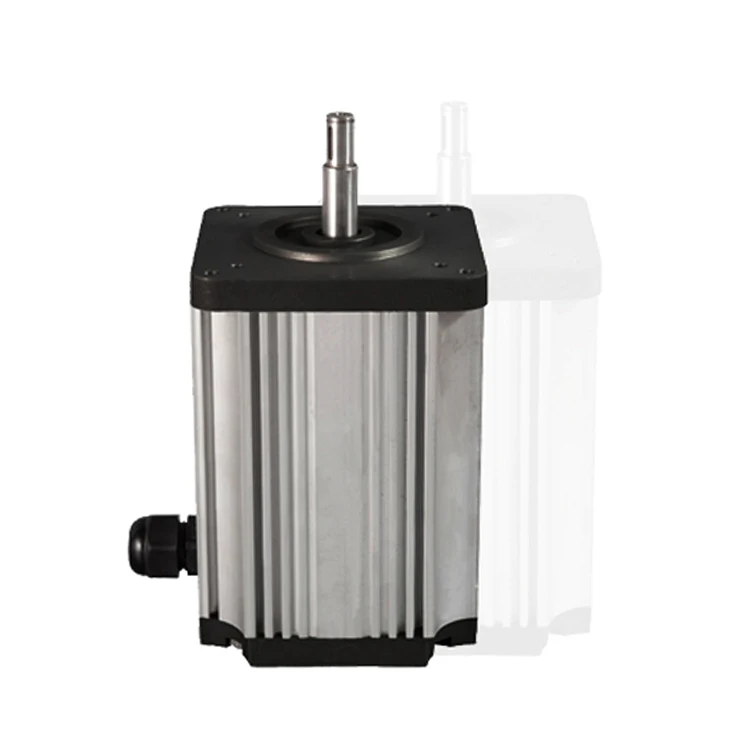

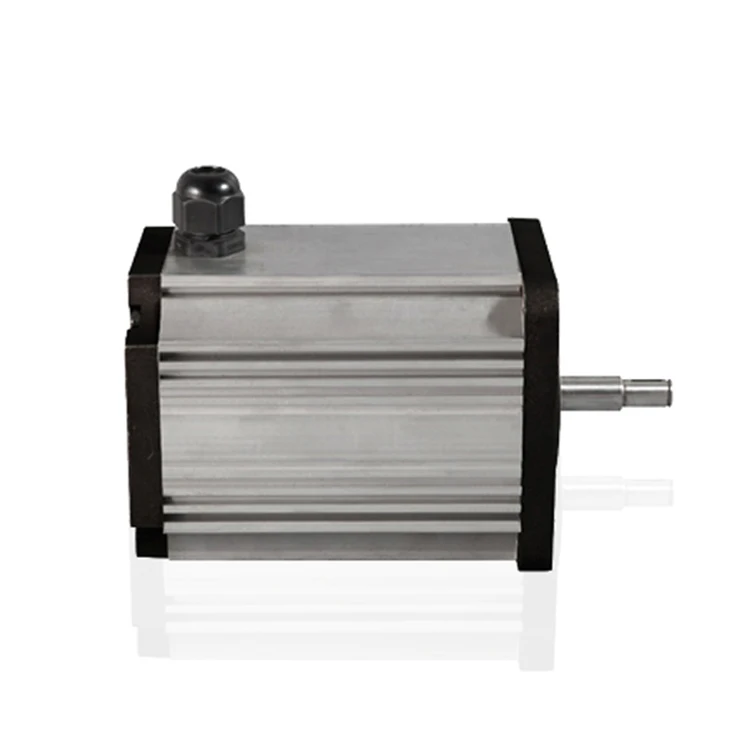

Waterproof 72v 5000w 1500rpm PMSM high torque brushless dc motor
- Category: >>>
- Supplier: Ningbo Haofeng Magnet Technology Co. Ltd.
Share on (60748482724):
Product Overview
Description
Product Display
Motor type | Output | Voltage | Load | Speed | Rated Torque | Efficiency |
KW | V | A | RPM | N.m | % | |
BLDC1.55-154 | 1.55 | 45 | 40 | 4300 | 3.44 | 86 |
BLDC1.8-154 | 1.8 | 60 | 32.6 | 1100 | 15.6 | 92 |
BLDC1.85-154 | 1.85 | 24 | 81.5 | 2100 | 8.41 | 92 |
BLDC2.7-154 | 2.7 | 60 | 48.9 | 1100 | 23.4 | 92 |
BLDC2.8-154 | 2.8 | 60 | 50.8 | 1100 | 24.3 | 92 |
BLDC2.8B-154 | 2.8 | 48 | 67.8 | 2600 | 10.3 | 86 |
BLDC3.0-154 | 3.0 | 48 | 67.6 | 2650 | 10.81 | 92.5 |
BLDC3.0B-154 | 3.0 | 72 | 46.8 | 1850 | 15.5 | 89 |
BLDC3.5B-154 | 3.5 | 60 | 69.5 | 1680 | 19.9 | 84 |
BLDC4.0-154 | 4.0 | 48 | 90.6 | 2580 | 14.81 | 92 |
BLDC5.5-154 | 5.5 | 72 | 85.6 | 3680 | 14.27 | 89.2 |
Other Products
Process Flow
About Us
Packing&Transport
Q:Motor has been running then fails to start,what to do?
A:Likely cause: Fuse or circuit breaker is tripped.
What to do: Replace the fuse or reset the breaker.
Likely cause: Armature is shorted. Motor may make a humming noise and the circuit breaker or fuse will trip.
What to do: Disassemble motor and inspect the armature for a burnt coil. Inspect the commutator for burnt bars. If this condition exists, the motor needs to be replaced.
Likely cause: The brushes may be worn down too far and no longer make contact with the commutator.
What to do: Check the brushes to make sure that they are still making contact with the commutator. Contact manufacturer for brushes.
Likely cause: Controller may be defective.
What to do: Verify voltage is coming out of the controller.
Q: On initial installation, motor fails to start up,what to do?
A: Likely cause: Motor is incorrectly wired
What to do: Verify that the motor is wired correctly.
Likely cause: No output power from controller.
What to do: Measure voltage coming from the controller.
Likely cause: Motor is damaged and the armature is rubbing against the magnets.
What to do: Disassemble motor and see if the armature can be realigned by reassembly. Motor may have to be replaced.
Q: Motor takes too long to accelerate,what to do?
A: Likely cause: Motor controller not properly set.
What to do: Adjust the acceleration trim pot of the controller.
Likely cause: Brushes are worn.
What to do: Verify brush length.
Likely cause: Bearings may be defective.
What to do: Inspect bearings. Noisy or rough bearings should be replaced.
Q: Motor runs in the wrong direction,what to do?
A: Likely cause: Incorrect wiring
What to do: Interchange the two motor leads.
Q: Motor runs OK but has a clicking noise,what to do?
A: Likely cause: Suspect a burr on the commutator.
What to do: Remove burr from commutator using a commutator stone.
