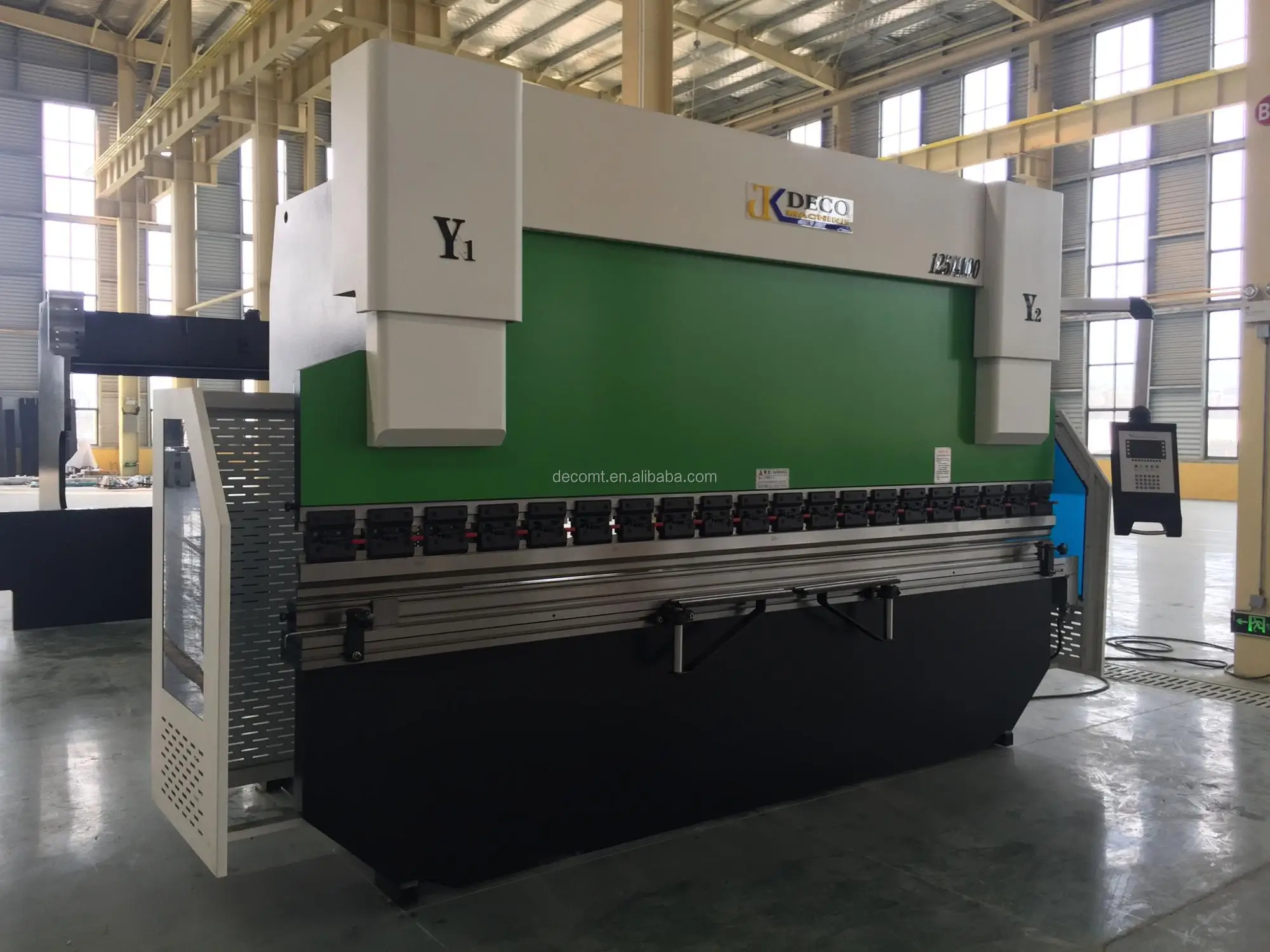

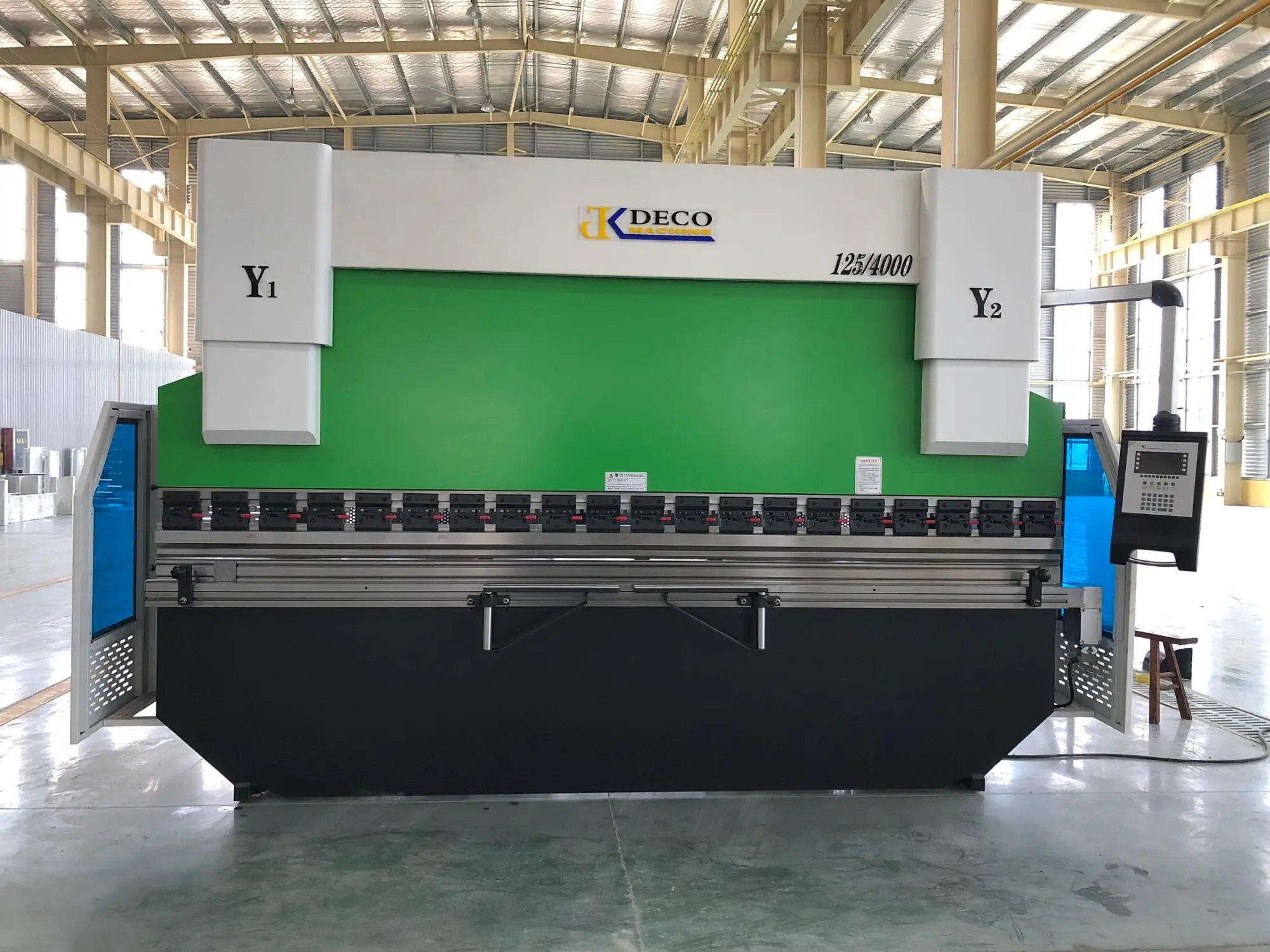

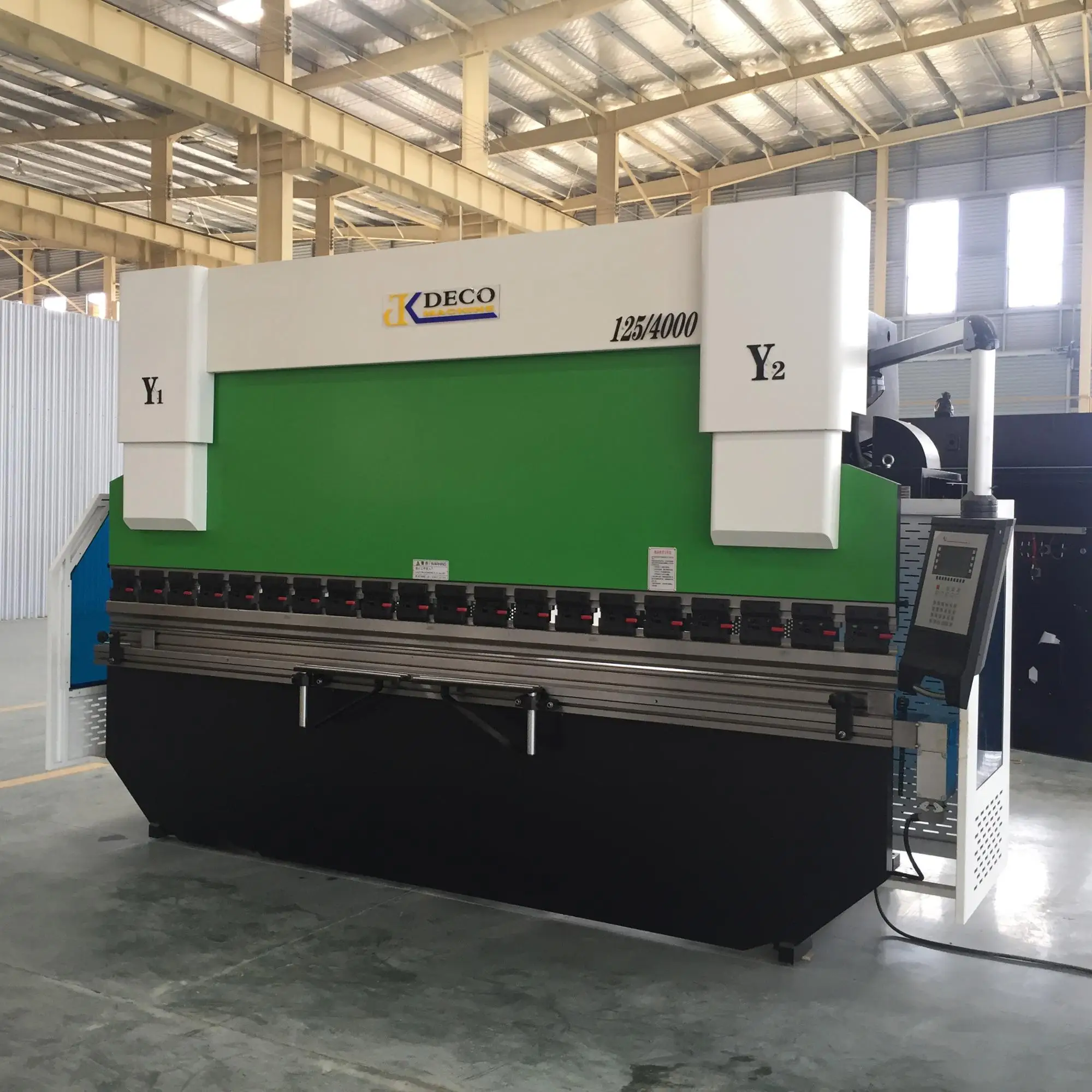

metal paste bending machine iron sheet plate bending machine

Product Overview

Description

 metal paste bending machine iron

sheet plate bending machine







1. Min Features:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.

3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment

5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety

2. Standard Equipment:

-Estun E21NC control System

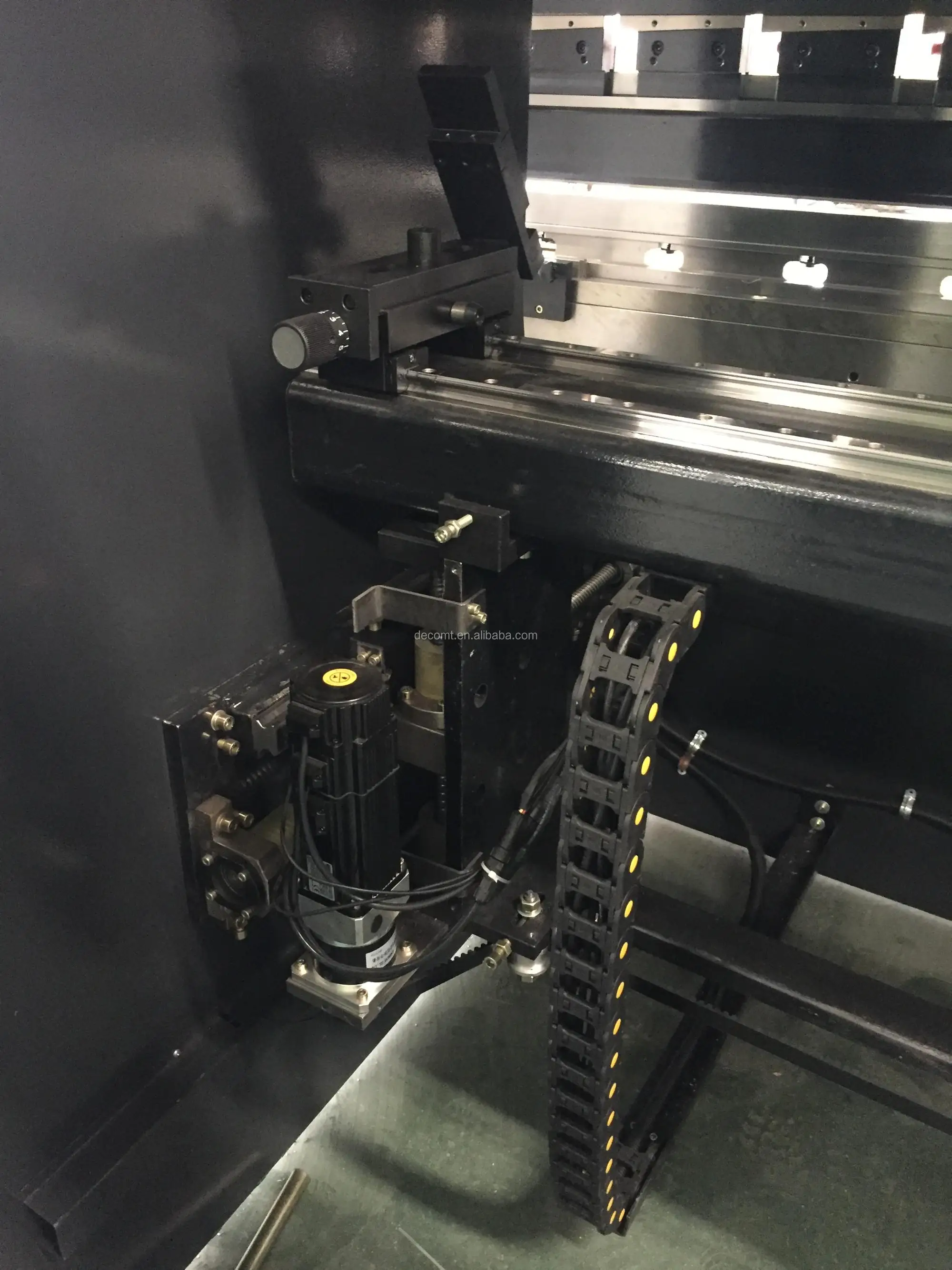

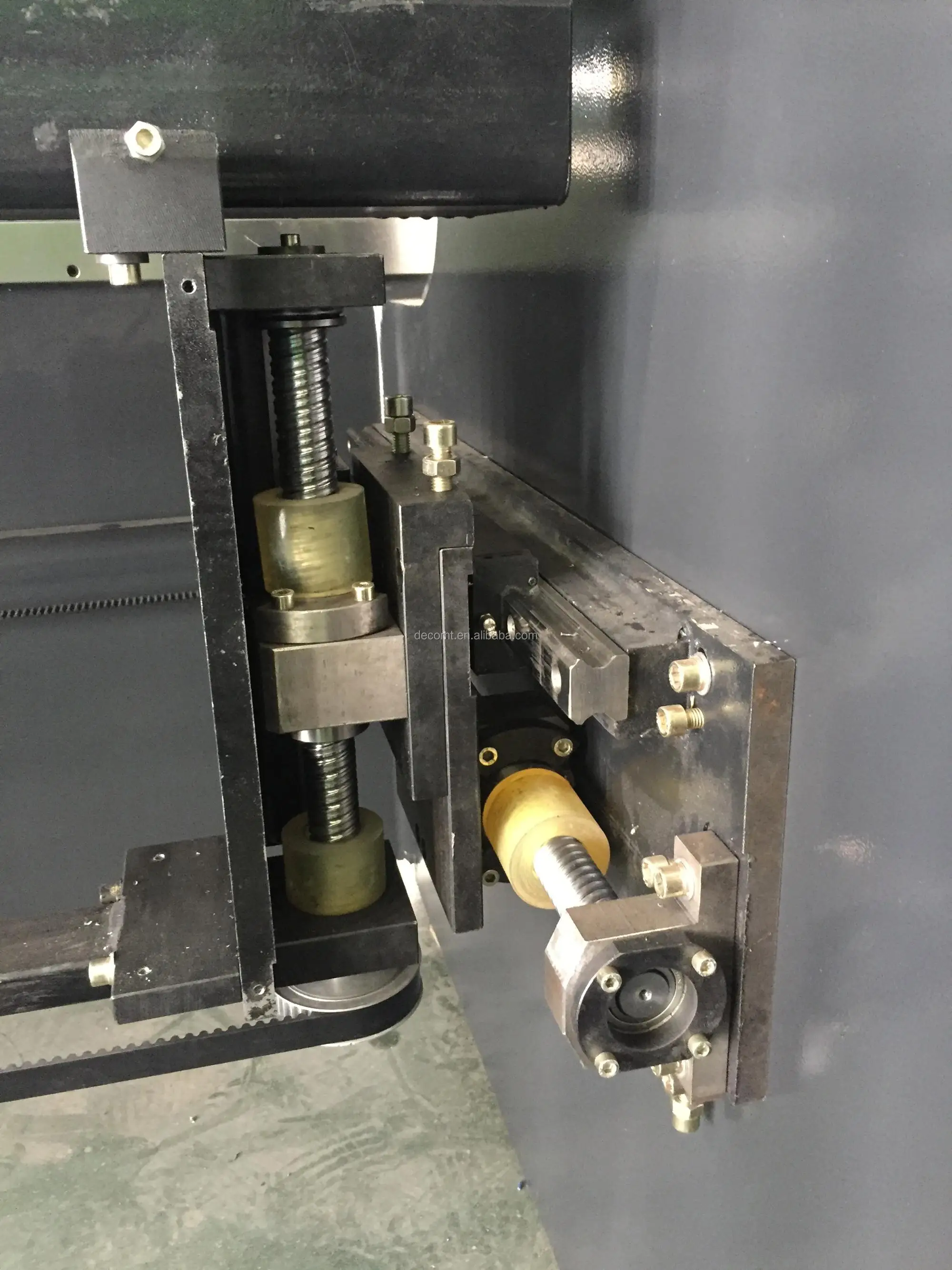

-Powered Depth Y-axis&Back gauge X-axis

-DELTA Inverter controlled back gauge

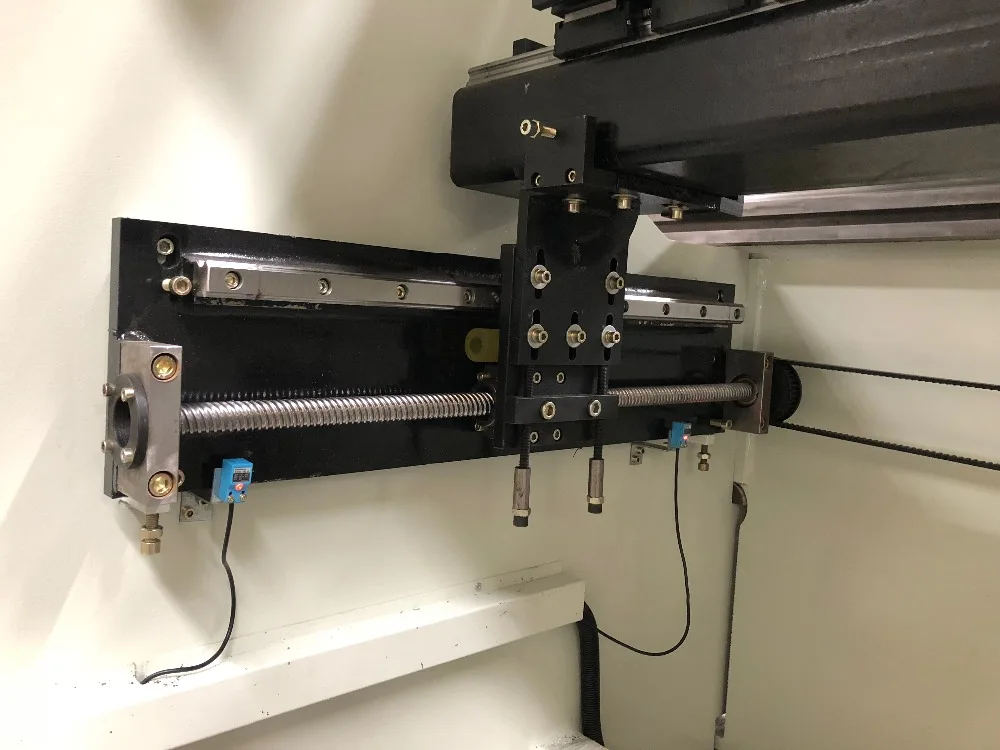

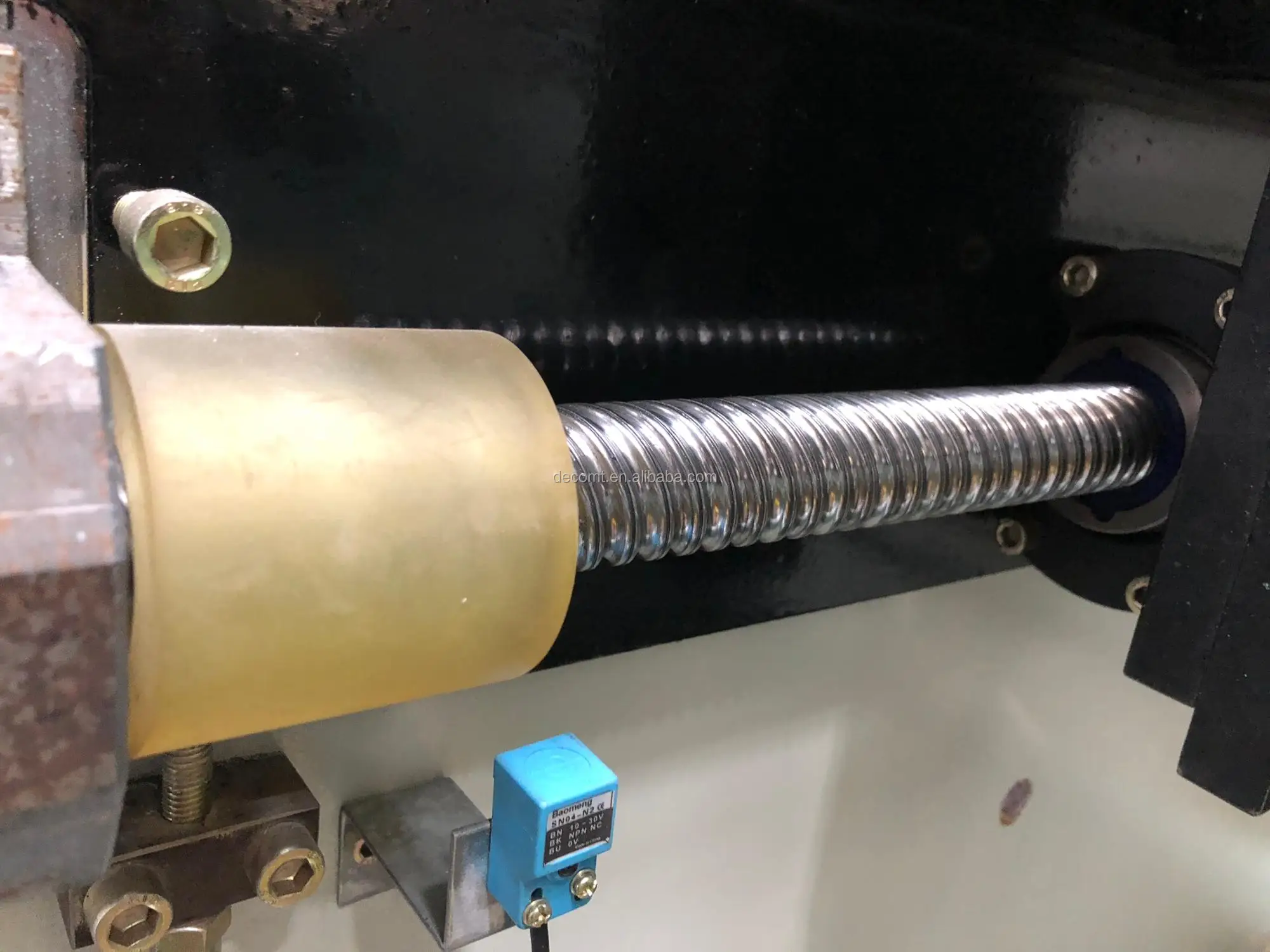

-HIWIN Ball screws & Polished rod with 0,05mm accuracy.

-Plate Support Arms

-Germany Bosch-Rexroth Hydraulic

-Germany EMB Tubing connector

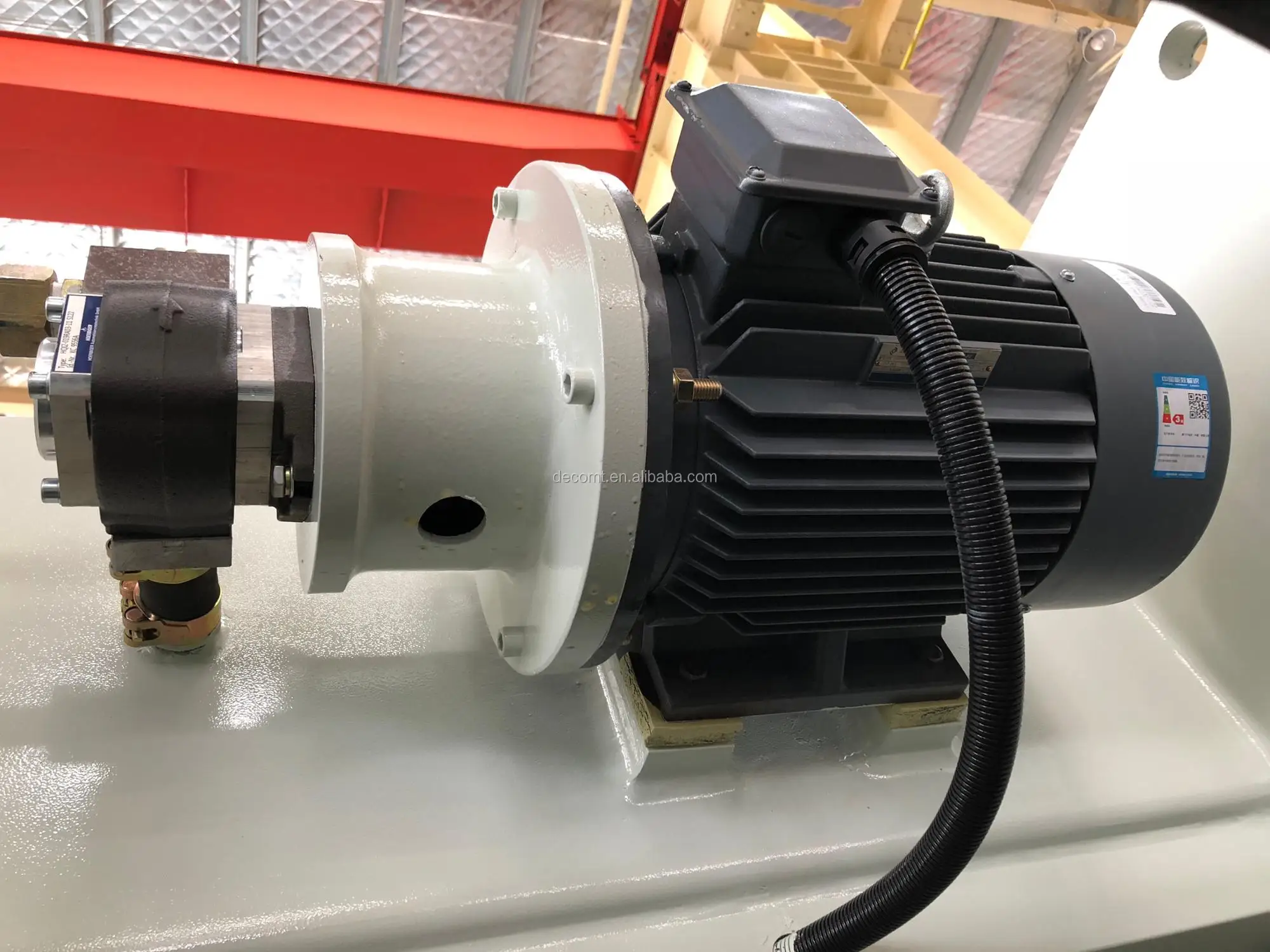

-Germany Siemens Main Motor

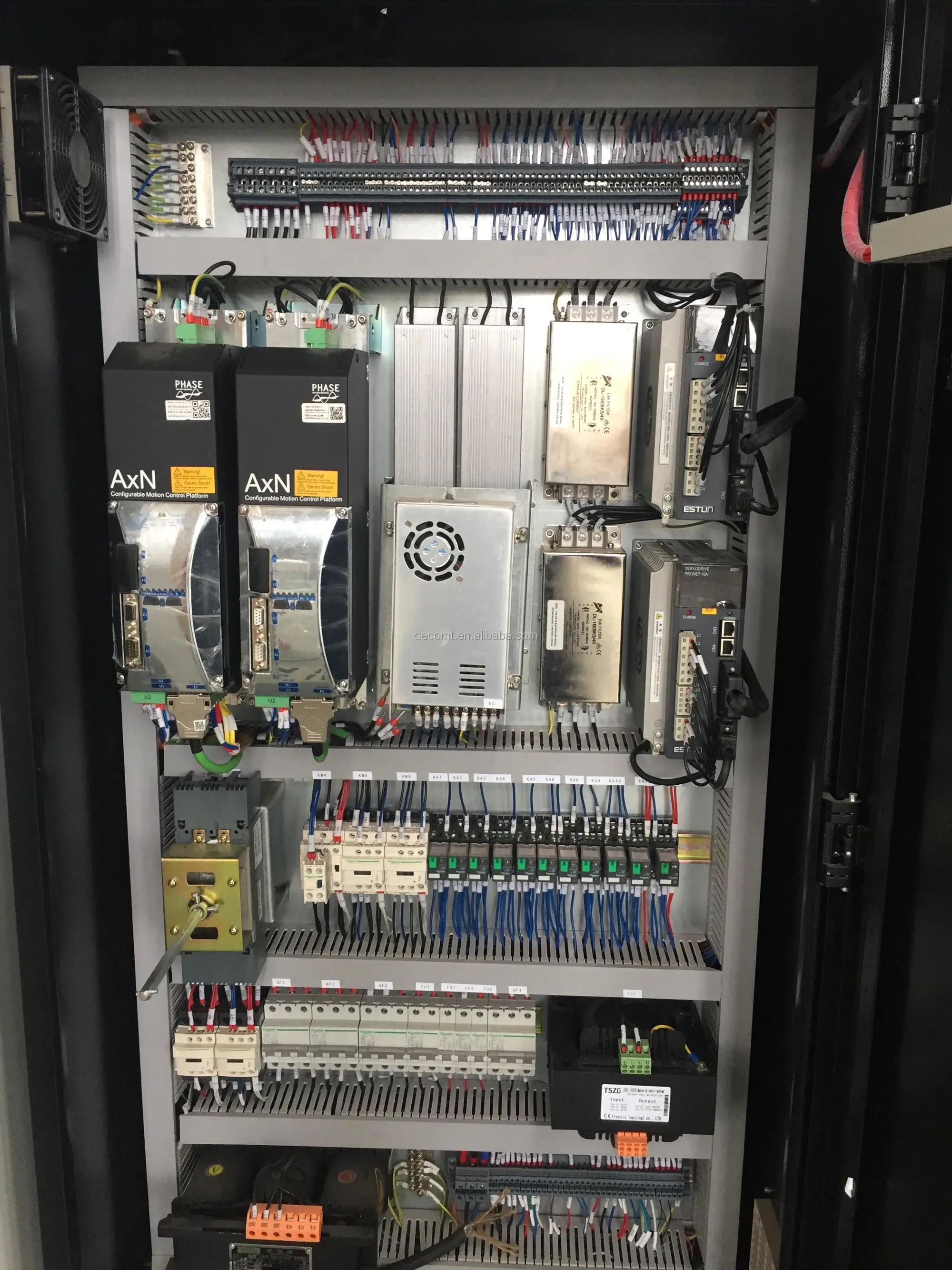

-Tele mecanique/Schneider Electrics

-Hydraulic &Electrical overload protection

-Top and Bottom Tooling(86°,R0.6mm)

-Safety Standards(2006/42/EC)

3. Safety Equipment:

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

-Front finger Protection(Safety light curtain)

-South Korea Kacon Foot Switch(Level 4 of safety)

-Back metal safe fence with CE standards

-Safety relay with Monitor the pedal switch and safety protection

4. Estun E21 NC Control system:

-Back gauge and block control

-Control for general AC motors,frequency inverter

-Intelligent positioning

-Stock counter

-Holding/decompression time setting

-Program memory of up to 40 programs Up to 25 steps per program

-One side positioning

-Retract function

-One key backup/restore of parameters

-mm/inch

-Chinese/English
