Безопасности 3 wing» и «Автоматическая стеклянная вращающаяся дверь для коммерческих зданий

Product Overview

Description

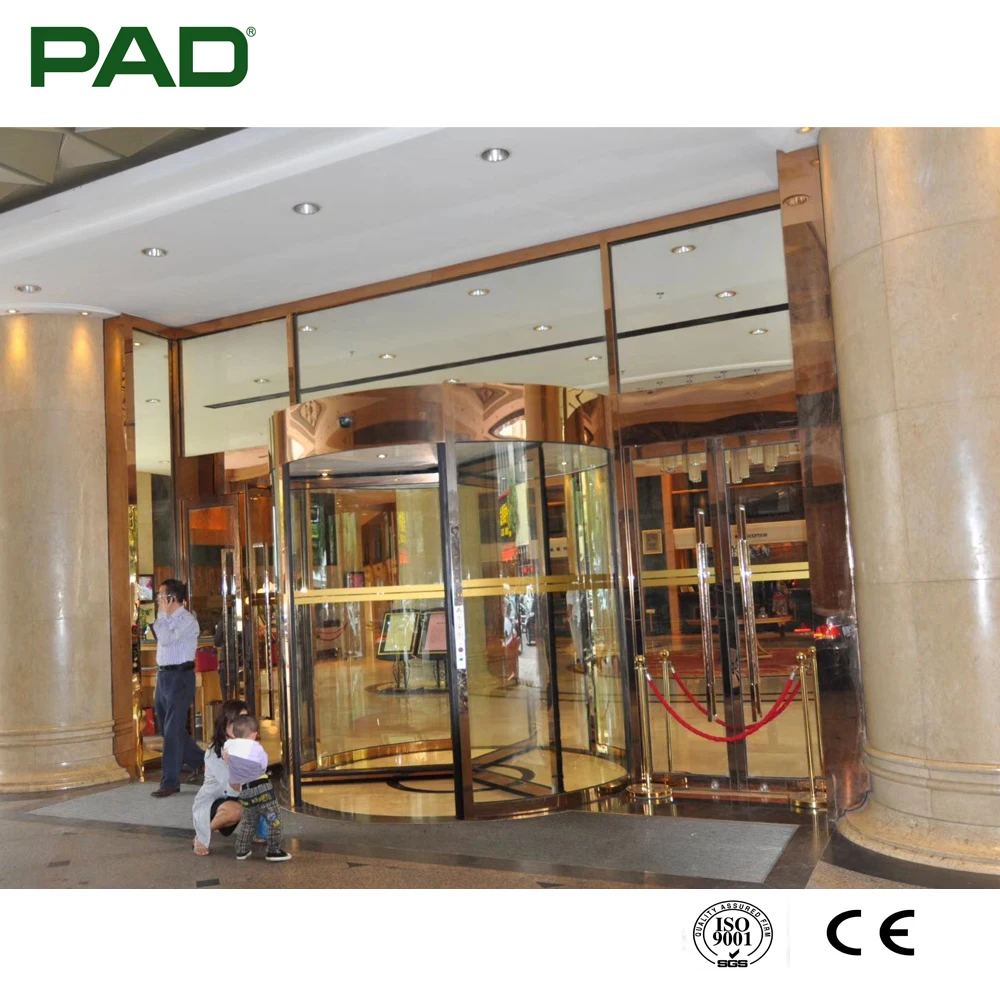

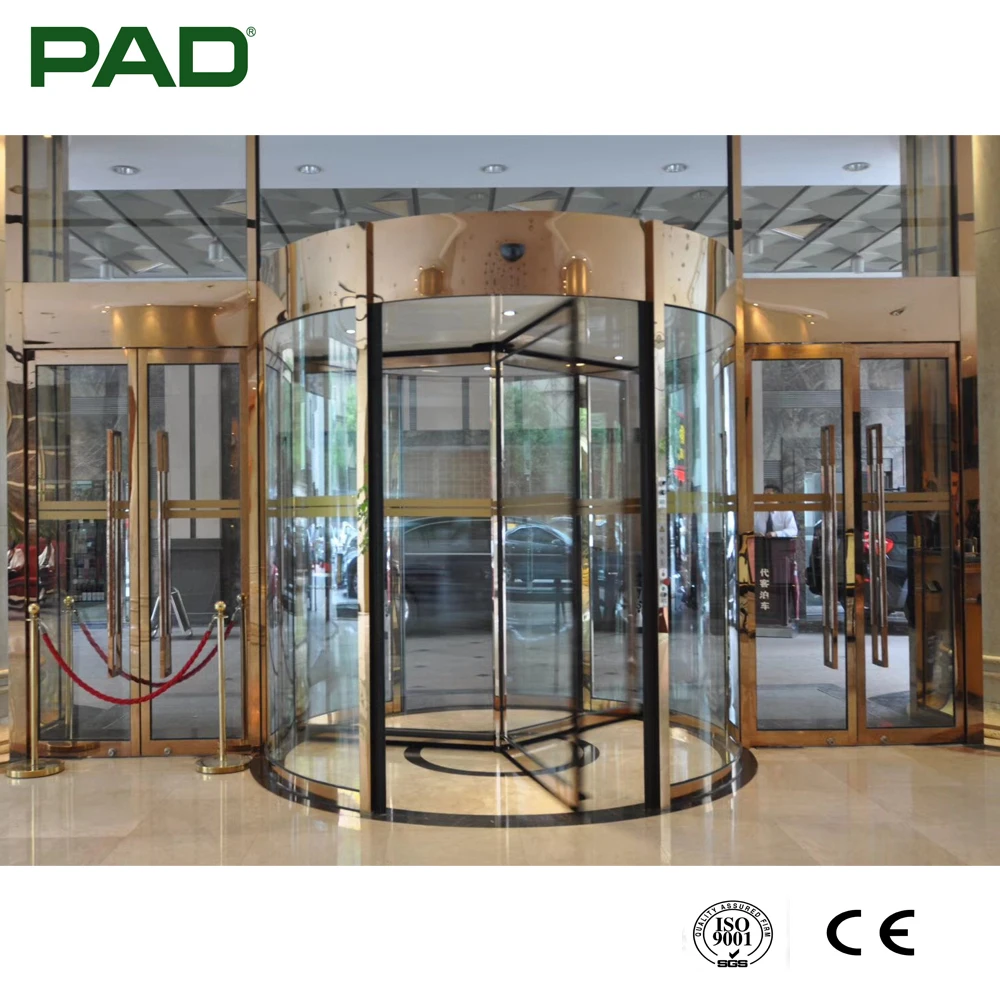

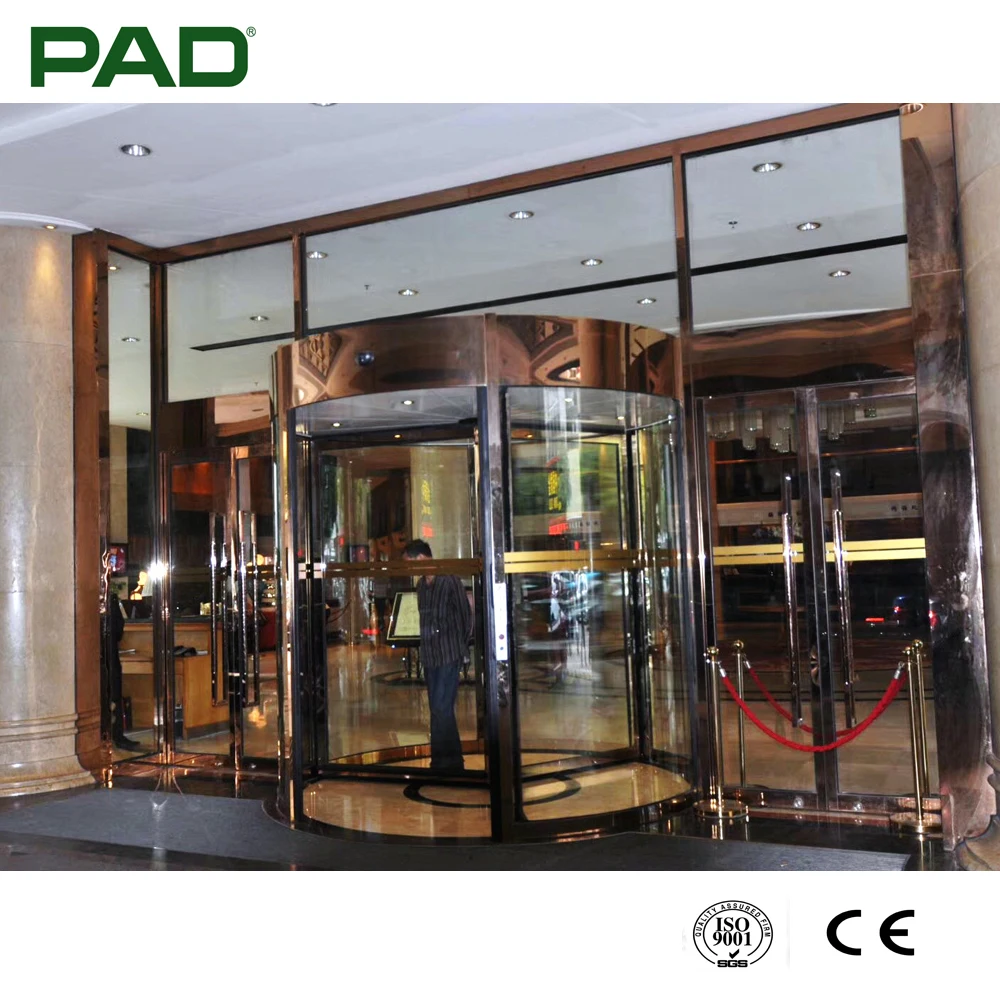

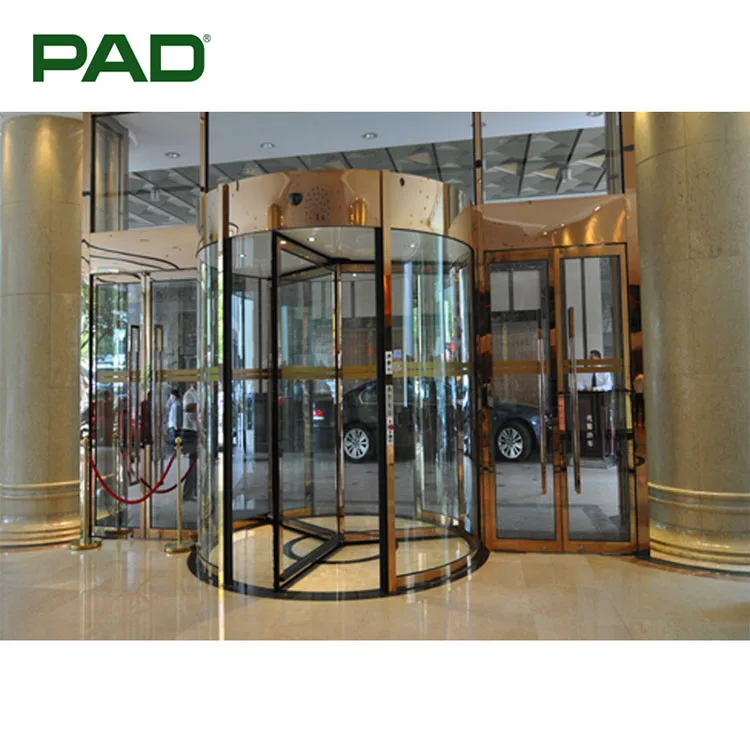

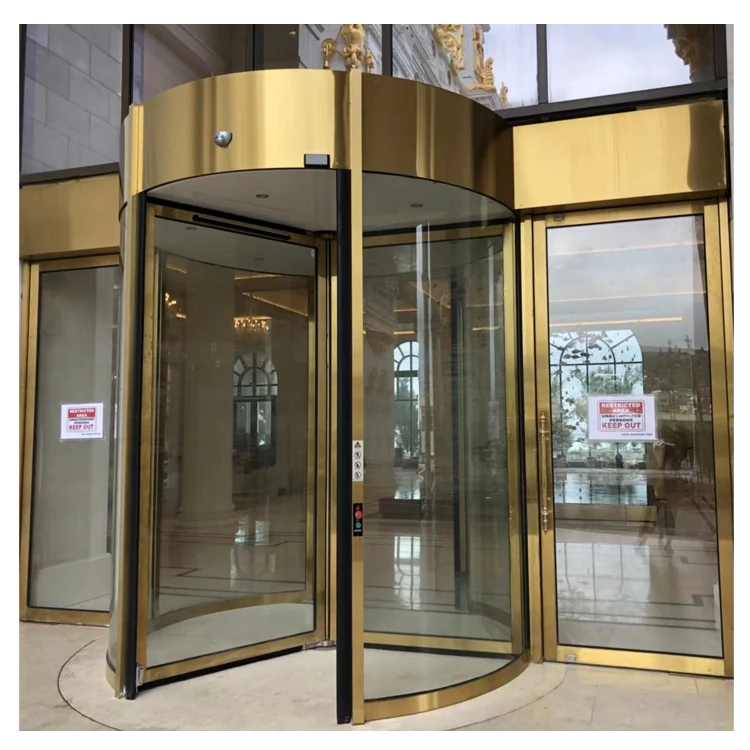

3-wing aluminum glass revolving door



1.Auto or mannual.

2.Structure or driving system are optional.

3.Drawings are available.

4. Structures are optional, such as carbon fluorine painting, stainless stell, etc.



Size

Inner diameter	Outer diameter	Clear passage width(3-wing)	Clear passage width(4-wing)	Cornice height	Door height
1600	1730	700	1055	300	2200
1800	1930	800	1195	300	2200
2000	2130	900	1335	300	2200
2200	2330	1000	1475	300	2200
2600	2730	1200	1755	300	2200
2800	2930	1300	1895	300	2200
3000	3130	1400	2035	300	2200
3200	3330	1500	2175	300	2200
3600	3730	1700	2455	300	2200
3800	3930	1800	2595	300	2200
Unit: mm

Safety&protection

Anti-clip: the infrared anti-clip sensors mounted on the entrance/exit and the rotor wings can ensure the safe passage.

Anti-bump: there are pressure sensors mounted at the entrance/exit columns and the rotor wings. Once the passenger is bumped by the rotor wings or against the columns, the door will stop immediately. When the passenger leaves, the door resumes working.

Anti-collide: on the top-front of each display case, theres a wide-rang infrared sensor. If the rotor wing appoximates the passenger, the door speed will decelerbrate or stop. When the passenger moves forward, the door will resume normal speed again. In case theres a fire-warning signal putting in, the door will rotate to the emergent position and open the sliding door. the swift exit of the persons inside can be ensured.



Immergency: in cse of emergency, the red button can be pressed down and the door will stop immediately. Once the immergency released, the button can be turned clockwise to return the door to mornam status.



Disabled: if the disabled button is used, the door will keep running for one cycle at low speed to ensure the safe passage of diaabled persons.

Technical data:

Voltage&frenquency	Current rating	Power rating	Power of motor
AC220/50HZ	4A	300W	180W

Façade options:

Stainless steel: our advanced manufacturing and first-rate digital facilities can make sure the surface decoration to meet customers requirement idealty.
