Good Price 10l 18.9L 20Litre 5 Gallon Pet Water Bottle Preform Making Injection Molding Machine
- Category: >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (60748492740):
Product Overview
Description
Products Description
PET Preform Injection Molding Machine
Modularized Energy conservation high response oil-way system could improve the speed of complete machine and save energy consumption
High capacity injection system. large capacity of charing barrel, more reasonable for screw diameter ratio.
adopt finite element design with higher
strength and more precise operation.
Machine Model | Unit | OSPT3600 | OSPT4000 | |||||
Injection Unit | A2000 | A3100 | A2000 | A3100 | ||||
Screw Diameter | mm | 82 | 95 | 82 | 95 | |||
Screw Diameter Ratio | L/D | 24:1 | 24:1 | 24:1 | 24:1 | |||
Theoretical Shot Weight | cm3 | 2000 | 3100 | 2000 | 3100 | |||
Injection Weight(PET) | g | 2050 | 3160 | 2050 | 3160 | |||
Injection Stroke | mm | 390 | 440 | 390 | 440 | |||
Injection Pressure | Mpa | 132 | 33 | 132 | 133 | |||
Clamping Unit | ||||||||
Clamping Force | kN | 3600 | 4000 | |||||
Toggle Stroke | mm | 660 | 730 | |||||
Space Between Tie Bars | mm*mm | 680*680 | 720*720 | |||||
Mold Thickness(Min-Max) | mm | 280-680 | 280-680 | |||||
Ejector Stroke | mm | 190 | 230 | |||||
Ejection Force | kN | 180 | 180 | |||||
Others | ||||||||
Max Injection Pressure | Mpa | 16 | 16 | 16 | 16 | |||
Oil Pump Motor Power | kW | 55.5(servo) | 79.6(servo) | 55.5(servo) | 79.6(servo) | |||
Heater Power | kW | 49.5 | 60.3 | 49.5 | 60.3 | |||
Machine Size | m*m*m | 8.2(8.5)*1.86*2.36 | 8.9(9.2)*1.95*2.5 | |||||
Machine Weight | T | 14 | 15.5 | 15 | 16.5 | |||
Detailed Images

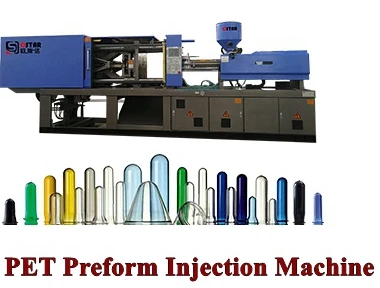

Injection molding machine, special design for PET preform production.
large injection shot weight
T-Slot plate for easy mold exhange.
Safety cover for injection nozzle.

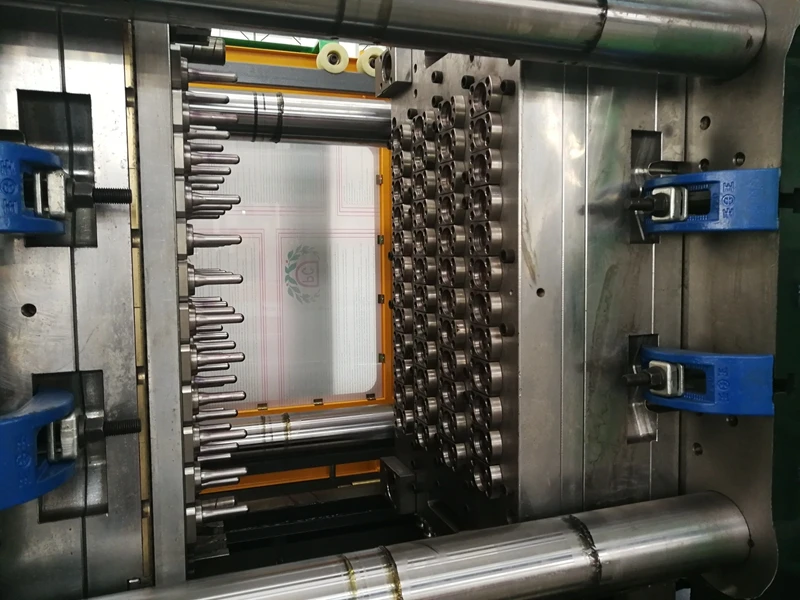

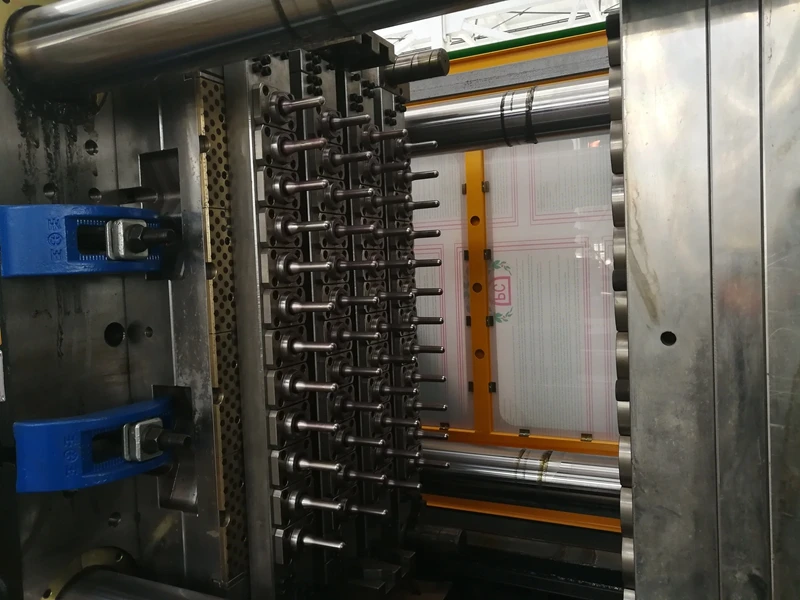

PET Preform mold, hot runner, pin valve gate system.

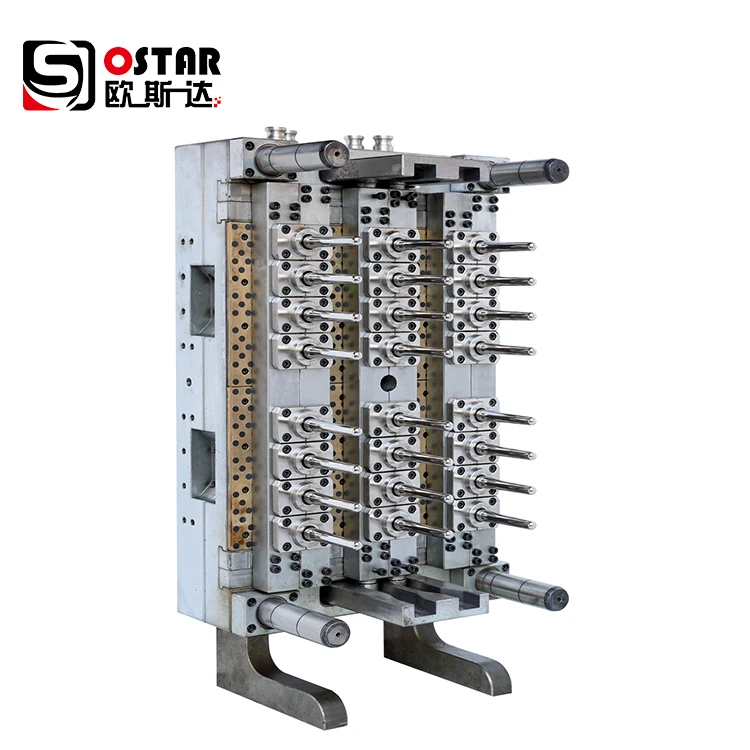

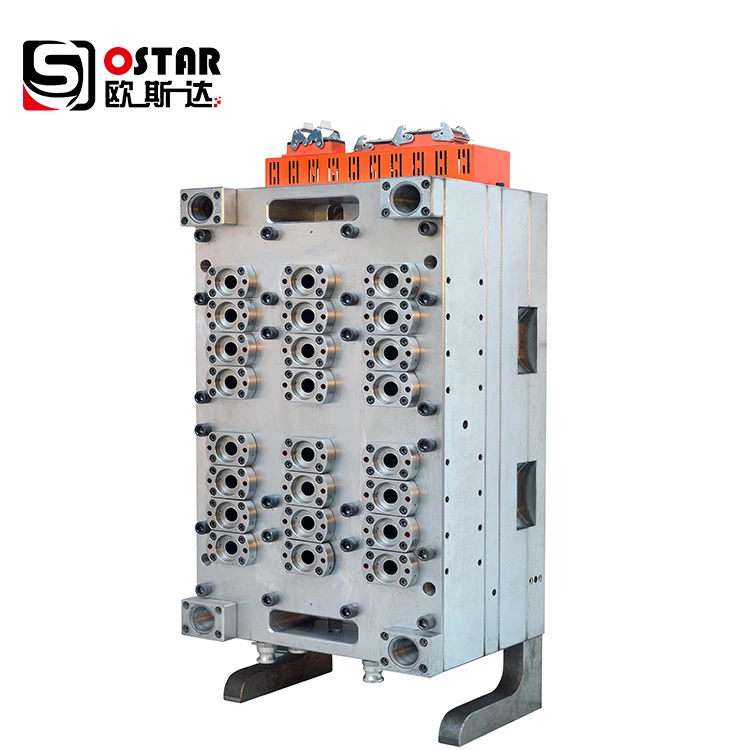

PET Preform Mold
Durable preform mold material, S136, 2316, H13
Mold cavity from single cavity to 96cavities
Hot runner system, pin valve gate design.
High quality injecton nozzle and heater, long working life.
Optimized inside mold cooling system, to help reduce prodction cycle time.
Mold with PID temperature controller, each cavity seperately controlled.
36cavities PET preform mold, 18gram, 28mm neck
Different size PET Preform Molds
Spare parts of PET Preform Mold
Pin needle, heater, core, cavity, neck parts
Packing&Shipping
We have exported machines over 15 years, all of our machines are packed in standard ocean shipping. good protection during long time shipment. make sure all machines in good condition when they arrive customer's factory.
Company Introduction
OSTAR COMPANY
Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.
Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.
Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.
Our Advantages
Machine Workshop
We have own machine components processing department, with own large-scale CNC boring and milling machine, large-scale planer type miling machine, CNC machining center, laser cutting machine. each components is strickly manufactured according to our design, and inspected carefully.
We have R&R team, for new machine design, absorbing advanced domestic and oversea new technoloy, for own machine innovation and improvement.
Related Products
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2:How about quality control in your factory?
A2: We have a pre-shipment inspection team, every machine need at least automatic running over 72 hours before shipment.
Q3: Is there complete machine include mould and other auxiliary equipment ?
A3: Yes ,what we are provide is the complete A-Z solution line.
Q4: Could you send your engineer to my country, to start the machine?
A4: Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q5: Can you help us with the shipment of this machine ?
A5: We have our special shipment company which already cooperate
for long time, we will give you the best price, fast delivery.
Certifications
