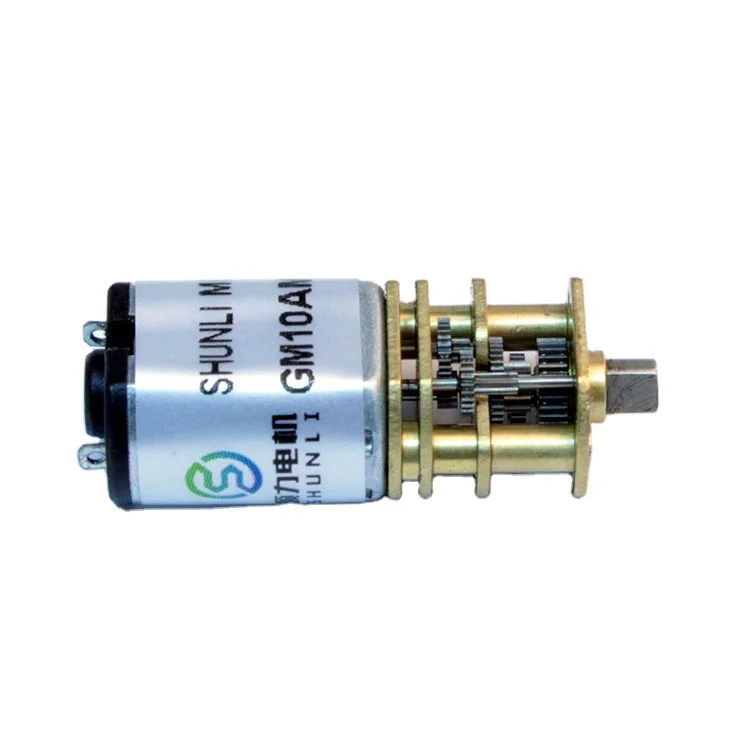

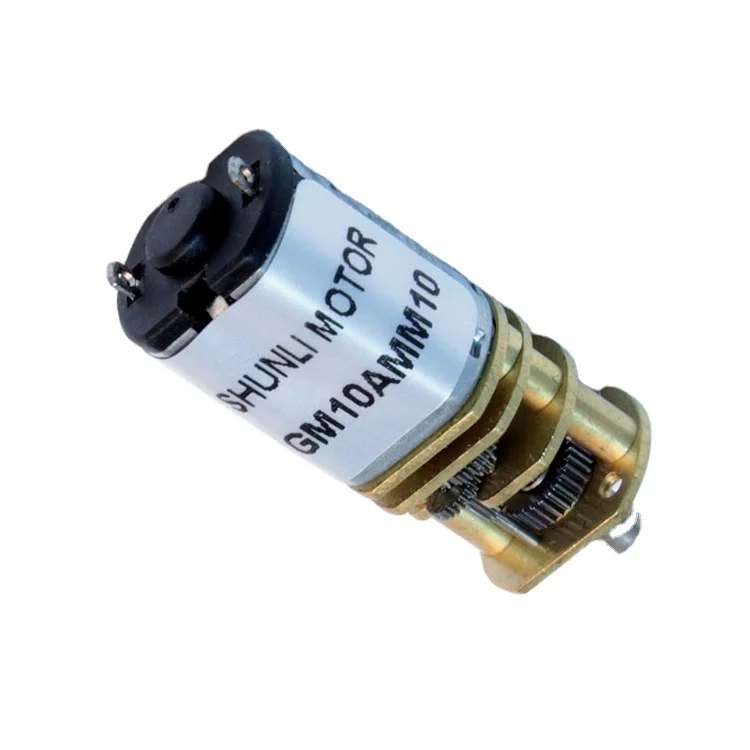

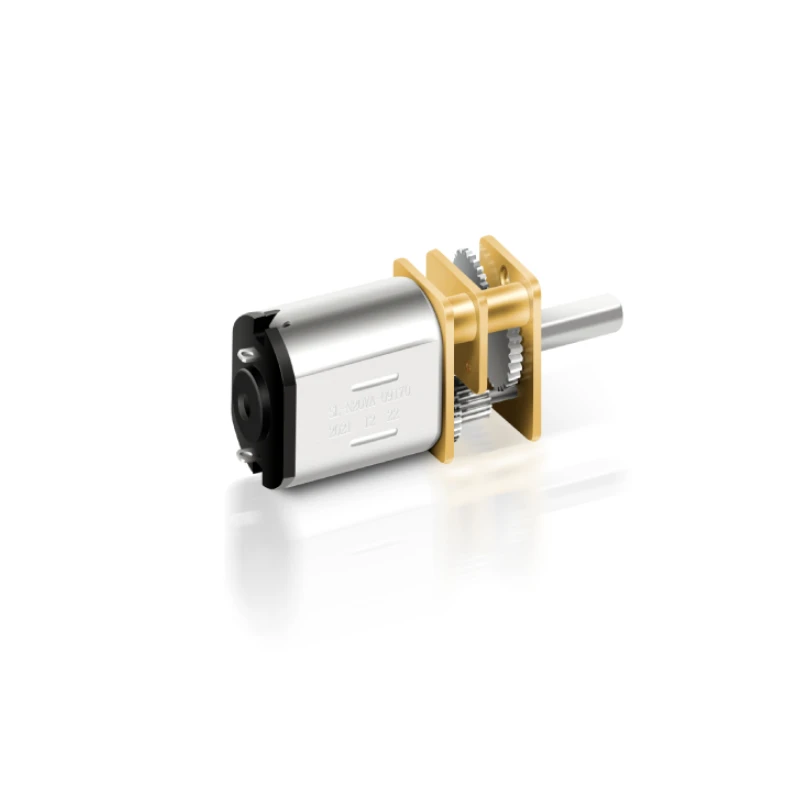

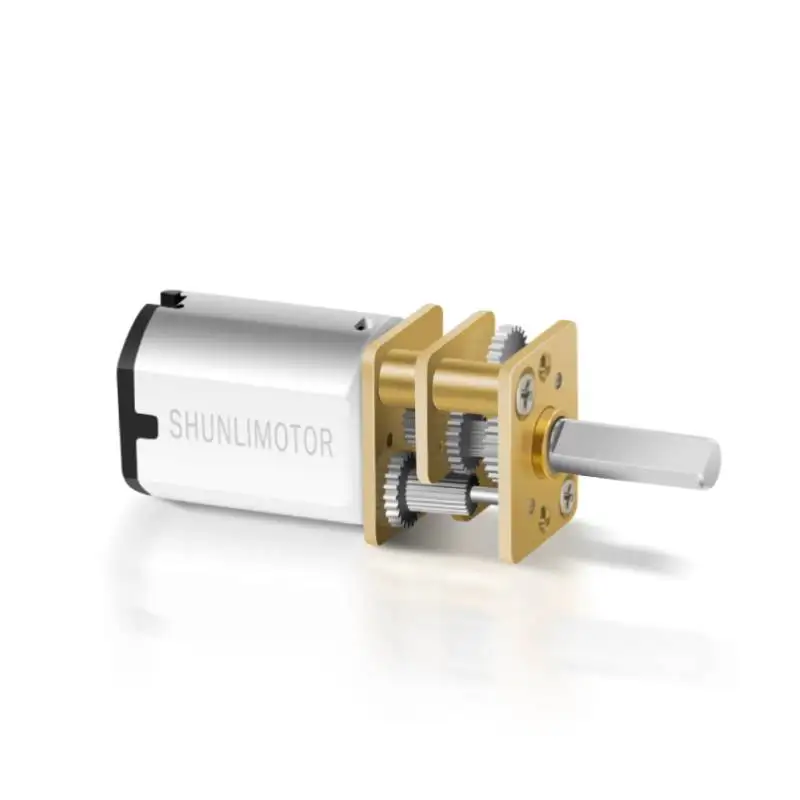

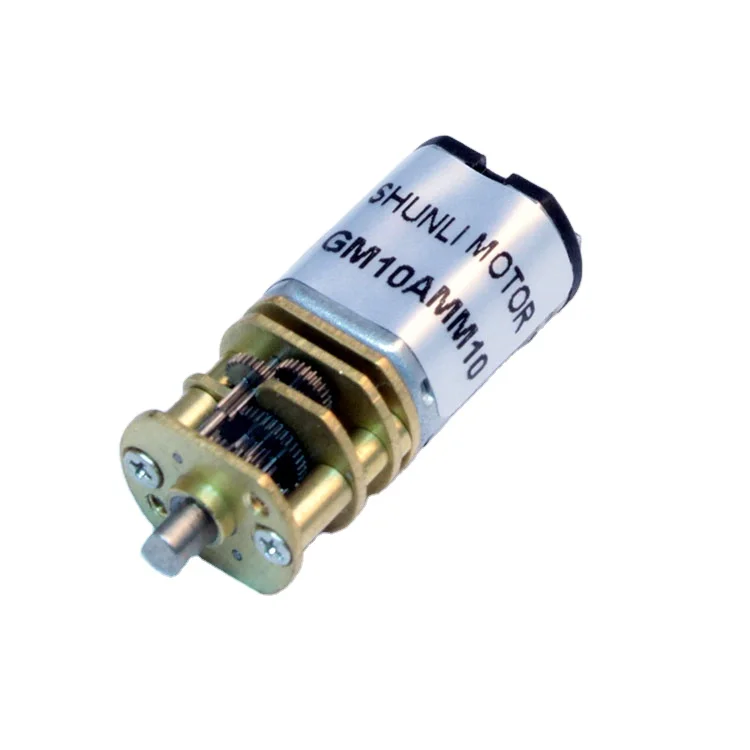

Shunli dc gear motor low rpm 60rpm 3v 10mm dc mini gear motor for toys car
- Category: >>>
- Supplier: Shenzhen Shunli Motor Co. Ltd.
Share on (60748502659):
Product Overview
Description
Product Description
Shunli dc gear motor low rpm 60rpm 3v 10mm dc mini gear motor for toys car
Product Details
Motor Customized Specification, Please Contact Us.
Reference Drawing
------GM12AMN10
-----GM12AMN20
-----GM12AMN30
Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1: 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
Gearbox Technical Date
| Number of stages | 2 | 4 | 5 | 7 |
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K | 110K/150K/210K/ 250K/298K/380K | 372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
