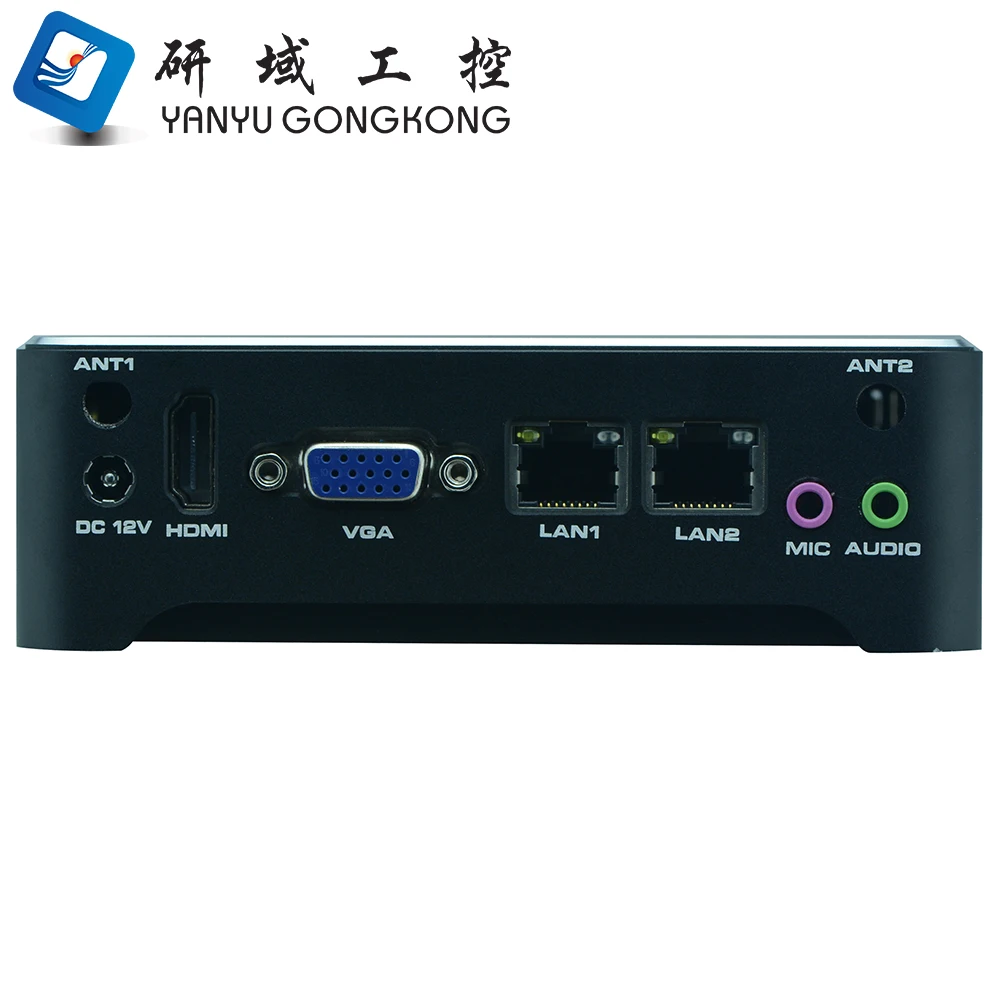

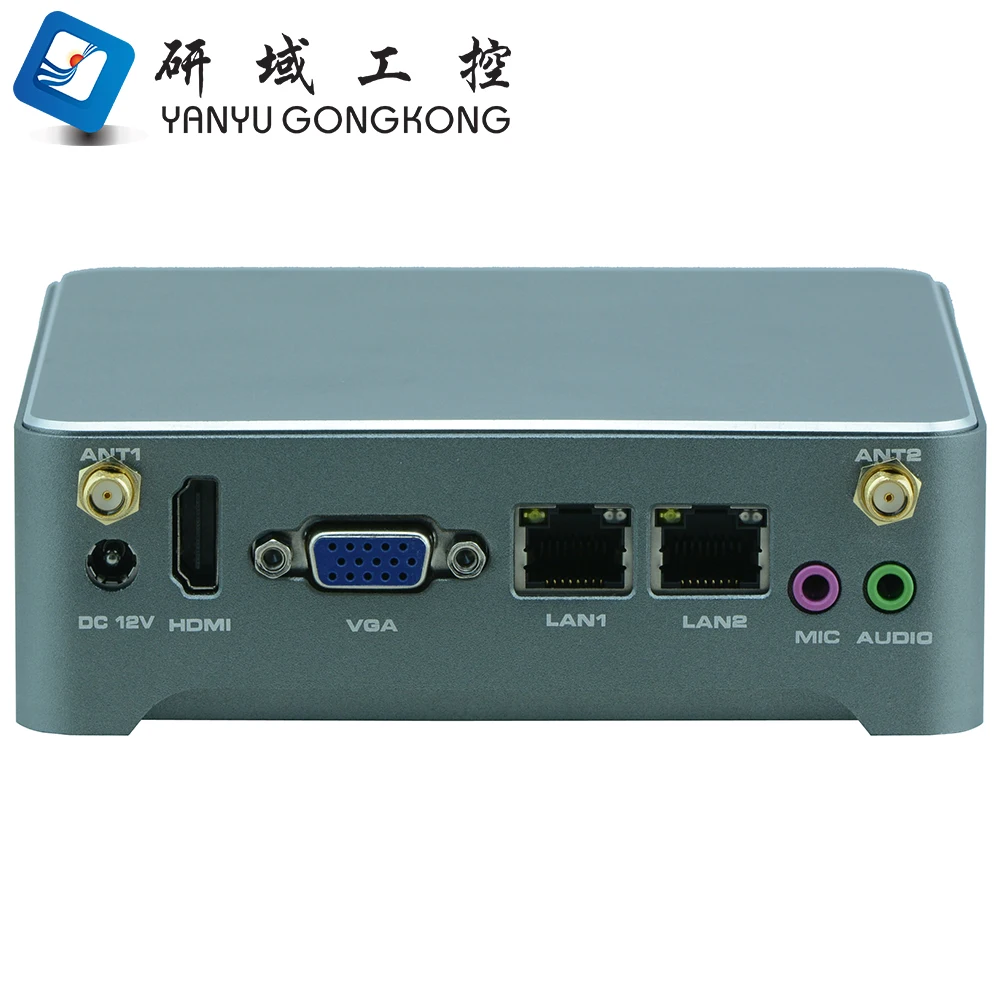

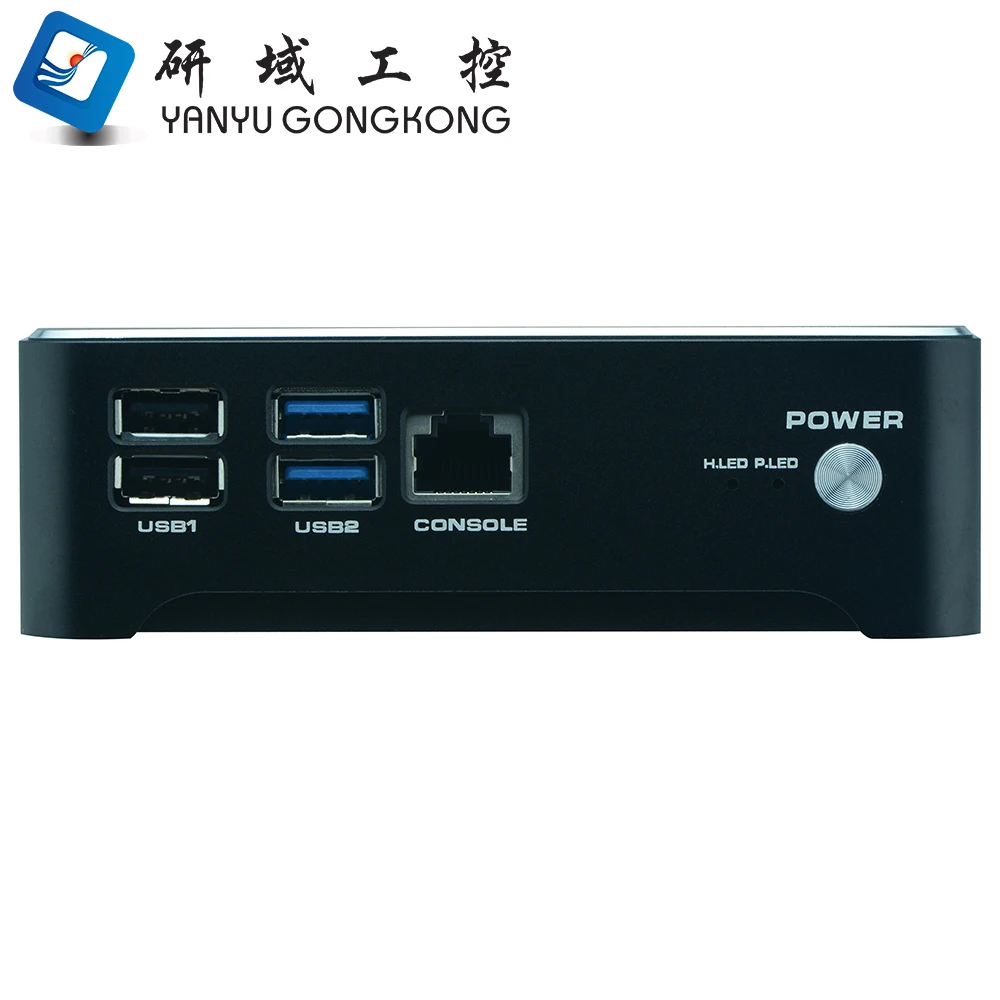

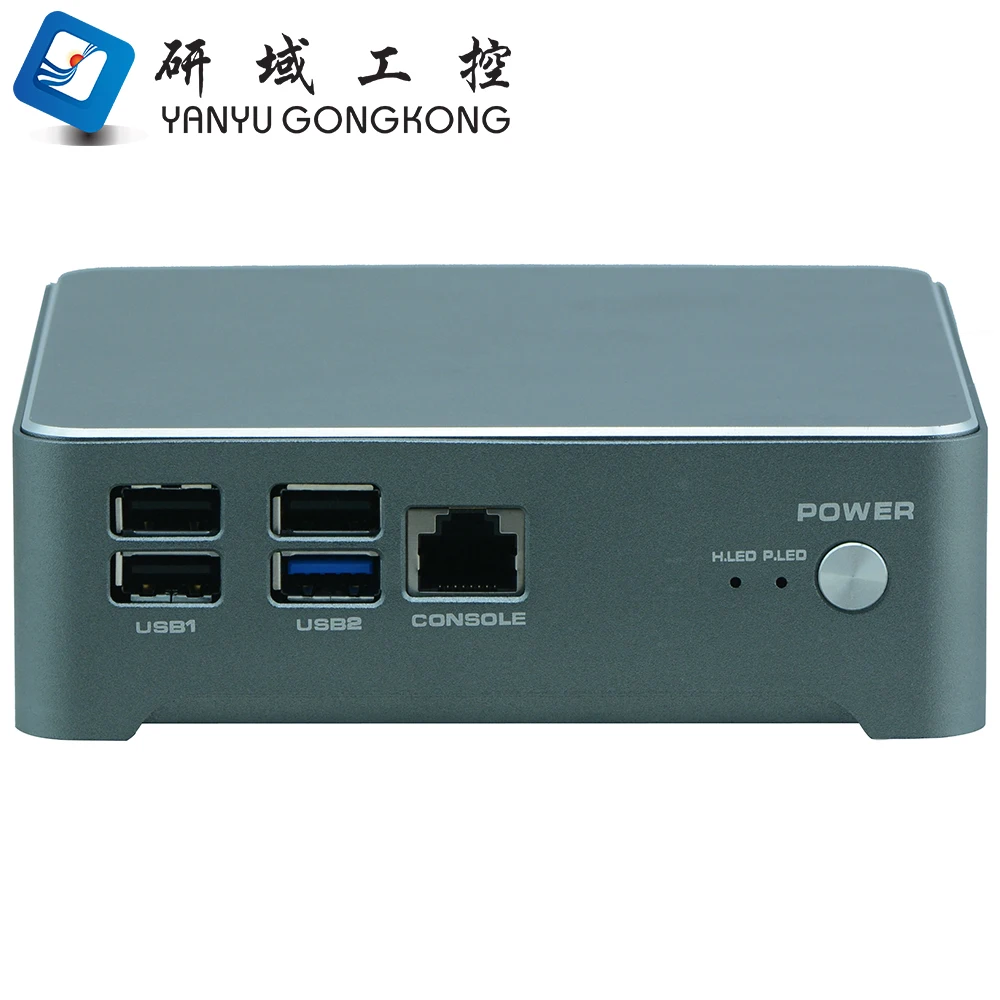

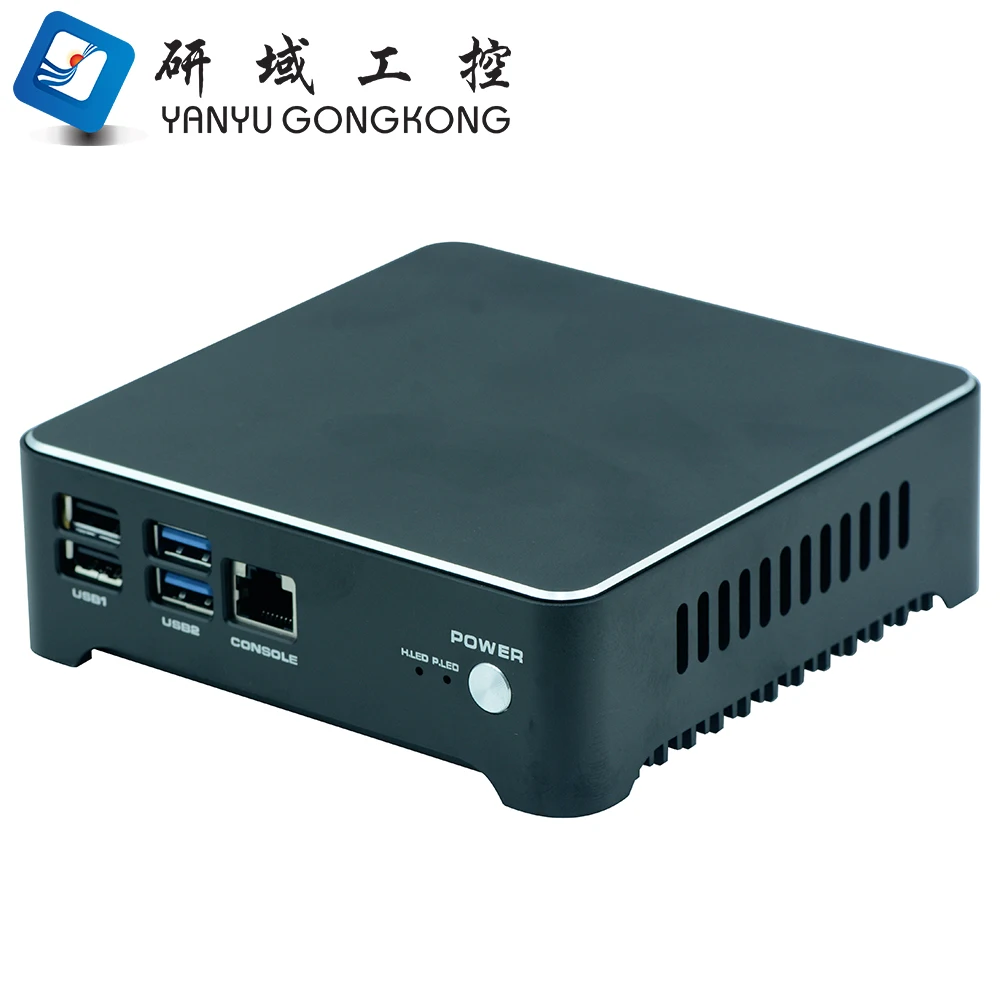

N3925BZ i3 i5 2 LAN Port Fanless Nano Computer Desktop Mini PC 12V
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (60748523603):
Product Overview
Description
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2015 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise With Professional and Experienced R&D Team
N3925BZ i3 i5 2 LAN Port Fanless Nano Computer Desktop Mini PC 12V
Features
Fanless cooling structure
Full aluminum alloy, compact structure, flexible installation
1xVGA, 1xHDMI, support synchronous/asynchronous display
Integrated Intel® Haswell i5 dual core processor
2 Gigabit Ethernet port, support Wake On LAN
Rich IO: 1*DC Jack, 4*USB, 1*HD OUTPUT, 1*VGA, 1*Audio, 2*LAN
Specification
| Chassis | Color | Black / iron gray |
| Dimension | 128mm*128mm*41mm(L*W*H) | |
| Structure | Full aluminum fanless cooling structure | |
| Material | Aluminum alloy | |
| Installation | Desktop type or wall mounted installation | |
| Motherboard | Model | STX-N92_I5 |
| Processor | Integrated Intel® Haswell-U I5-4210Y 1.5GHz dual core processor | |
| Chipset | Intel® Haswell-U/Broadwell-U SOC platform | |
| Graphics | HD Graphics | Integrated Intel® HD Graphics 4200, support DirectX 11.2/12, OpenGL4.3, support VGA, HDMI synchronous/asynchronous display. |
| Resolution | VGA: max support 1920 x 1200 @ 60HZ HDMI: max support 3200 x 2000 @ 60HZ | |
| Storage | Memory | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| SATA | N/A | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Sound Card | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
| Network | Ethernet | 2* RTL8111 Gigabit Ethernet, support Wake On LAN /PXE |
| WiFi | Provide 1* Mini-PCIE slot, support WiFi, 3G module | |
| System Features | Serial Port | 1* standard serial interface |
| USB | 2* USB2.0, 2*USB3.0 | |
| Power Switch | 1* Power switch | |
| LED indicator | 1*HDD LED, 1*Power LED | |
| LAN | 2*RJ45 Gigabit Ethernet interface | |
| Display | 1*VGA, 1*HDMI | |
| Power | 1*12V DC IN Jack | |
| Antenna | 2* WiFi/3G SMA antenna (optional) | |
| Audio | 1*Line-out, 1*MIC | |
| Power | Power Adaptor | 12V/5A adaptor |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows7, Windows8, Windows10, Linux OS | |
Order Information
| No. | Model | Processor | Motherboard | Memory | SSD | LAN | USB | WiFi | Adaptor | OS |
| 1 | N3929SZ | J1900/2.00GHz | N39_19 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
| 2 | N3923SZ | 4020Y/1.50GHz | N92_I3 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
| 3 | N3925SZ | 4210Y/1.50G | N92_I5 | / | / | 2*RTL8111F | 4 | N/A | 12V/3A | / |
| 4 | N3919SZ | J1900/2.00GHz | N39 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
| 5 | N3905SZ | N2805/1.46GHz | N39_05 | / | / | 1*RTL8111F | 6 | N/A | 12V/3A | / |
Company Informaiton
YANYUGONGKONG, MEMBER OF INTEL INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include: mini-itx motherboard, nano-itx motherboard, all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC, All-in-one PC, Embedded PC ,Vehicle computers, Cloud Terminal, Networking Security, OPS Mini PC Computer, OEM / ODM available.
Our Services
1. As a professional manufacturer / OEM Factory and supplier of mini pc / motherboard / firewall appliance over 11 years.
2. Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
3.Our products are 100% original and have strict QC inspection before shipment.
4.Professional and efficient sales team to serve for you diligently.
5.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 3years maintenance warranty for our products.
FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.
5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work keep working 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to keep working 24*7 hours.
8. Are you a factory or trading company?
A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.
9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
