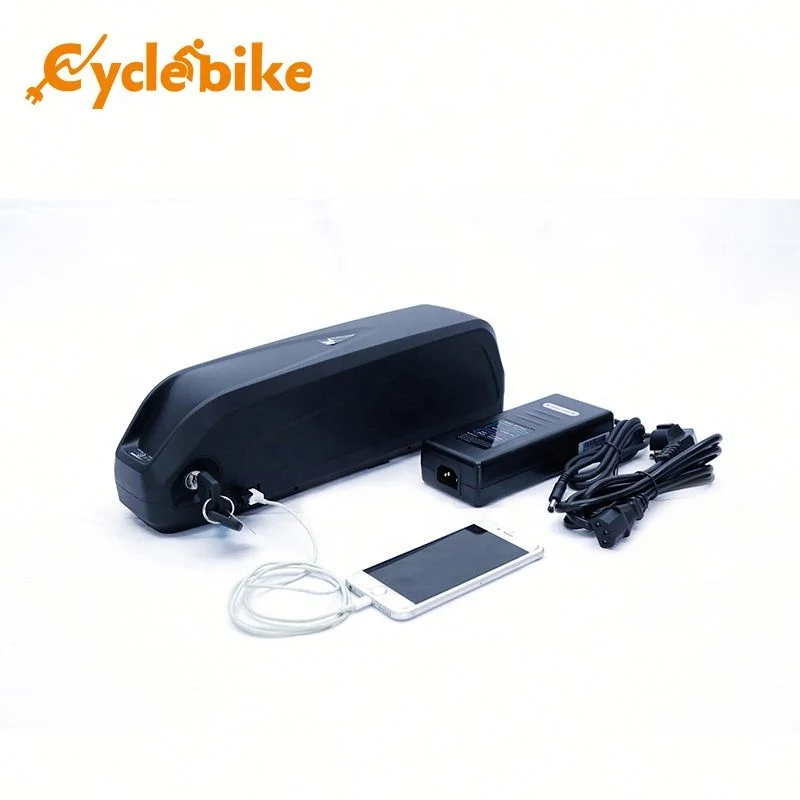

48v 13ah Lithium Ion Battery Pack For Ebike

Product Overview

Description

48v 13ah Lithium Ion Battery Pack For Ebike

Details Show of Lithium Battery:

48V HL 1-2 Lithium battery
Battery Material	Lithium ion 18650	Lithium ion 18650	Lithium ion 18650	Lithium ion 18650
	2400mah	29E	29E	3200
	2400mah	2900mah	2900mah	3200mah
Nominal Voltage	48V	48V	48V	48V
Rated Capicaty	10Ah	10.4Ah	12Ah	13Ah
Pack Dimension	L368*H111*W92mm	L368*H111*W92mm	L368*H111*W92mm	L368*H111*W92mm
Internal Impedance	≤100mΩ	≤100mΩ	≤100mΩ	≤100mΩ
Max Charge Voltage	54.6V	54.6V	54.6V	54.6V
Max Charge Current	3A	3A	3A	3A
Min Discharge Voltage	39V	39V	39V	39V
Rated Discharge Current	15A	15A	25A	25A
Max Discharge Current	25A	25A	35A	35A
Charging Mode	CC/CV	CC/CV	CC/CV	CC/CV
Pack Weight	About 3.8kg	About 3.8kg	About 3.8kg	About 3.8kg
Over Current Protection	30A	30A	40A	40A
Cycle Life	1000cycles	1000cycles	1000cycles	1000cycles
Charge Temperature	0-45°C	0-45°C	0-45°C	0-45°C
Discharge Temperature	-20-55°C	-20-55°C	-20-55°C	-20-55°C
Certificates	CE	CE	CE	CE
Motor Max	500W	500W	1000W	1000W





(1) Environmental friendly;

(2) High density of energy;

(3) Light weight;
(4) Low self-discharge;
(5) Low internal resistance;
(6) Long cycle life, chargeable up to 1000 times;

(7) No memory effect;

(8) Doesn’t contain Mercury, No fire, No explosion, No leakage;

(9) BMS for battery over charge, over discharge, short circuit protection.

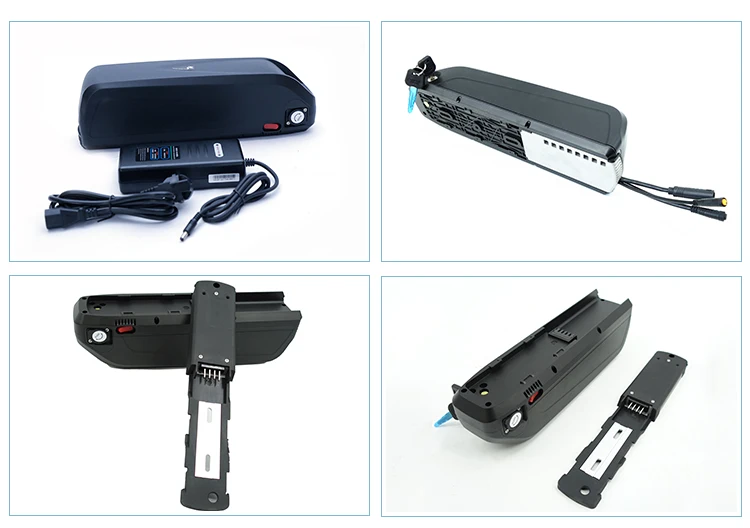

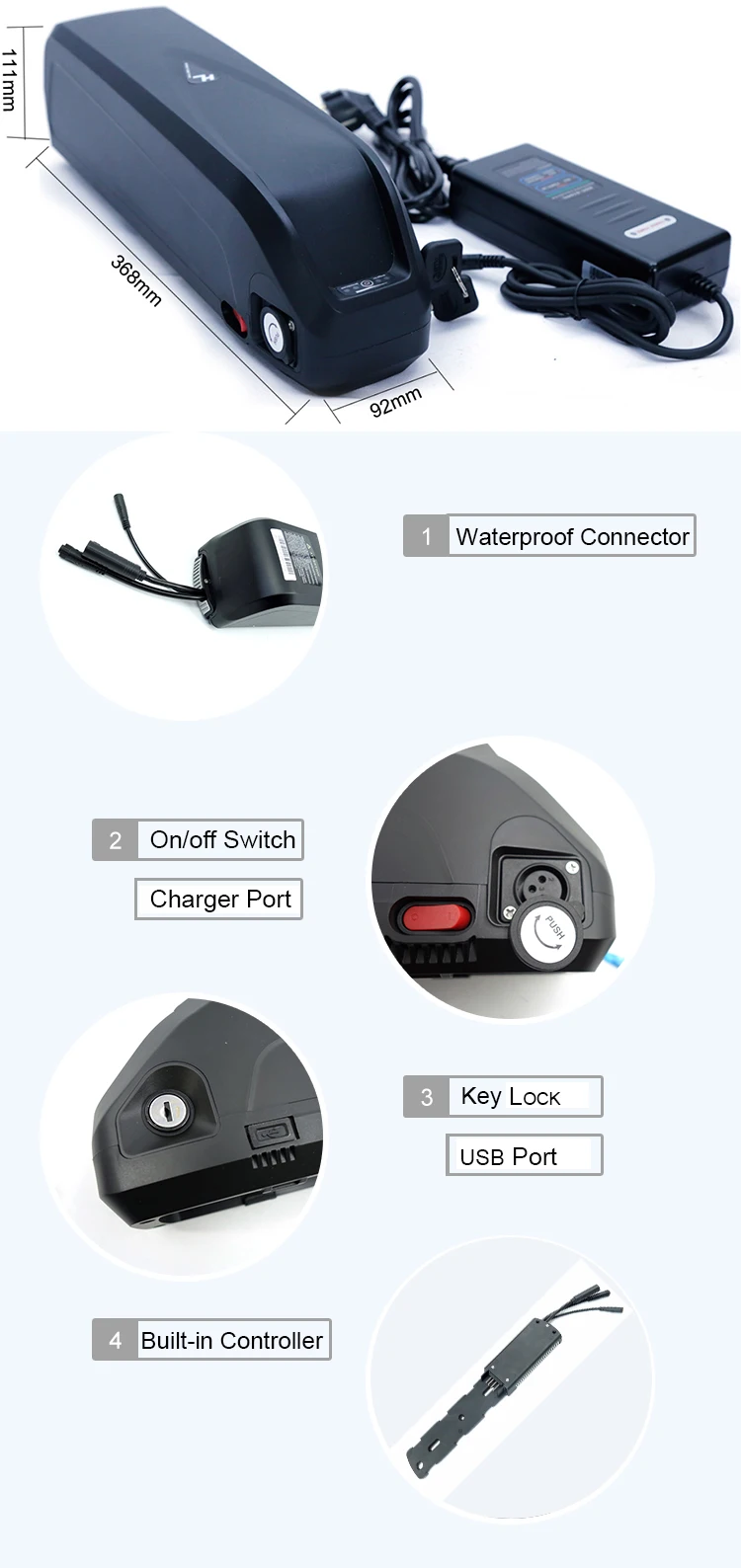

(1) New Hailong Case;
(2) Waterproof and Solid plastic Case;
(3) Lighted battery LED power Indicator;
(4) Convenient Charge Port;

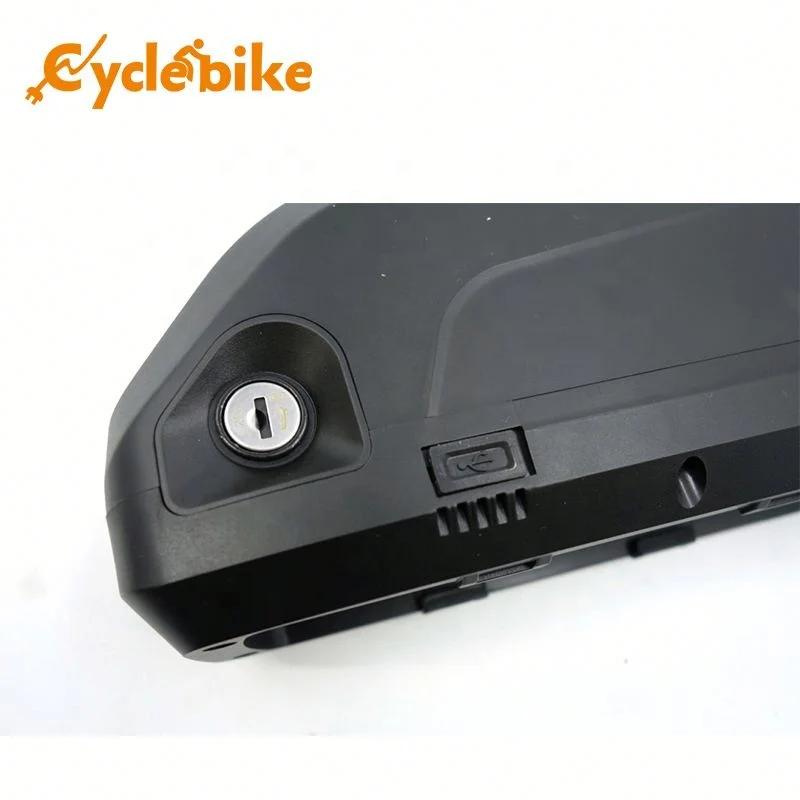

(5) Lock with Keys securely locks the mount on bike frame.





1.We  produce  sample for confirmation and as the order confirmed,will return back the sample fee   for customers.

2.We are capable of providing specific specification products you want.

3.We are ready to assist with any questions or problems.

4.We treat clients as friend. Quick response in 12-24 hours. Two years warranty for motor, one half  year warranty for battery.
5.We have strict quality control system .Good reputation in the market. Each product is test  100% good before shipping.



Q1: Can I get some samples?

A: Yes, sample order is available for quality check and market test.



Q2: What’s the lead time?

A: It usually takes about 7-45 days for production depending on your order quantity.



Q3. What is the Minimum Order Quantity(MOQ)?

A: Different model has different MOQ, so please contact with us before you send order.



Q4: Do you accept OEM order?

A: Yes, we can. Welcome to do OEM. Please email us to talk about the details.



Q5: What's your payment terms?

A: We usually accept T/T and Western Union as the main payment terms,and other payment can also be negotiated.



Q6: What's your warranty terms?

A: We offer different warranty time for different models and components.
