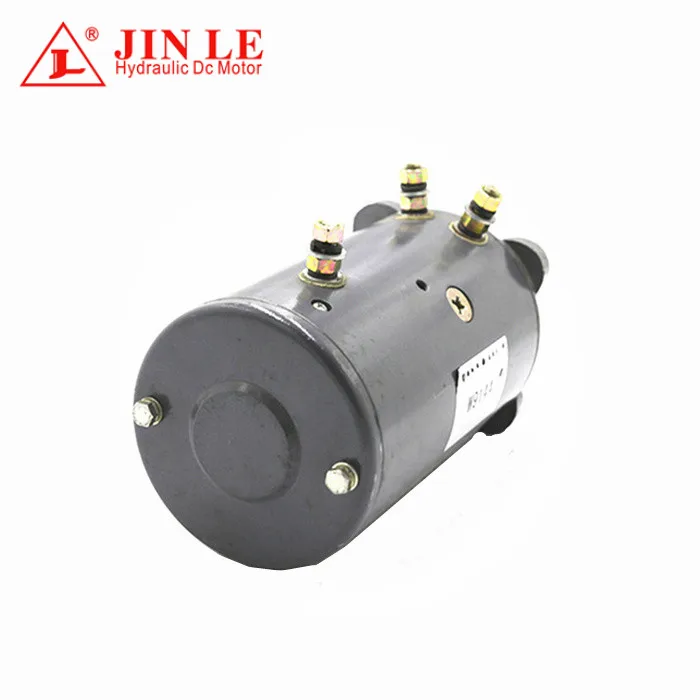

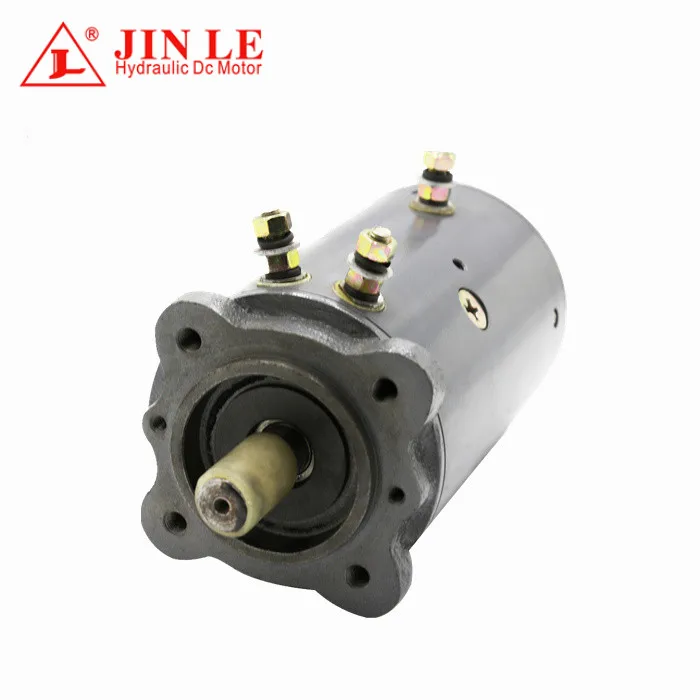

12V Brush 1.4KW Electric DC Winch Motor With Double Ball Bearing
- Category: >>>
- Supplier: Wuxi Jinle Automobile Motor Factory
Share on (60748588229):
Product Overview
Description
12V Brush 1.4KW Electric DC Winch Motor With Double Ball Bearing
Product Description
Specification:
1) Type: W9144
2) Voltage: 12V
3) Power: 1.5KW
4) Speed: 2150PM
5) Rotation: BI-DIRECTIONAL

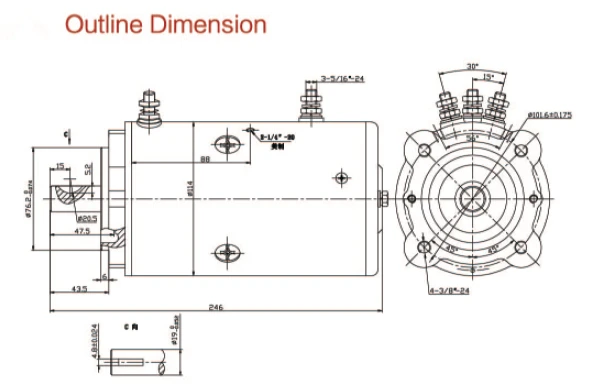

6) O.D. : 114mm
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 6N.m
11) Weight: 7.5KG
3-POST winch motor
3/4'' diameter shaft
LESTER 5687N-DBHD
WAI 82-6868-2
| Replaces these part numbers: | |
| ARROWHEAD | LRW0017 |
| WESTERN MOTORS | W-7643, W-8933, W-9133, W-6900, W7643, W-9144 |
| PRESTOLITE | MUR-6202, 458001, MRV-B-8, MBJ-6201, MBJ-4201, MBJ-4202, MBJ-4204, MBJ-4207, MBJ-4209, MBJ-4402, MBJ-4403, MBJ-4405, MBJ-4407, MBJ-4409, MBJ-4410, MBJ-4411, 46-4214, MBJ-4412, MBJ-4415, 46-2287, 46-4157, 458108, MUR-6202, MUR6202 |
| OTHER PART NUMBERS | 458108, 458001, P5-534, M-3300, 30516, 540-001, 645041, 79017 |
Parameter
| Unload | Speed | 7314 RPM |
| Current | 57.920 A | |
| Max_Torque | Torque | 6.020 N.m |
| Current | 211.930 A | |
| Speed | 2325 RPM | |
| Efficiency | 57.86% | |
| Output Power | 1465.60 W | |
| Max_Efficiency | Efficient | 67.04% |
| Speed | 5947 RPM | |
| Torque | 1.010 N.m | |
| Current | 74.140 A | |
| Output Power | 628.90 W | |
| Max_Pout | Efficiency | 57.86% |
| Speed | 2325 RPM | |
| Torque | 6.020 N.m | |
| Current | 211.930 A | |
| Output Power | 1465.60 W |
Jinle motors include forklift drive motor, automobile tail gate motor, van wing door motor, truck stamped system motor and truck canopy system motor etc.
According to the different requirements of customers, our DC motors have been broadly used in the fork-lift, container van tail-board, van door system, jumping car, snow-sweeper, etc.
1) Motor’ type can be divided into 12V , 24V , 48V , 60V , 72V voltage system.
2) Output power ranges from 0.5 KW - 4.5 KW.
3) Rotation : CW / CCW / Bi-directional
4) Outside diameter covers 56mm , 63mm , 80mm , 114mm , 127mm , 142mm.
5) Torque : 2N.m / 6N.m /10N.m
6) Motors have different adaptors to match various of pump connectors.
7) Motors’ surface treatment can be chosen by customer, and we have the technique method such as zinc plated, chromium plated, powder coated with different color (e.g. black , red , grey , white , golden) on heavy duty motors.
Application
Jinle hydraulic DC motors is mainly used for hydraulic power unit, pump/oil pump, automation, car lift, hydraulic parts, tractor, snow plow, agricultural machinery/farm machinery, industrial machinery, construction, jack, tipper trailer, etc...
| 1 | DC motor for Pump |
| 2 | DC motor for power unit |
| 3 | DC motor for oil pump |
| 4 | DC motor for Automation |
| 5 | DC motor for Agricultural Machinery/Farm machinery |
| 6 | DC motor for Lift |
| 7 | DC motor for Dump Truck/Tipper/tip truck |
| 8 | DC motor for Hydraulic |
| 9 | DC motor for hospital bed/hospital cot |
| 10 | DC motor for garbage truck/dustbin lorry/waste collection vehicle /refuse collection vehicle |

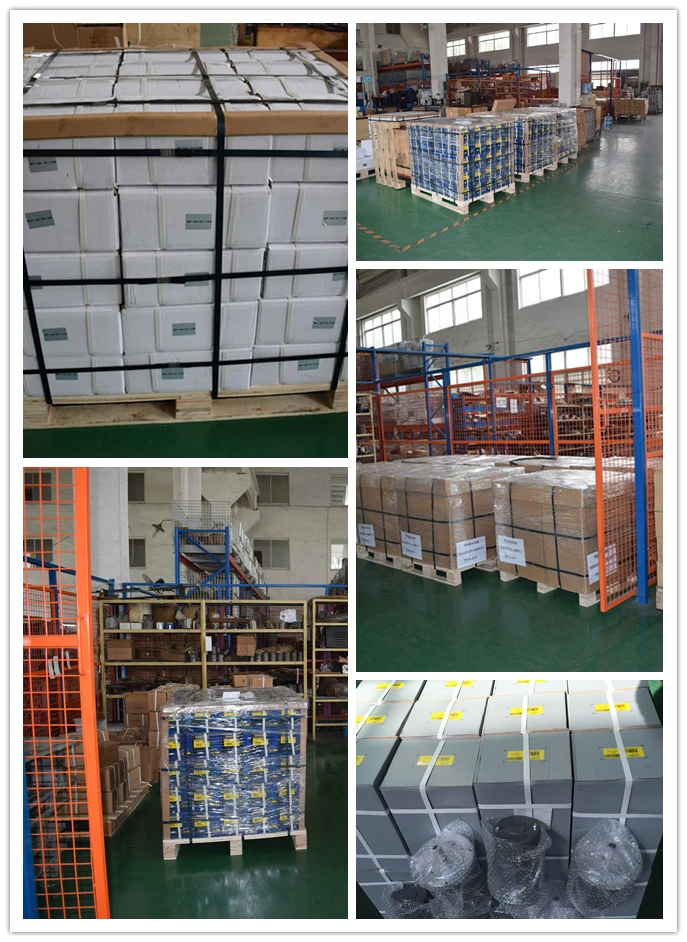

Packaging & Shipping
Our Services
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
FAQ
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
