Taidacent SP3232 MAX3232 Isolation TTL to Uart RS232 Signal Converter RS232 Serial Port to TTL Converter
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60748603749):
Product Overview
Description

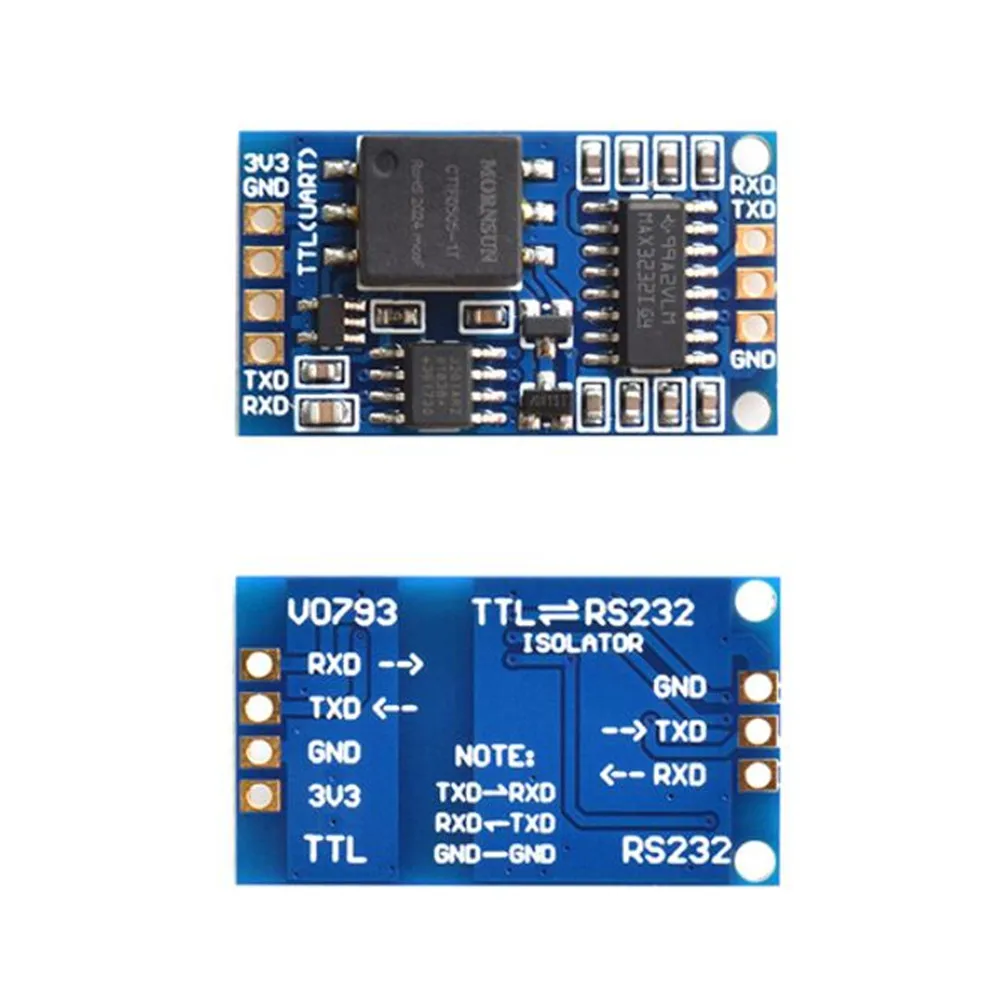

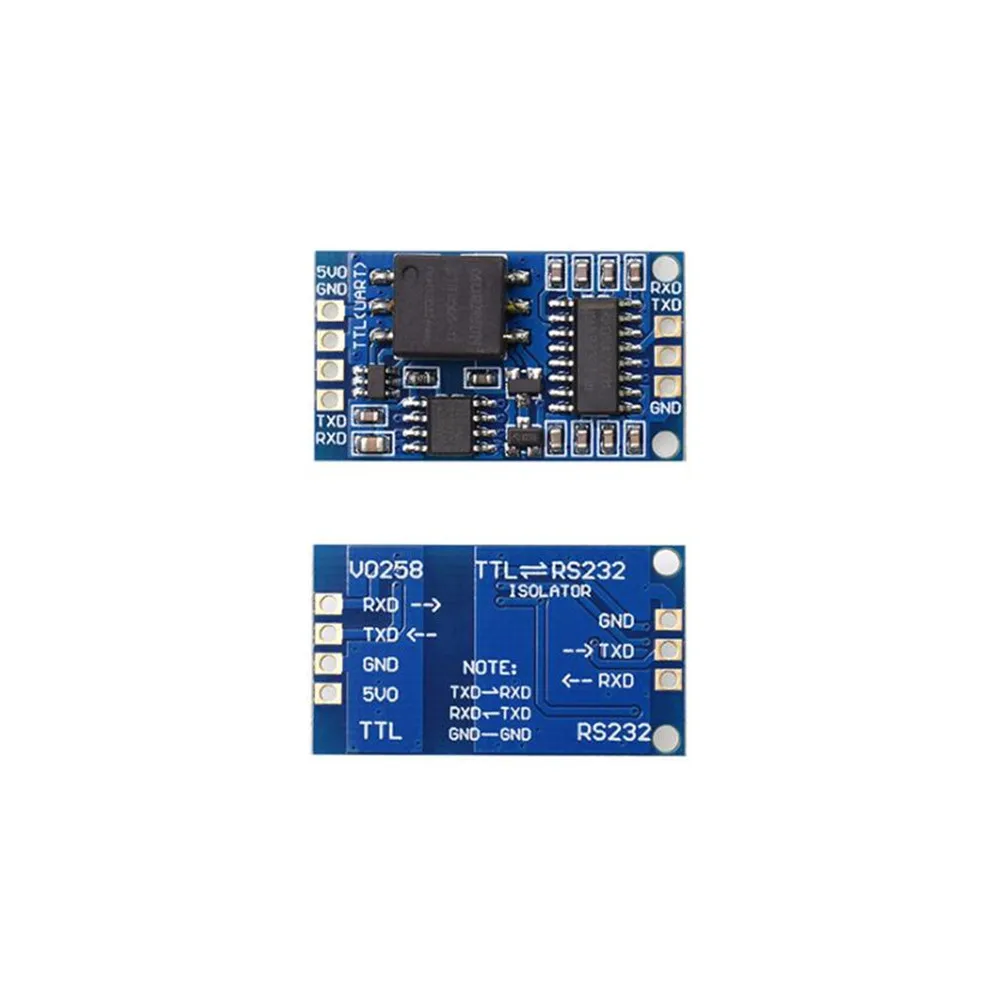

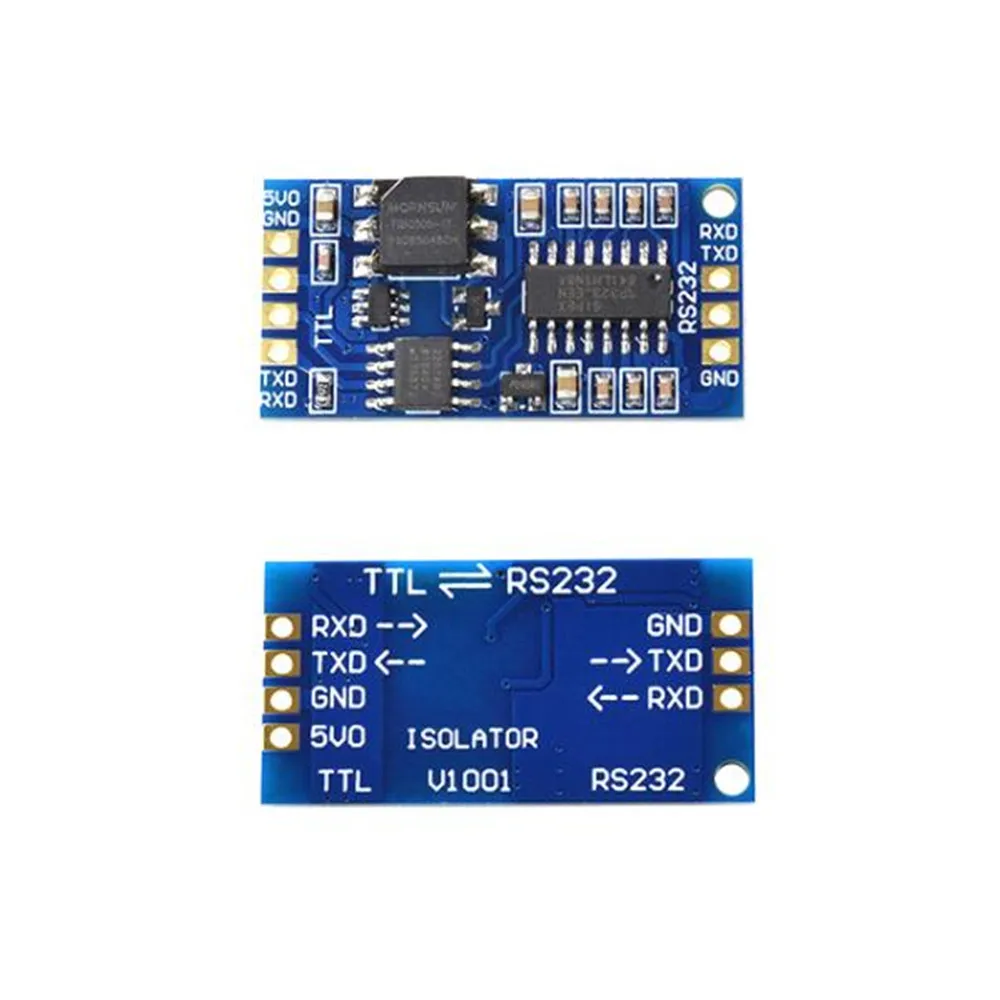

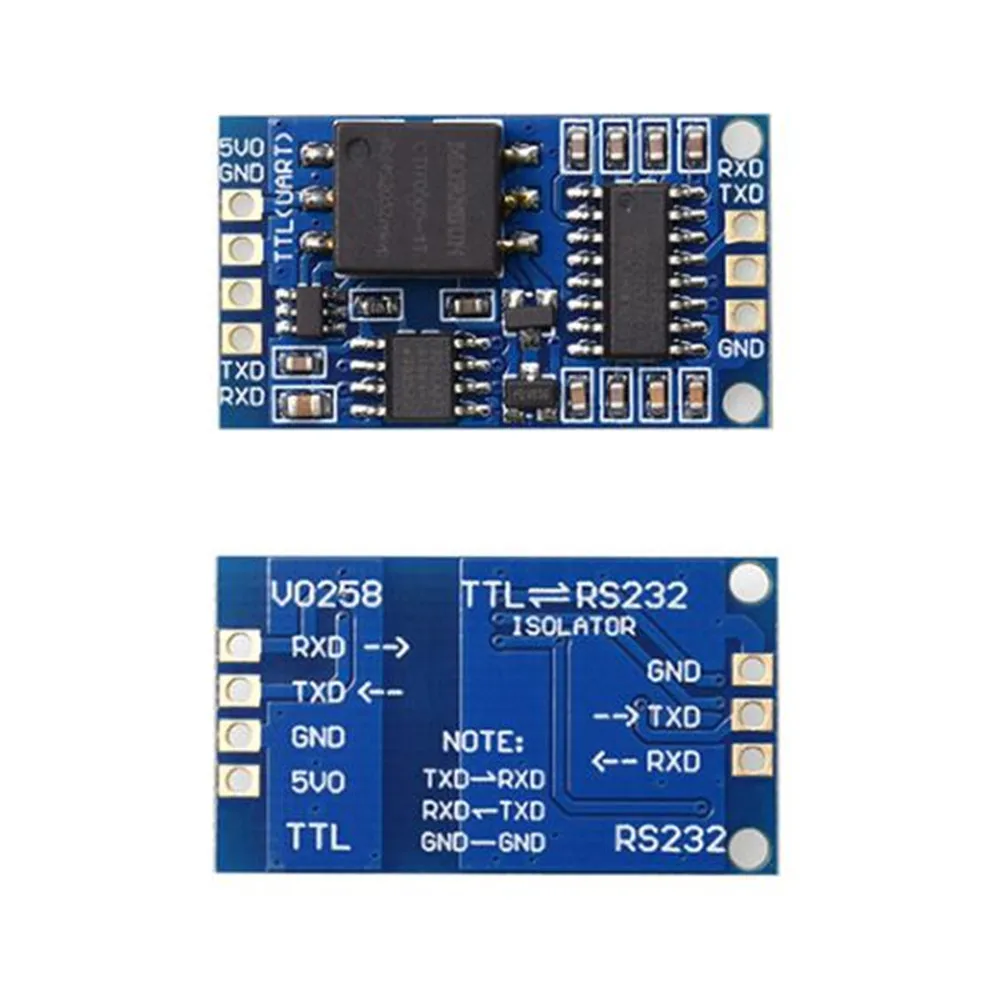

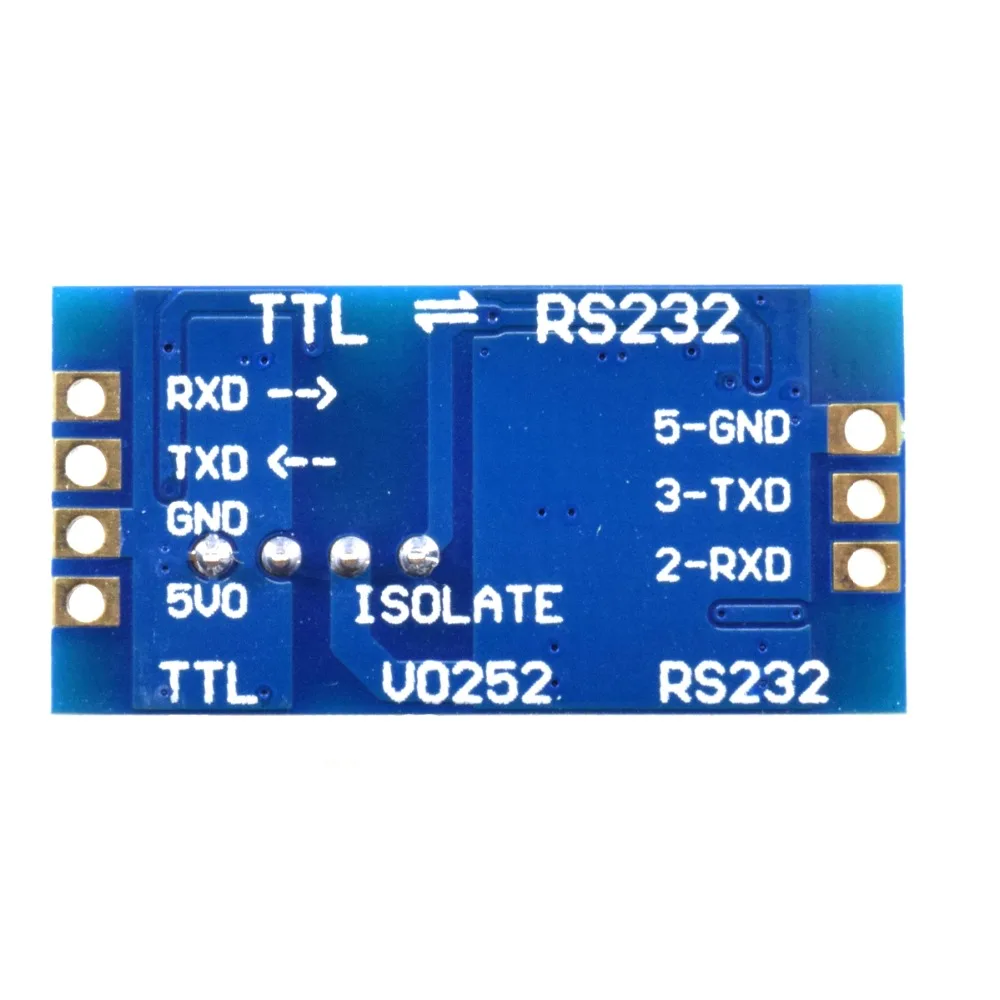

Taidacent SP3232 MAX3232 Isolation TTL to Uart RS232 Signal Converter RS232 Serial Port to TTL Converter
TTL and RS232 terminal:
TXD to RXD RXD to TXD cross-matching connection
TTL (UART) end:
vcC: Connect to DC 3V-5.5V
GND: Connect to DC GND
TXD: Connect to RXD of MCU
RXD: Connect TXD of MCU
RS232 terminal:
RXD: Connect to RS232 port TXD
TXD: Connect to RS232 port RXD
GND: Connect to RS232 port GND
TXD to RXD RXD to TXD cross-matching connection
TTL (UART) end:
vcC: Connect to DC 3V-5.5V
GND: Connect to DC GND
TXD: Connect to RXD of MCU
RXD: Connect TXD of MCU
RS232 terminal:
RXD: Connect to RS232 port TXD
TXD: Connect to RS232 port RXD
GND: Connect to RS232 port GND
Type optional
1: 5.0V SP323 chip SMD type
2: 5.0V SP323 chip ultra-thin
5: 3.3V SP323 chip SMD type
6: 3.3V SP323 chip plug-in type
7: 3.3V MAX3232 chip SMD type
2: 5.0V SP323 chip ultra-thin
5: 3.3V SP323 chip SMD type
6: 3.3V SP323 chip plug-in type
7: 3.3V MAX3232 chip SMD type
