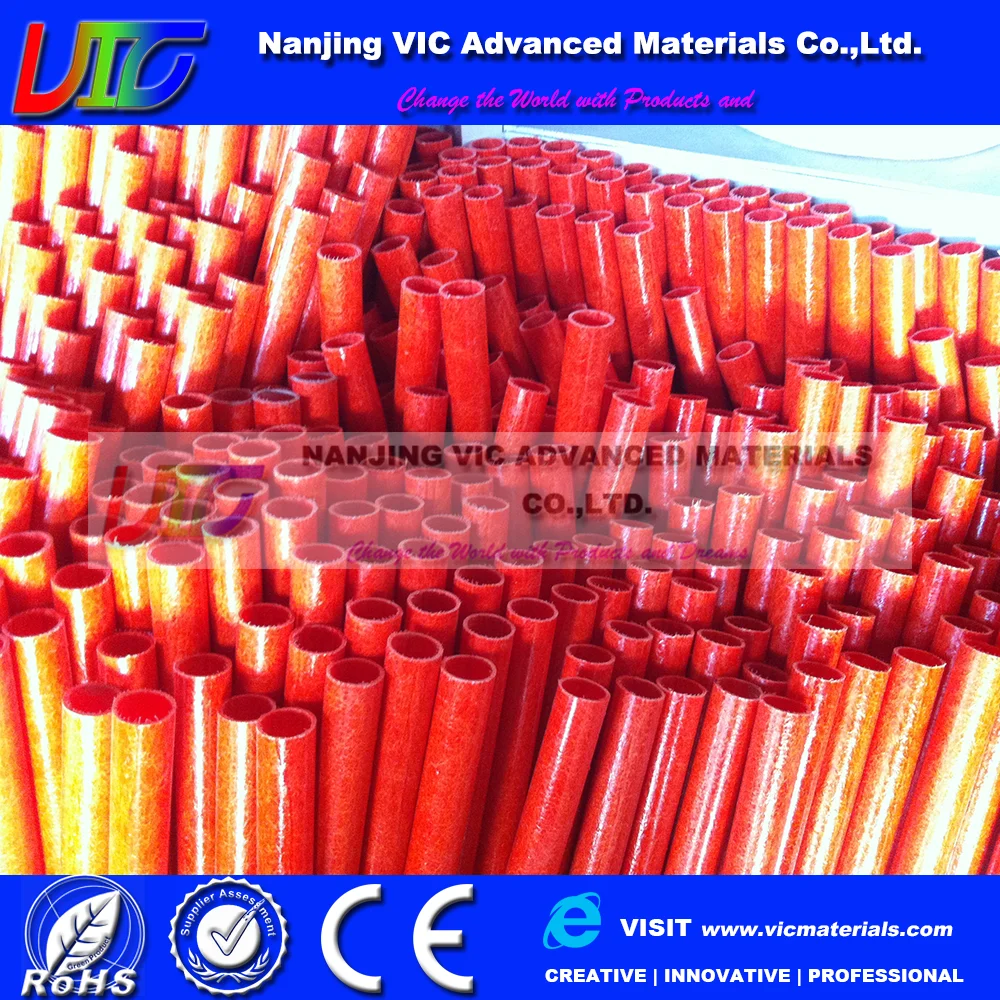

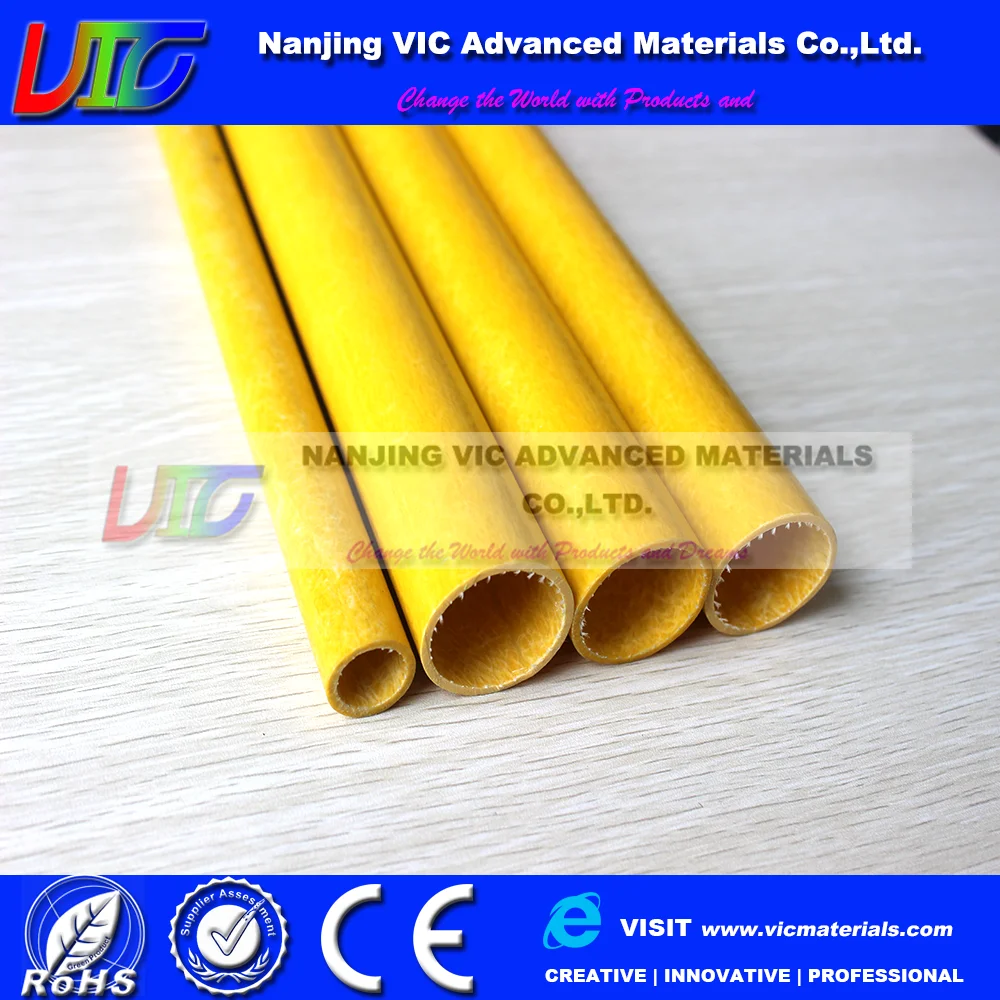

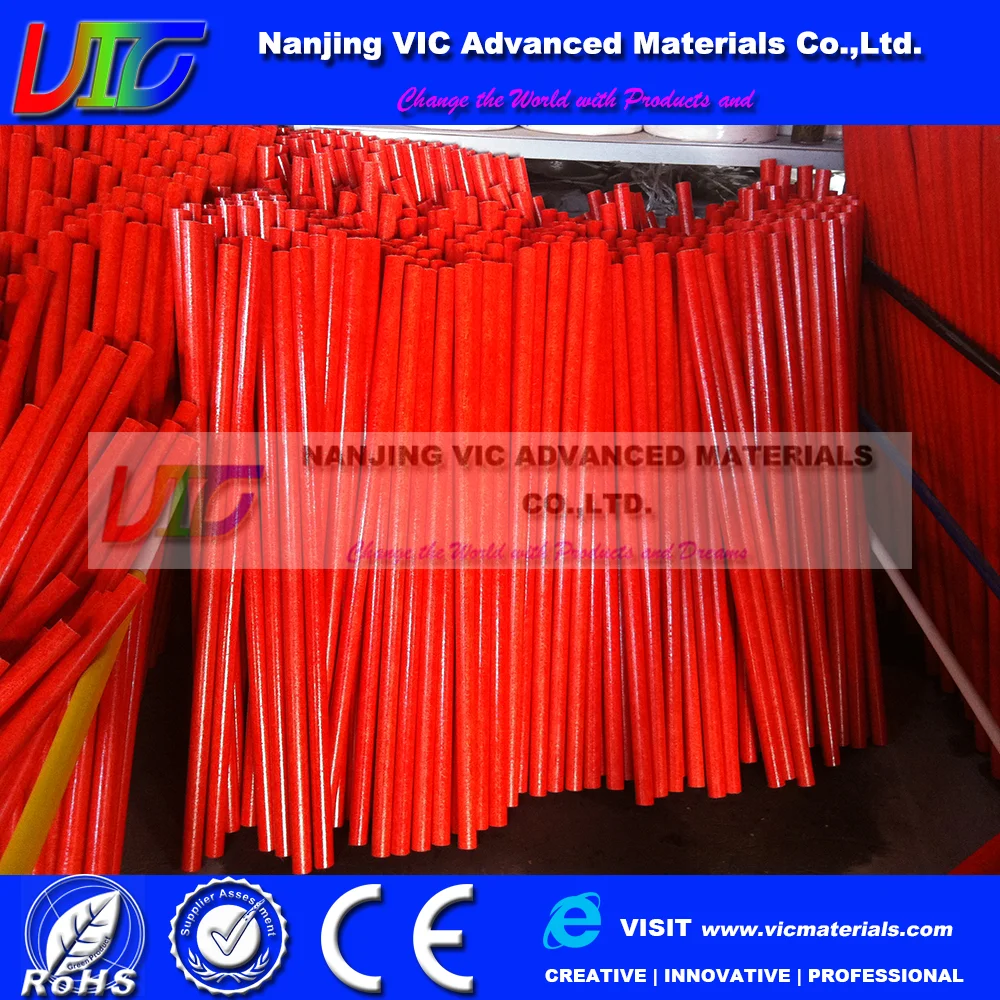

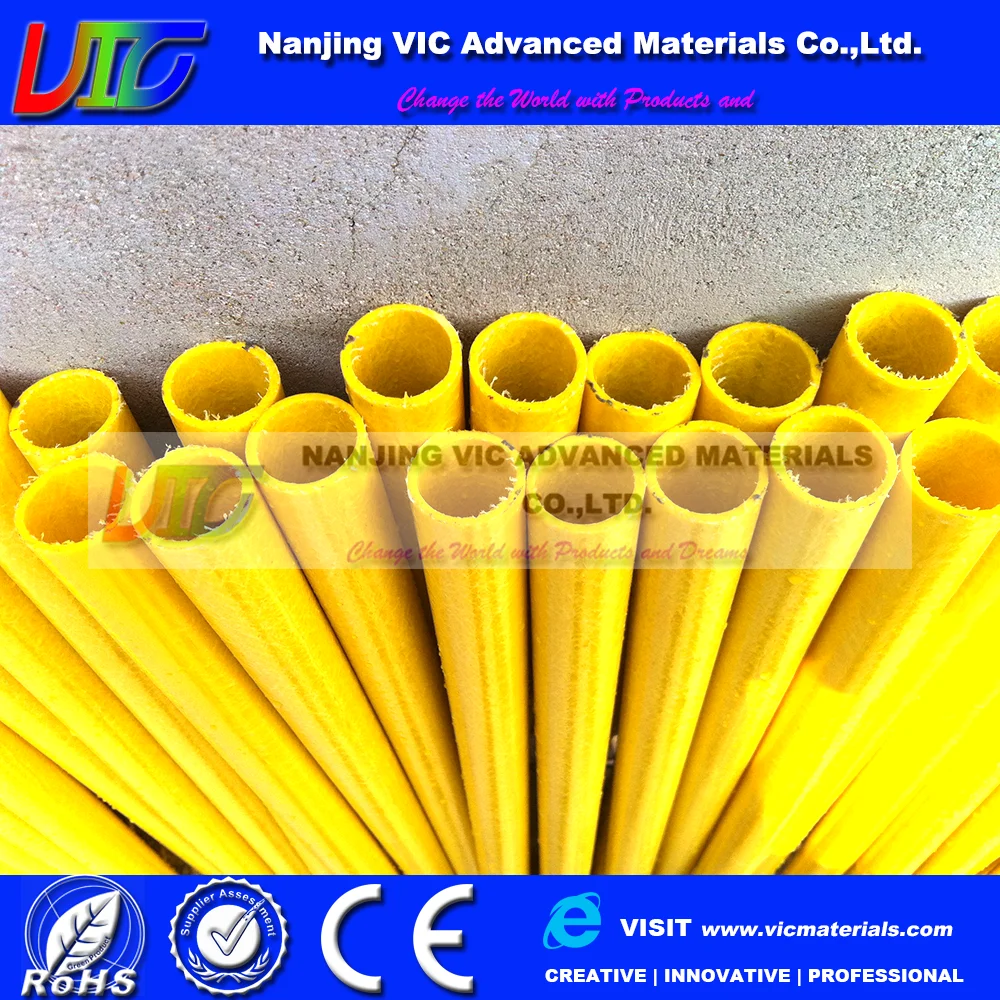

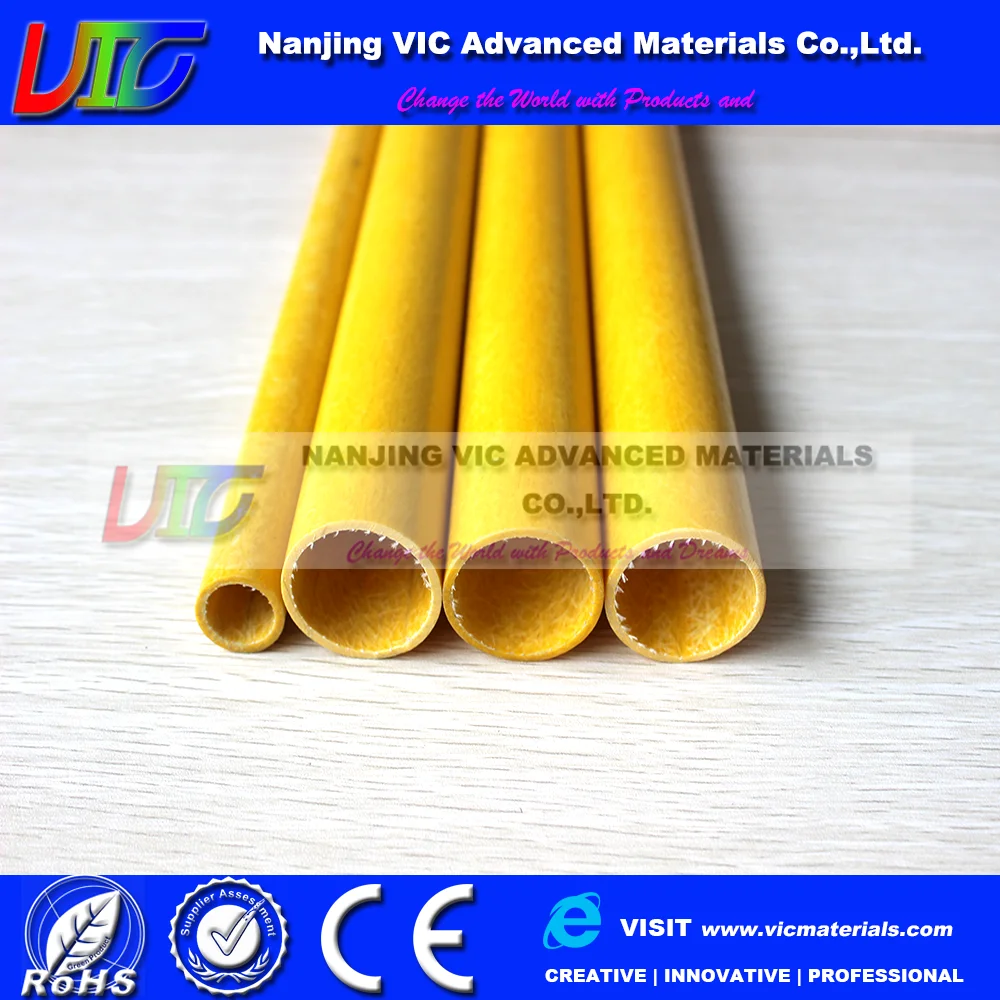

Hot selling fiberglass tube,high strength FRP tube,good quality glass fiber tube
- Category: >>>
- Supplier: Nanjing VIC Advanced Materials Co. Ltd.
Share on (60748700133):
Product Overview
Description
Product Description
Fiberglass tube,FRP tube,Glass fiber tube |
PRODUCTION DETAILS
Fiberglass tube are made through pultrusion process. During the pultrusion process, the raw materials are pulled through a heated steel forming die using a continuous pulling device.pultruded frp tube are made of different resins reinforced with fiberglass by pultrusion technology.Fiberglass tube are widely used in many areas.
Our fiberglass tubes include: Fiberglass round tube, square tube, rectangular tube,etc. Customized shape tubes are welcome!
Fearures of fiberglass tube(FRP tube):
♦Corrosion Resistant
♦ Low Conductivity - Thermally and Electrically
♦ Non-Magnetic - Electromagnetic Transparency
♦ Light Weight and High Strength
♦ Dimensional Stability
♦ Low Maintenance
Basic features
Color | Any color as per your request |
Length | Any color as per your request |
Fiber Type | E-glass |
Resin Type | Rolyester/epoxy resin |
Materials content(%) | 5%glass fiber+30% resin+5% other |
Working Temperature | <200℃ |
UV resistant | Yes |
Electric insulation | Yes |
Machinability | Can be punched, drilled, milled, sawed, etc. |
Product virtue | Light weight,high strength,corrosion resistant,uv resistant,etc. |
Product Keywords | frp tube,fiberglass tubing,fiberglass tube |
Specification Sheet
Round Tube | |||||||
| mm | inch | Weight/Material Length | |||||
| OD | ID | Thickness | OD | ID | Thickness | g/m | lb/ft |
| 4 | 2 | 1 | 0.157 | 0.079 | 0.039 | 19 | 0.013 |
| 5 | 3 | 1 | 0.197 | 0.118 | 0.039 | 25 | 0.017 |
| 6 | 3 | 1.5 | 0.236 | 0.118 | 0.059 | 42 | 0.028 |
| 6 | 4 | 1 | 0.236 | 0.157 | 0.039 | 31 | 0.021 |
| 6.5 | 3 | 1.75 | 0.256 | 0.118 | 0.069 | 52 | 0.035 |
| 6.5 | 4 | 1.25 | 0.256 | 0.157 | 0.049 | 41 | 0.028 |
| 7 | 4 | 1.5 | 0.276 | 0.157 | 0.059 | 52 | 0.035 |
| 7 | 3 | 2 | 0.276 | 0.118 | 0.079 | 63 | 0.042 |
| 8 | 5 | 1.5 | 0.315 | 0.197 | 0.059 | 61 | 0.041 |
| 8 | 4 | 2 | 0.315 | 0.157 | 0.079 | 75 | 0.051 |
| 8.5 | 4 | 2.25 | 0.335 | 0.157 | 0.089 | 88 | 0.059 |
| 9 | 5 | 2 | 0.354 | 0.197 | 0.079 | 88 | 0.059 |
| 9.5 | 5 | 2.25 | 0.374 | 0.197 | 0.089 | 102 | 0.069 |
| 10 | 6 | 2 | 0.394 | 0.236 | 0.079 | 101 | 0.068 |
| 11 | 7 | 2 | 0.433 | 0.276 | 0.079 | 113 | 0.076 |
| 12 | 8 | 2 | 0.472 | 0.315 | 0.079 | 126 | 0.084 |
| 12.7 | 8 | 2.35 | 0.500 | 0.315 | 0.093 | 153 | 0.103 |
| 14 | 10 | 2 | 0.551 | 0.394 | 0.079 | 151 | 0.101 |
| 15 | 10.5 | 2.25 | 0.591 | 0.413 | 0.089 | 180 | 0.121 |
| 16 | 12 | 2 | 0.630 | 0.472 | 0.079 | 176 | 0.118 |
| 18 | 13 | 2.5 | 0.709 | 0.512 | 0.098 | 243 | 0.164 |
| 19 | 14.5 | 2.25 | 0.748 | 0.571 | 0.089 | 237 | 0.159 |
| 20 | 15 | 2.5 | 0.787 | 0.591 | 0.098 | 275 | 0.185 |
| 22 | 16 | 3 | 0.866 | 0.630 | 0.118 | 358 | 0.241 |
| 24 | 18 | 3 | 0.945 | 0.709 | 0.118 | 396 | 0.266 |
| 25 | 20 | 2.5 | 0.984 | 0.787 | 0.098 | 353 | 0.237 |
| 25.4 | 20 | 2.7 | 1.000 | 0.787 | 0.106 | 385 | 0.259 |
| 26 | 20 | 3 | 1.024 | 0.787 | 0.118 | 434 | 0.291 |
| 28 | 24 | 2 | 1.102 | 0.945 | 0.079 | 327 | 0.220 |
| 30 | 25 | 2.5 | 1.181 | 0.984 | 0.098 | 432 | 0.290 |
| 32 | 27 | 2.5 | 1.260 | 1.063 | 0.098 | 463 | 0.311 |
| 35 | 30 | 2.5 | 1.378 | 1.181 | 0.098 | 511 | 0.343 |
| 38 | 30 | 4 | 1.496 | 1.181 | 0.157 | 855 | 0.574 |
| 40 | 30 | 5 | 1.575 | 1.181 | 0.197 | 1100 | 0.739 |
| 40 | 32 | 4 | 1.575 | 1.260 | 0.157 | 905 | 0.608 |
| 40 | 35 | 2.5 | 1.575 | 1.378 | 0.098 | 589 | 0.396 |
| 50 | 44 | 3 | 1.969 | 1.732 | 0.118 | 886 | 0.595 |
| 50.8 | 44 | 3.4 | 2.000 | 1.732 | 0.134 | 1013 | 0.680 |
| 76 | 70 | 3 | 2.992 | 2.756 | 0.118 | 1376 | 0.925 |
| 100 | 95 | 2.5 | 3.937 | 3.740 | 0.098 | 1532 | 1.029 |
| 100 | 93 | 3.5 | 3.937 | 3.661 | 0.138 | 2122 | 1.426 |
Note: If you don't find the size you need,just contact us.
Technical date sheet
