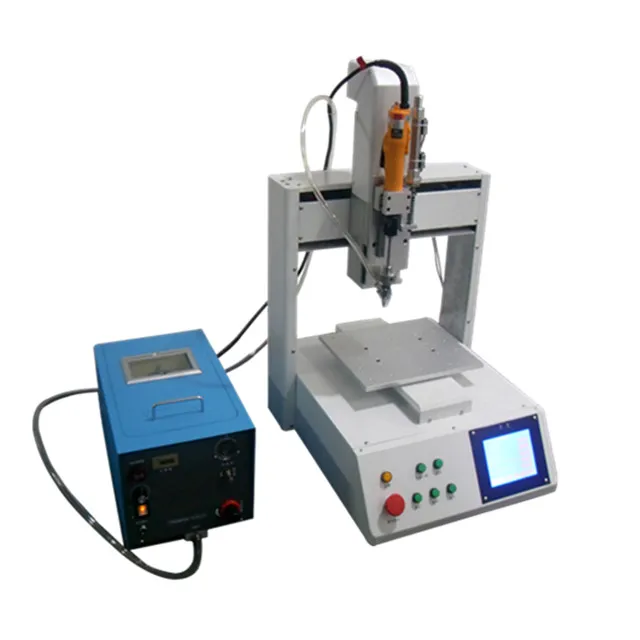

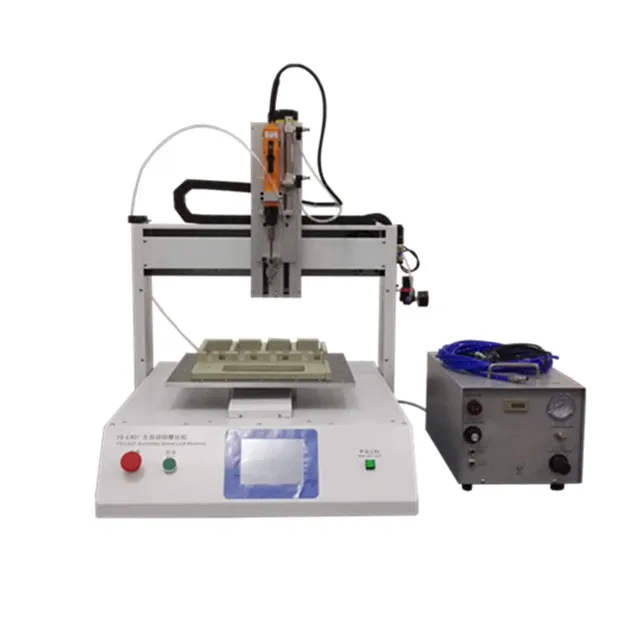

auto accessories screwdriver robot
XYZ-axis Automatic screwdriver Machine
Introduction
This series screwdriver machine is suitable for M1-m10 screws, mainly applicable for socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc. This series screwdriver machine has gained good reputation from customers with high quality and high efficiency.
This series machine has two types: inhaling type and air-blowing type. This series machine holds technology leading status in the industry with fast feeding speed. Air-blowing feeding speed can be over 3000 screws per hour, greatly increasing the work efficiency of automatic screwdriver machine.
This series machine is developed exclusively by our company, from software, circuit, electric appliances to machinery, sheet metal, and transmission. Our company has its independent knowledge property rights. This series machine orderly combines 3D platform control and feeding control to one control, realizing high integration and greatly increasing work efficiency while decreasing failure rate. All machines adopt touch screen control and can be connected to computer with higher control precision and more convenient programming.
We welcome old and new customers to consult and visit us. With 15 years technology accumulation and fine service concept, we are dedicated to satisfying your needs and absorbing your valuable advice.
Model | -------- | YS-L301 | YS-L401 | YS-L501 |
Structure | Weight | About 60kg | About 70kg | About 80kg |
Size | L670 ×W550 ×H610(mm) | L770 ×W650 ×H610(mm) | L870 ×W750 ×H610(mm) | |
XYZ working area | 300 ×300 ×100(mm) | 400 ×400 ×100(mm) | 500 ×500 ×100(mm) | |
specification | Electric screwdriver Number | Single | ||
Working table | Single | |||
Move speed | XYZ max 500mm/sec | |||
Move Accuracy | ±0.03mm | |||
Max Load | Y:10kg Z:5kg | |||
Voltage | AC 220V 50HZ | |||
Power | 360w | |||
Air resource | >0.4MPa | |||
Air consumption | 10m³/hour | |||
Machine Frame | aluminium alloy table,metal plate frame | |||
Motor | Stepper motor(Can customed servo motor ) | |||
Drive type | Timing belt+precision guide(Custom accept,eg:presscision ball screw) | |||
Axis | 3 axis (controller can add additional 3axis) | |||
Control Specification | System control | Embedded real time control | ||
Display | LCD Display,show datas,5.7inch touch screen | |||
File Save | File format,Unlimited file number,each file max 6000 points,Total byte 64M | |||
I/O | 16inputs/16outputs | |||
Outer control USB | RS232 | |||
Machine start | Auto and single step | |||
Buzzer | warning light and buzzing sound | |||
Auto Screw Feeder | Auto screw Feeder | Beside the screwdriver machine | ||
Screw size | Screw length 1.3 times more than screw head diameter.Total screwlength bellow 40mm.M1 TO M10 screw | |||
Number | 1 set | |||
Screw imput method | Air blow(can customed inhale tyle ) | |||
Screw Pocket volume | About 4000pcs(M3 screw) | |||
Screw scope | M3.0-M10 | |||
Electric screwdriver | Number | 1pcs | ||
KILEWS/HHB | As customer demand | |||
Screw head tyle | cross,hexagon bolt,plum screw | |||
Applications | Products size | According to customer products | ||
Robot vertical distance | According to customer products | |||
Screw tighten depth | Set by customer | |||
efficiency | Tighten screw speed | About 1.1 s/pcs(2 screws one time) | ||
Detection | Torque detection | yes | ||
Screw damage detection | yes | |||
Tighten miss detection | yes | |||
Tighten bad detection | Light and buzzing | |||
Cooperated partners
SIEMENS, PHILIPS, EMERSON, SAMSUNG, PANASONIC, FOXCONN, MIDEA GROUP, CHANGHONG, etc.
