Product description

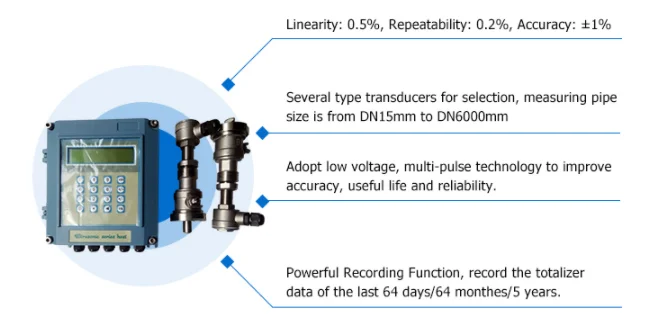

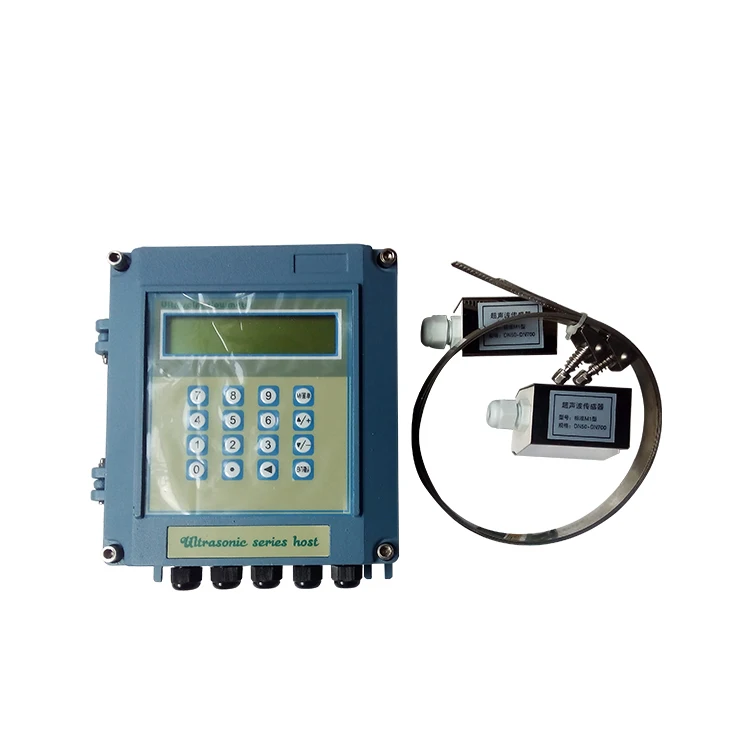

The ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.
LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.
Output
Analogue output: 4-20mA or 0-20mA current output. Impedance 0~1kW. Accuracy 0.1%.
OCT output: Frequency signal (1~9999HZ)
Relay output: over 20 source signal (no signal, reverse flow etc.)
RS485 serial port
Input
Three analogue input
Three-wire PT100 resistor input (optional)
Other functions
Automatically record the totaliser data of the last 64 days / 64 months / 5 years;
The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation
The instrument working status of the last 64 days
pipe
material
Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed
Size
15-6000mm
Straight pipe section
In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)
Liquid
Types
Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid
Transducer: -40℃ -110℃, Temperature transducer: select on enquiry
Humidity
Main Unit: 85% RH
Transducer: water-immersible, water depth less than 3m
Cable
Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement.
RS-485 interface, transmission distance up to 1000m
Power Supply
DC24V
Power Consumption
Less than 1.5W
Protocols
MODBUS, M-BUS, Fuji extended protocol and other factory protocol
