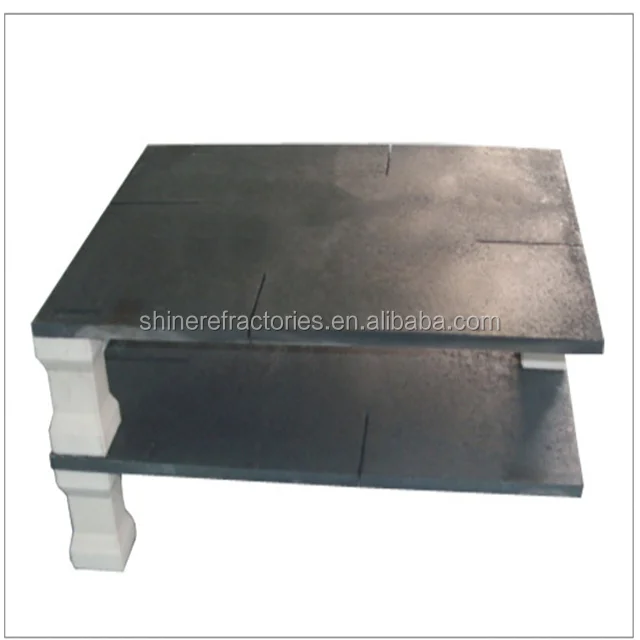

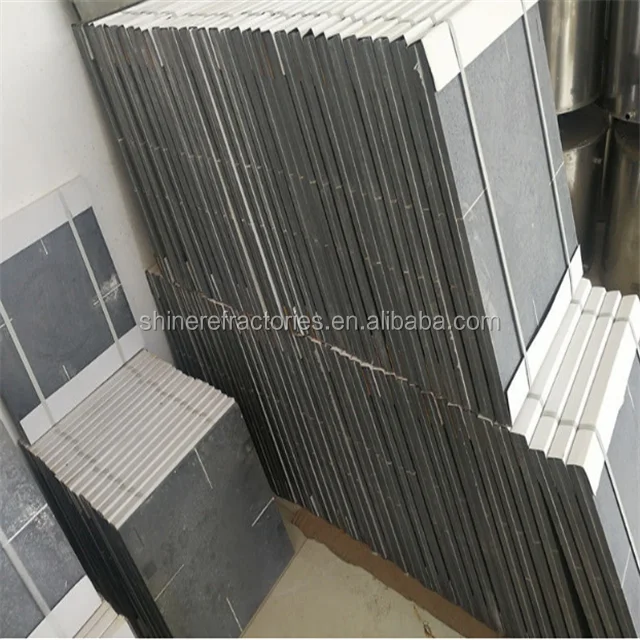

Silicon Carbide Ceramic Kiln Shelves Refractory With Alumina Coating 1. Introduction Silicon carbide kiln shelves has low coefficient of the thermal expansion,high thermal conductivity rate and perfect thermal shock resistance.It could be used in high speed thermal impact environment for many times.Silicon carbide has the performance of high strength and good thermal impact resistance.It can be used in the severe environment (such as high temperature,corrosion,erosion,etc)for long term.Silicon carbide is ideal material for ceramic industry, widely used in hightemperature kiln. 2. Index
Index
RSIC
NSIC
SISIC
SI3N4-SIC
Bulk density(g/cm3)
2.60-2.74
2.75-2.82
>3.02
2.68
Porosity (%)
15
10-12
<0.1
<16
Compression strength(MPa)
≥600
600-700
180
Bending strength(MPa)
90-100(20OC)
250(20OC)
≥45(20OC)
100-120(1100OC)
160-180(1100OC)
280(1200OC)
≥50(1200°C)
Young’s modulus(GPa)
280(20OC)
220-260
≥16(1200°C)
Thermal conductivity(W/MK)
26(1200OC)
15(1200OC)
45(1200OC)
Thermal expansion(20-1000 oC) 10-6k-1
4.8
5.0
4.5
≤4.7×10-6
Max. working temperature(oC)
1650
1500
1380
1500
PH Resistance
1-14
EXCELLENT
Moh’s scale of thermal expansion
13
Si3N4(%)
0
20-40
≥22
a-SIC(%)
98.5
60-80
≥75
MAIN SIZE OF SILICON CARBIDE batts
240*200*T
295*295*T
310*310*T
320*320*T
340*340*T
320*150*T
320*300*T
340*200*T
380*340*T
400*150*T
400*190*T
400*195*T
400*200*T
400*230*T
400*270*T
400*320*T
400*400*T
420*420*T
450*450*T
400*215*T
320*240*T
550*400*T
500*450*T
500*370*T
600*500*T
530*330*T
600*400*T
600*550*T
620*560*T
550*370*T
700*500*T
550*500*T
500*480*T
600*400*T
420*400*T
450*400*T
Thickness can be 10-30mm
Packaging & Shipping
Packing: Packed on wooden pallets,with water-proof cover,all mesurements of each case is 1050mm *1050mm *1050mm / We will pack the goods accroding to your requirement.
Shipping: By vessel
Our Services
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
6. Warm and considerable after-sale service
Company Information
Shine Technology Co., Ltd. is one of leading manufacturers and distributors of high quality refractories for use in industries including steel plants, cement producers and glass works.
Our company can provide not only the domestic and foreign customers excellent quality of high-temperature thermal insulation material, but also the first-rate service including professional furnace lining design, installation supervision, engineering construction etc.
We can provide our customers with professional and personalized products and engineering services according to the actual working condition and requirements of each customer, in order to meet customers' increasing demand of energy-saving and products quality improving, Our tenet is: quality and credibility is fundamental, technology and service is the life.
