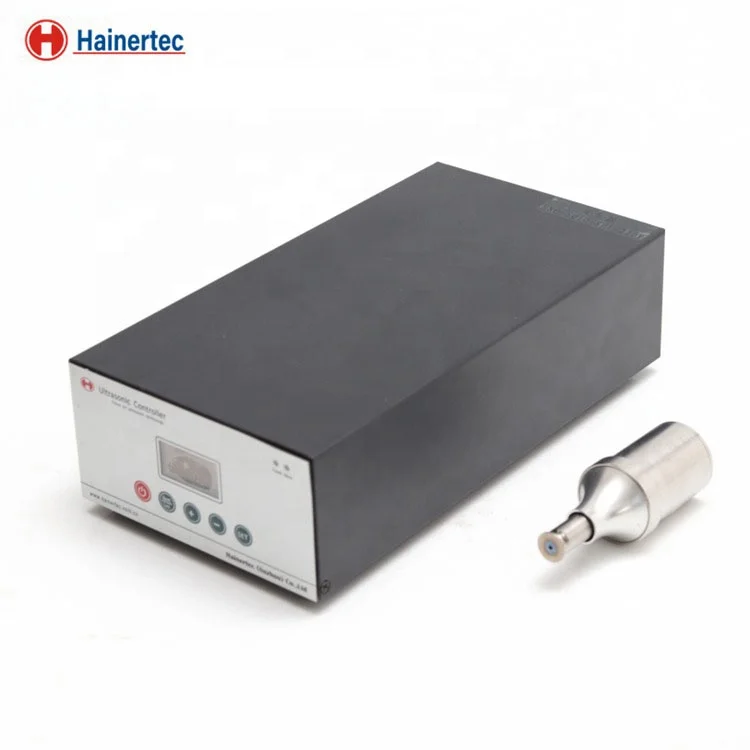

Ultrasonic Spray system 200KHz Ultrasonic spraying and coating transducer and system
Ultrasonic Spray system 200KHz Ultrasonic spraying and coating transducer and system
Ultrasonic Spray system 200KHz Ultrasonic spraying and coating transducer and system

Ultrasonic Spray system 200KHz Ultrasonic spraying and coating transducer and system

Share on (60748780420):


Price:

Quantity:


Product Overview

Description


Product Description
Model
Frequency
   (Khz)
Power
  (W)
Max Flow
(ml/min)
Particle Size
D50 (Microns)
Viscosity
  <CPS
D*H Size
Atomization Method
HSN-4015-SS
40
15
20
55
100
35*180
Liquid flows into the nozzle surface
HSN-4520-SS
45
20
35
50
80
32*150
Liquid flows into the nozzle surface
HSN-5010-SS
50
10
20
45
70
35*130
Liquid flows into the nozzle surface
HSN-10010-SS
100
10
15
30
65
35*110


Liquid flows into the nozzle surface

HSN-5010-TS
50
10
60
45
65
44*128
Liquid flows through the nozzle
HSN-8010-TS
80
10
30
35
30
36*83
Liquid flows through the nozzle
HSN-10010-TT
100
10
20
30
65
46*90
Liquid flows through the nozzle
HSN-12010-TT
120
10
10
25
65
46*85


Liquid flows through the nozzle

HSN-15010-TT
150
10
10
23
50
46*88
Liquid flows through the nozzle
HSN-18010-TT
180
10
8
20
40
46*86
Liquid flows through the nozzle
HSN-20010-TT
200
10
5
18
40
46*84
Liquid flows through the nozzle
Note: The particle size D50 in the table only refers to pure water atomization. Different liquids have certain differences. For example, ethanol is 65% less than pure water.
          The company can provide automation machine installed this Ultrasonic Spraying System. Such as fuel cell coating machine, stend drug-coating machine,etc.
          The sprinkler os made of titanium alloy, which can be specially made for high corrosion resistance under special circumstances.
          The nozzle dimensions may be slightly adjusted according to the actual object.

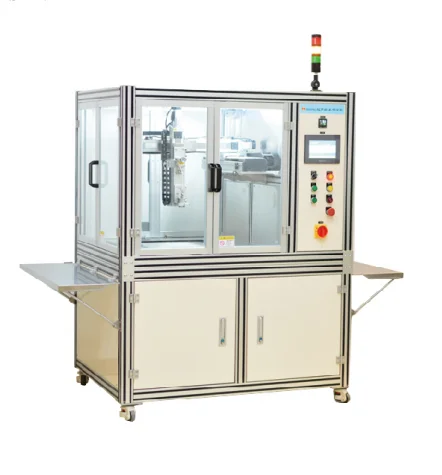

All kinds of Personalized Customized Equipments
The company can customize personalized equipments according to customer requirement, which has followling function:
· AI automatic image recognition.
·Three-axes association of mechanical arm.
·Flat, surface and pipe surface coating.
·Dot, line and surface coating.
·Experimental type, manufacturing type and assembly line type.





All kinds of Personalized Customized Equipments

The company can customize personalized equipments according to customer requirement, which has followling function:
· AI automatic
·image recognition.
·Three-axes association of mechanical arm.
·Flat, surface and pipe surface coating.
·Dot, line and surface coating.
·Experimental type, manufacturing type and assembly line type.





Spraying assistance system



The company can also provide other auxiliary devices for spraying operation, whic can be used for easy stratification and mixing
of precipitation liqiud and solid mixture, and easy cleaning of crystallized nozzle surface.
Application
Application of ultrasonic spraying
Electronic: imaging display equipment electrode coating (FPD and TFT), deposition photoresist, printed circuit board flux coating.
Energy：fuel cell c-pt electrode surface spraying, photovoltaic acidizing treatment and electrode and spraying, lithium battery film deposition process.
Medical treatment: biological preparation coating, medical antibacterial disinfection, biological coating of implantation device, vscular stent and capsule coating, medical textiles and vasculature coating.
Energy saving and enviromental protection: nano coating on glass surface, biological sterilization coating on filter paper, food packing,etc.
Others: precision lens coating film, metal surface heat treatment process spraying and other precision coating occasions.
Liquid types suitable for ultrasonic spraying
The viscosity, intermolecular binding force and the ratio of the liquid mixture-solid mixture will play a great influence to ultrasonic atomizing, even can not be atomized. At present, there is no clear rule, so it is necessary to having comparative tests of relevant parameters such as frequency, concentration, temperature and flow rate for specific liquids.
It has been proved the following liquid can be atomized:
Pure single-component liquid: such as pure water, ethanol, acetone, bromine and so on. The viscosity mainly affect the atomization, and the viscosity below 100CPS is best.
A variety of liquid mixture: such as water solvents (dilute acids, diluter alkalis, halogens, low concentration salts), oligomeric alcohols, ketines, aldehydes as solvent polymers (medium polymers), etc. Especially, the liquids with ethanol, acetone and butanone as solvents has the best atomization effection. The atomization influence factor of this kind of liquids include viscosity, liquid characteristic and concertration.

Liquid-solid mixture liquid: such as nano-scale C-Pt/ alcohol mixture, Beaded polymer/water, low concentration coal slurry/water, silica gel/ethanol, suspension, etc. Solvent composition, solid concentration(<40%), solid particle size(<1/10 of the particle size of ultrasonic atomization at this frequency), affinity betwwen solid particles and solvents( such as suspension state) are the main factors affecting the liquid atomization.




Liquid Types Not Suitable for Ultrasonic Spraying


High concertration liquid solid mixture (such as epoxy resin, polyurethane, polyene), etc. In particular, epoxy resin solution is difficult to atomize, can not achieve uniform atomization.
FAQ
    Q: Are you trading company or manufacturer ?
    A: We are a manufacturer.

    Q: How long is your delivery time?
    A:It depends on the type of machine.

    Q: Can your machine be customized?
    A: Yes, all of our machines can be customized according to your cleaning products.

    Q: How about terms of payment?
    A: T/T, PayPal, L/C, etc.
 We Chat : Hainertec18013093380
Skype: sales@hainertec.com.cn
 Q Q : 2984968038
E-mail : sales@hainertec.com.cn
Web site: www.hainertec.com.cn
WELCOME TO YOU
Company Profile
    Hainertec (Suzhou) Co., Ltd. Was founded in 2004, focusing on ultrasonic technology, it is a collection R&D, design manufacture and sales of the technology-based enterprises.

    The company is mainly engaged in the development and manufacture of ultrasonic devices, accessory parts and system equipment. The main products include Piezoelectric Ceramics, Ultrasonic transducers,  Ultrasonic generators and Ultrasonic system equipment. These products are widely used in medical apparatus, biological instruments, precision spraying beauty and health care, biochemical environmental protection, biological extraction, ultrasonic catalysis, industrial screening, jet printer oscillator, ultrasonic cleaning household appliances, military industry and other fields.

    The company has been cooperating with famous enterprises and university at home and abroad, and 60% of our products are exported to more than 60 countries and regions such as Europe, America, Australia, Middle East and southeast Asia.

    The company has passed ISO9001 Quality System Certification. Also, it is a high-tech enterprise but also a postgraduate workstation and industry university research base, having obtained several patent at the same time.
