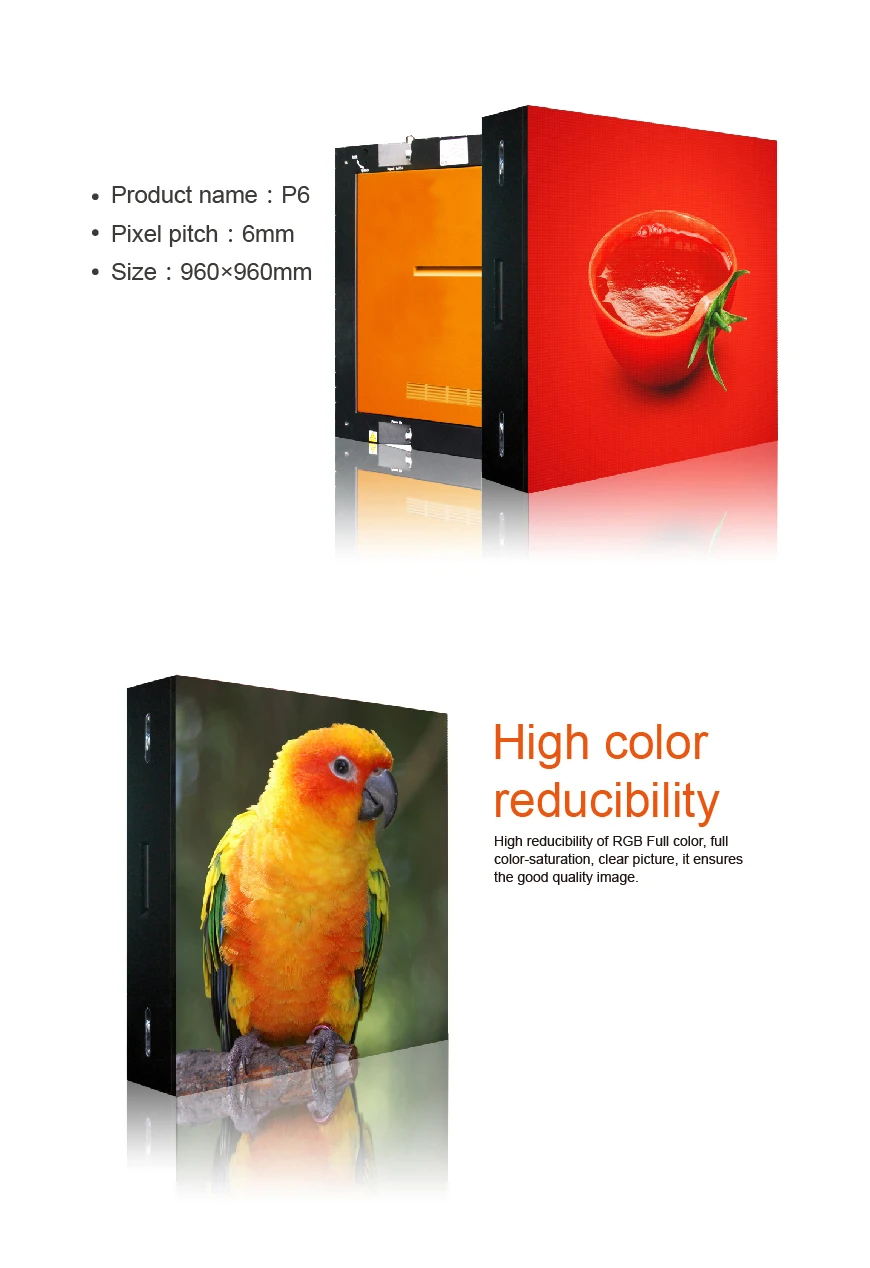

P6 led signs japanese free movies japan led advertising display
Product Description
Features:
1. Super thin and light weight (thickness : 80mm, weight: 65kg) 2. Multi-functional cabinet, just change the module to upgrade the product with lower cost. 3. Could provide the suitable cabinet size to meet the customer's needs. 4. Different kinds of installation way according to your needs and using places.
Parameter:
Pixel Pitch
6mm
LED Package
SMD3535
Pixel Density
27,777 dots/m²
Color Configuration
1R1G1B
Brightness
Up to 5000cd/m²@ white color

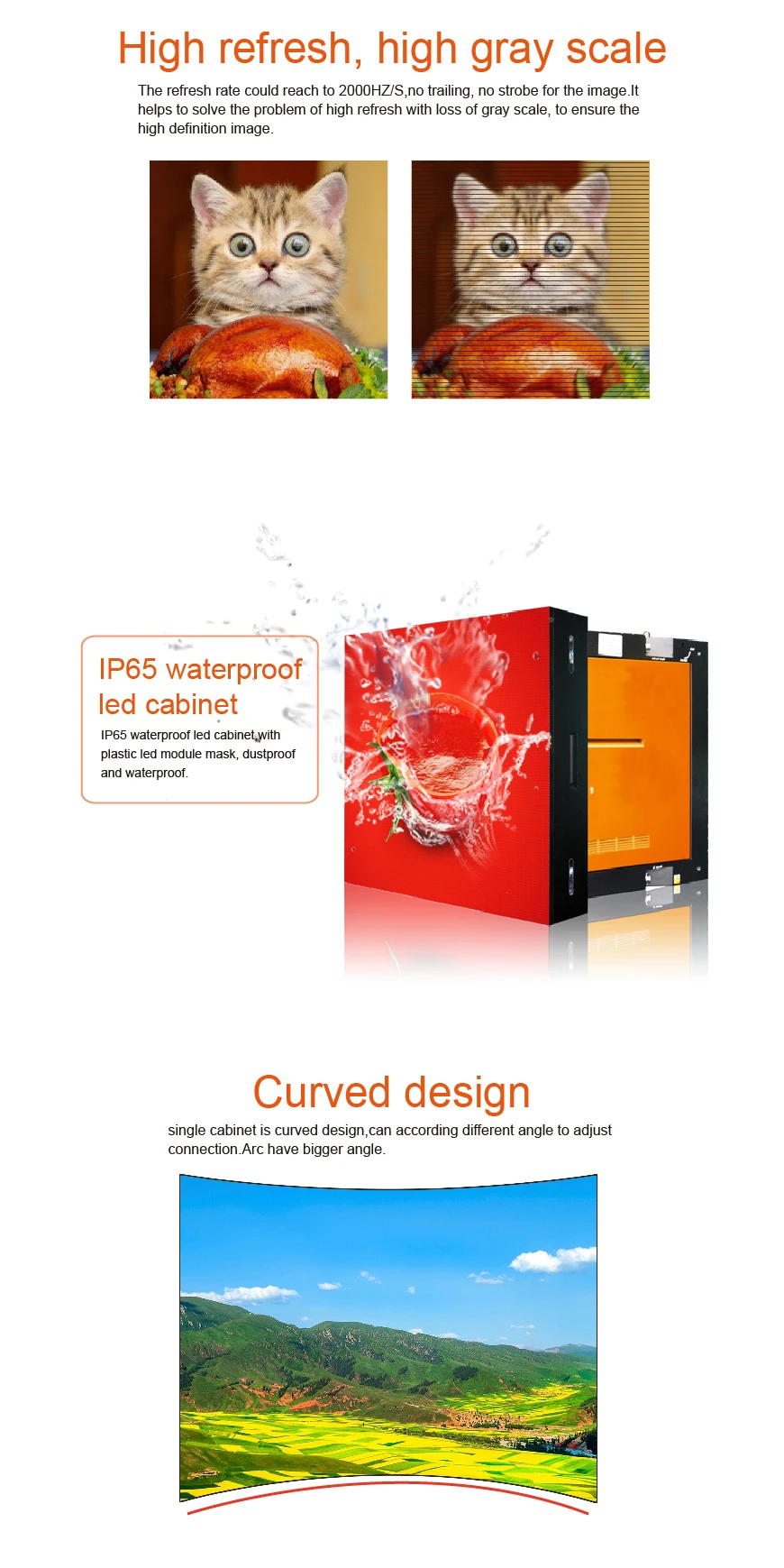

Refresh Rate
Up to 1920Hz/s, could be adjusted
Gray Scale
16.7M color (Synchronized)

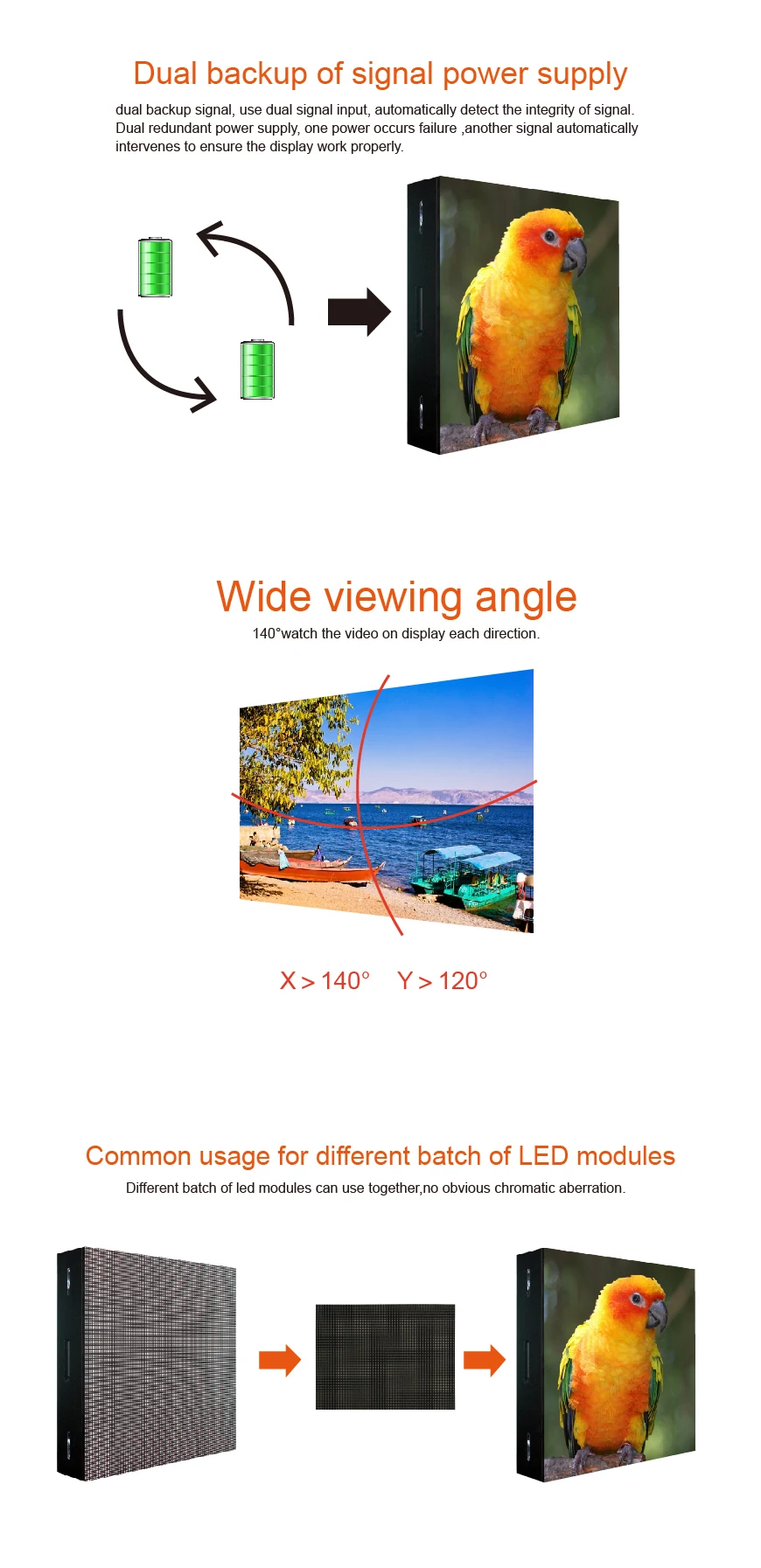

View Angle
H:140°, V:120°
Module Size
192x192mm
Cabinet Size
960x960mm
Cabinet Material
Iron/Aluminum
Viewing Distance
6-100M
Drive Mode
1/8 scan
Power Supply
AC220V/110V/50 Hz, or manual switch
Lifespan
100,000 hours
Trouble Free Time
10,000 hours
Working Temperature
-20°C + 65°C
Environment Humidity
10% ~ 95%
Control System
Linsn/Nova
At present, we mainly have these types in the following:
According to the using application: Outdoor LED Display with high capability of waterproof, half-outdoor LED Display and indoor LED Display.
According to the color: Single color type, Double color type and Full-color type.
According to the system: Offline system, which display your information by using a control card; online system synchronizes with the computer. And they can display words, pictures, video respectively or together.
You can choose the proper type in accordance with your needs, and we can satisfy your demands as possible as we can.

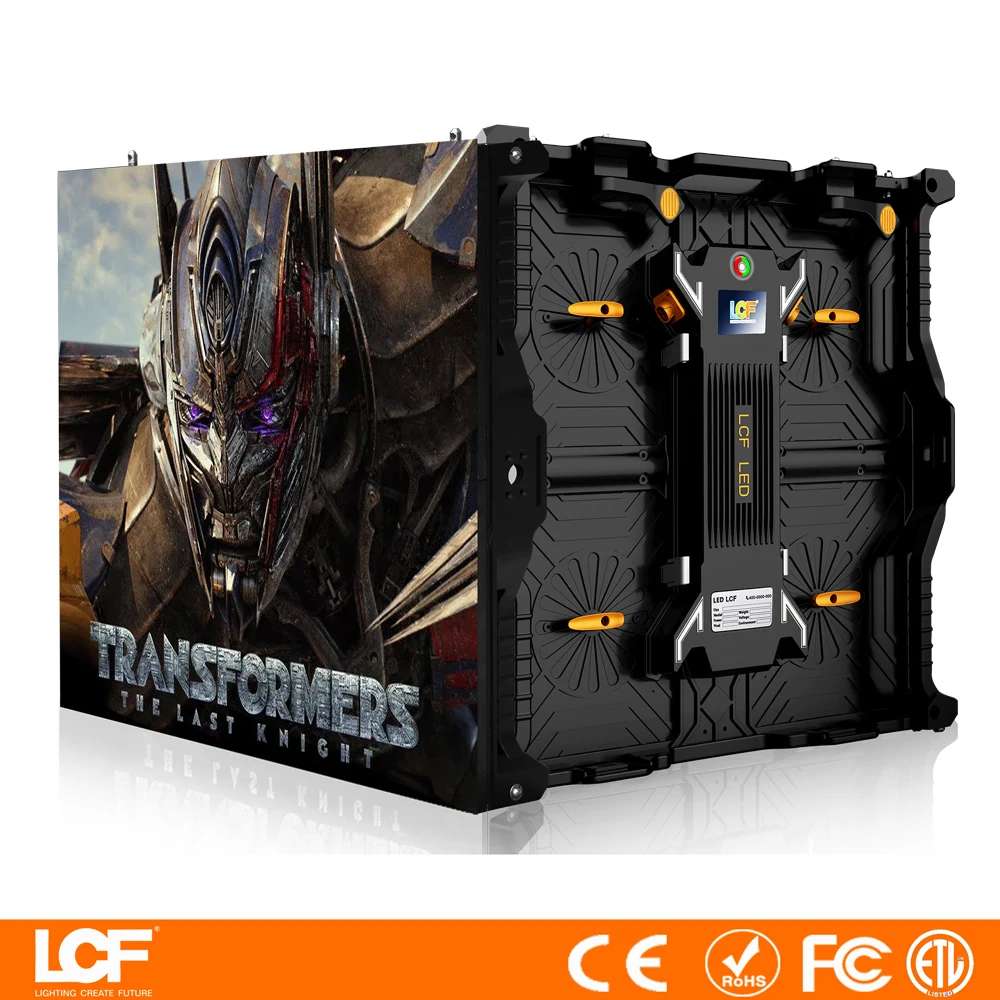

SMD P6 Outdoor LED Video Display for Enterprise Media Project Advertising
SMD P6 Outdoor LED Video Display for Enterprise Media Project Advertising
SMD P6 Outdoor LED Video Display for Enterprise Media Project Advertising

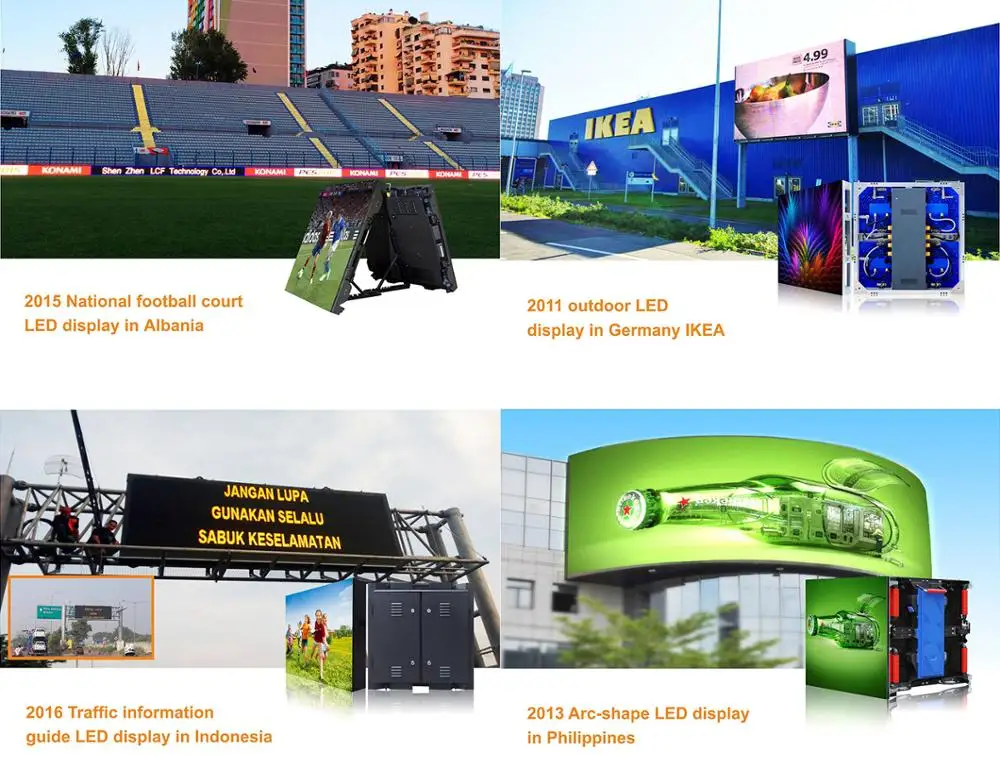

Classic Case:

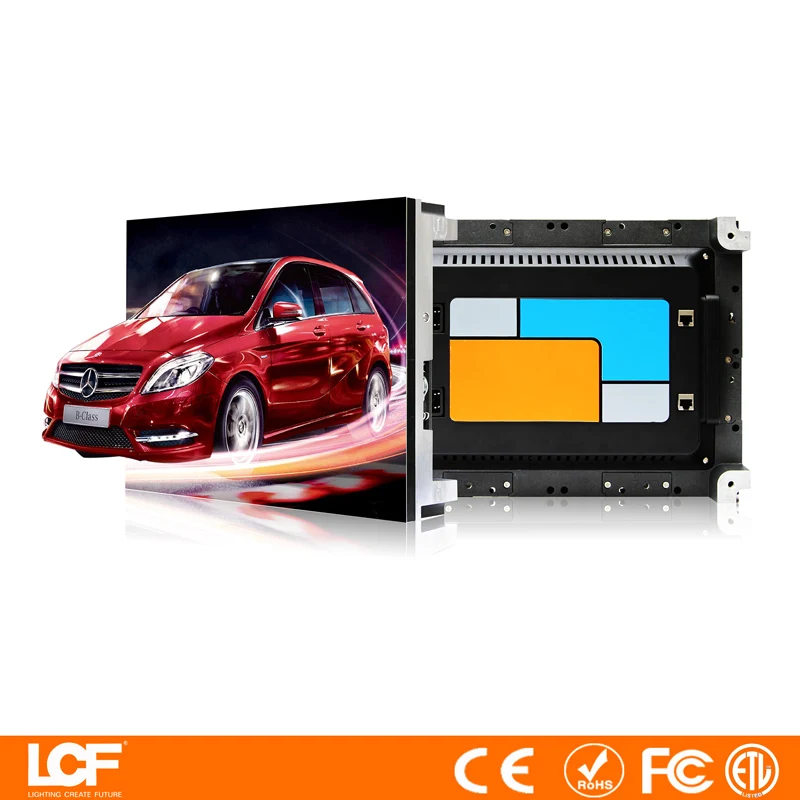

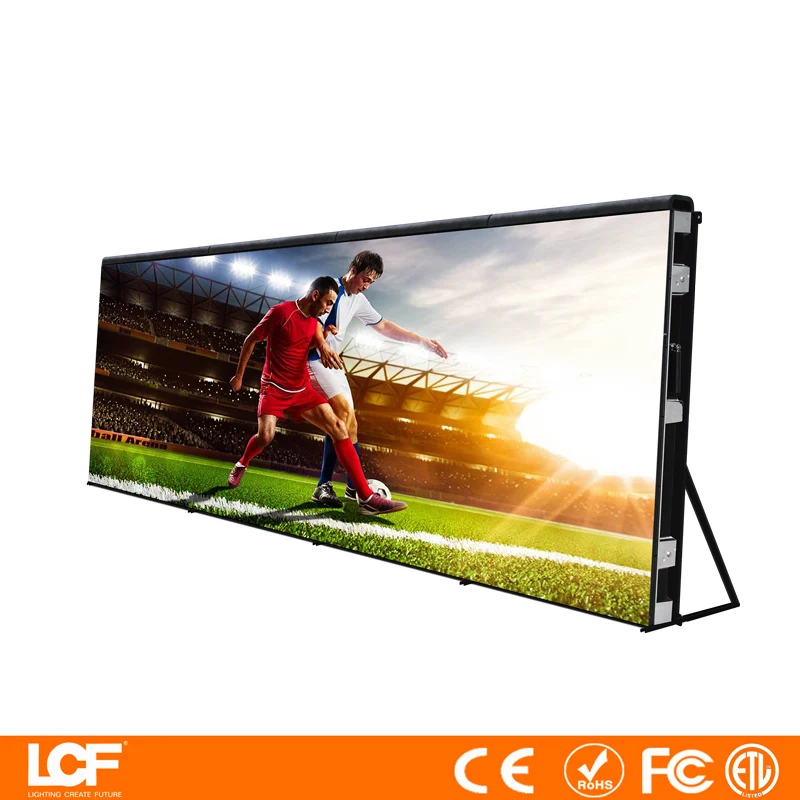

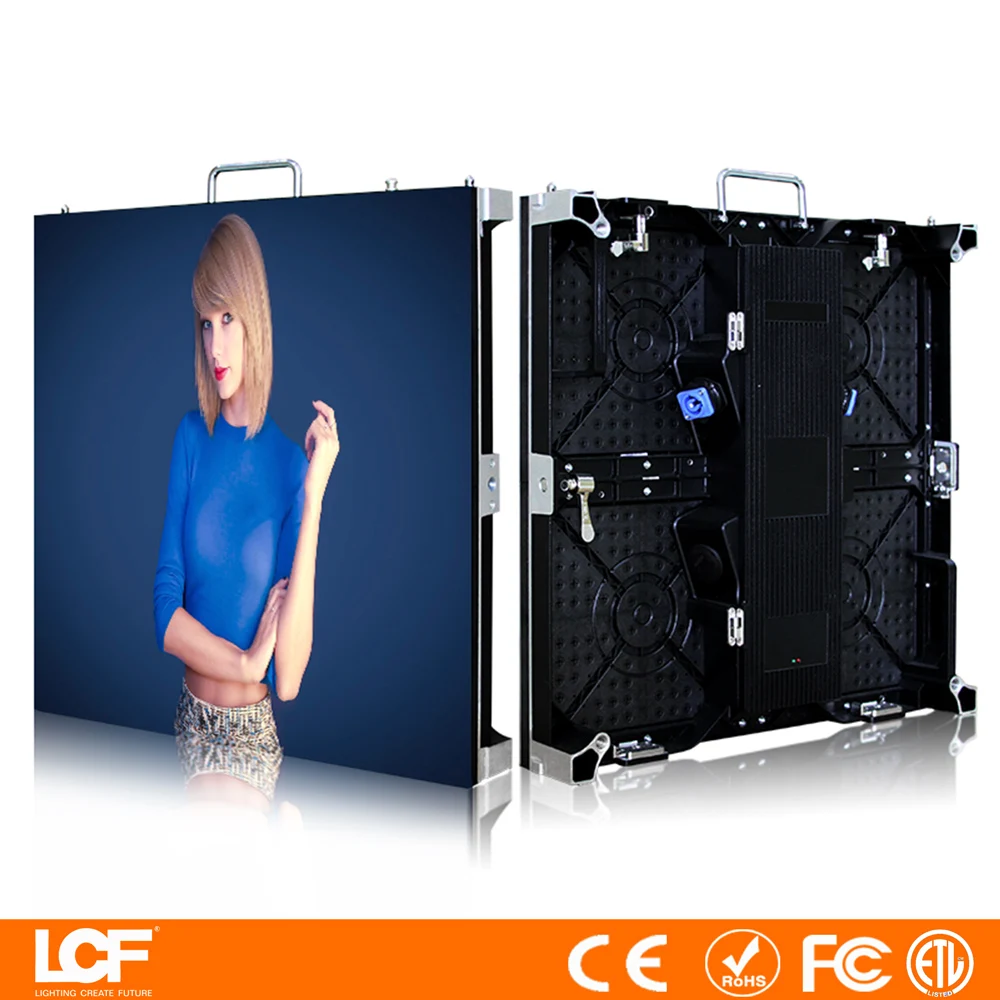

Recommend LED screens:
Packaging & Shipping
Our Services
1. We provide a sum of spare parts to you together with the shipment(the details are as above), it included like LEDs, power supply, modules, cables…etc, and it’s enough for the replacement within 2 years.
2. Two years warranty is provided for our products. That means two years of factory labor and components is provided for free, however the customer should pay for the round shipping cost for broken parts.
3. For the technical support, we will send the installation drawings, user manual after the order is confirmed, and we can offer the free training for your technician in our factory until he can manage it well.
4. For the installation, if you need, we can send an engineer to your country to help & instruct the installation, but need your side to pay for the round tickets and accommodation.
5. For future service, if you meet any problems, our overseas engineer will service you online or by phone in 7x24 hours.
Company Information

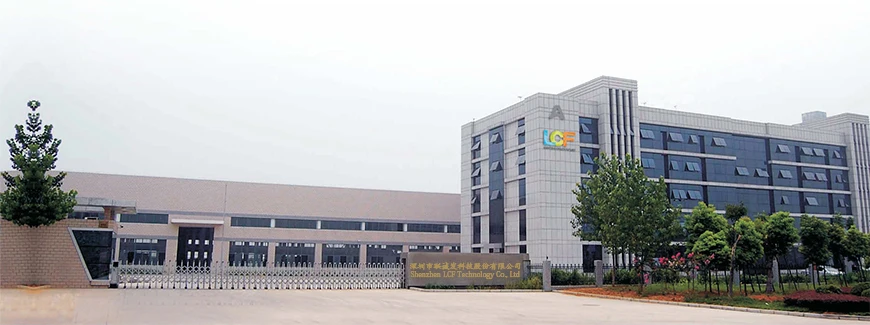

Founded in 2004, Shenzhen LCF Technology CO., LTD. is the manufacturer which committed to the development and innovation of indoor and outdoor high resolution LED displays and sport displays.
LCF enjoys a global recognition with high-quality products, excellent sales services and well laid-out after-sales service, which is widespread throughout six continents. LCF has LED video screens installed all over the world and plenty of representative cases can be found in Hong Kong, Marco, South Asia, Africa and America.
Relied on a professional technical team and technology platforms of Huazhong University of Science & Technology and Peking University we had obtained many patented technologies, e.g. dot-to-dot adjustment technology, special module mask design. We led the sub-SMD development and set fire to the booming of high-density small-pitch LED displays, which made LCF a benchmark in LED display industry. LCF strives to innovate and to develop more competitive products to better satisfy our clients’ need.
FAQ
Q1: What's the pixel pitch for Outdoor LED Display Screen?
A1: 4.81mm, 5.95mm, 6.25mm, 8mm, 10mm pixel pitch
Q2: Where is it used for?
A2: Outdoor events rental led display, widely used for stage concerts, wedding DJ backdrop, car motor show, church led screens, live show led display etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Nova star and Nova control system, can connect video wall controller with HDMI, VGA, DVI, SDI input and output signal.
Q4: How about the size of project?
A4: Please offer the size with "width by height" of project. We will offer the suitable solution for you. I will appreciate it if any drawing files about installation offered.
