1 Product model: AD22A08

2.working voltage DC 12V, with reverse polarity protection

3.Operating Current: Standby 11-13 MA, 1 relay "open" 44MA, 2 relays "Open" 77MA, 3 relays "Open" 110MA, 4 relays"open" 140MA, 5 relays open 170MA,6 relays open 197MA,7 relays open 223MA,8 relays open 247MA.

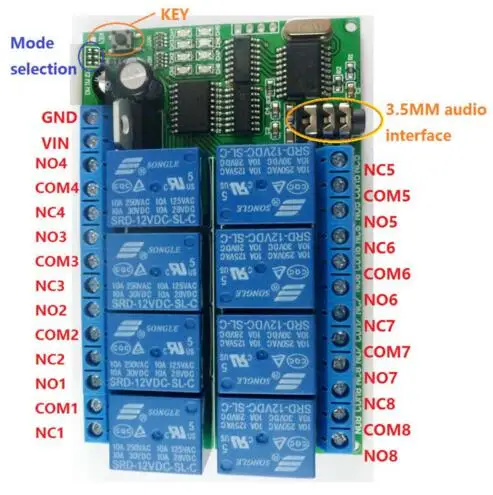

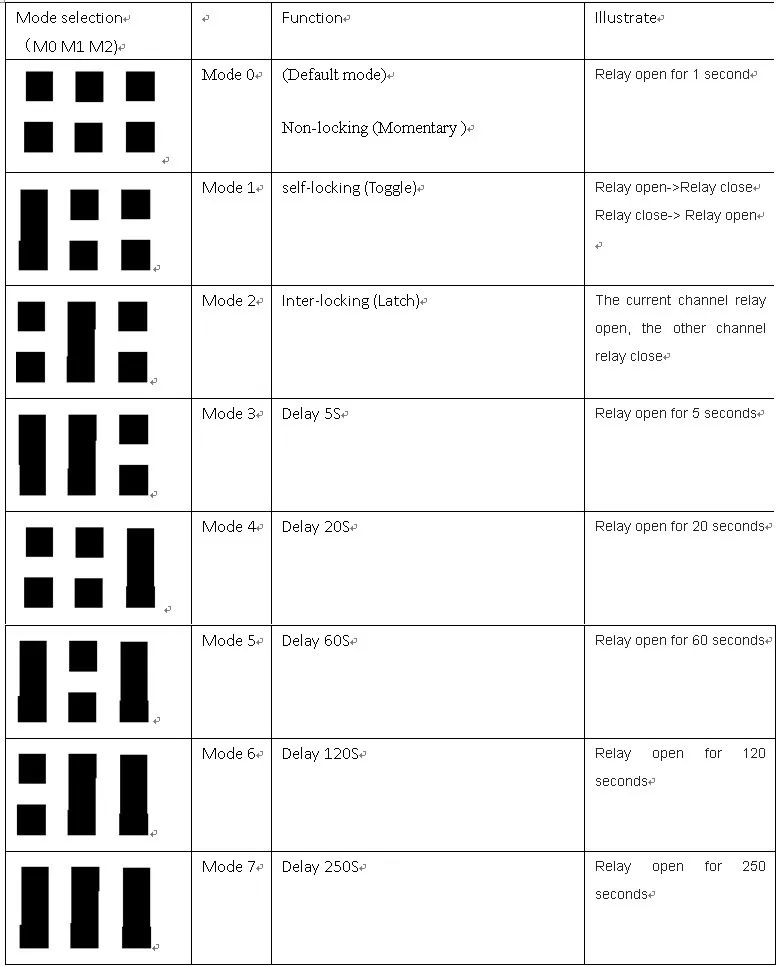

4 Eight modes of operation:Non-locking (Momentary ), self-locking (Toggle),inter-locking (Latch), 5/20/60/120/250-second delay

5 The default control command is 1/2/3/4/5/6/7/8.Example: Dial 1 to control relay 1, dial 2 to control relay 2, dial 3 to control relay 3, dial 4 to control relay 4; control commands can be changed any 1-4 bits. (For more details, refer to " AD22A08_8 channel DTMF controller commands setting manual ").

6 Size: 94 * 62 * 19.5mm

7 Weight: 114 grams

8 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

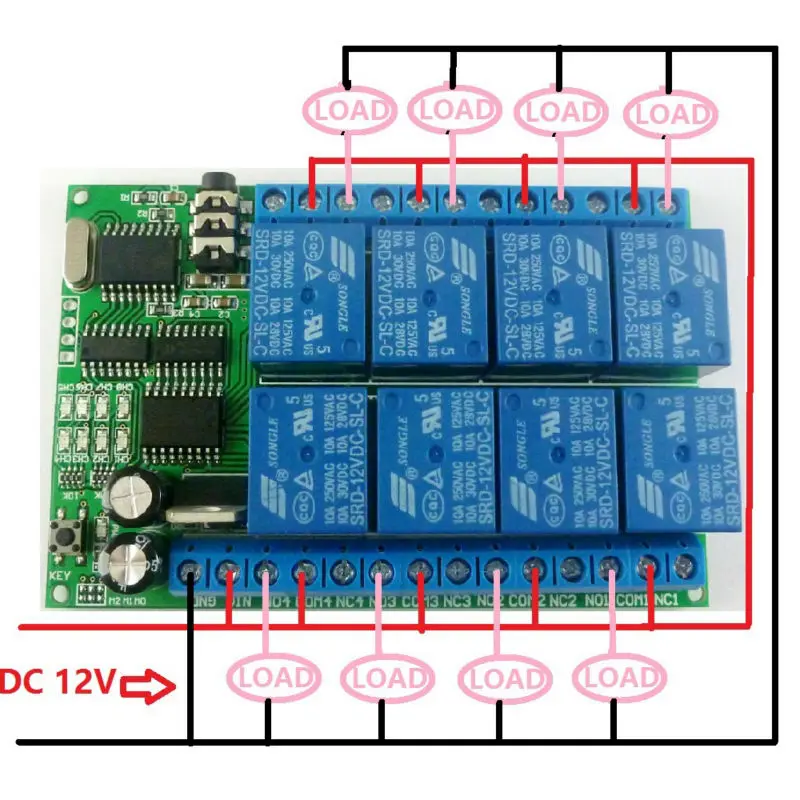

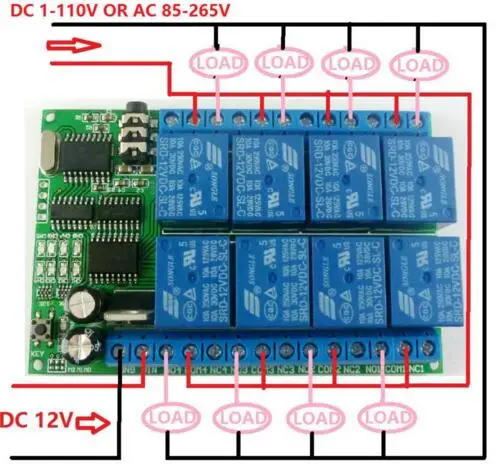

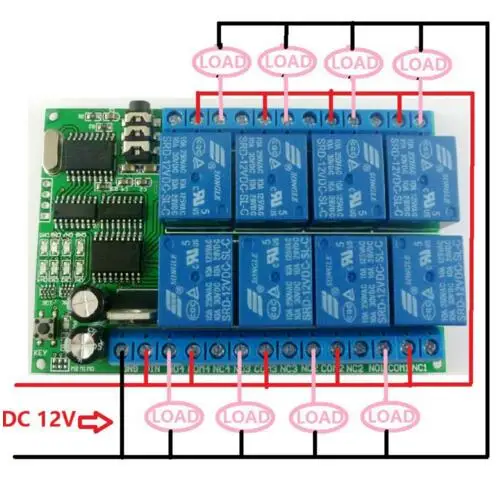

Use Method:

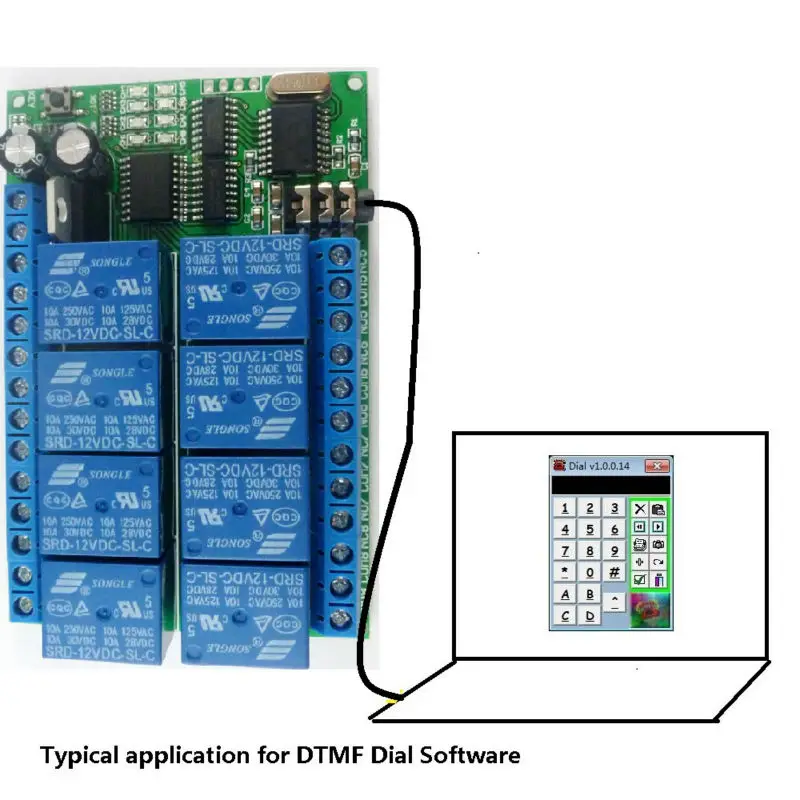

This is the DTMF audio controller with four channels, any phone or fixed telephone with DTMF key code remotely controls product relay "open" and "close".(the majority of smartphones and functions machine are DTMF code). Our software "DTMF Dial" (installed in a computer) can be also provided to control relays.

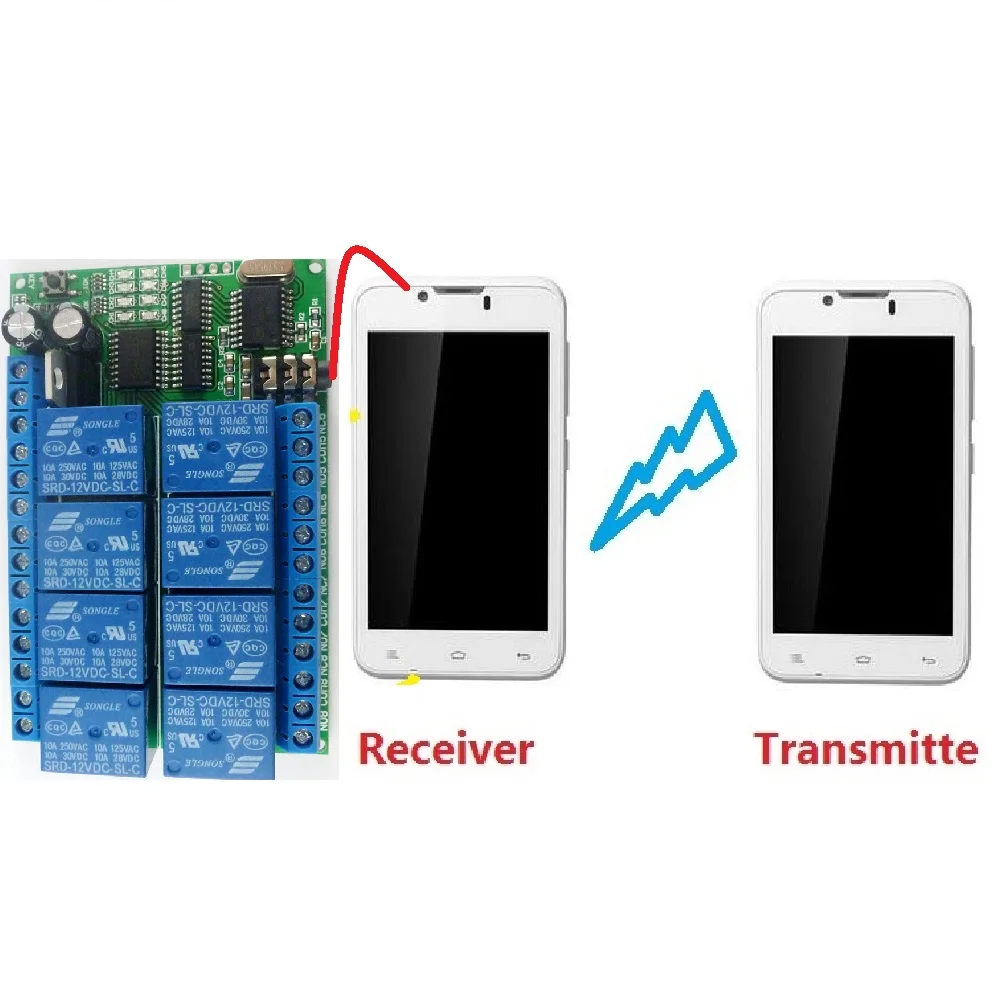

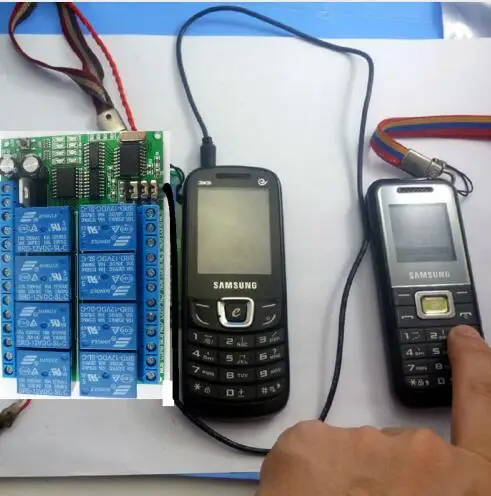

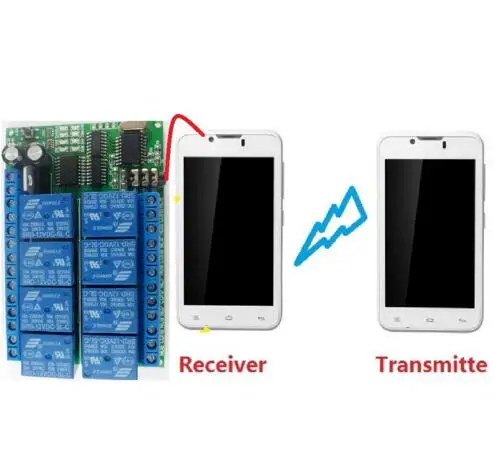

As shown above, by phone remote control relay. You need two phones, one as a receiver (phone_1), the other one as a transmitter (phone_2); mobile phone_1 connected by DTMF audio cable 3.5MM audio controller (the controller to be powered), and then using phone_2 ( may be a fixed telephone) call the phone_1, phone_1 answered, so that two phone call each other; then dial 1/2/3/4 by phone_2 keypad to control four relays .

Mode selection:

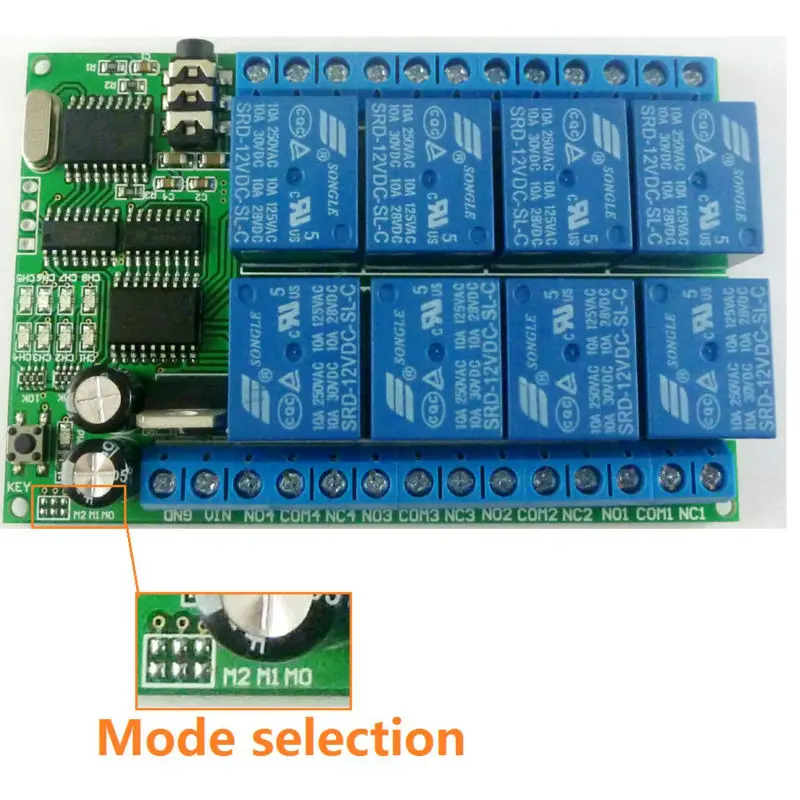

 Eight modes of operation, electric iron jumper (picture above) on the pads
