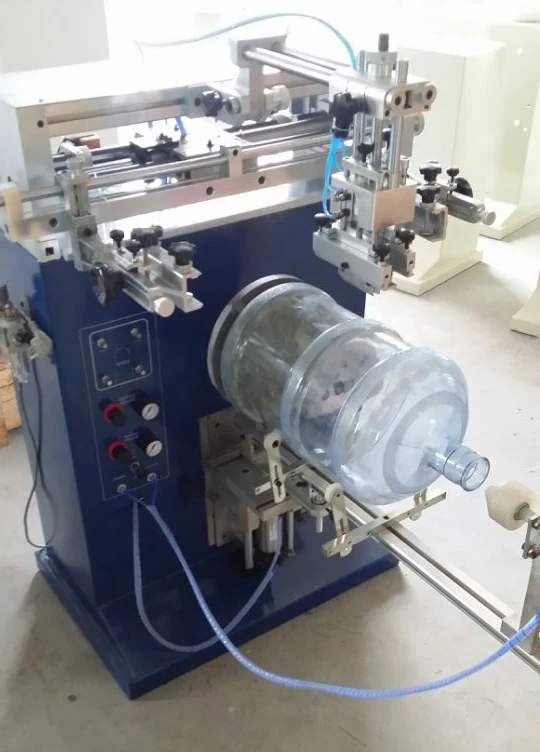

Plastic Drinking bottle screen printer 18 /19 /20 Litre 5 Gallon Water Bottle Screen printing machine

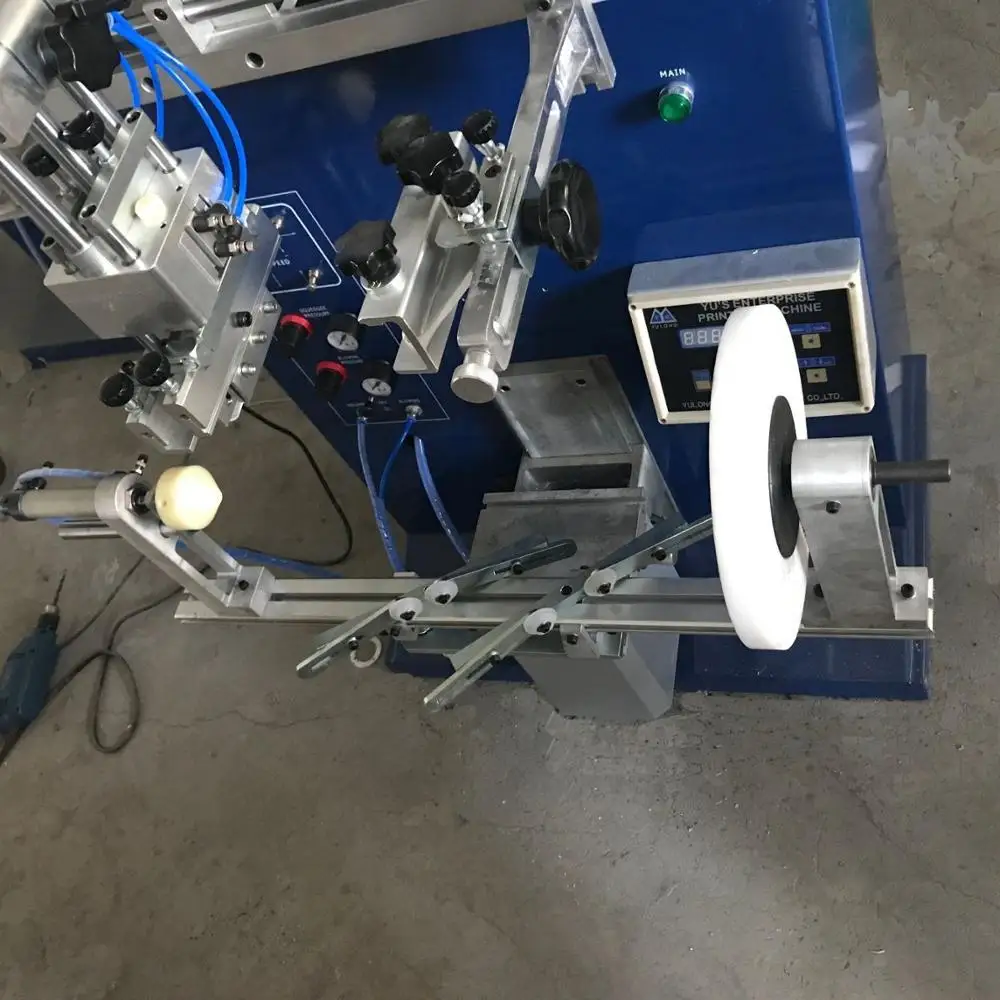

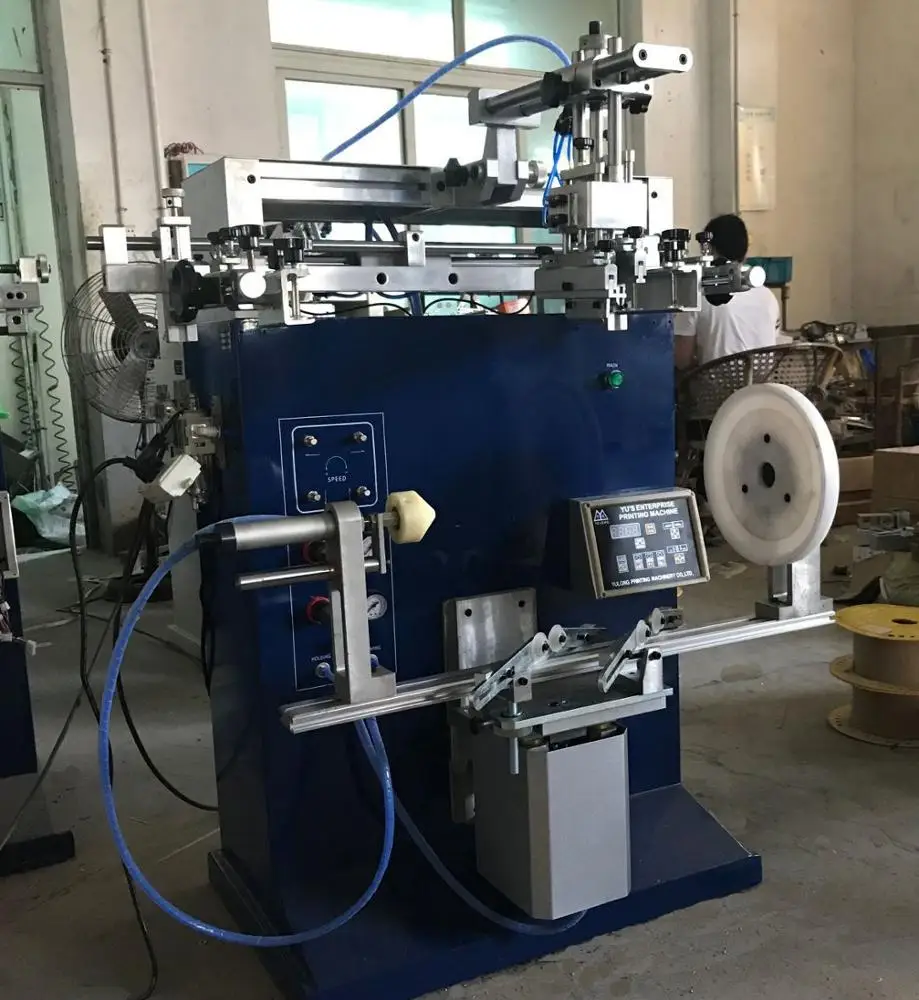

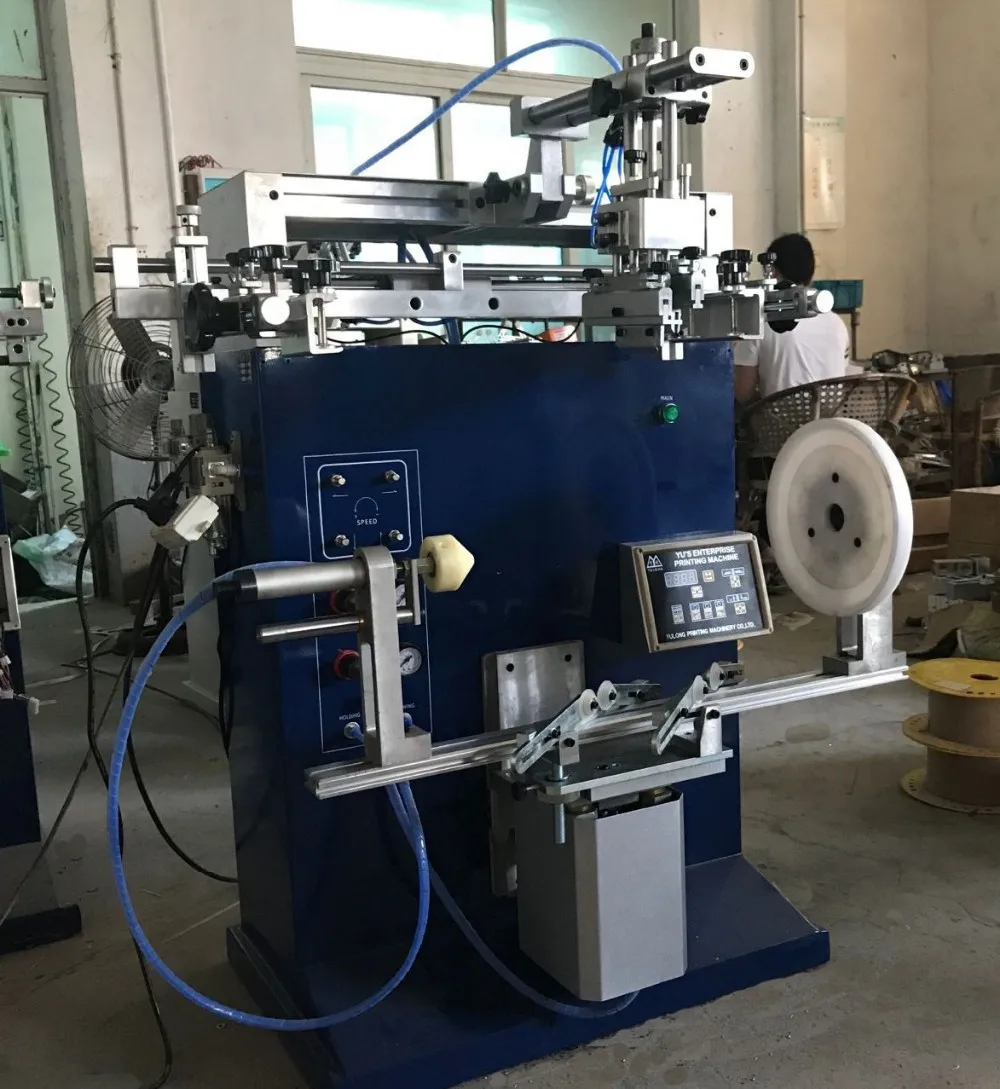

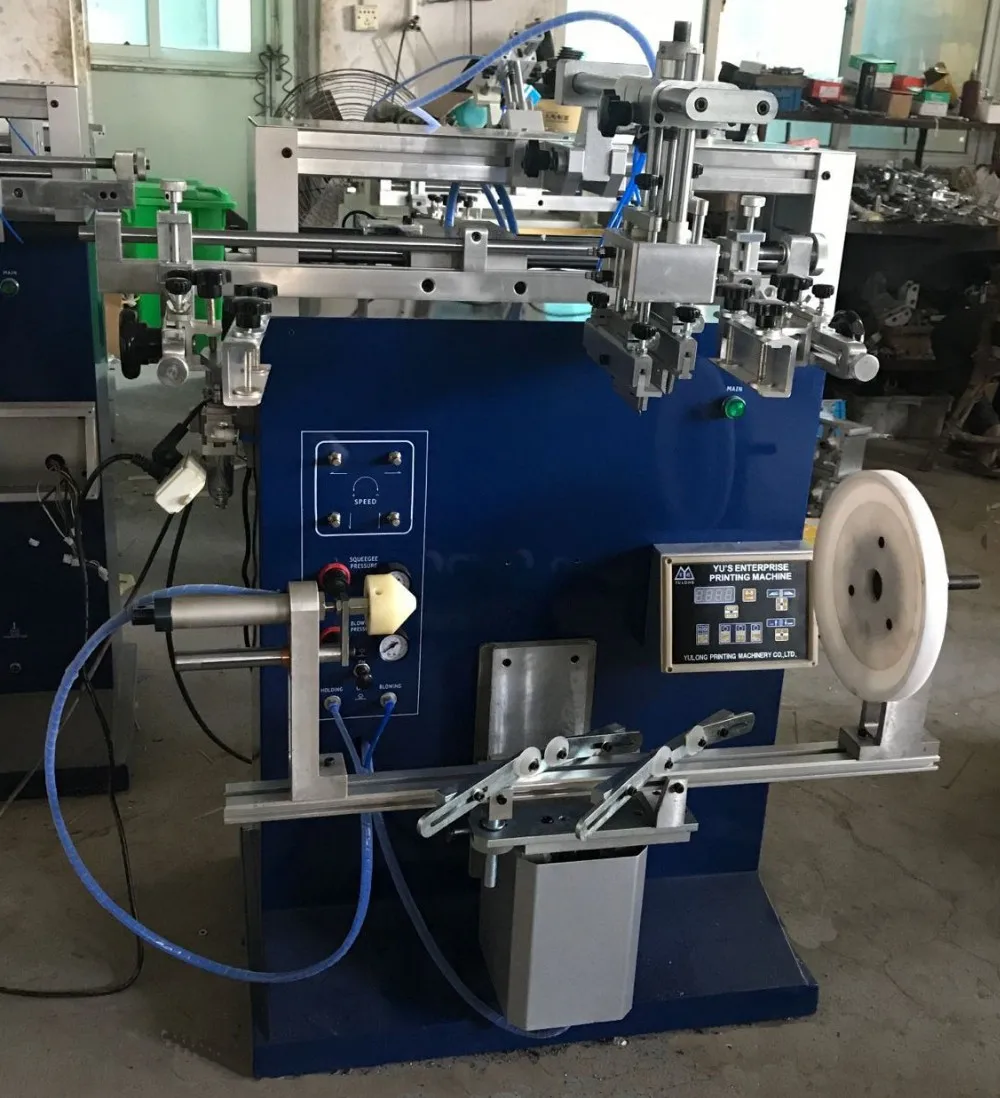

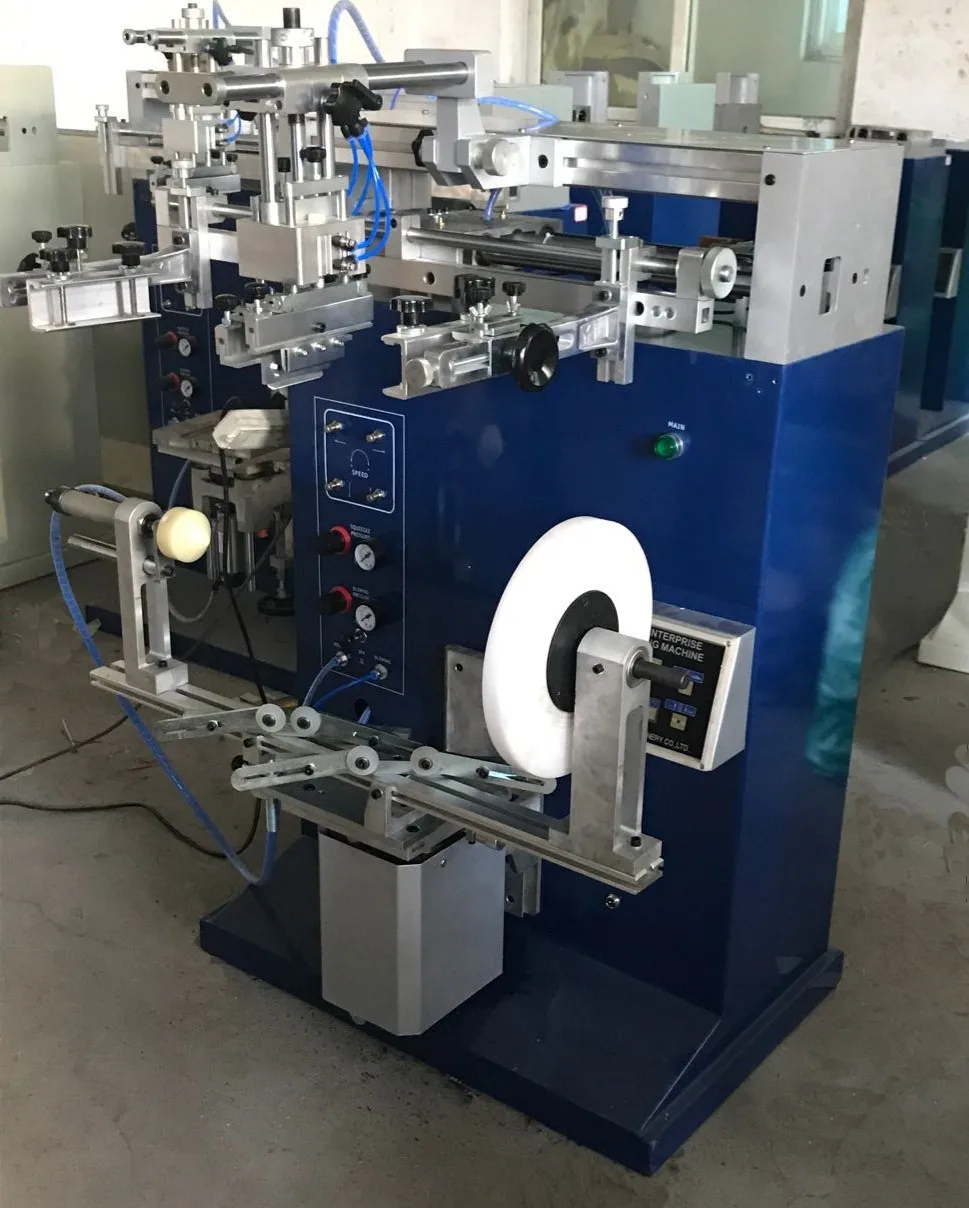

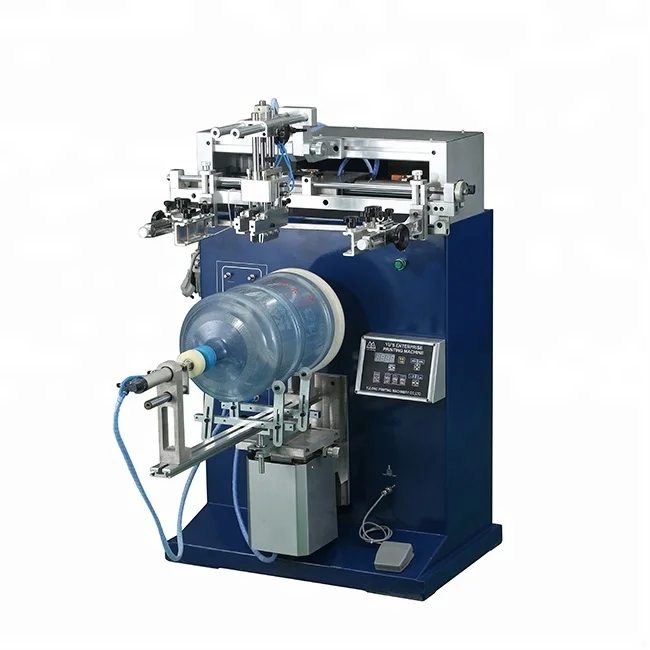

5 Gallon Water Bottle Screen printing machine

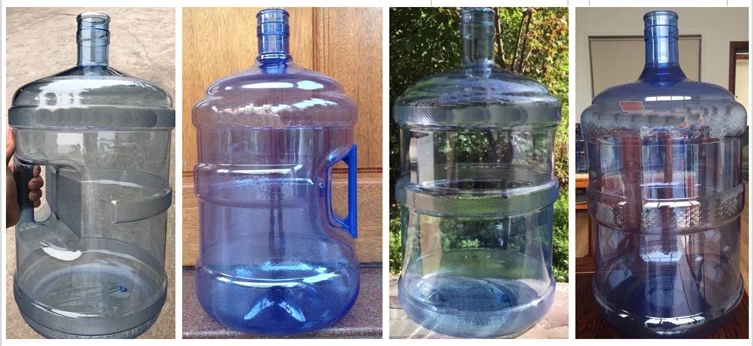

Semi-Automatic 5 Gallon Water Bottle Screen printing machine is suitable for producing  plastic containers and bottles ,such as  5 Gallon Water Bottle ,Pure Water bottle .

Usually ,bottle mould is a bit different though they looks nealy same, so it is better to send your sample bottle to us to make fixture.Or you should make fixture by yourself .

Parameters

1.Multical function and easy operation;
2.Control panel;
3. Auto ink squeegeeing and reclaiming, worktable rising and down to assure easy operation and consistent print quality;
4.Printing stroke and speed are adjustable to meet different requirements
5.Autobalancescraper assures  the equalization of printing pressure.
6.Fine adjustment available on worktable's plane angle and frame to front/rear, left/right and up/down with high printing precision, which is convenient and quick to tune.

Specification

1.Max Printing area: 350mm*540mm
2. Power:20W
3.Max Printing Speed:600pcs/hr
4.Voltage:220V/50Hz
5.Air pressure:4-7bar
6.Machine dimension(mm): 96*95*150(LWH)
7.Machine Weight(kg): 130kg

8.Mode of action:Semi-automatic|Manual
9.Stat Way:Panel/Foot
10.Drive up and down/Drive left and righ:pneumatic(AIRTAC from Taiwan)
12.9.Accessories with machine :1)Manual2) Tool one unit  3).squgree flood 3units :7.5cm ,12.5cm ,17.5cm
