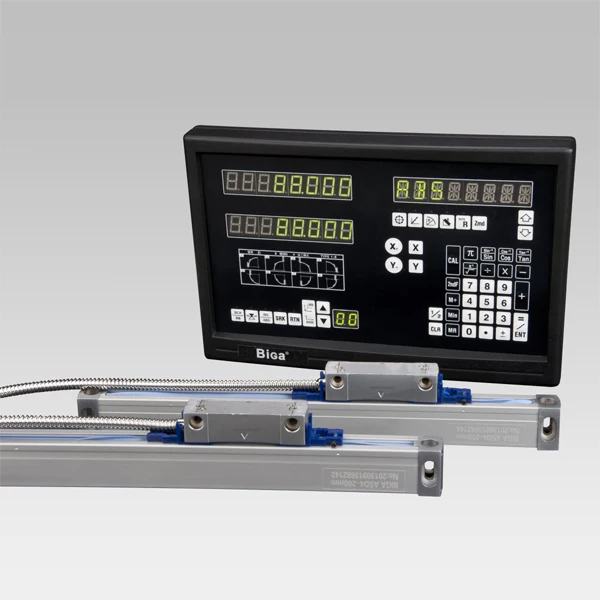

Factory Supply Biga Metal Case BC20 2M with Linear Scale ASD4 400 1000mm For Mill DRO
- Category: >>>
- Supplier: Dongguan City Biga Grating Machinery Co. Ltd.
Share on (60748879143):
Product Overview
Description
Company Information
WELCOME TO BIGA
Why choose us ?
1.More than 20 years experience on optical field.
2.Strict quality control
3.Non-standard linear scale can be customized.
Product Description

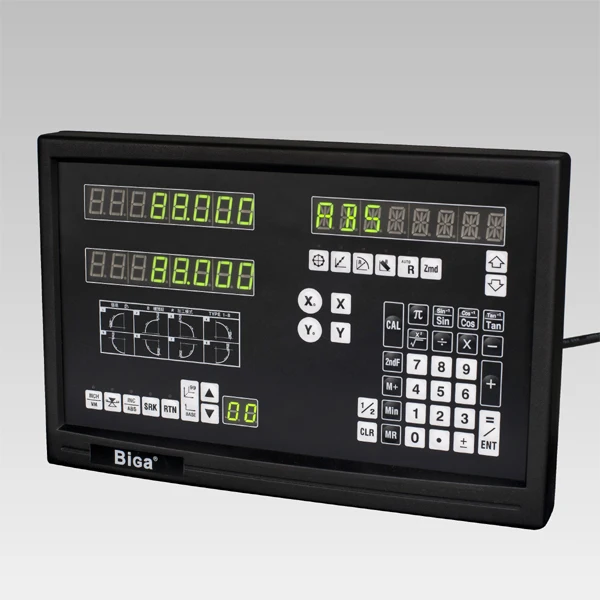

*Feature of BC20-2M Digital Readout Display/DRO /Console* :
The BC20-M is a dedicated Milling specific DRO with all the functions you would expect and built in tilt mounting to ensure to optimal viewing when combined with the supplied mounting arm.
Fully loaded with all the features you would expect including bolt-hole (PCD) patterns, subdatums, tool-offsets and even inclined machining function.
1.Machine specific versions
2.Milling and Turning applications
3.Optical Glass or Magnetic encoders
4.Cost effective design
5.One touch axis zero keys
6. Latest SDM manufactured design
7. Bright clear wide-viewing angle display
8. Wipe clean membrane keypad
9. Ideal replacement for retrofit.

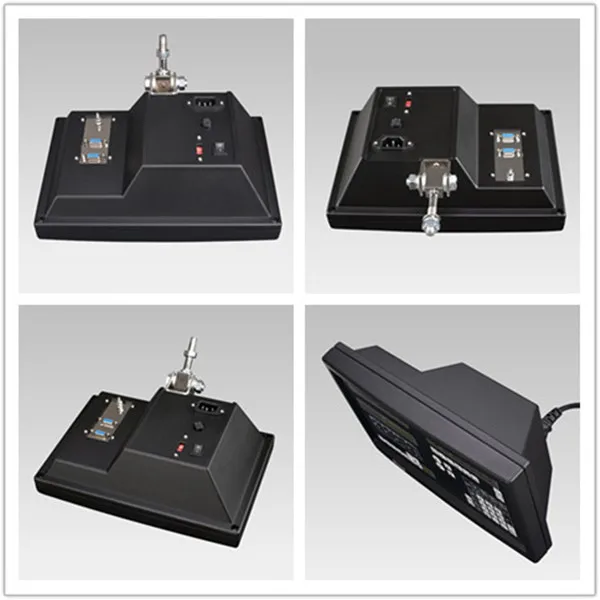

*Introduction of BC20-2M with metal casing *
| Display: | Bright Green LED |
| Case: | metal |
| Power : | 110…240 VAC (50/60 Hz) |
| Storage Temperature: | -20℃ to +70℃ |
| Operating Temperature: | 0℃ to +50℃ |
| Relative Humidity: | 20% to 85% |
| Dimensions (H x W x D): | 290mm x 190mm x 105mm |
| Auxiliary Port (6-outputs + RS232): | Optional |
Non-condensing
USB Service Fitted as standard

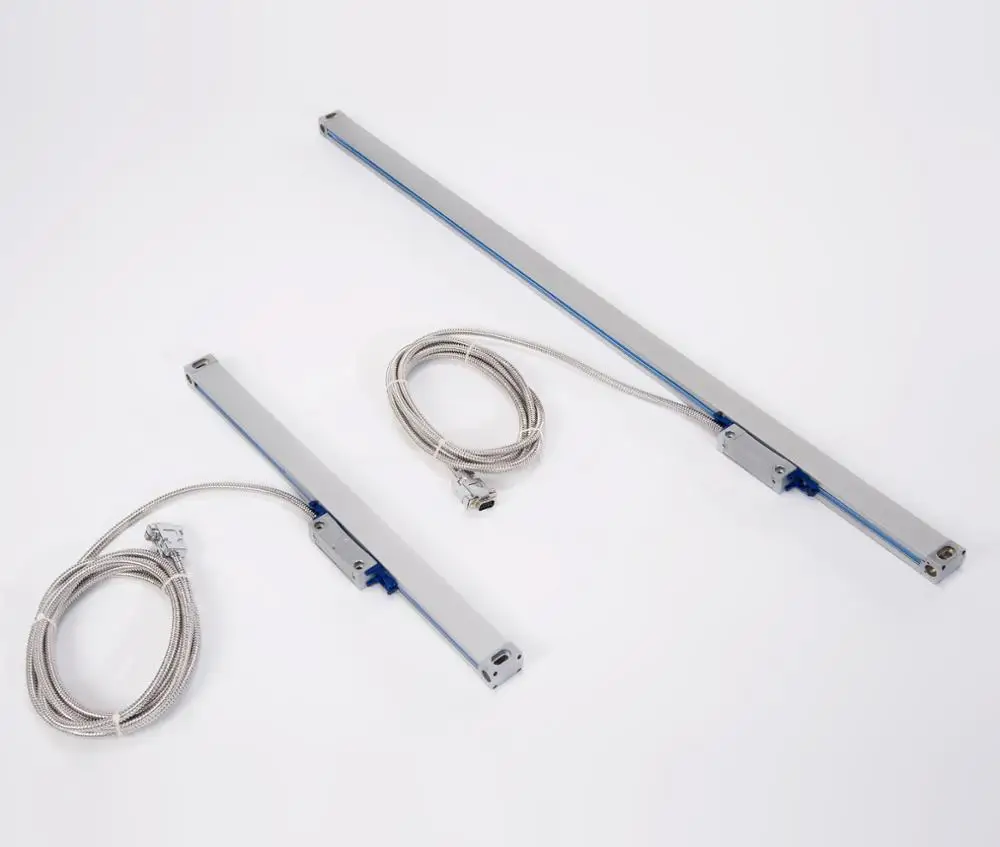

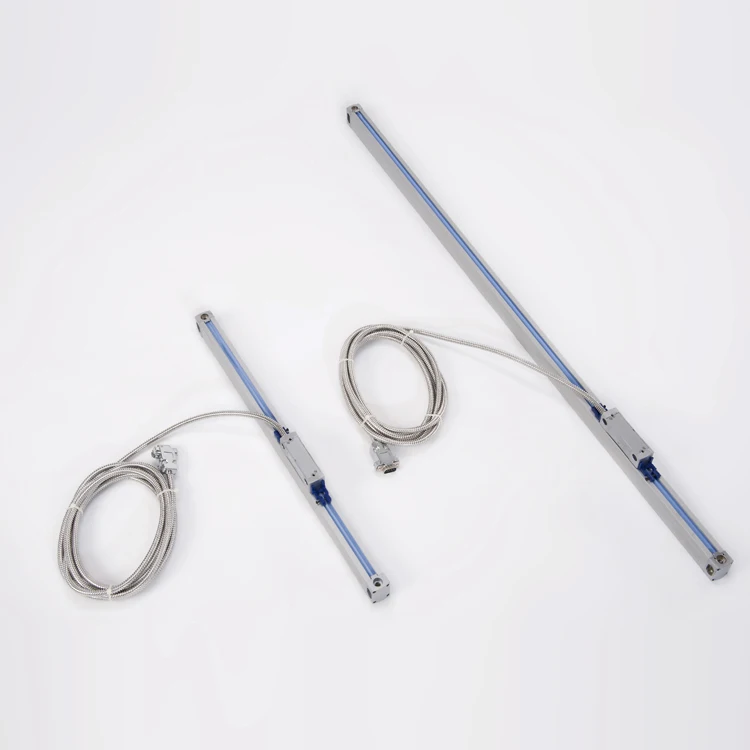

Linear Scale Features:
Linear Scale when used in conjunction with our counter is designed for manual
machine tools or other equipment having linear movements, for example cut off
saws. Alternatively the scale output can be used for automatic positioning
control of machine tools or similar equipment via CNC or PLC units. The scales
may also be fitted to co-ordinate measurement or other measurement
equipment used for high accuracy inspection & measurement. Our company is
the earliest national professional producer of optical grating sensors in China
and offers a comprehensive range of products. We are able to quote on special scales on request.
Linear Scale Superiority:
1)The reading head adopts ball bearing to position and guide with high sensitivity & long life.
2) Adopting metrology grating as measuring datum with high accuracy.
3)Adopting sealed structure that has reliable performance & is convenient for installation.
4)Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision
5)Individualized components makes it very easy to install, maintain and repair the linear Encoder
Delivery and Packaging:
Delivery time: 3 working days after get your payment
Packaging:standard export packaging
After-sale service:
Warranty period:1 year
During the warranty period, we will offer free spare parts and fauty goods replacement for free.
Afetr the warranty period, we will also offer technical support and your request will be replied within 12 hours.
Feedback
1.Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute.
2.Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.Thank you!
If you need DRO, please feel free to contact with me.
I'd be glad to help you get them for your machine :)
FAQ
Q1. How can i make payment here ?
You can order here via Alibaba and pay by credit card or T/T.
Q2.Do you have 0.001mm or other more resolution scale ?
Yes,we have.
Q3.I do not know how to install the Readout & Linear scale, what shall i do ?
We send the English manual together with the products and Russian,France,Korean and Southeast Asia manual are available to send by E-mail.
Q4.Do you have other types of readout ?
Yes,of course.
Q5.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us .
Q6.What about the lead time for mass production?
Frankly speaking, it depends on the order quantity you place the order. Generally, we suggest that you start inquiry 60 days before the date you would like to get the products at your country.
Q7 .How to make sure we are a good supplier?
1)You could check our Alibaba website to prove that we are the gold supplier , Assessed Suppliers and Trade assurance supplier.
2)We have the WCA Certificate.
Q8. If the inquiry quantity is less than the MOQ ?
No matter what is the quantity that we can accept.
Frankly speaking, the less quantity the higher cost will be in manufacture ,package,and material purchasing . We suggest the inquiry quantity to be more,the price would be more competitive.
Thanks for your time and best regards!
Please feel free to contact us if you have any questions!
