New Portable and small Infusion Pump manufacturer with CE and FSC

Model

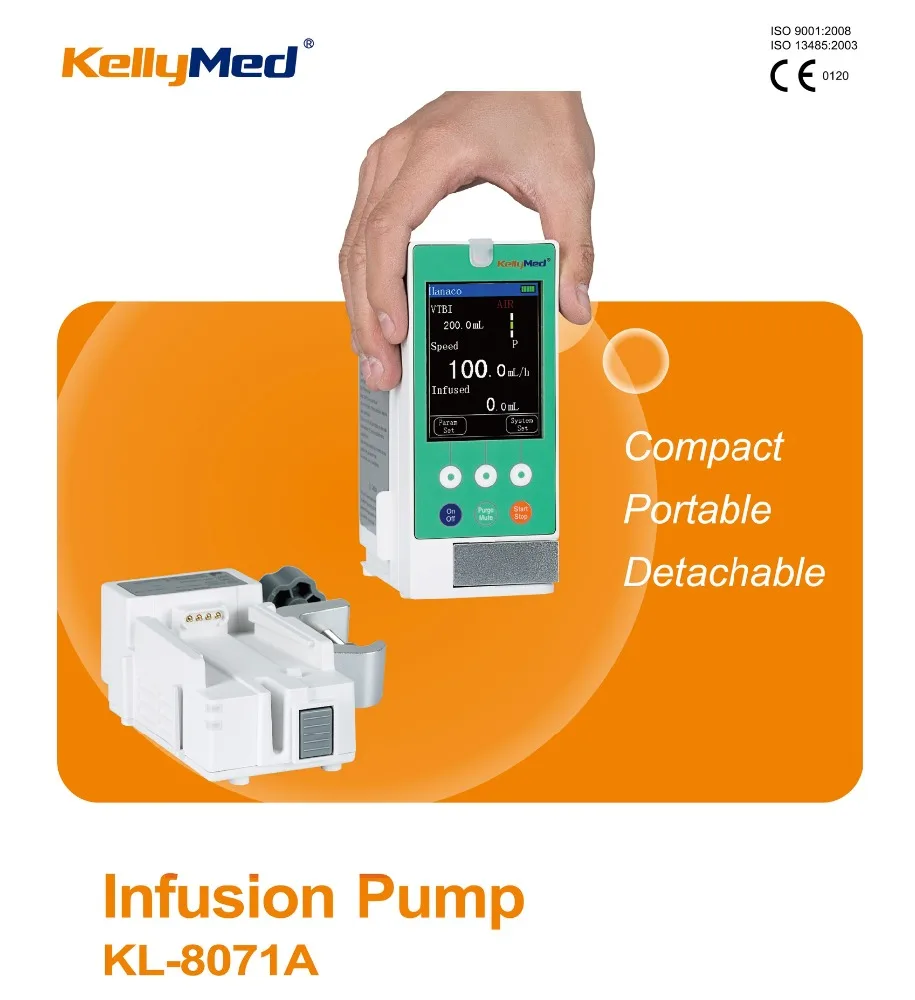

Infusion Pump KL-8071A

Pumping Mechanism

Curvilinear peristaltic

IV Set

Compatible with IV sets of any standard

Flow Rate

0.1-1200 ml/h (in 0.1 ml/h increments)

Purge, Bolus

100-1200ml/h (in 1 ml/h increments)

Purge when pump stops, bolus when pump starts

Accuracy

±3%

VTBI

1-20000ml

Infusion Mode

ml/h, drop/min, time-based

KVO Rate

0.1-5ml/h

Alarms

Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby

Additional Features

Real-time infused volume, automatic power switching, mute key, purge, bolus, system memory, key locker, compact, portable, detachable, drug library, change flow rate without stopping the pump.

Occlusion Sensitivity

High, medium, low

History log

30 days

Air-in-line Detection

Ultrasonic detector

Wireless Management

Optional

Vehicle Power (Ambulance)

12V

Power Supply, AC

AC100V~240V 50/60Hz

Battery

12V, rechargeable, 8 hours at 25ml/h

Working Temperature

10-30℃

Relative Humidity

30%-75%

Atmospheric Pressure

860-1060hPa

Size

150*125*60mm

Weight

1.7kgs

Safety Classification

Class II, type CF
