Product Overview
Description
Dual LAN Linux system 7 inch industrial Embedded HMI Panel PC
Product Description
Main Features:
« 7’’ industrial touch panel pc running Linux system.
« ARM mother board with Cortex A8 1.0Ghz
« Memory: 512M Bytes DDR3 SDRAM+storage device 256M flash
« Plastic panel or alloy panel + Plastic back case and Fanless design
« 7’’ resistive / projected capacitive Touch screen
Introduction:
« IPPC-C7000T2 is an industrial touch panel PC with 7″ high brightness LCD, With resistive / Projected capacitive touch screen, the latest low-power ARM motherboard, 512M bytes DDR2 SDRAM+Storage device 256M flash. It has extensional storage Mirco SD, Max up to 32G. It comes with 1*RS232, 1* RS232 (test port ) ,2 *RS485 (4 *RS485 Optional ), 2*USB ports , 2*LAN, WIFI and 3G (optional ), support 9V~24V power input, Smart fanless-design.
« It has Installation methods: panel type, wall-mounted, VESA standard etc. and The product structure is very compact and robust with better vibration and resistance.
« IPPC-C7000T2 is a cost-effective industrial grade touch panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
Specifications:
Front panel uses high-strength Al-alloy with stand blasting oxidation and anti-scratch treatment .
|
CPU |
|
|
Display |
7″high-brightness LCD screen, 250cd/m2 brightness |
|
Resolution |
800 × 480 |
|
Memory |
DDR3 512MB |
|
Flash |
256 flash |
|
Network interface |
2 x 100Mbps Ethernet controller |
|
I/O
|
1 x RS232 COM , 1x RS232 (test port ) |
|
2 x RS485 com ( 4x RS485 optional ) |
|
|
2 x USB2.0 |
|
|
2 x LAN |
|
|
Support 9V~24V Power input |
|
|
Touch screen |
Resistive / Projected Capacitive touch screen(optional) |
|
Power Supply |
Supports 9-24VDC. kindly advice 24VDC or 12VDC. |
|
Power consumption |
3.12 W ( 12V, 260mA) |
|
Watch dog |
The time can be adjust |
|
buzzer |
Built-in , provides function control sound; |
|
WIFI |
Optional |
|
CAN |
Optional |
|
Operating system |
Linux system |
|
Fanless |
Fanless design |
|
Dimension |
192.5 mm (L) x 128.5mm(W) x 38mm(H) |
|
Installation |
Panel type, wall- mount, Table, bracket etc |
|
Net Weight |
0.5Kg |
|
Gross Weight |
Abt 2Kg |
|
Operating temp |
-10℃~60℃ |
|
Storage Temp |
-20℃~70℃ |
Ordering information:
|
IPPC - C7000T2 |
7″Industrial Panel PC,w/CPU: Cortex A8 1.0Ghz, W/RAM:512MB, w/256M flash,Support 12V / 24Vpower input, W/7’’Resistive / Projected capacitive touch screen, Support dual LAN , Support Linux system. |

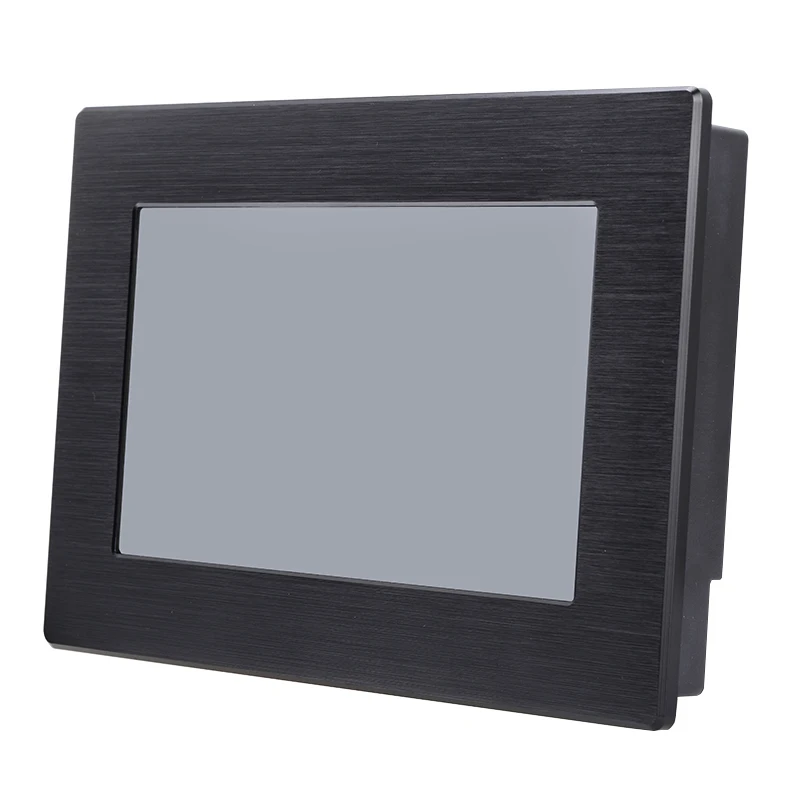

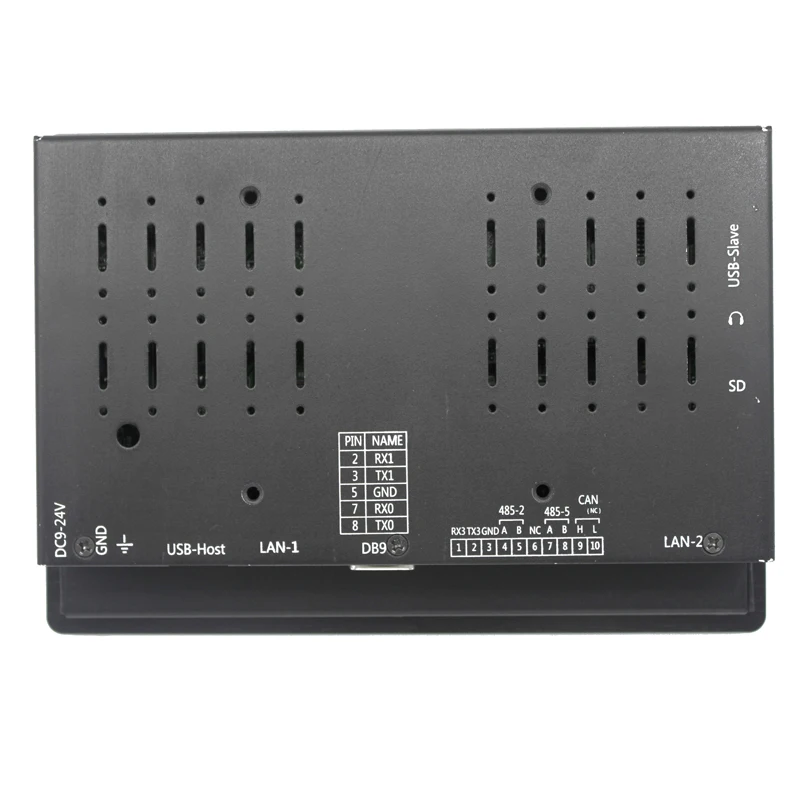

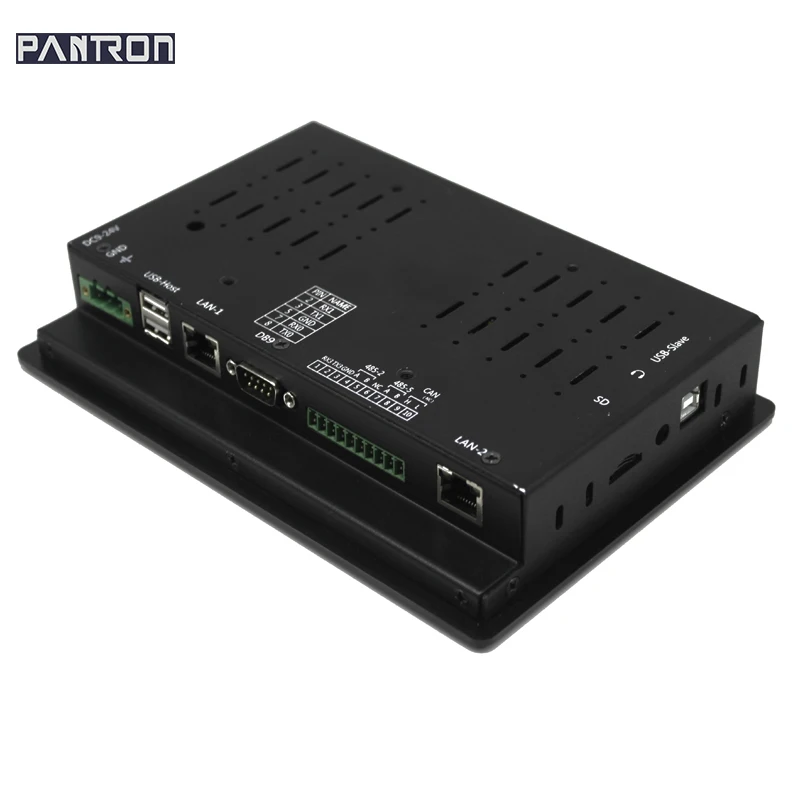

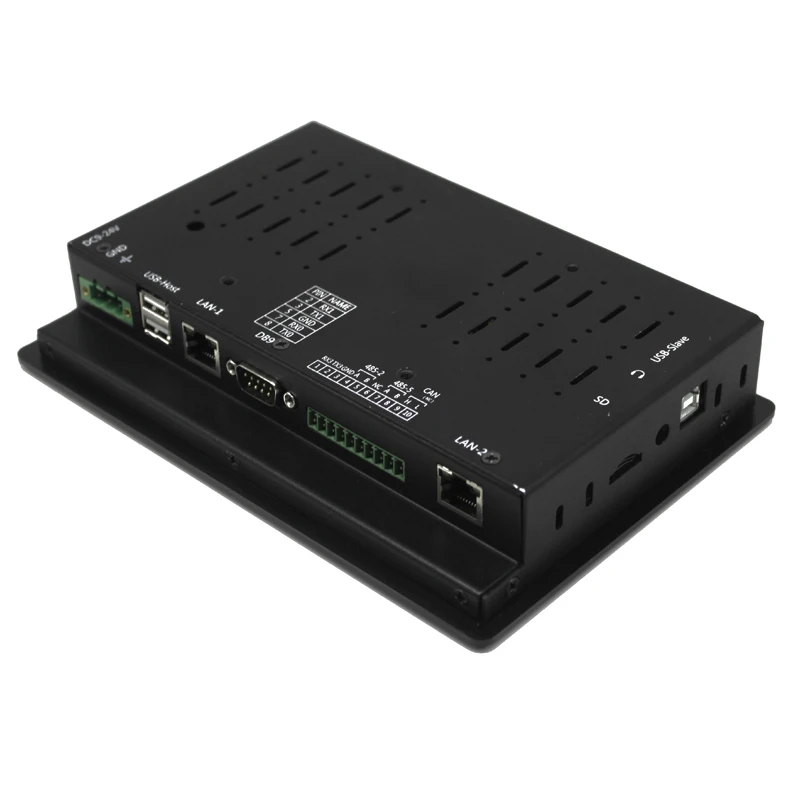

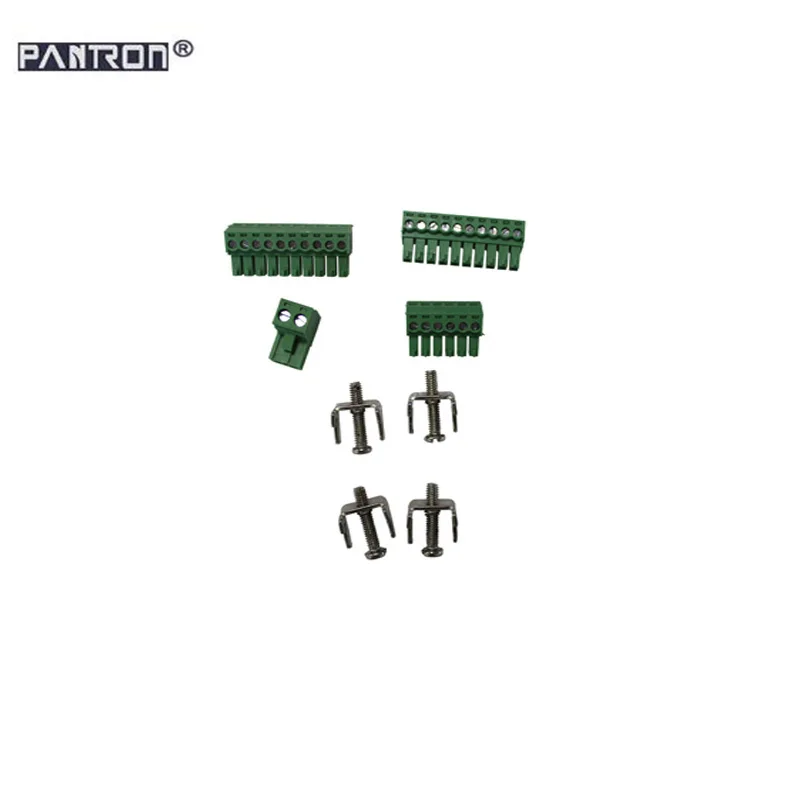

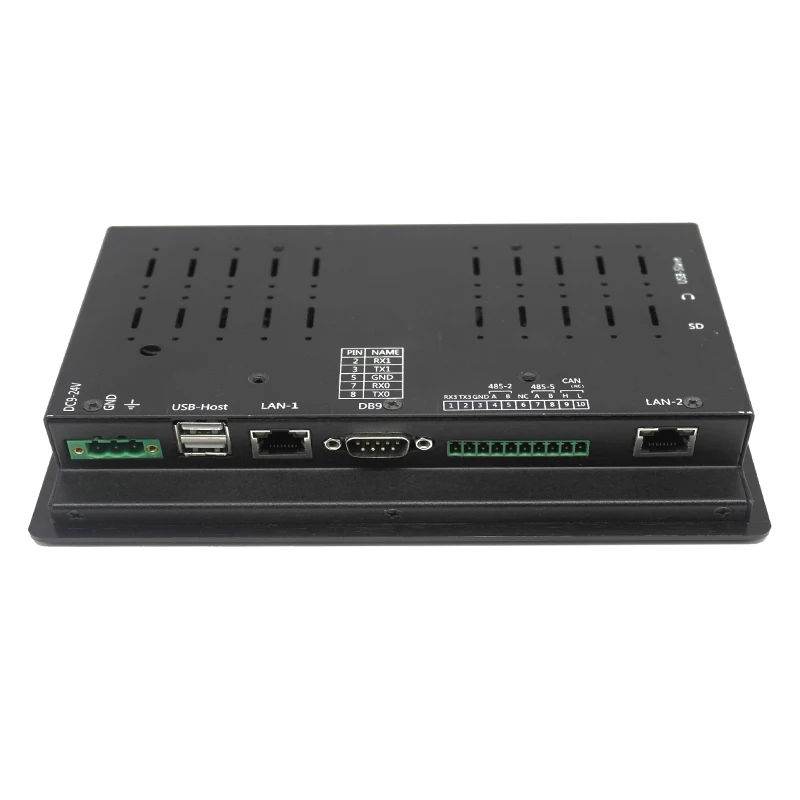

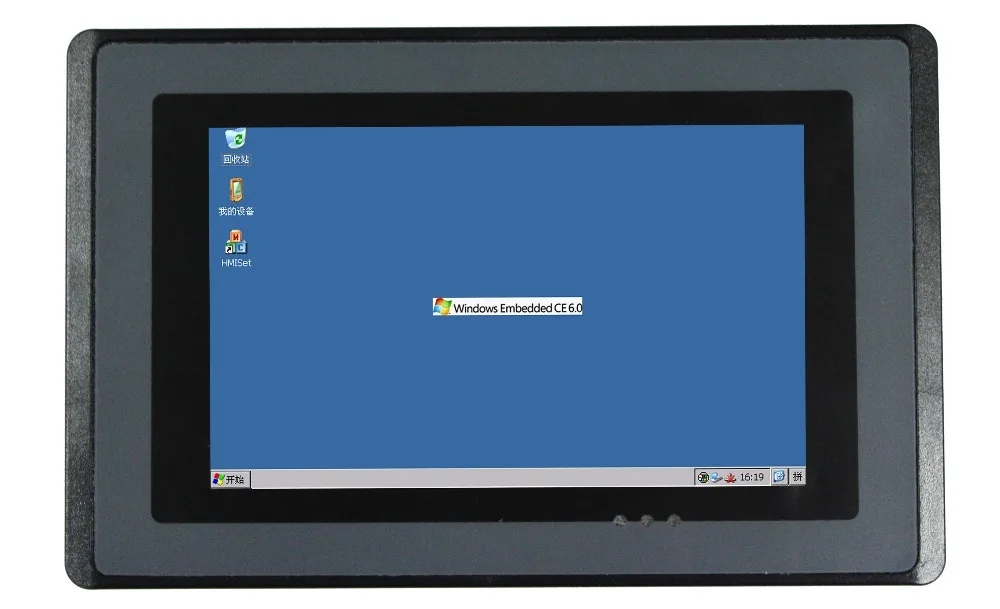

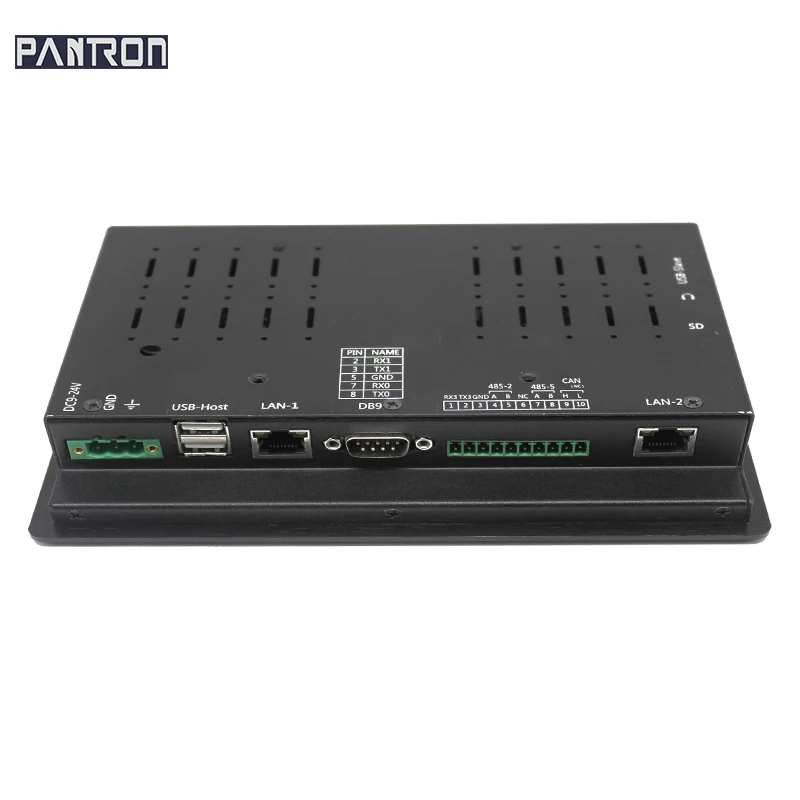

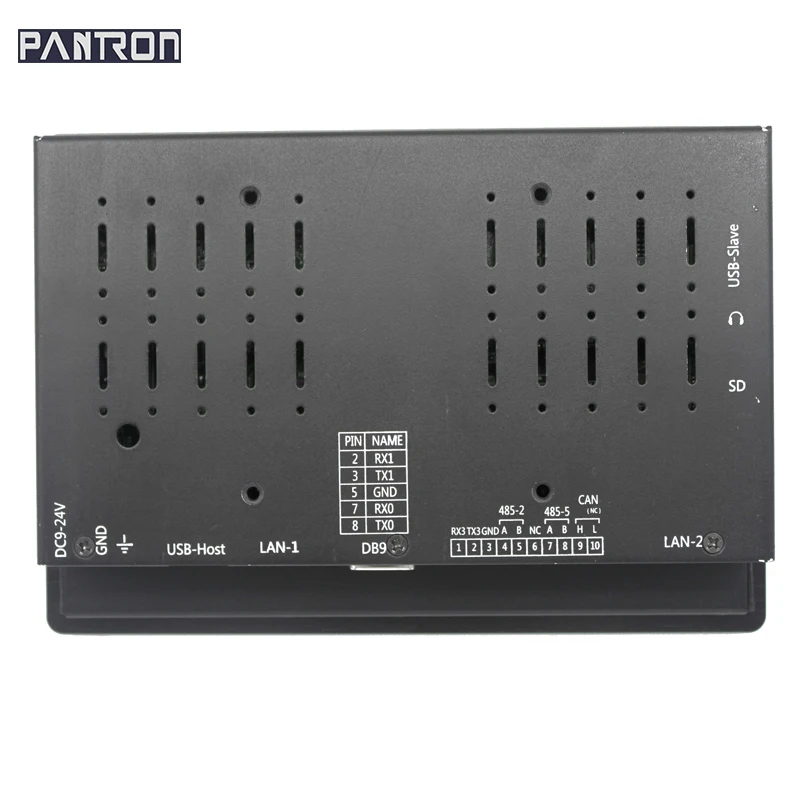

Product pictures:
