Smart Handheld Pos Terminal With Bluetooth GPRS WIFI MODEL S1000 POS
- Category: >>>
- Supplier: Shenzhen Justtide Tech Co. Ltd.
Share on (60749014961):
Product Overview
Description

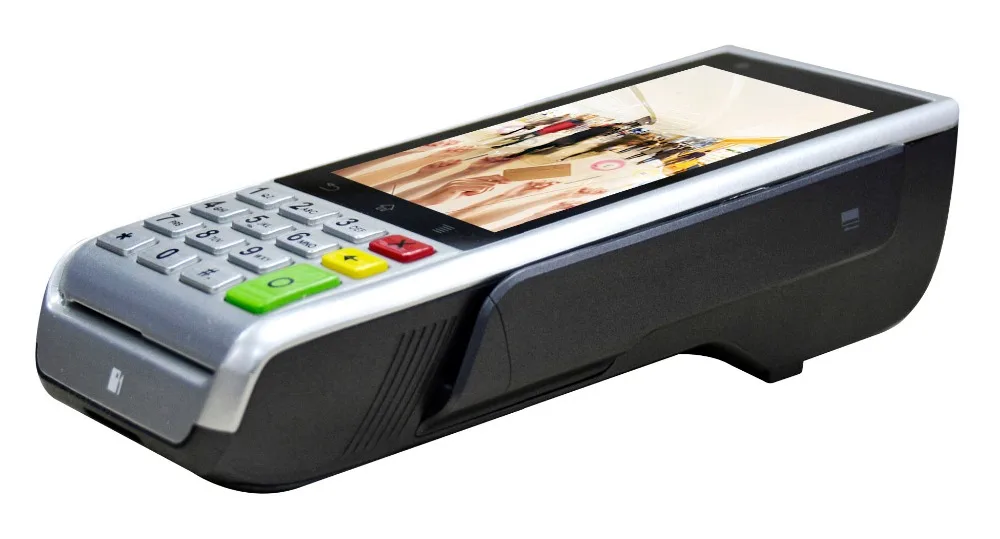

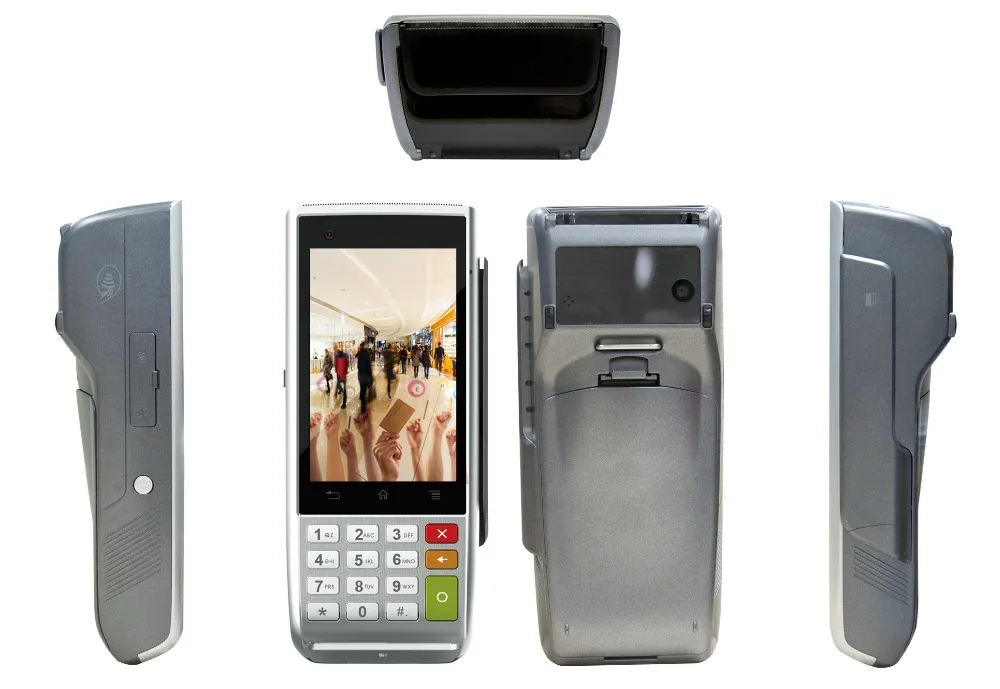

Product Show

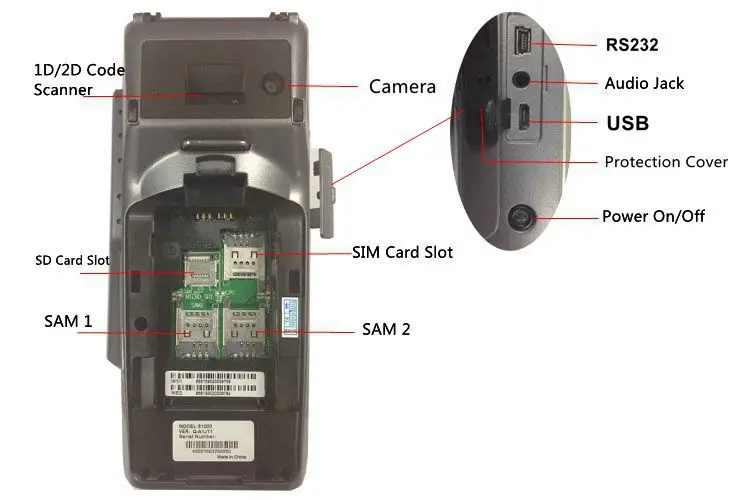

1.2 Inside Show
1.3 Multi-Pay:
Mag-stripe Card,Contact IC Card,Contactless IC Card
1.4 Multi-function
Smart Card Reader/Receipt Printer/1D&2D Barcode Scanner/Fingerprint Sensor/Camera
2. Specification
| Model | S1000 |
| Version | 4G Version |
| Certificate: | EMV Level 1 & 2, PCI 4.x |
| Processor | ARM Contex A7 1.1 GHZ Four-core CPU |
| Memory | Host System: 1G byte DDR3 SDRAM; 8G byte eMMC(iNAND); |
| Security System:256 KB flash; 12KB SPAM; 256-Bit, battery-backed, Flip-flop-Based Secure Key Storage; Delicated Cryptographic Memory Space; 4 pair dynamic sensors | |
| OS | Android 5.1 |
| Free SDK | Java, HTML SDK |
| Security | 3DES, Master/Session and DUKPT |
| Power Supply | AC input 100 - 240V, 50/60 Hz;DC Output 5V 1A (MICRO USB ) 3.8V 4500mAh Li-polymer battery |
| Card Slot | 2 SAM+1 SIM+ 1 SD |
| Communication | Wi-Fi(802.11 b/g/n)+Bluetooth(Btclass 4.0-EDR)+GPS |
| 2G: GPRS 850/900/1800/1900MHz 3G: WCDMA 1900/2100MHz; 4G: TD-SCDMA B34/39; LTE-FDD B1/B3; LTE-TDD B38/B39/B40/B41 | |
| Interface | 1*Mini USB, 1*Micro USB, 1*Audio Jack |
| Printer | Thermal, 8dots/mm,50mm/s, roll paper 58* 30mm |
| IC Card Reader | Support EMV & ISO7816 |
| Magnetic Card reader | Support Track 1&2&3, bi-direction |
| NFC Card Reader | Support ISO14443 TYPE A&B,FELICA, MIFARE |
| LCD+Touch Screen | 4.5" (capacitive 2 point touch); Resolution: 960x540, backlit |
| Silicone keypad | 10 numbers +5 function keys |
| Camera | 5M pixel(back) 0.3 mega-pixel(front) |
| 1D/2D Code Scanner (optional) | D/2D code both can scan; 1D. EAN; 2D. QR |
| Fingerprint Sensor (optional) | Capacitive; Scan area size: 12mm*14.74mm; Active sensing area: 10.63mm*14mm; Fingerprint pixel: 152*200; DPI: 363; Spatial resolution: 363 DPI; Wear-and-tear:>1 million; |
Package info
| Package Dimension: | 180*80*50mm | G.W | 0.90 Kg/box |
| Carton Dimension (10 units/carton): | 230*150*60mm | G.W. | 9KG/ctn |
Company Show
Shenzhen Justtide Tech Co., Ltd.
•Year Established:2004
•R&D Team:50% of the R&D staffs come from senior experts, the patent holders and oversea returnees over eight years experience in the field of secure payment.
•Main Business:Self-service Terminal, VTM, Smart POSTerminal, Encrypting PIN Pad, Smart Card Reader, ID verification Equipments, Mobile Internet O2O Service Solution, Prepayment Card Solution andVideo Banking Solution etc.
•History Background: In financial security payment industry, Justtide is the sole company invested by CHINA MERCHANTS GROUP , since 1872, which possesses dozens of the most known listed companies in China and Fortune Global 500, such as: CHINA MERCHANTSBANK CO.,LTD.(600036), PING AN BANK CO.,LTD.(000001),
2. Team & Exhibitions
3. Production Line
4.Certifications
5. Application
Jusittide POS Terminal applied in Financial POS System and Commerce POS System
