Product Overview
Description
Full Automatic Powder Coating Line Equipment / Powder Coating Spraying Machine
MDF automatic spray painting line
Product Description
This scheme takes account of advancement of technology and well meet the quality requirements of the products. All the equipments are designed and selected reasonably based on the producing requirements of the products to achieve various technical parameters:
(Automatic Powder Coating Complete Production Line For Metal)
*All the devices are advanced, reliable, safe, economical and practical, in which main devices
and parts are from high-quality and famous-brand products at home;
* General parts and standard parts are employed in self-made equipments in the structure
design wherepossible to improve the degree of automation. Meanwhile, this design pays
attention to production environment and occupational health conditions.
*The Overall arrangement of painting line is based on the rationality of the entire painting line
to make the layout of the equipments coordinate, neat, artistic and be convenient for operation
and maintenance.
It consists of automatic powder coating booth with reciprocator &automatic powder coating gun,powder recycling unit,powder supplying hopper, electrical/diesel/LPG fired curing oven,conveyor and control panel.
*Pre-treatment system : Automatical Spraying pre-treatment and immersion pre-treatment are available;
*Drying oven : Drying oven which drying the water after pretreatment is designed according to custmoer
actual conditions.
*Powder coating spray system: Auotmatic spray reciprocator , Maunal spray equipment and Semi-auto (Auto-spraying with manual reparing spraying) are for your choice;
*Powder recycling system: Cyclone equipment and cartritdge filters is customized and introduced
according to actual requirement by customer;
*Curing oven : Tunnel curing oven, bridge type curing oven, Electric power heating curing oven,
Gas-heating curing oven, Diesel heating curing oven ,High temperature ,lower temperature curing oven
is available for fitting your sole factory.

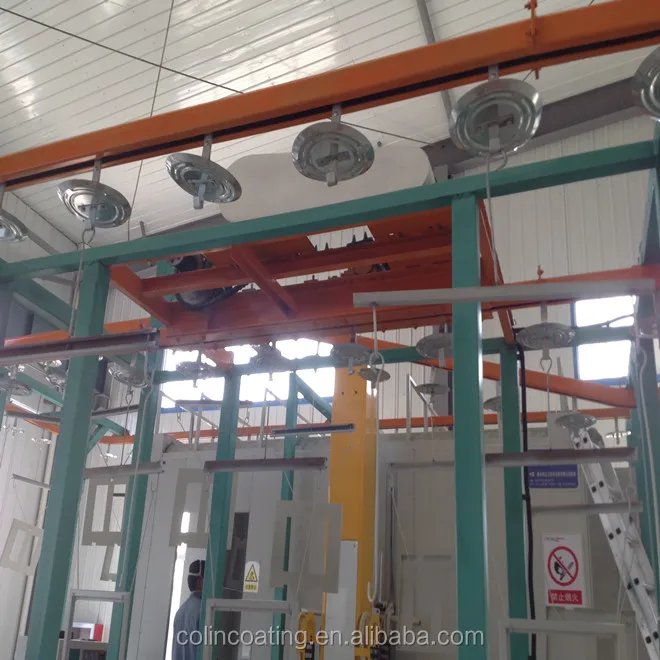

*Conveying system: Various design according to different requirement by customer on the basis of
customers' workpiece and output information.
For Example :
powder coating booth specification:
Automatic Powder Coating Complete Production Line For Metal
| No. | Item | Description |
| 1 | size | 6300*1500*2500mm |
| 2 | wall panel | 2mm thick painted cold rolled steel sheet |
| 3 | Entrance opening | For work pieces in and out of powder coating booth easily. |

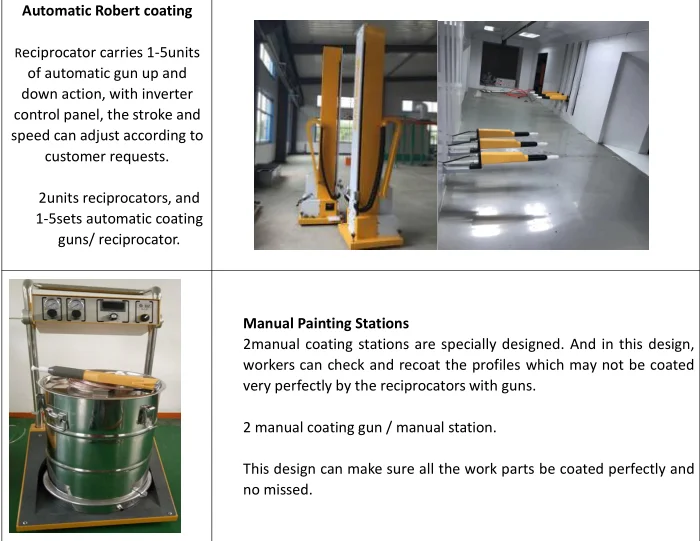

| 4 | Automatic Robert coating | Reciprocator carries 2units of automatic gun up and down action, with inverter control panel, the stroke and speed can adjust according to customer requests. One reciprocator with four sets automatic powder coating gun . |
| 5. | Manual Painting Station | 2manual coating stations are specially designed. And in this design, workers can check and recoat the profiles which may not be coated very perfectly by the reciprocators with guns. 2 manual coating gun / manual station. This design can make sure all the work parts be coated perfectly and no missed. |
| 6 | recycling system | Mono Cyclone system and reverse dust extraction system will make sure the powder be collected and recycled maximum, and make sure no powder exhaust inside the building. 12units of filter cartridge, each filter size: 324*900mm, with 16sets of pulse shaking device. Air compressor pressure:0.4-0.6MPa,valve pressure:0.8Mpa Filter cartridges is 1um. The filters have been tested many times at our workshop, and the results show that the 1um filters can extract the powders and dusts very efficient. 2sets of 5.5KW 4-72-4A fan. Each fan air flow capacity:4012-7419m³/h Pressure is 2014-1320Pa, speed is 2900r/min. |
| 7 | lighting systen | ceiling light:8 units of anti-explosion lights |

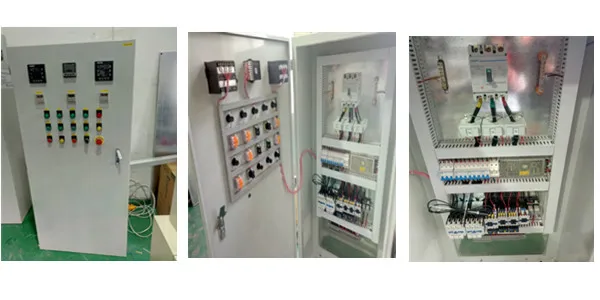

| 8 | contorl system | electric control box, power on/off control,fan control,lighting controls,pulse controls,emergency stop |

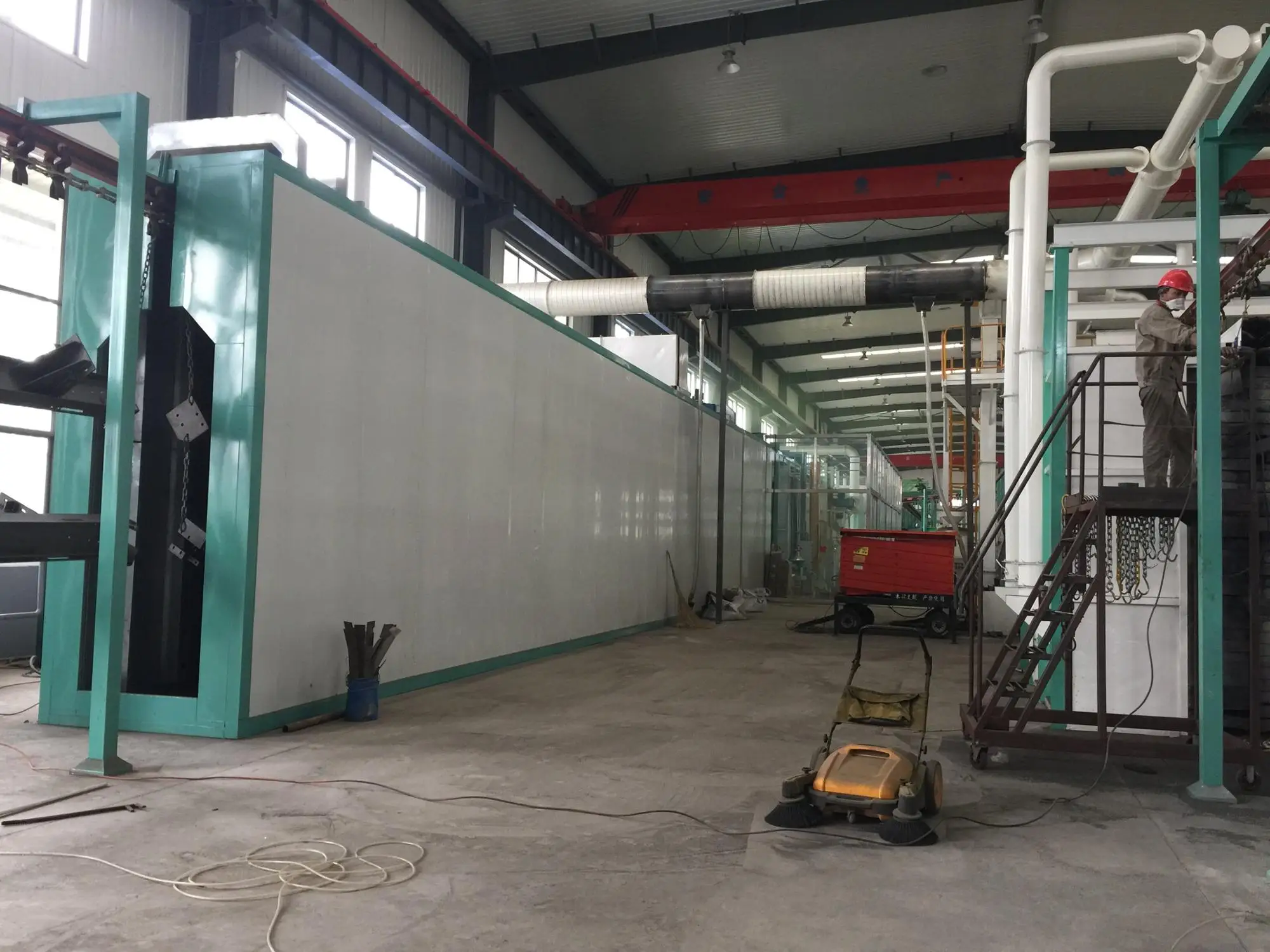

powder coating oven specification:
Automatic Powder Coating Complete Production Line For Metal
| No. | Item | Description |
| 1 | Size | 17000*900*4000mm ( LxWxH) |

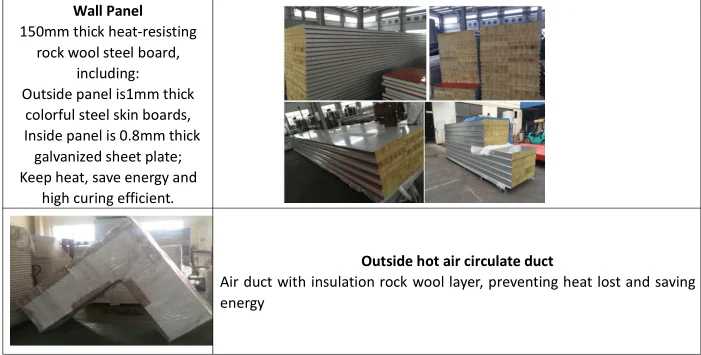

| 2 | wall panel | 150mm thick heat-resisting rock wool steel board, including: Outside panel is1mm thick colorful steel skin boards, Inside panel is 0.8mm thick galvanized sheet plate; Keep heat, save energy and high curing efficient. |
| 3 | fan | 1 set 5.5kw high-temperature fan, air flow capacity:9000m3/h fan and burner box inner is 1.2mm thick stainless steel, out is aslo 150mm thick rock wool panel to keep heat |
| 4 | heating system | Natural Gas Heating System; 1unit RS34 Riello Brand Natural Gas Heating Burner, supply heating 340000Kcal/ Hour. max temp:250℃,heating time:20-25 min(180-250℃) SUS304 stainless steel heating exchanger, argon arc welding; |
| 5 | control system | temperature alarm(with inductor in the oven),stop button,process setting system,could set baking time and temperature when baking |
| 6 | Circulation Fan | 1unit 7.5kw Y5-48 6.3C fan, high-temperature resistance. Air flow capacity: 6737-12511 m3/h, air pressure is 1798-1221 pa, 2000r/min. |

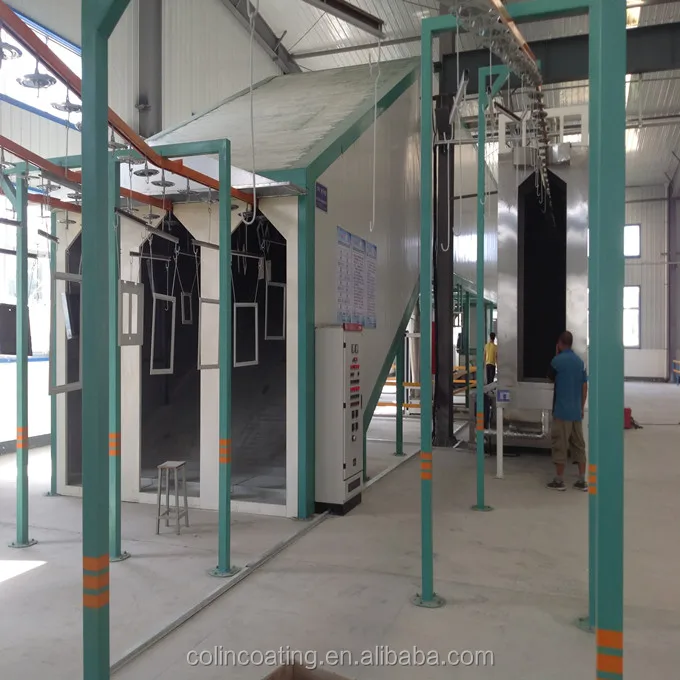

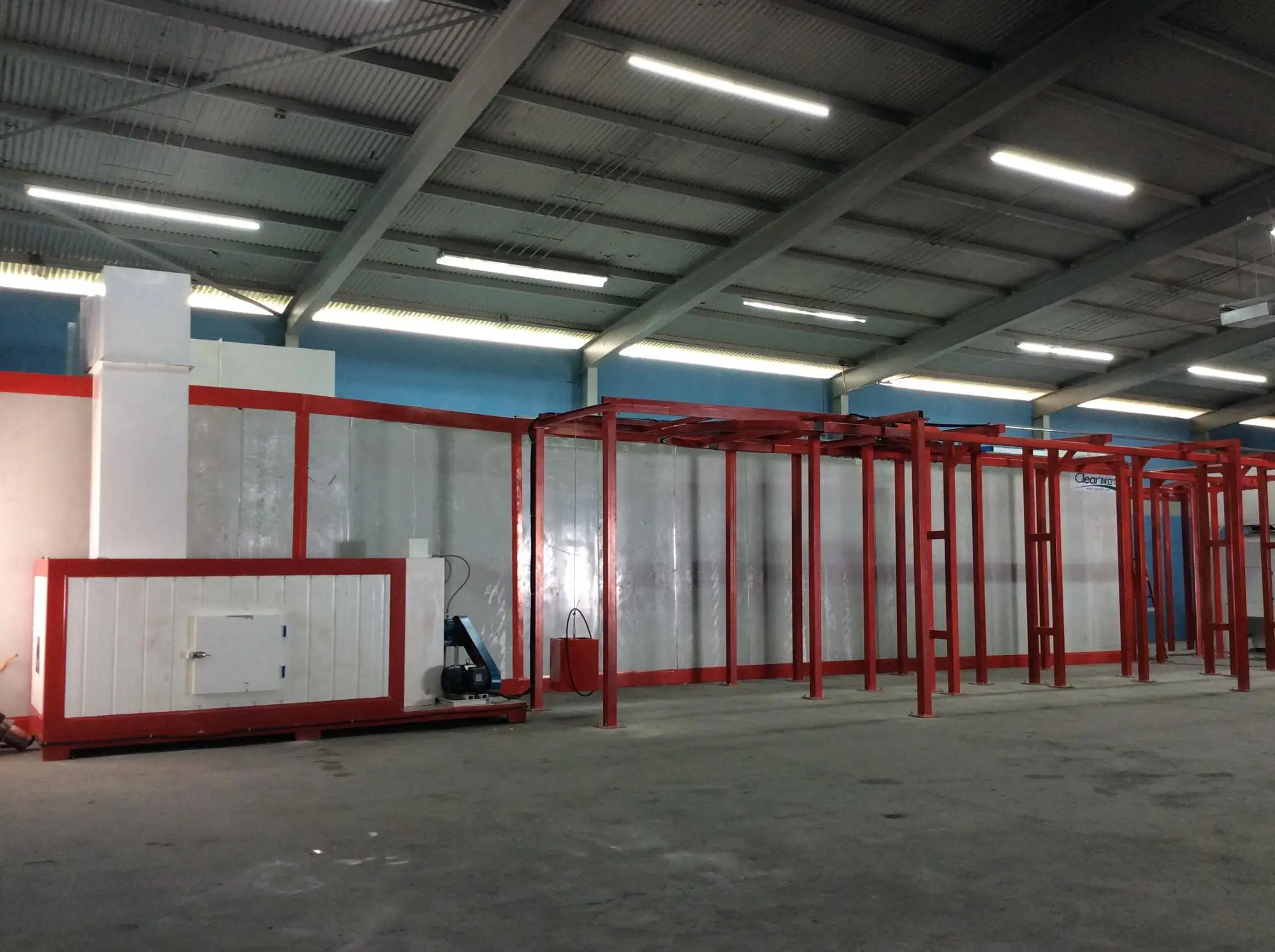

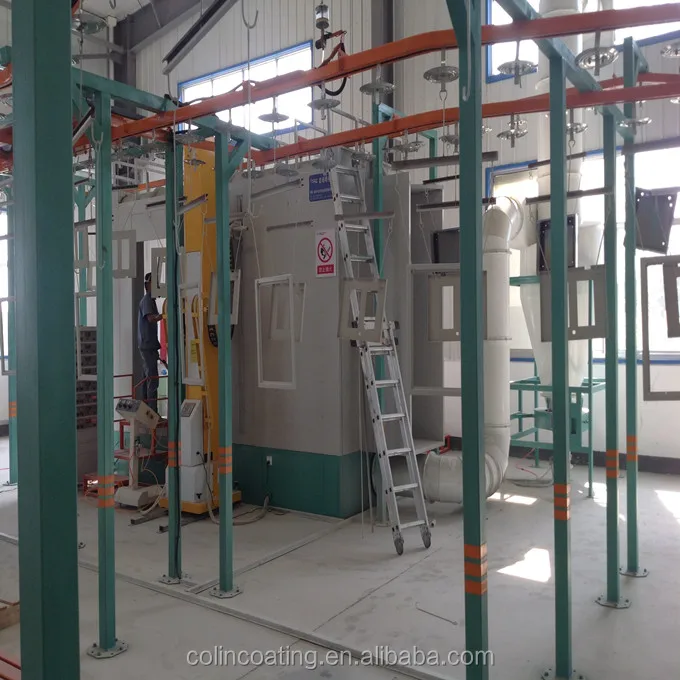

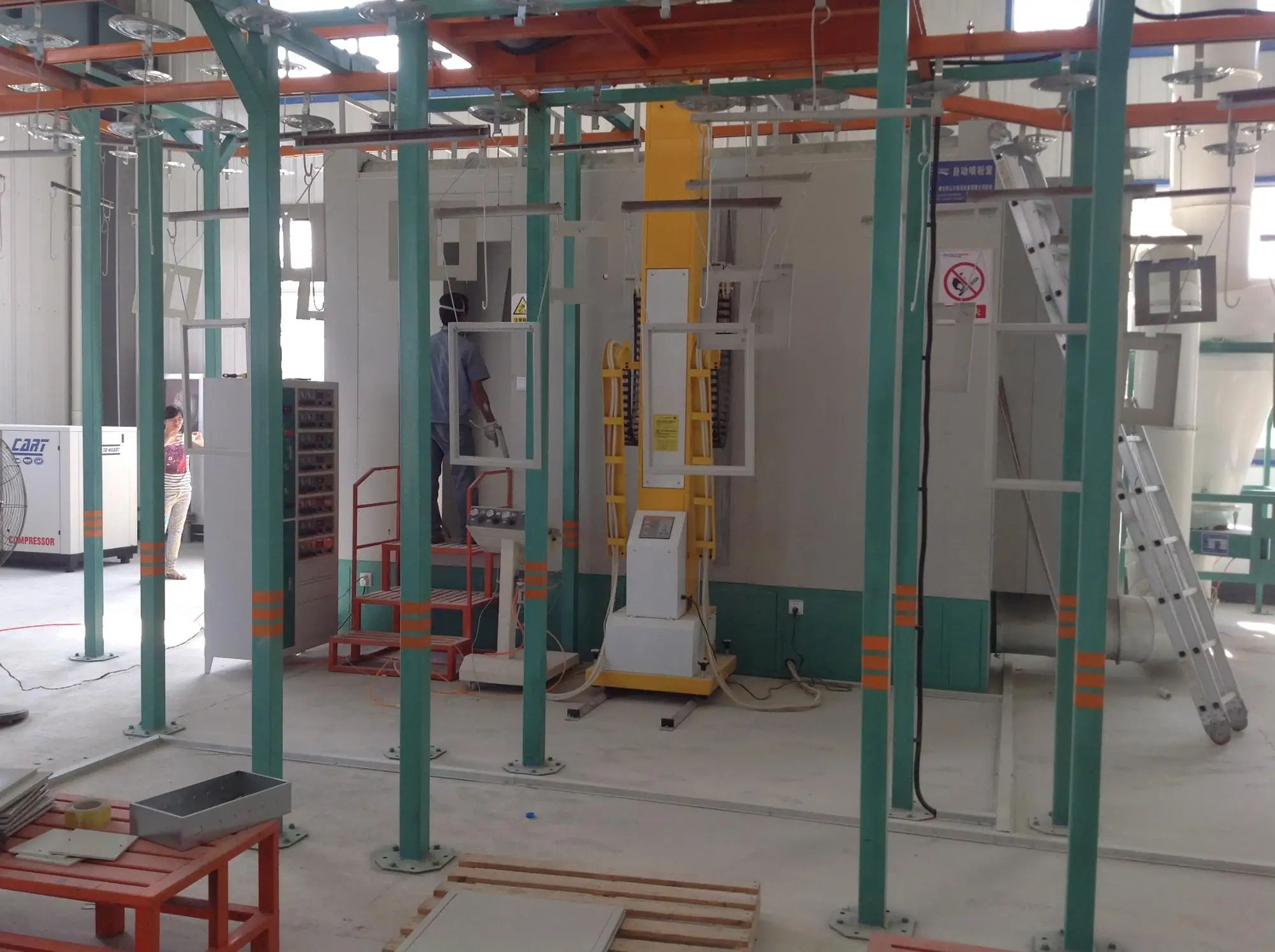

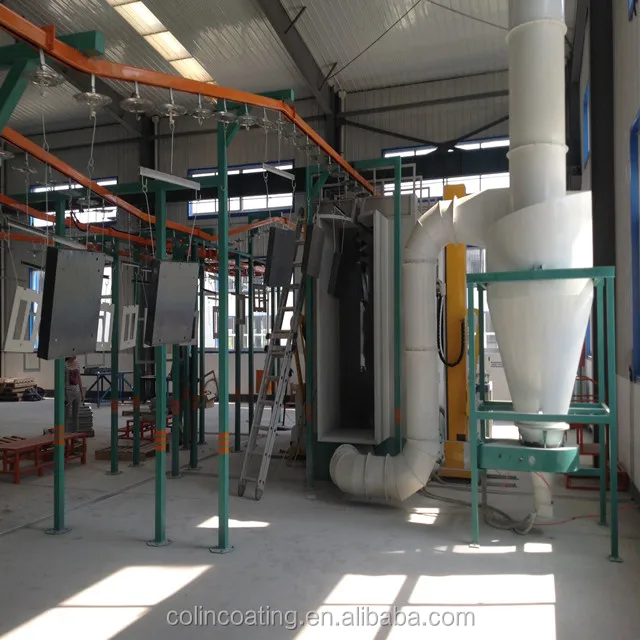

Actual case picture show :
(Automatic Powder Coating Complete Production Line For Metal)
1.This Automatic powder coating line for electric cabinet
2. The automatic powder coating line for Supermarket basket :
(Automatic Powder Coating Complete Production Line For Metal)
3. The Automatic powder coating line for square tube .
(Automatic Powder Coating Complete Production Line For Metal)
\\

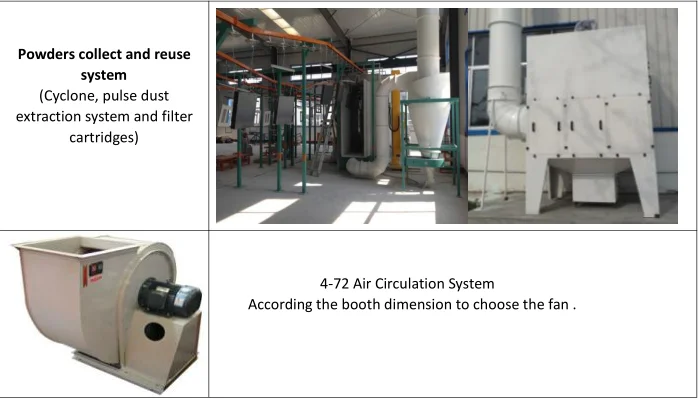

The parts for Automatic powder coating line :
Automatic Powder Coating Complete Production Line For Metal
Colin Company : (Automatic Powder Coating Complete Production Line For Metal)
Yantai Colin Coating Equipment Co.,Ltd is a professional environmental equipment manufacturer with over 15years experience. Colin produces varied coating equipment like powder coating machine, powder coating booth, powder curing oven, powder coating reciprocator, powder coating production line, Full Automatic Powder Coating Line Equipment Powder Coating Spraying Machine,cyclone recovery system, hot air drying oven, drying boxes and drying tunnel, hanging conveyor, automatic spray pre-treatment ,etc.
Welcome to visit our website for your references: www.colincoating.com or www.colincoating.en.alibaba.com

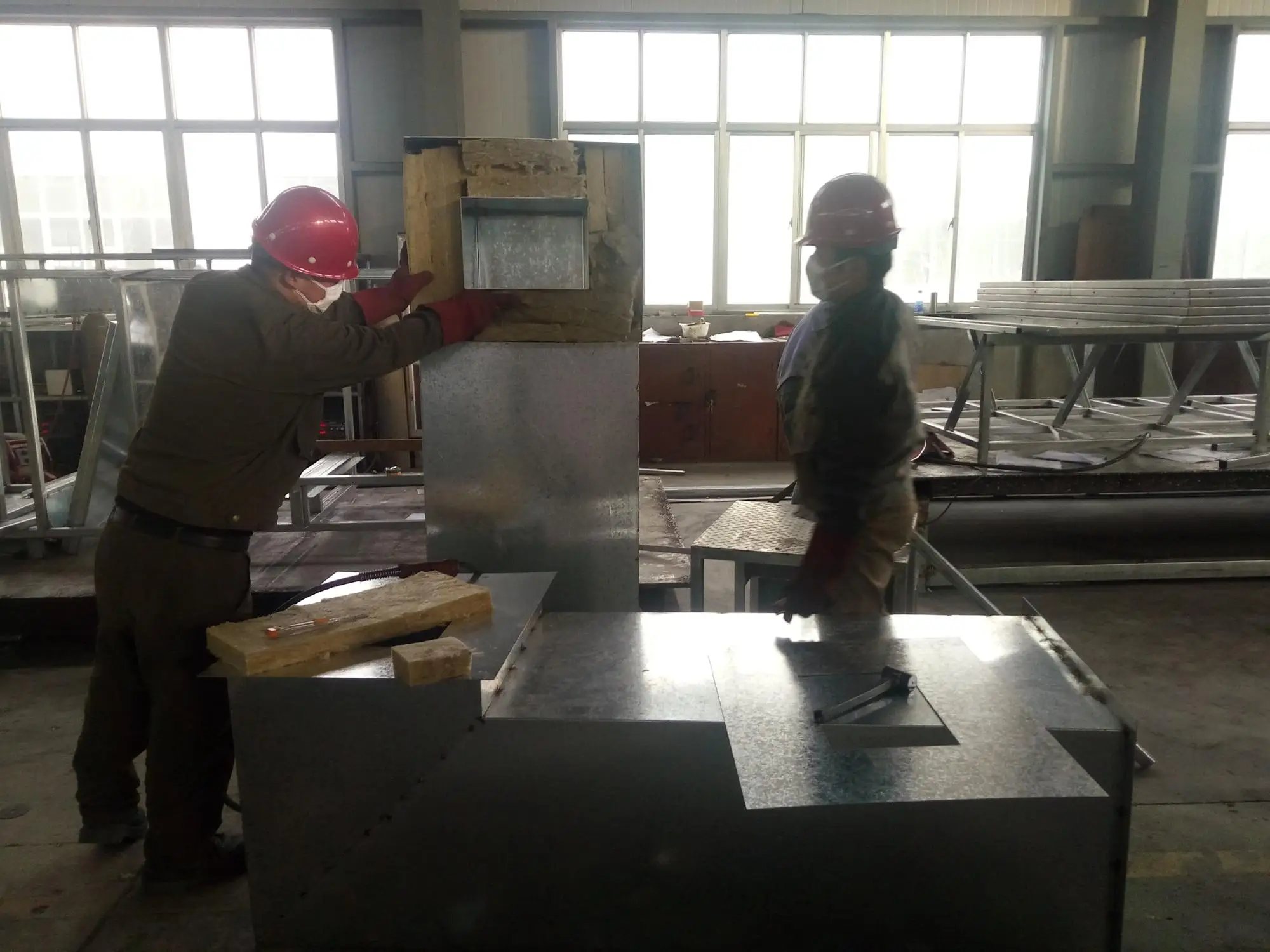

Every nice bending, welding, fixing, powder coating, packaging and delivering are from their hands. They treat their work be the most serious jobs as they know how much important their works for clients. All of our works are making sure both the design and the productions be good quality, high efficient, lower costs and easier operations. We believe these works will give you a nice trading experience.
