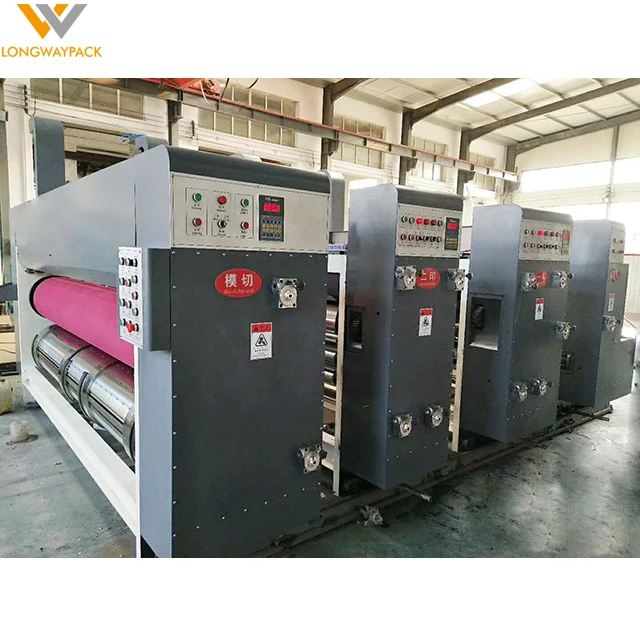

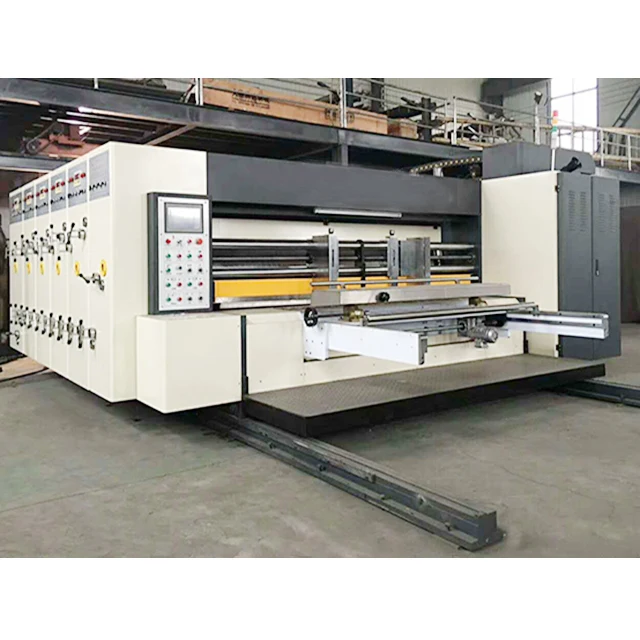

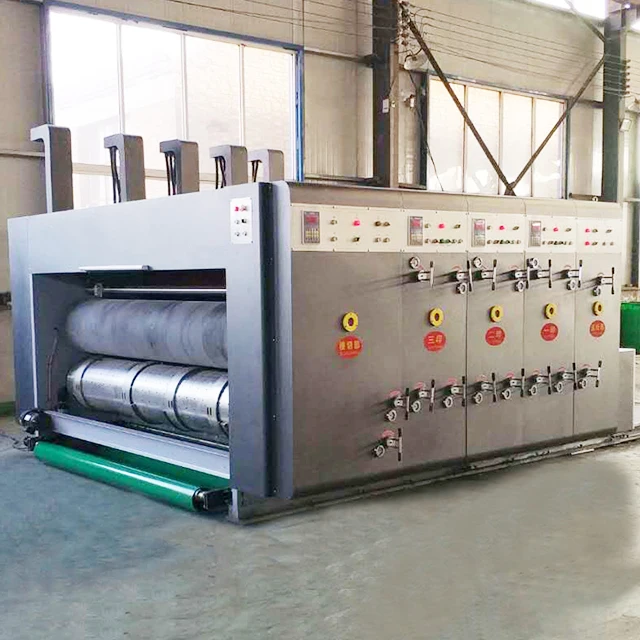

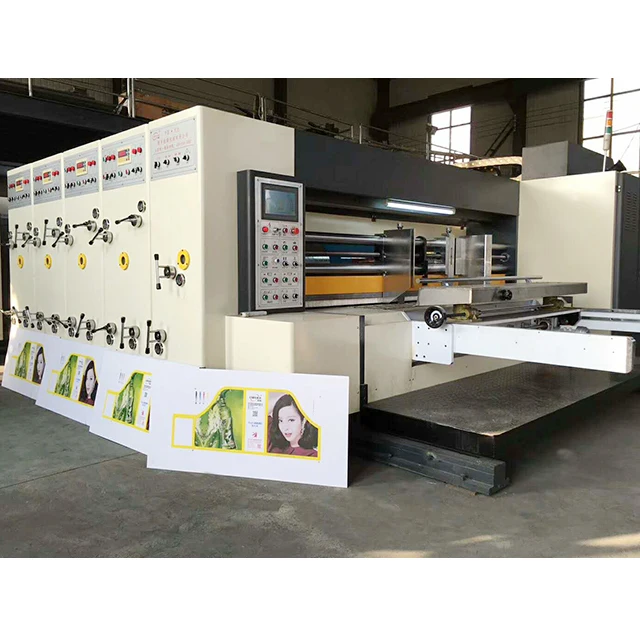

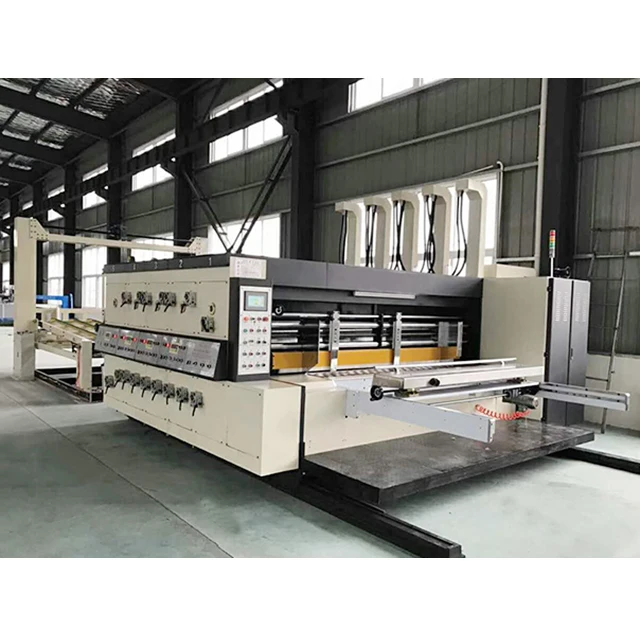

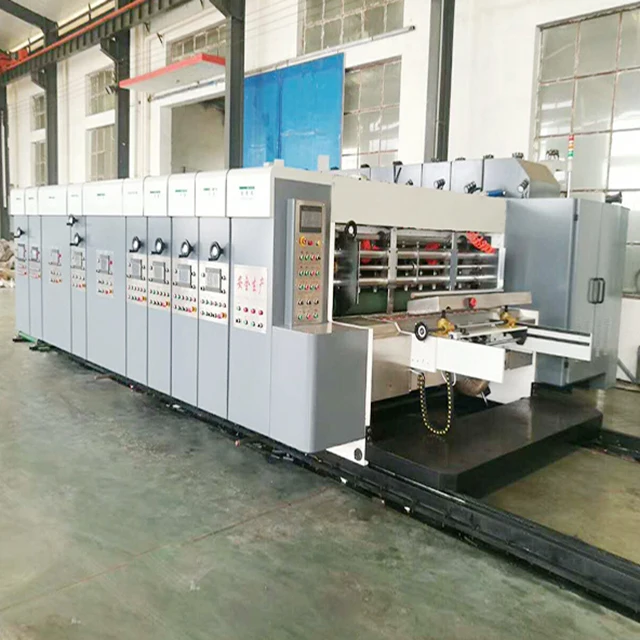

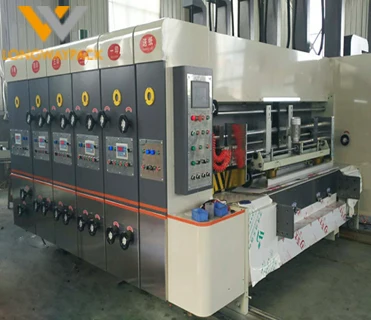

carton box making machine Automatic corrugated cardboard carton box flexo die cutter / printing machine / carton slotter

Machine Feature:

1.Cast iron of good anti-seismic performance with the thickness of 60mm is used for the wall of the machine to ensure steady transmission and accurate joint of the gears. It is processed and finished by the high precision machining center at a time, to increase the accuracy. The accurate level gauge is used to adjust when installing the machine.

2.Good quality of steel is used for all the transmission shafts and rolls, high precision dynamic balance adjustment to ensure the steady transmission; All the transmission shafts and rolls are polished and plated hard chrome to make sure of the durability.

3.All the driving gears adopt high quality low carbon alloy steel(20CrMnTi), the teeth are ground and the tooth width reach 60mm.

4.Connect collars with no bonds are used for the whole machine to eliminate clearance, fit for high speed printing. And for the key transmitting parts.

5.Spraying circulation is adopted to lubricate the gears, two oil pumps, and circulating oil supply, self-poise of the level of oil. There is no need to let out the oil, and no leaking of oil will happen.

6.Electric separation and unite of the sections of the machine. Pneumatic lock, auto brake when separate to guarantee no printing dislocation.

7.The alarm rings continuously when the machine moves to ensure safety of the workers.

8.PLC, multifunction touching screen frequency converter control of the phase adjustment in the printing section, die cutting section. Easy to operate and control.
