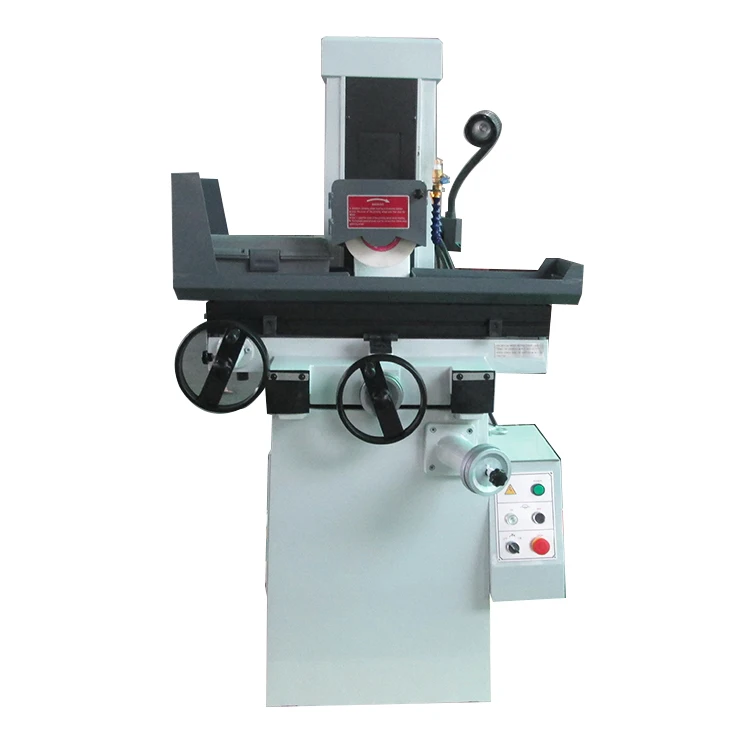

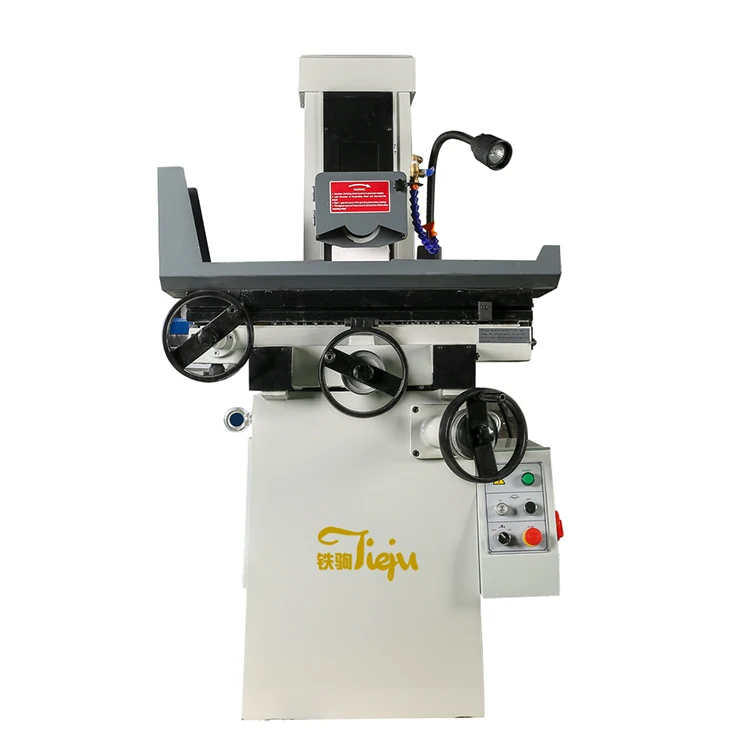

Cheap M618A Small Low Cost Manual surface grinding machine
- Category: >>>
- Supplier: Yancheng Dafeng Long-Range Machine Co. Ltd.
Share on (60749087745):
Product Overview
Description
Cheap M618A Small Low Cost Manual surface grinding machine
Model | M618A | |||
Working table | Table Size (L× W) | mm | 460×180 | |
Max movement of working table(L× W) | mm | 500×190 | ||
T -Slot number×width | mm | 1×14 | ||
Grinding head | Max distance from spindle center to table surface | mm | 335 | |
Wheel Size(Outer diameter×width×Inner diameter) | mm | φ180×13×Φ31.75 | ||
Wheel speed | 50HZ | r/min | 2850 | |
60HZ | 3440 | |||
Feed amount | Vertical feed on handwheel | Per revolution | mm | 1.25 |
Per graduation | mm | 0.01 | ||
Cross feed on handwheel | Per revolution | mm | 2.5 | |
Per graduation | mm | 0.02 | ||
Motor power | Spindle motor | kw | 1.1 | |

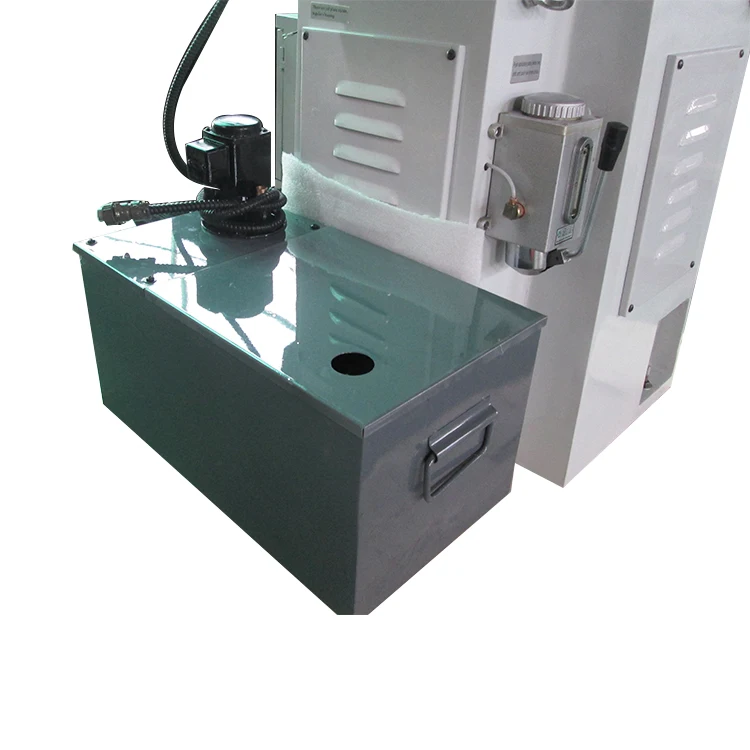

Coolant pump motor | w | 40 | ||
Working precision | The parallelism of working surface to base level | mm | 300:0.005 | |
Surface roughness | μm | Ra0.32 | ||
Weight | Net | kg | 650 | |
Gross | kg | 750 | ||
Overall dimension(L×W×H) | mm | 1550x1150x1590 | ||
Package dimension(L×W×H) | mm | 1000x1150x1760 | ||
1.We have passed through the ISO9001:2008 system
2.We have CE certificate for our products
3.We are the manufacturer of surface grinders for over 14 years
Kweihung Chien
Tel:8615261971289
Whatsapp:8615261971289
Skype:kweihung
Add:No.8,Daqi Road,Development Area,Dafeng Zone,Yancheng City,Jiangsu Province,China
