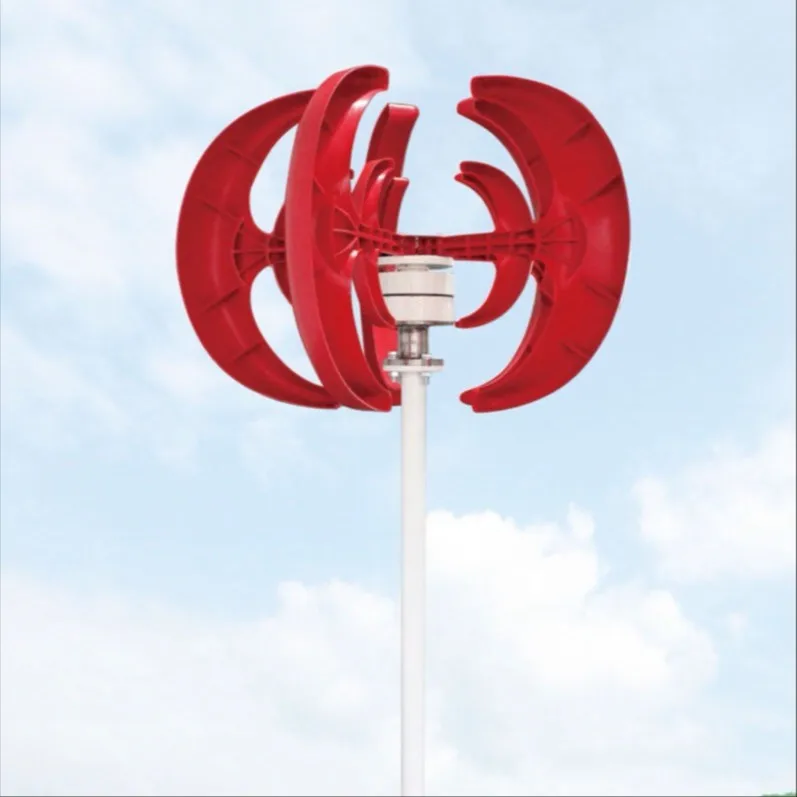

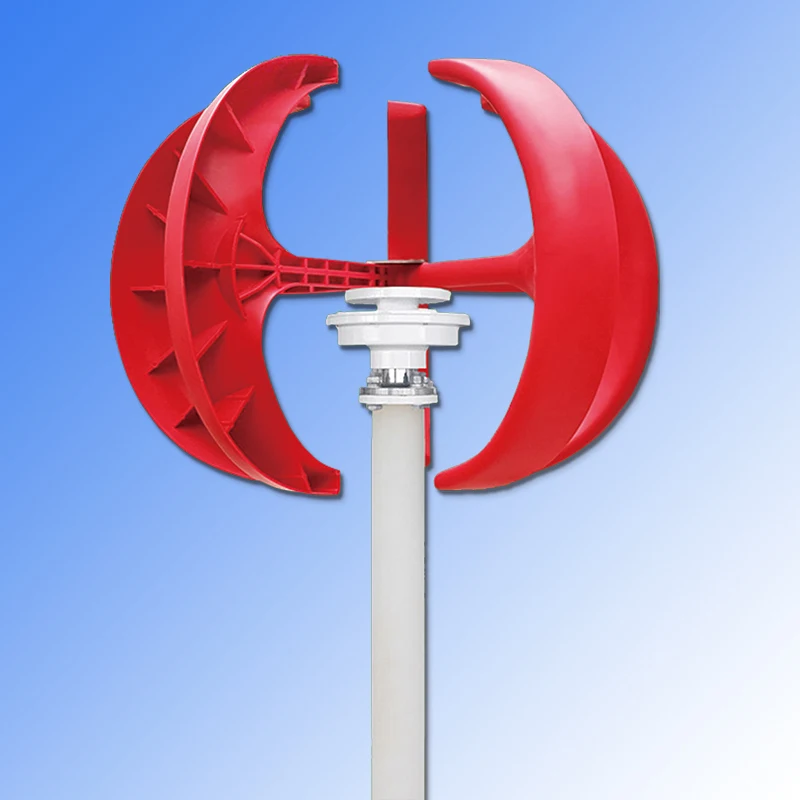

Turbine wind 300w New
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60749093979):
Product Overview
Description
Product Introduction
Features:
1. Low start up wind speed, compact, light with little vibration
2. Easy installation, flange connection
3. Blades using nylon fiber matched with optimized aerodynamic shape and structure, color optional
4. Patented permanent magnet AC generator with special stator (maglev generator), effectively reduce torque, make only 1/3 torque of ordinary generator, well match the wind wheel and generator, ensure the performance of whole system
5. Adopting MPPT intelligent micro controller effectively adjusts current and voltage
Product Parameters
| Model | LS-300R |
| Rated power | 300W |
| Maximum power | 310W |
| Rated voltage | 12/24V |
| Start up wind speed | 2m/s |
| Rated wind speed | 11.0m/s |
| Survival wind speed | 45.0m/s |
| Top net weight | 12.0kg |
| Wheel diameter | 0.9m |
| Blades number | 5 |
| Blades material | Nylon fiber |
| Generator | Maglev generator |
| Control system | Electromagnet |
| Speed regulation | Automatically windward |
| Working temperature | -40 to 80°C |
| Design lifespan | 20 years |
| Certifications | CE, ISO 14001, ISO 9001 |
